Patsas French 4x4 Light Armored Vehicle
Patsas
Light Multi-Role Armored Vehicle
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
Patsas French 4x4 Light Armored Vehicle
Designation
Patsas
Alternate Designation
Patsas
Equipment Type
Light Multi-Role Armored Vehicle
Manufacturer
arquus
Date of Introduction
2010
Description

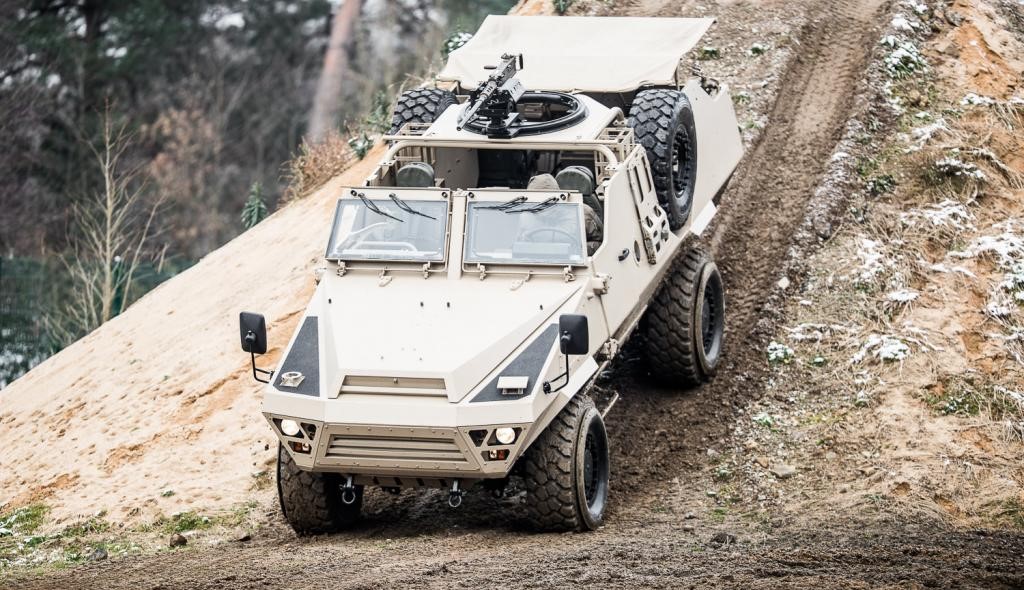

The Patsas French 4x4 Light Armored Vehicle is a light, open-bodied armored vehicle especially designed for Special Forces. The Patsas can be carried internally by helicopters for deployment on reconnaissance, direct action and logistics missions.
Ground Specifications
Crew
2
Mobility Type
Wheeled (4x4)
Main Weapon
12.7 mm machine gun or 40mm automatic grenade launcher
Engine
Diesel (175 hp)
NBC Protection
Yes
Max Speed
110.0 km/h
Range
1000.0 km
System
Alternative Designation
Patsas
Type
Light Armored Vehicle
Manufacturer
arquus
Configuration
4x4
Crew
2 ea
Passengers
3 ea
Accessories

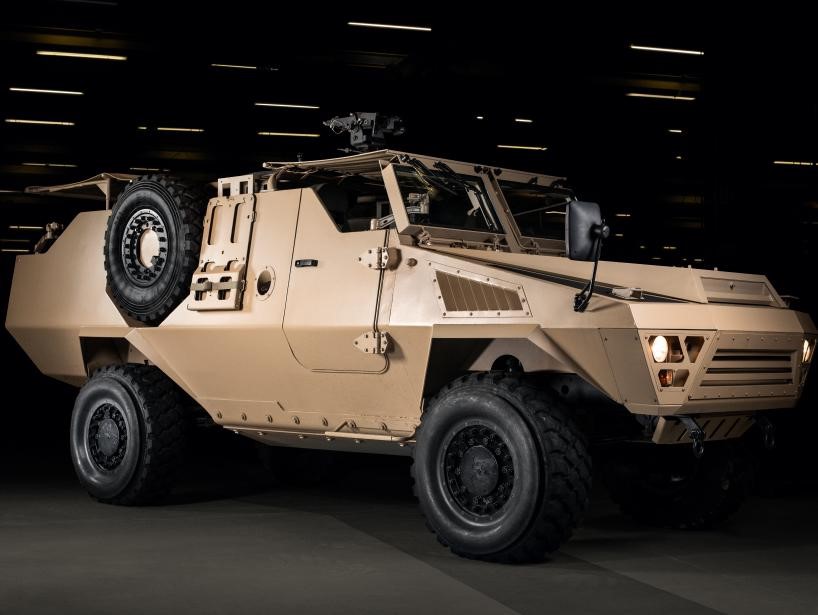

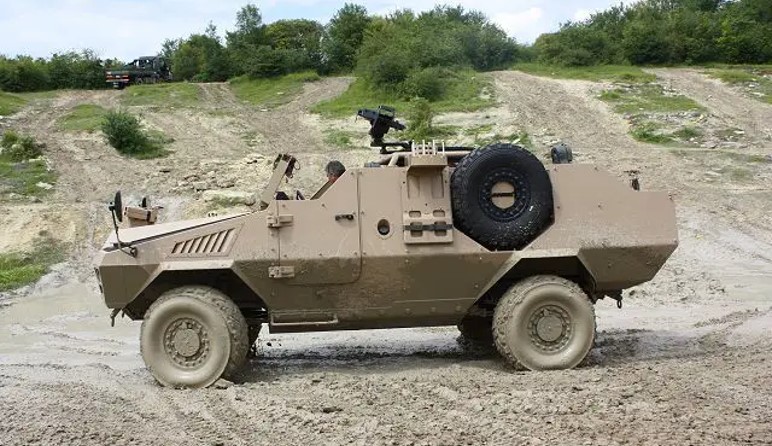

A spare wheel is mounted to each side of the hull. Standard equipment includes a central tire-inflation system, external shields for the tires. In option, the Bastion Patsas can be equipped with 6,800 kg self-recovery winch mounted at the front of the chassis.
Dimensions
Length
6.3 m
Width
2.3 m
Height
2.4 m
Weight, Combat
12 tons
Automotive
Engine Name
Deutz 1013 or MD5 (4 cylinder)
Engine Type
Diesel
Engine Power
175 hp or 260 hp
Maximum Range
1,000 km
Maximum Speed
110 km/h
Amphibious
No
Gradient
60%
Side Slope
30%
Vertical Step
0.4
Trench
0.8 m
Fording
1.0 m
Main Weapon System
Note
The Patsas is equipped with 360° ring-mounted at the rear of the crew cab which can be armed with a 12.7 mm machine or 40mm automatic grenade launcher. A single swivel weapon station for 5.56 mm machine gun is available at the front of the vehicle for the commander and two at the rear. A bank of grenade launchers can be fitted to each side of the hull. Various types of weapons can be carried on the rear cargo area as anti-tank weapons.
Protection
Armor
Ballistic protection according to STANAG 4569; Mine and IED protection according to STANAG 4569 .
Applique Armor
INA
NBC Protection
Yes
Smoke Equipment
INA
Details
Country of Origin
France
Category
Wheeled Light Armored Vehicles
Land > Infantry Vehicles > Wheeled Light Armored Vehicles
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.3 m
Width
2.3 m
Height
2.4 m
Weight
12000 kg
Operators (4)
France
Chad
Saudi Arabia
Togo
