REX-1 Chinese Tracked Unmanned Ground Vehicle (UGV)
REX-1
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
REX-1 Chinese Tracked Unmanned Ground Vehicle (UGV)
Designation
REX-1
Alternate Designation
REX-1
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Poly Technologies
Date of Introduction
2010
Description

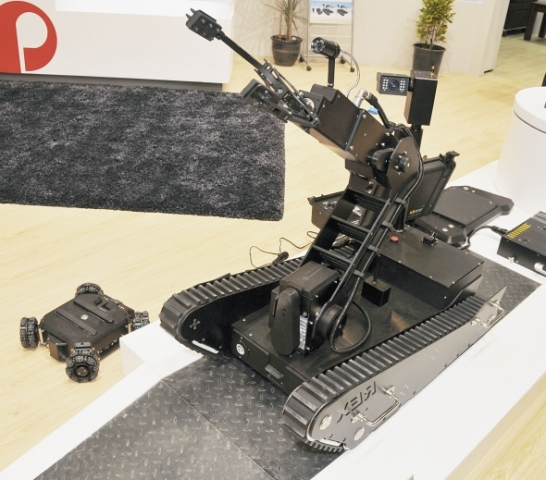

The REX-1 Chinese Tracked Unmanned Ground Vehicle (UGV) is small explosive ordnance disposal (EOD) UGV.
Ground Specifications
Engine
Electric
Max Speed
2.0 km/h
System
Alternative Designation
REX-1
Type
Tracked Unmanned Ground Vehicle (UGV)
Manufacturer
Poly Technologies
Configuration
Tracked
Crew
Unmanned
Control
The complete system (with a maximum speed of 2 km/h) consists of a single robot and an 8 kg portable control console that has a flat-panel display showing imagery from the onboard cameras.
Dimensions
Length
INA
Width
INA
Height
INA
Weight
50 kg
Automotive
Engine Name
INA
Engine Type
Electric
Engine Power
INA
Range
INA
Maximum Speed
2 km/h
Endurance
3-5 hours
Maximum Gradient Climb
35°
Curb Clearance
210 mm
Manipulator Arm
Maximum Lift Capacity, with Arm Extended
3 kg
Maximum Lift Capacity, with Arm Unextended
8 kg
Maximum Reach
1.2 m
Maximum Vertical Reach
1.35 m
Wrist Joint Rotation
360°
Maximum Grip Opening
230 mm
Protection
Armor
INA
Applique Armor
INA
Details
Country of Origin
China
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
50 kg
Operators (1)
China
