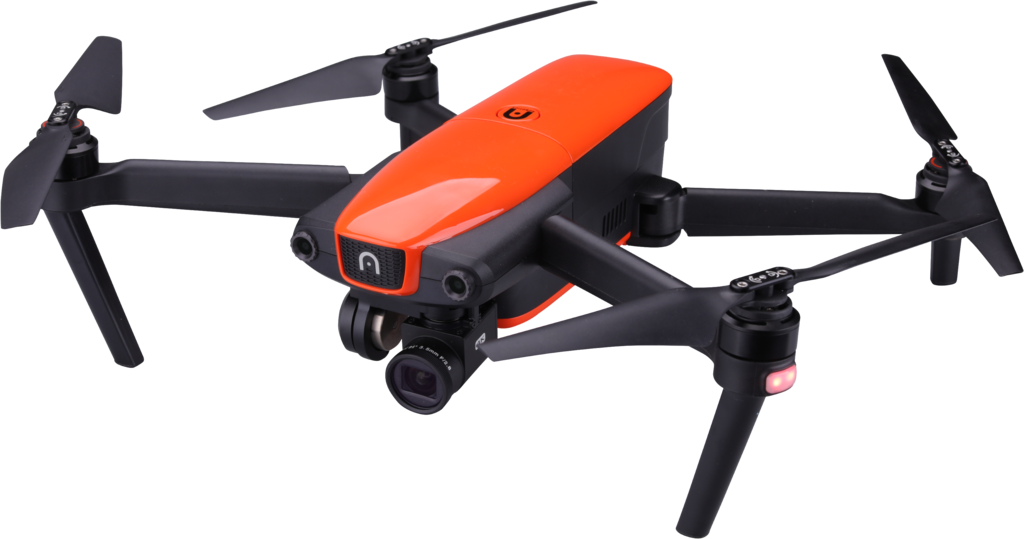

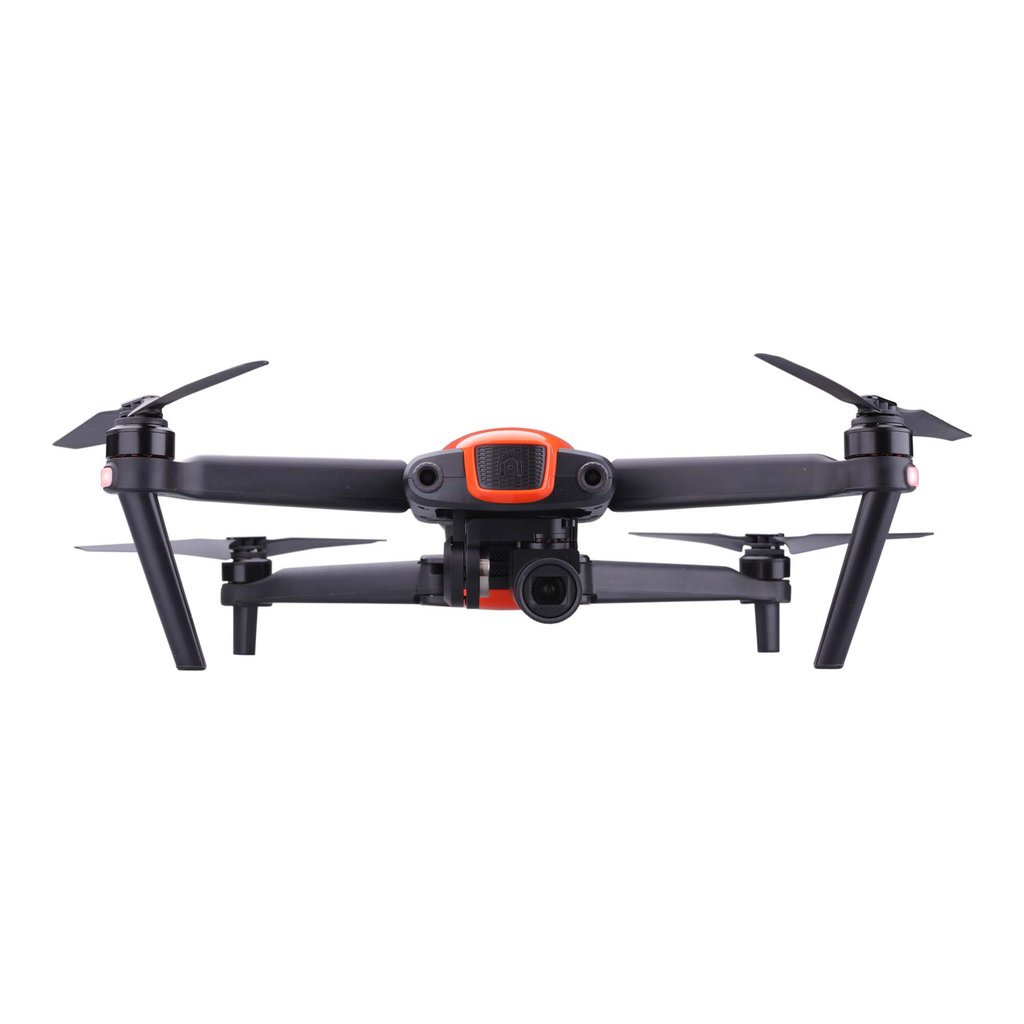

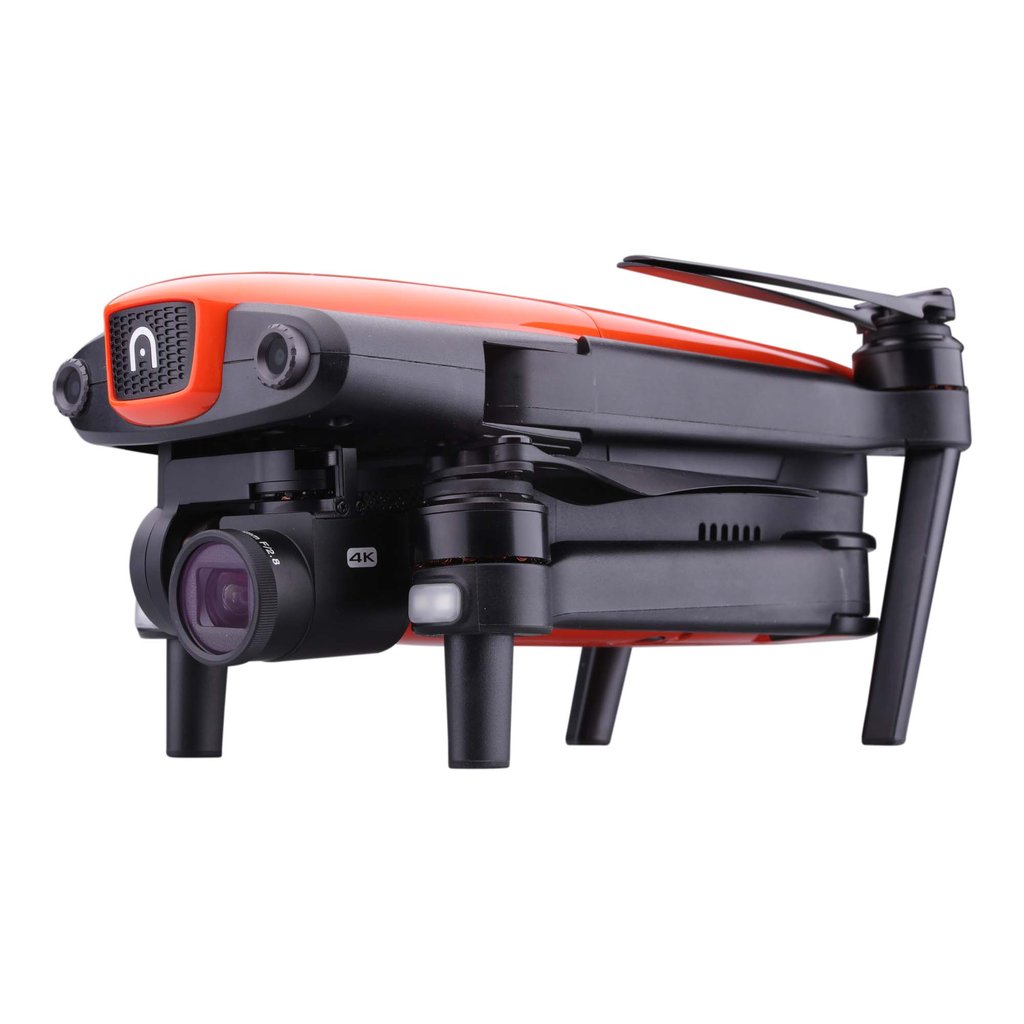

Evo American Remote Controlled Quadcopter

Evo

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Evo American Remote Controlled Quadcopter
Designation
Evo
Alternate Designation
Evo
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Autel Robotics
Date of Introduction
2016
Description

The Evolution of flight has arrived. EVO is a compact folding unit designed to go wherever your adventure takes you. Equipped on the front EVO offers a powerful camera on a 3-axis stabilize gimbal that records video at 4k resolution up to 60 frames per second and a recording speed up to 100mbps in an H.264 or H.265 codec. Using real-glass optics EVO captures stunning photos at 12 megapixels with a wide dynamic range for more details and color. Integrated advanced computer vision systems provide forward obstacle avoidance, rear obstacle detection and bottom sensors for more accurate landings and stable indoor flights. EVO boasts flight times up to 30 minutes with a range of 4.3 miles (7KM). Additionally, EVO offers failsafe features letting you know when the battery is low and it’s time to return to home. EVO includes a remote controller which houses a 3.3-inch OLED screen providing you with critical flight information or a live 720p HD video feed letting you see the camera view without the need for a mobile device. Download the free Autel Explorer app available for Apple iOS or Android devices and connect to the remote controller and gain access to more advanced settings and autonomous flight features like Dynamic Track, Viewpoint, Orbit, VR first person view and Waypoint mission planning. *What's in the box: *EVO aircraft *Remote Controller *Power Cable *Charger *Micro-USB Cable *USB-C Cable *Intelligent battery with 30 minutes of flight time per charge *Propellers (3 total pairs) *32-GB MicroSD card to record 1-hour of 4K video

Air & Air Defense Specifications
Max Speed 64.8 km/h
Range 7.0 km
System
Alternate Designation Evo
Type Remote Controlled Quadcopter
Proliferation INA
Manufacturer Autel Robotics
Flight Modes GPS · ATTI · SPORT
Operating Environment Temperature 32° F ~ 104° F (0° C ~ 40° C)
Storage Temperature -10°C~40°C (14°F~104°F)
Operating Environment Temp. 0°C~40°C (32°F~104°F)
Still Photography Modes Single shot Burst shooting Auto Exposure Bracketing (AEB) Time-lapse
Video Link Frequency 2.4GHz~2.4835GHz
Receiver Frequency 2.4GHz~2.4835GHz
Video Recording Modes Normal · Picture In Video (PIV)
Supported SD Card Types Micro-SD, 4 GB - 128 GB, Class 10 or UHS-3
Battery Type Rechargeable Lithium-Polymer Battery
Battery Voltage Charging 11.4 V
Max Control and Video Transmission Distance 7km (4.3miles)
Battery 6700mAH
Dimensions
Length INA
Diagonal Wheelbase 338 mm
Height INA
Total Weight 863g
Propeller Size 8.3" x 2.9"
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Hover Precision GPS+ Ultrasonic+IMU: Horizontal: ±1.5m, Vertical: ±0.2m; Vision+IMU: Horizontal: ±0.1m, Vertical: ±0.1m
Max. Yaw Rate 200 dps
Max. Inclination Angle 35°
Max. Ascent/Descent Speed Ascent: 5m/s Descent: 3m/s
Max. Horizontal Speed 20 m/s (44.7mph)
Flight Time Up to 30 minutes
Max Operating Time 3 hours
Details
Country of Origin United States
Category Remote Controlled Aircraft
Air > Remote Controlled Aircraft
Filter Label
E
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
0.34 m
Height
Weight
0.86 kg
Operators (1)
United States
