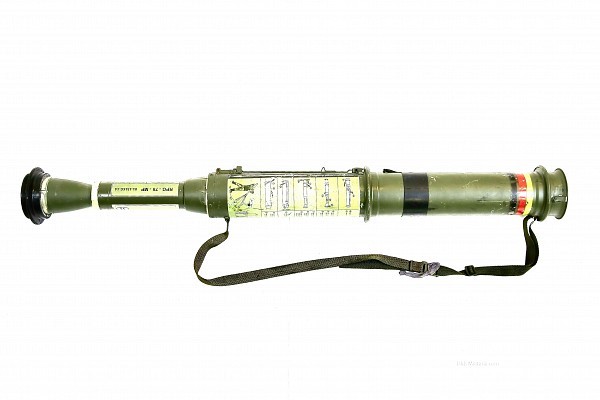

RPG-75 Czechoslovakian 68mm Rocket Launcher
RPG-75
Rocket Launcher
Other
Basic Information
Name
RPG-75 Czechoslovakian 68mm Rocket Launcher
Designation
RPG-75
Alternate Designation
RPG-75
Equipment Type
Rocket Launcher
Manufacturer
Zeveta a.s
Date of Introduction
1975
Description
The RPG-75 Czechoslovakian 68mm Rocket Launcher is a late Cold War era rocket launcher of Czechoslovak origin. It is a single-shot disposable weapon for use against armored vehicles. Although it looks somewhat similar to the American M72 LAW and Soviet RPG-18 it functions differently.
Ground Specifications
Crew
1
Main Weapon
68 mm rocket launcher
Range
0.3 km

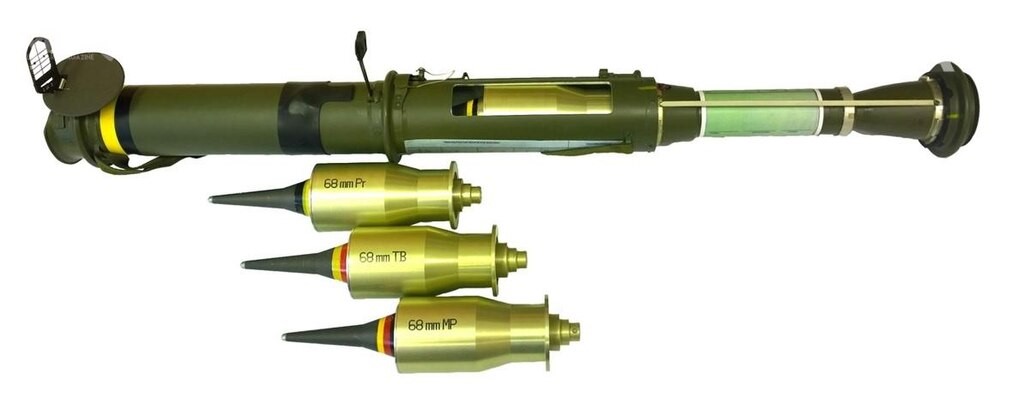

Variants
RPG-75-M
Improved production model when production restarted in the Czech Republic in the 1990s. Practically similar to the original model. Claimed penetration of 330 mm RHA.
RPG-75-TB
A variant of RPG-75-M with a thermobaric warhead. It was first shown in 2009 and has reportedly been in service since 2010. It has a much reduced penetration, but increased anti-personnel effect due to the thermobaric warhead.
RPG-Nh-75
Live fire training variant with inert rocket with identical flight path as the lethal model.
RPG-Cv-75
Training variant with subcaliber training aid. Fires .32 ACP bullets to simulate firing at a firing range.
RPG-Šk-75
Instruction and drill model that does not fire any projectiles. Used for instructing soldiers in preparing, handling, and sighting the weapon.
System
Alternate Designation
RPG-75
Type
Rocket Launcher
Caliber
68 mm
Manufacturer
Zeveta a.s.
Crew
1 ea
Design
The RPG-75 uses a two piece launcher that is extended before firing. Unlike the M72 LAW it is not a true rocket launcher. It functions more akin to a recoilless rifle, but is pre-packaged and for a single use only. Only the warhead exits the launch tube and the expulsion device remains in the disposable launch tube. The flip up sights consist of diopter rear sight and transparent front sight with range markings.
Warhead Type
Single HEAT with 0.32 kg A-IX-1explosive filler
Velocity
189 m/s
Maximum Effective Range
The effective range is 300 m against static targets and 200 m against moving targets.
Arming Distance
4 to 12 m from muzzle
Penetration
300 mm RHA
Sights
Mechanical, flip-up sights;
200, 250, and 300 m range settings.
Dimensions
Length, Transport Configuration
633 mm
Length, Extended
890 mm
Diameter
68 mm
Weight, with Protective Covers
3.2 kg
Weight, Ready to Fire
3.1 kg
Weight, Rocket
0.82 kg
Image Sources
Details
Country of Origin
Czech Republic
Category
Rocket Launchers
Land > Infantry Weapons > Rocket Launchers
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
0.07 m
Height
—
Weight
3.2 kg
Operators (11)
Ukraine
Poland
Czech Republic
Algeria
Georgia
Mexico
Namibia
Sierra Leone
Slovakia
Slovenia
Syria
