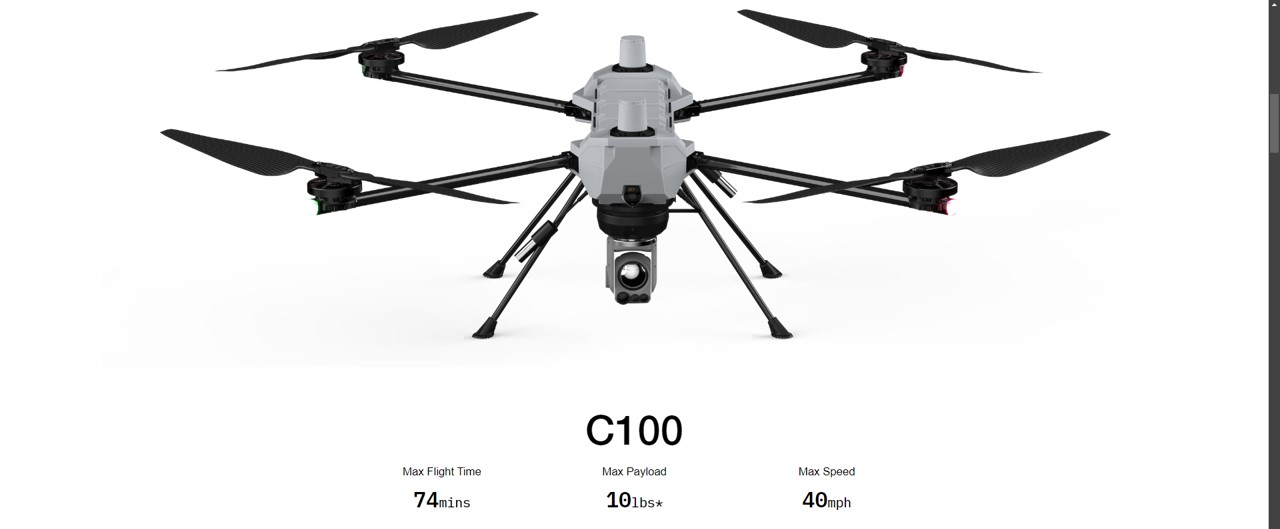

C100 American Unmanned Aerial Vehicle (UAV)
C100
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
C100 American Unmanned Aerial Vehicle (UAV)
Designation
C100
Alternate Designation
C100
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
PDW
Date of Introduction
2023
Description
The C100 American Unmanned Aerial Vehicle (UAV) 0 is equipped with military-grade payloads, world-leading drivetrain, and Blue-UAS approved avionics to deliver the ultimate long-endurance organic ISR platform. Edge computing and a suite of autonomy features ease cognitive burden and provide hands-free functionality. Ruggedized IP54 design folds into the warfighter’s rucksack for easy transport.
Air & Air Defense Specifications
Engine
Battery
Max Speed
64.8 km/h
Cruise Speed
40.3 km/h
Range
10.0 km
Endurance
74.00 hrs
Payload Capacity
4 kg
System
Alternate Designation
C100
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
PDW
Payload Capacity
4.5 kg with Long Endurance Pack (LEP) batteries
Dimensions
Length
162.56 cm
Width
165.1 cm
Height
27.94 cm
Weight
9.7 kg
Automotive
Engine Name
INA
Engine Type
Long Endurance Battery 74 Minutes with ISR Payload
Mazimum Range
10 km
Cruise Speed
Cruise Mode: 40.3 mph (64.8 km/h);
Base Mode: 22.4 mph (36 km/h);
Safe Mode: 4.9 mph (7.9 km/h)
Maximum Speed
64.8 km/h
Wind Limits
30 mph sustained, 40 mph gust - ISR configuration
25 mph sustained, 35 mph gust - up to 5lbs gross payload weight
20 mph sustained, 30 mph gust - up to 10lbs gross payload weight
Night Operations
Zero light emission mode // IR LEDs + Strobe Lights
Acoustic Signature
61dB @ 5m away / non-audible at 600 meters
Autonomy
Frontal Collision Avoidance and GNSS Position Hold
Compute Core
Modal Ai’s VOXL1 Qualcomm 812 + optional Nvidia Xavier NX
Max Operational Altitude
12,000 ft MSL
Operational Temperature
-20˚C - 57˚C
-4˚F - 134.6˚F
Endurance
74 Minutes with ISR Payload
Details
Country of Origin
United States
Category
UAVs
Air > UAVs
Filter Label
C
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.63 m
Width
1.65 m
Height
0.28 m
Weight
9.7 kg
Operators (1)
United States
