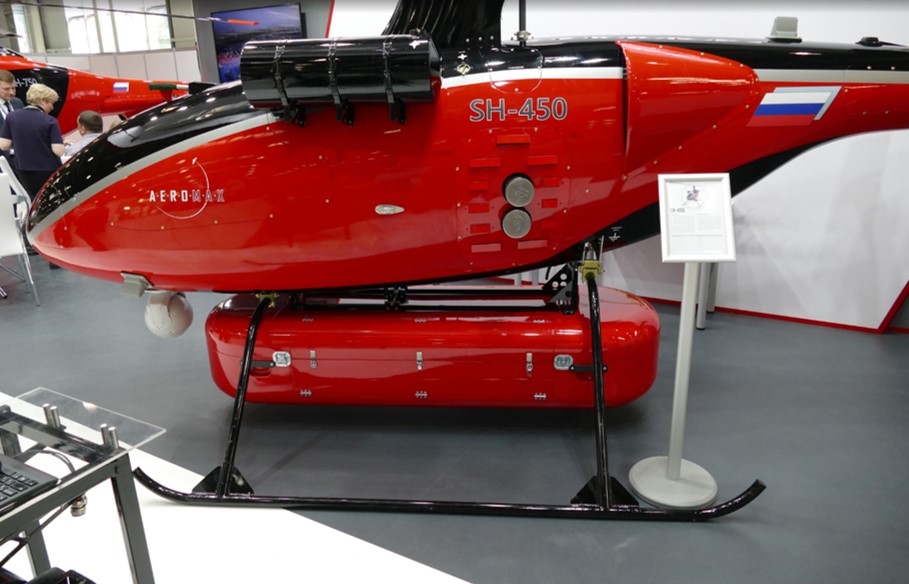

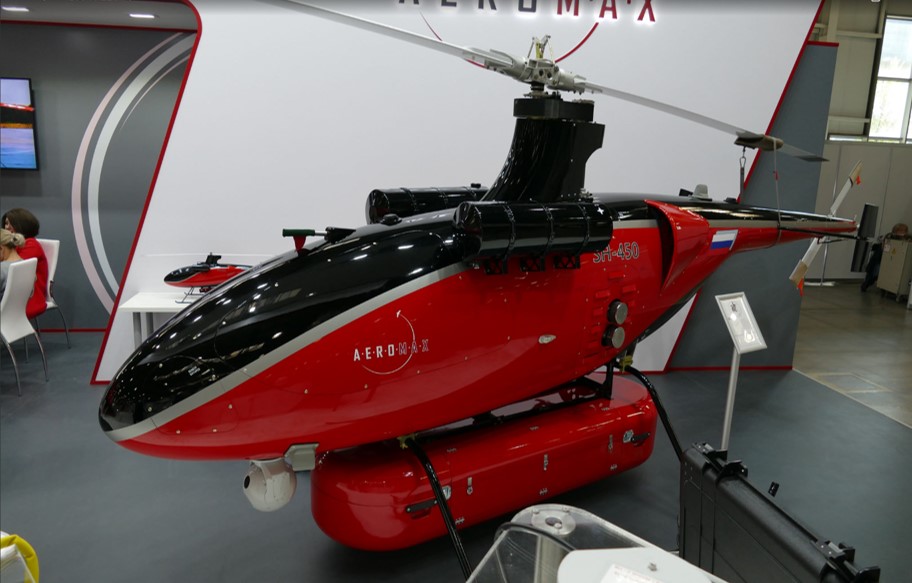

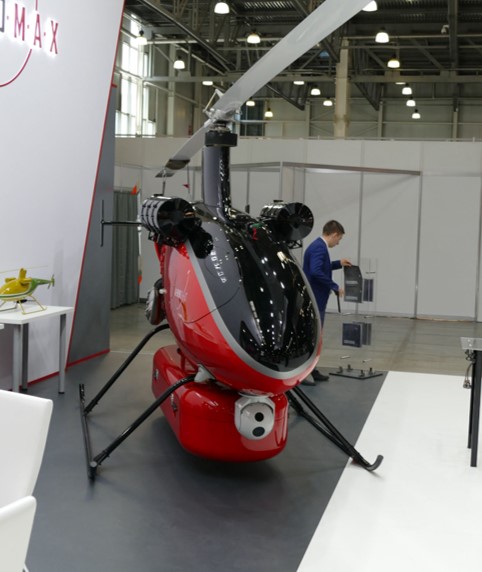

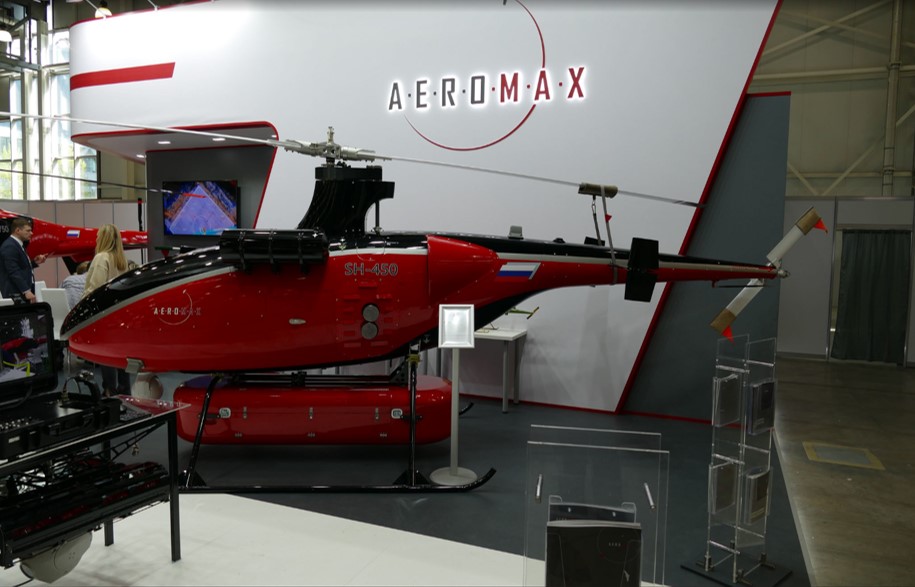

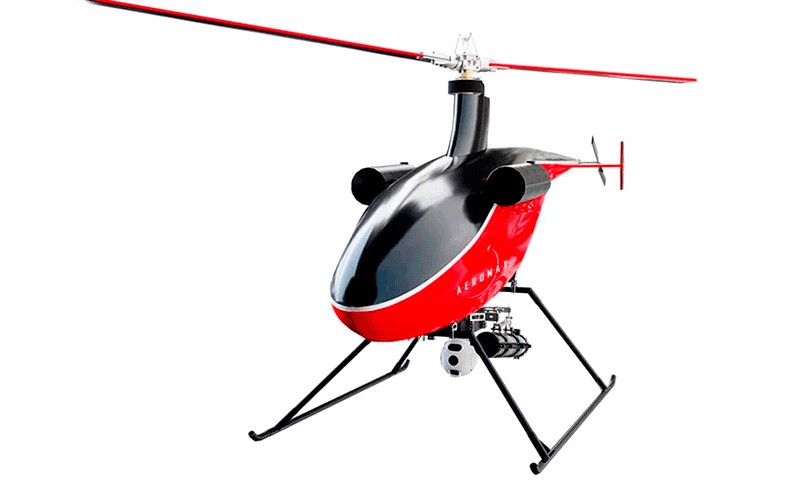

SH-450 Russian Unmanned Aerial Vehicle (UAV)

SH-450

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
SH-450 Russian Unmanned Aerial Vehicle (UAV)
Designation
SH-450
Alternate Designation
SH-450
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Aeromax Group
Date of Introduction
2024
Description

The SH-450 is a Russian unmanned aerial vehicle (UAV) designed as a helicopter-type unmanned aircraft (HT-UA) that boasts an increased payload capacity and extended flight duration. It can carry up to 100 kg of payload and remain airborne for up to six hours. Its ability to take off and land vertically enables operation in difficult-to-access areas, including unprepared sites. The SH-450 can reach speeds of up to 150 km/h and can climb to altitudes of up to 3,500 meters. It can be equipped with a variety of on-board systems, including optical systems, radar stations, transport modules, and fire-fighting modules. This UAV is capable of performing aerial operations in poor visibility and challenging weather conditions, making it faster and more cost-effective than traditional ground transport. The technologies used in its design provide the flexibility to install nearly any purpose-built equipment, which makes the SH-450 highly effective for various tasks such as firefighting, search and rescue (SAR), monitoring operations, environmental impact assessments, and cargo transportation.

Air & Air Defense Specifications
Max Speed 150.0 km/h
Range 350.0 km
Endurance 6.00 hrs
Service Ceiling 3500 m
Payload Capacity 100 kg
System
Alternate Designation SH-450
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Aeromax Group
Payload Capacity 100 kg
Dimension of Takeoff and Landing Site 20×20 m
Dimensions
Length INA
Width INA
Height INA
Empty Weight 270 kg
Maximum Takeoff Weight 450 kg
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Fuel Reserve 140 liters
Maximum Speed 150 km/h
Flight Course Speed 90 km/h
Maximum Range 350 m
Service Ceiling 3,500 m
Cross Wind Limit Speed at Takeoff and Landing 10 m/s
Endurance 6 hours
Details
Country of Origin Russia
Category UAVs
Air > UAVs
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
450 kg
Operators (1)
Russia
