Udaloy Class (Project 1155 Fregat Class) Russian Anti-Submarine Guided-Missile Destroyer
Udaloy Class
Anti-Submarine Guided-Missile Destroyer
Other
Basic Information
Name
Udaloy Class (Project 1155 Fregat Class) Russian Anti-Submarine Guided-Missile Destroyer
Designation
Udaloy Class
Alternate Designation
Udaloy Class; Project 1155 Fregat Class
Equipment Type
Anti-Submarine Guided-Missile Destroyer
Manufacturer
—
Date of Introduction
1980
Description

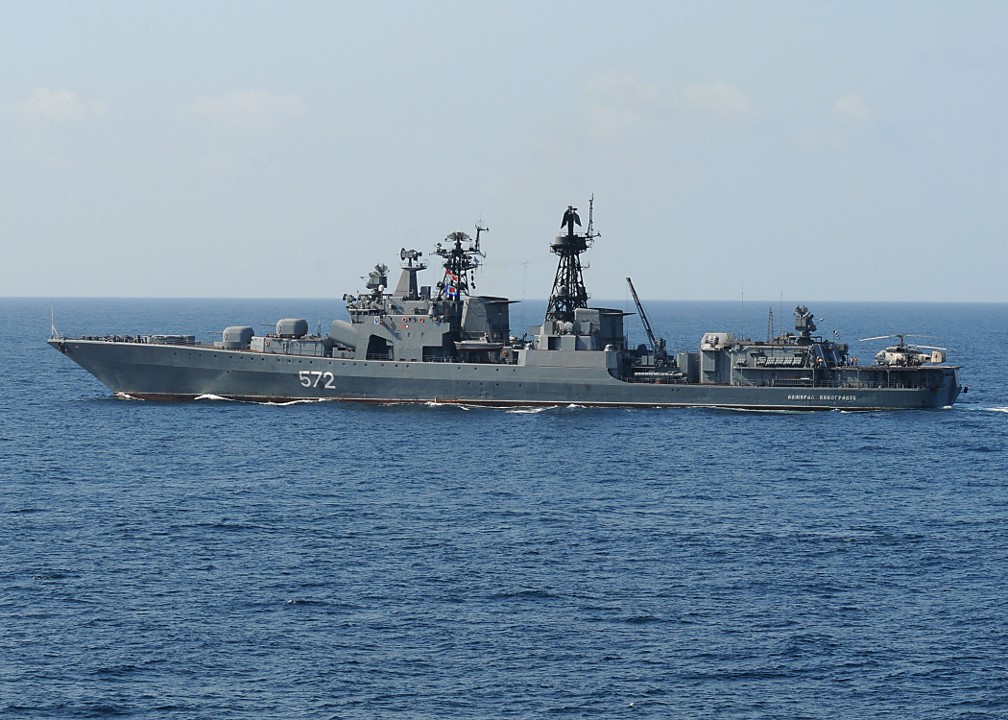

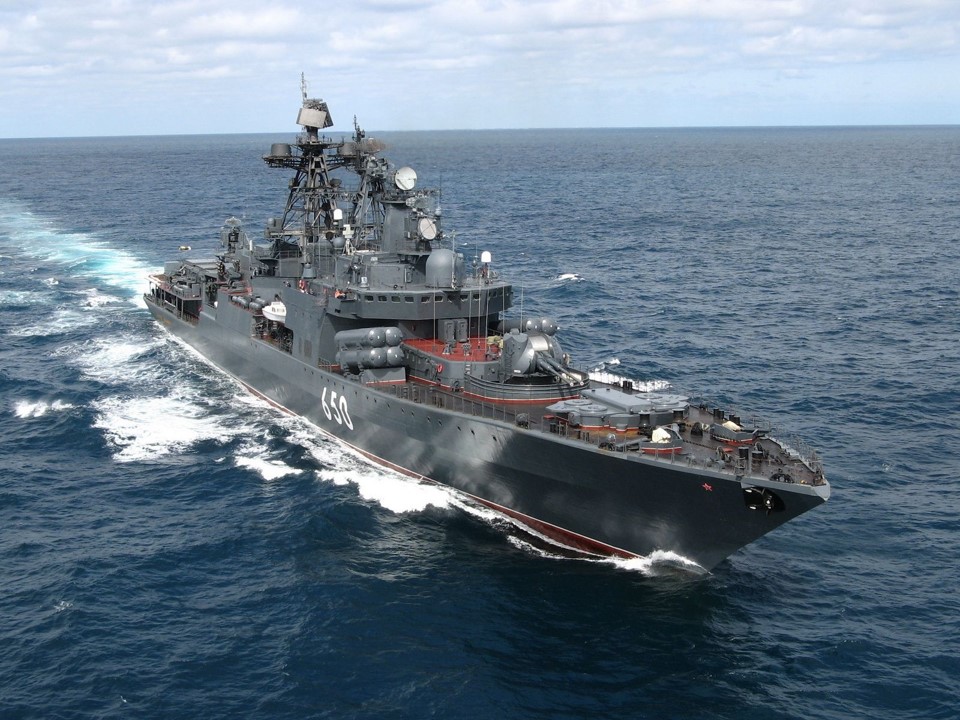

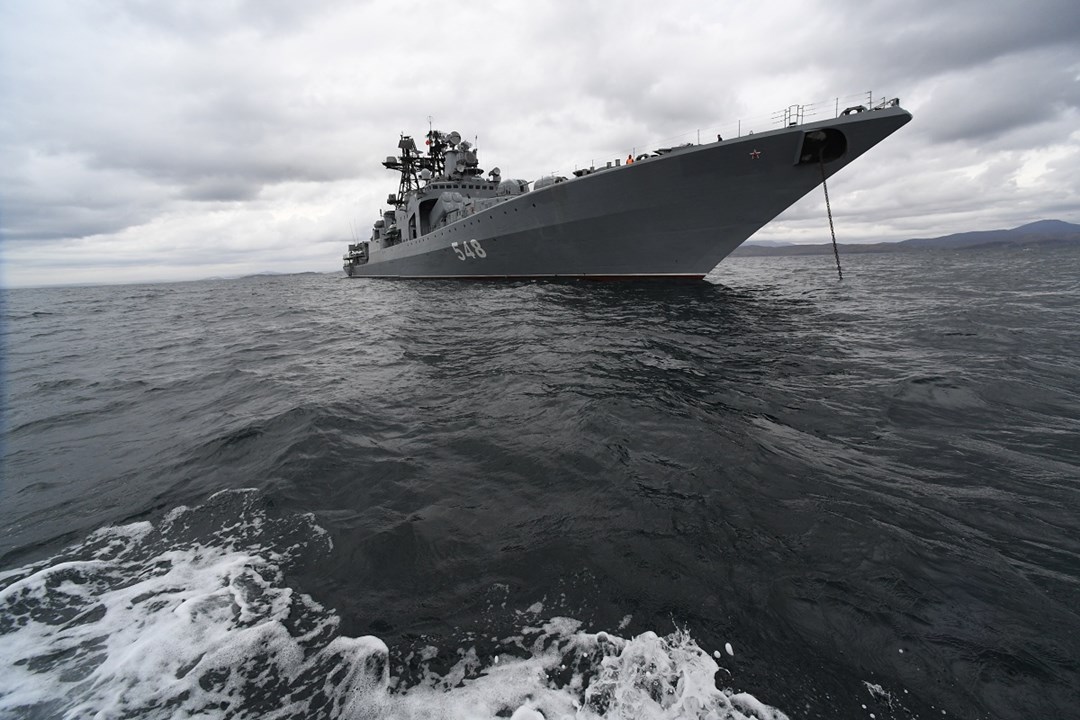

The Udaloy class, Russian designations Project 1155 Fregat and Project 11551 Fregat-M (Russian: Фрегат, 'Fregat' meaning Frigate), are a series of anti-submarine guided-missile destroyers built for the Soviet Navy, seven of which are currently in service with the Russian Navy. Twelve ships were built between 1980 and 1991, while the thirteenth ship built to a modified design, known as the Udaloy II class, followed in 1999. They complement the Sovremennyy-class destroyers in anti-aircraft and anti-surface warfare operations. The codename Udaloy comes from an archaic Russian adjective удалой, meaning daring or bold. The ships were built as general-purpose destroyers with emphasis on ASW. Construction stopped at 12 units. This class saw relatively little operational use during the 1990s because of the difficulty in obtaining spare gas turbines, which had to be imported from Ukraine.
Naval & Littoral Specifications
Crew
249
Beam
19.30 m
Draft
7.50 m
Variants
Udaloy
Commissioned: 1980
Status: Decommissioned in 1997
Fleet: No longer in Service
Vice-Admiral Kulakov
Commissioned: 1981
Status: Modernization completed in 2010.
Fleet: Northern Fleet
Marshal Vasilyevsky
Commissioned: 1983
Status: Decommissioned
Fleet: No Longer in Service
Admiral Zakharov
Commissioned: 1983
Status: Caught fire in 1992 and scrapped
Fleet: No Longer in Service
Admiral Spiridonov
Commissioned: 1984
Status: Decommissioned in 2001
Fleet: No Longer in Service
Admiral Tributs
Commissioned: 1985
Status: Active
Fleet: Pacific Fleet
Marshal Shaposhnikov
Commissioned: 1985
Status: Active
Fleet: Pacific Fleet
Severomorsk
Commissioned: 1987
Status: Active
Fleet: Northern Fleet
Admiral Levchenko
Commissioned: 1988
Status: Reserve
Fleet: Northern Fleet
Admiral Vinogradov
Commissioned: 1988
Status: Active
Fleet: INA
Admiral Kharlamov
Commissioned: 1989
Status: Decommissioned on 1 December 2020
Fleet: No Longer in Service
Admiral Panteleyev
Commissioned: 1991
Status: Active
Fleet: Pacific Fleet
System
Alternative Designation
Udaloy Class; Project 1155 Fregat Class
Type
Anti-Submarine Guided-Missile Destroyer
Builder
VITSE-ADMIRAL KULAKOV, MARSHAL VASIL'YEVSKIY, ADMIRAL TRIBUTS and ADMIRAL LEVCHENKO: Severnaya Verf 190, St. Petersburg, Russia
Remainder: Yantar Zavod 820, Kaliningrad, Russia
Crew
249 (29 off. + 220 enl.)
Dimensions
Length
163.50 m
Beam
19.30 m
Draft
7.50 m
Displacement, Standard
6,900 tons
Displacement, Full Load
8,400 tons
Propulsion System
Engine Name
COGAG M-9 plant
Engine Type
2 x Ukraine M-8KF boost gas turbines (22,500 shp each) 2 x Ukraine M-62 cruise gas turbines (7,500 shp each)
Engine Power
60,000 total shp
Maximum Range
2,000 nm at 29 knots; 5,700 nm at 18 knots
Maximum Speed
29.5 knots
Gun Weapon Systems
Gun Weapon System #1
Name
2 x AK-100 100mm Naval Cannon
Type
Naval Cannon
Caliber
100 mm
Length
INA
Weight
35.5 tons
Elevation
-10 / +85 degrees
Rate of Elevation
30 degrees per second
Traverse
360 degrees
Rate of Traverse
35 degrees per second
Rate of Fire
50 to 60 rounds per minute
Maximum Firing Range
INA
Gun Weapon Systems #1 Ammunition
Type
Rifle
Caliber
100 mm
Shell Weight
26.8 kg
Basic Load
1,200 Rounds each
Gun Weapon System #2
Name
4 x AK-630M 30mm CIWS
Type
Close-In Weapon System (CIWS)
Caliber
30 mm
Main Armament
1 or 2 AO-18 autocannons
Secondary Armament
4 x 4 9A4172 missiles
Crew
1 ea
Barrel Length
1,629 mm
Width
1,240 mm
Height
1,070 mm
Weight
1,000 kg (Gun Mount)
Barrels
6 ea
Action
Gas-operated rotary cannon
Elevation
+88° ... -12° (50°/sec)
Traverse
±180° (70°/sec
Rate of Fire
4,000–5,000 rounds/min
Muzzle Velocity
880–900 m/s
Maximum Firing Range
The projectiles self-destruct past 5,000 m
Effective Firing Range
4,000 m (aerial);
5,000 m (maritime
Feed System
2,000 rounds (additional 1,000 rounds in reserve feed bin.
Sights
Radar / TV-optical
Gun Weapon Systems #2 Ammunition
Type
Rifle
Caliber
30 mm
Shell
HEI-Frag, Frag-T[
Shell Weight
0.39 kg
Basic Load
12,000 Rounds each
Missile Weapon System
Missile #1
Name
RPK-3 Metel; NATO: SS-N-14 Silex
Type
Ant-Submarine Missile
Launcher
2 x quadruple KT-100 VLS launchers
Length
7.2 m
Weight
INA
Warhead
conventional high-explosive (ASW homing torpedo) or nuclear depth bomb
Propellant
glider initially powered by solid-fuel
rocket; water entry slowed by parachute.
Guidance System
command radio and inertial; acoustic terminal homing; KARA and KRESTA II classes have Head Lights D/F/G/H-band fire-control radar; UDALOY and KRIVAK classes have Eye Bowl F-band fire-control radar.
Maximum Range
55.6 km
Minimum Range
7.4 km
Speed
Mach 0.95 at 750 m
Maximum Depth
20–500 m
Basic Load
8x RPK-3 Metel (SS-N-14 Silex)
Missile #2
Name
9M-330 Tor M1/Gauntlet missiles
Type
Surface-to-Air Missile (SAM)
Launcher
8 8-round PU 4S-95 VLS system launcher
Length
INA
Weight, Missile
165 kg
Weight, Warhead
15 kg
Warhead
Conventional high-explosive
Engine
1 x solid-fuel rocket
Maximum Range
12.0 km
Minimum Range
1.5 km
Altitude
12,190-18,290 m
Radar
1 x Cross Sword FCS
Basic Load
8 x 9M-330 Tor M1/Gauntlet missiles
Anti-Submarine Weapon (ASW) System
Torpedo Tubes
2 x quad 533-mm CLTA-53-1155 tubes
Torpedo Name
Type 53 or Type 65 torpedoes
Torpedo Basic Load
30 x Type 53 or Type 65 torpedoes
Rocket Launcher
2 x RBU-6000 rocket launchers
Rocket Name
RGB-12 Rockets
Rocket Basic Load
96 x RGB-12 Rockets
Mine System
Mine Launcher
2 x Rail Launchers
Basic Load
INA
Aviation Facilities
Facilities
Helipad and hangar
Helicopters
2 × Ka-27 series helicopters
Radar and Fire Control Systems
3-D Air Search Radar
1 x MR-760MA Fregat MA (NATO: Top Plate) 3D air search.
Surface / Air Search Radar
1 x MR-320M Topaz-V (NATO: Strut Pair) surface/air search.
Navigation Radar
3 x MR-212/201 Vaygach-U (NATO: Palm Frond) navigation.
KT-100 VLS Launcher Fire Control System (FCS)
2 x Drakon (NATO: Eye Bowl) fire control for KT-100 VLS Launcher.
PU 4S-95 VLS system Fire Control System (FCS)
1 x Cross Sword FCS.
AK-100 Fire Control System (FCS)
1 x MR-145 Lev (NATO: Kite Screech-B) fire control for AK-100 guns.
AK-630M Fire Control System (FCS)
2 x MR-123 Vympel (NATO: Bass Tilt) fire control forAK-630M.
Sonar Systems
Sonar Suite
1 x MGK-355 Polinom Suite.
Bow-Mounted Active Low/Medium Frequency Sonar
1 x Orion (NATO: Horse Jaw) bow-mounted active low/medium frequency.
Low-Frequency Variable Depth Sonar
1 x MGK-335 Platina (NATO: Horse Tail) low-frequency variable depth.
Protection
Hull Armor
UDALOYs have a long forecastle with a prominent knuckle extending aft to abaft the second pair of stacks. The bow has a sharp rake and an S-curved sheer line that lowers the extreme bow to provide clearance for low-angle fire from the forward 100-mm mount.
Countermeasures
Countermeasures include the IR laser detector array and PK-2 ship-borne decoy launching system. The system includes decoy launchers, decoy rockets, control consoles and radar. It deceives homing anti-ship missiles by dispensing electronic and optronic decoys. The later ships were installed with a PK-10 shipborne decoy launching system.
NBC Water Washdown System
Yes
EW Intercept
2 x Start-2 (NATO: Bell Shroud) w/Wine Glass intercept.
Jammer
2 x Bell Squat jammer.
Details
Country of Origin
Russia
Category
Naval
Naval
Filter Label
U
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
163.5 m
Width
—
Height
—
Weight
—
Operators (1)
Russia
