PARS III 8x8 Turkish Wheeled Armored Combat Vehicle

PARS III 8x8

Wheeled Armored Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
PARS III 8x8 Turkish Wheeled Armored Combat Vehicle
Designation
PARS III 8x8
Alternate Designation
PARS III 8x8
Equipment Type
Wheeled Armored Vehicle
Manufacturer
FNSS
Date of Introduction
2017
Description

The PARS III 8x8 Turkish Wheeled Armored Combat Vehicle has been developed with special emphasis on mobility, protection, payload, and growth potential. It is equipped with cutting-edge armored vehicle technologies to achieve performance and durability, meeting the operational requirements of modern armies. The PARS III 8x8 combat vehicle weighs 30,000 kg and is powered by a diesel engine. The power pack consists of a water-cooled diesel engine, coupled to a fully automatic transmission, which allows a maximum road speed of up to 100 km/h. The PARS III 8x8 can overcome a 60% vertical slope and a 30% side slope, climb 0.7-meter-high obstacles, and cross 2-meter-wide trenches. Thanks to its unique design with its powerpack location and optimal weight balance, the vehicle has an almost equal load on each axle. This design approach enables the vehicle to move comfortably even on loose and soft terrain, providing maximum control at high speeds and short braking distances. The vehicle has 8x8 driving characteristics, and all of its axles can be locked when necessary. The central tire inflation system enables the driver to adjust tire pressure to suit various terrain conditions. The PARS III 8x8 all-axle steering system provides the vehicle with the lowest turning radius in its class, measuring 8 meters. The ability to gradually decrease the steer-by-wire angle of the rear axles and their locking over certain speeds, together with the ABS system and the engine brake, all contribute to enhanced driving safety.

Ground Specifications
Crew 9
Mobility Type Wheeled (8x8)
Engine Diesel
Max Speed 100.0 km/h
Range 800.0 km
Variants

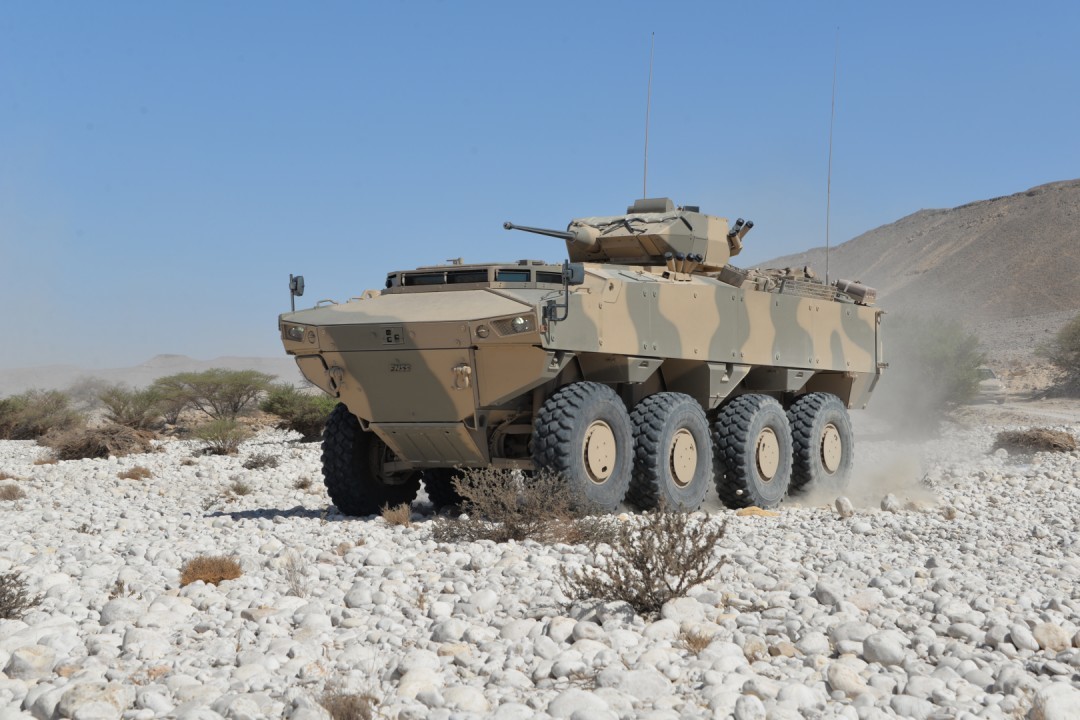

PARS III 8X8 IFV The IFV variant is the Infantry Fighting Vehicle configuration of the PARS III 8x8 FoV. The vehicle is armed with a stabilised manned or remote controlled SABER 25 Turret armed with a 25 mm automatic cannon and can carry up to 11-12 personnel including driver, commander and gunner.
PARS III 8X8 ICV The ICV variant is the Infantry Carrier Vehicle configuration of the PARS III 8x8 FoV. The vehicle is armed with a SANCAK 12.7 mm remote controlled turret station (RCTS) and can carry up to 12 personnel including driver, commander and gunner.
PARS III 8X8 CFV The CFV variant is the Cavalry Fighting Vehicle configuration of the PARS III 8x8 FoV. The vehicle is fitted with a TEBER manned or remote-controlled turret armed with a 30 or 35 mm cannon, and can carry up to 7 personnel (manned turret) or 11 personnel (remote controlled turret) including driver, commander and gunner.

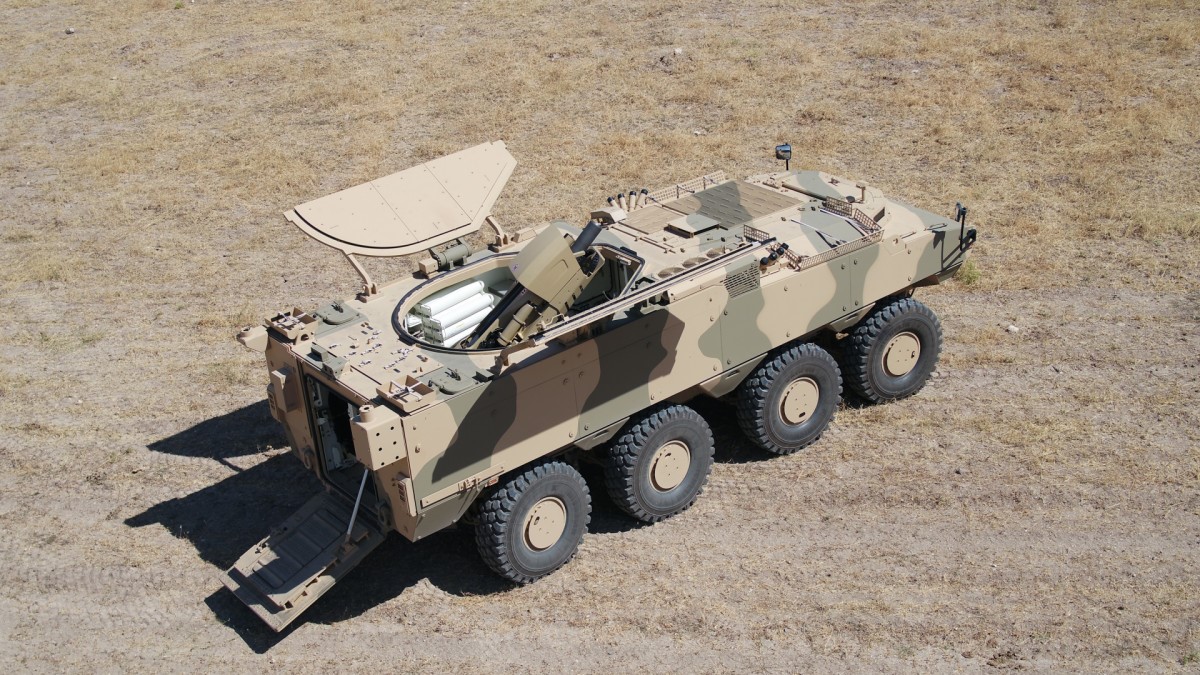

PARS III 8X8 SPM The SPM variant is a Self-Propelled Mortar configuration that provides indirect fire support. The vehicle can be armed with an 81 or 120 mm mortar and a self-defence SANCAK remote controlled turret with 12.7 mm MG. It carries 4 personnel including driver, commander and 2 mortar crew.
PARS III 8X8 CP The CP is the Command post variant of the PARS III 8x8 FoV. It is used as an operational staff officer’s command post at Brigade or Battalion echelon. It can also be configured as a Fire Direction Centre. The vehicle is armed with a self-defence SANCAK remote controlled turret with 12.7 mm MG and carries 8 personnel including driver, vehicle commander and staff officers.

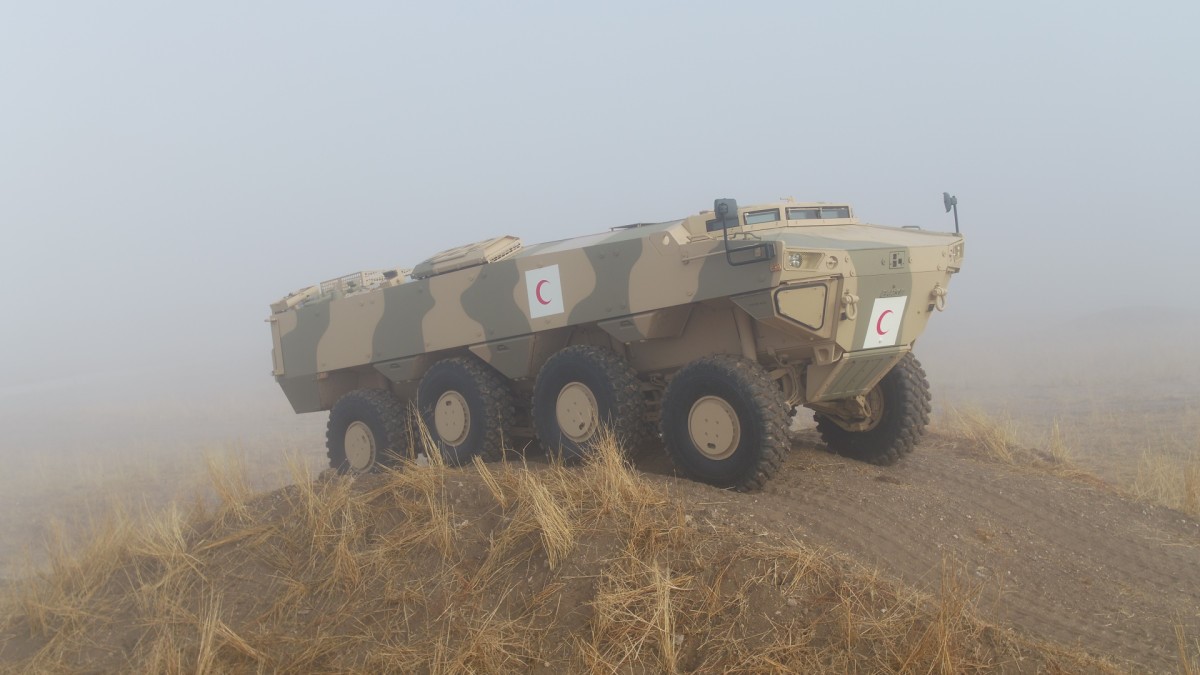

PARS III 8X8 AMEV The AMEV is the Armoured Medical Evacuation Vehicle configuration of the PARS III 8x8 FoV. The vehicle is highly manoeuvrable and designed primarily for casualty evacuation from front lines. It carries a driver, commander, and 2 medics with either 2 patients on stretchers and 4 seated patients, or 8 seated patients.

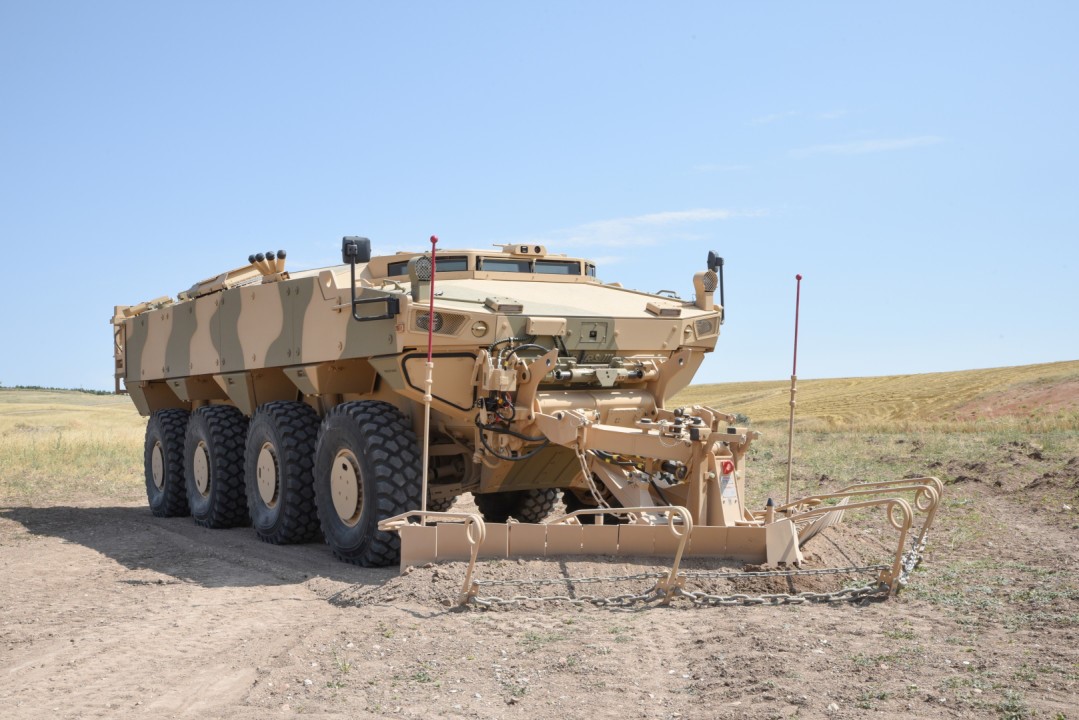

PARS III 8X8 ENGINEERING VEHICLE The PARS III 8x8 Engineering Vehicle clears surface laid mines and threats found within the path of the total width of the vehicle, from roads, tracks and rough terrain, opening a cleared route for the mechanized infantry and follow-on vehicles. It carries 6 personnel including driver, commander and 4 sappers.

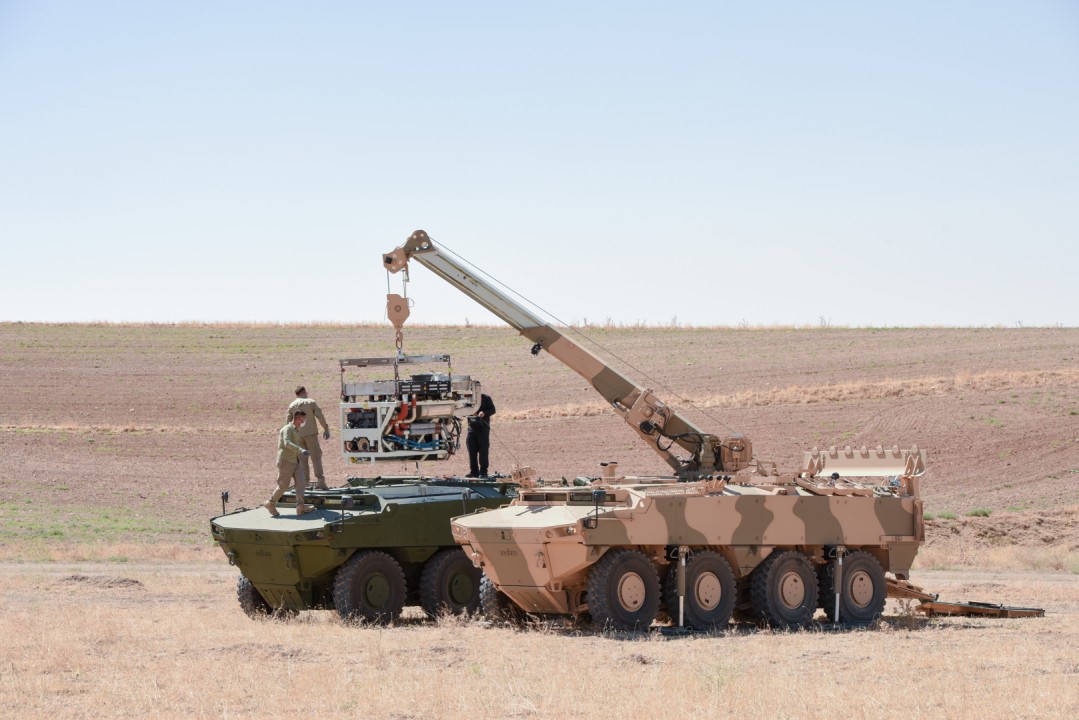

PARS III 8X8 ARV The ARV variant is the Armoured Recovery Vehicle configuration of the PARS III 8X8 FoV. The ARV is fitted with a hydraulic crane mounted on the vehicle top plate and a hydraulic recovery winch mounted inside the vehicle, which facilitates the recovery and towing of both armoured and unarmoured vehicles. It is armed with a self-defence 7.62 or 12.7 mm MG and carries 4 personnel including driver, commander and 2 technicians.
System
Alternative Designation PARS III 8x8
Type Wheeled Armored Combat Vehicle
Manufacturer FNSS
Configuration 8x8
Crew 9+3
Air Transportation A400M, C-17 and C-5
Dimensions
Length 8.0 m
Width 3.0 m
Height 2.4 m
Weight, Combat 30,000 kg
Automotive
Engine Name INA
Engine Type Diesel
Engine Power INA
Transmission Fully Automatic, 7 Forward - 2 Reverse
Maximum Road Speed 100 km/h
Creep Speed 3 km/h
Range 800 km
Gradient 60%
Side Slope 30%
Angle of Approach 50°
Angle of Departure 40°
Vertical Obstacle 0.7 m
Trench Crossing 2.0 m
Turning Radius 8 m (Curb to Curb)

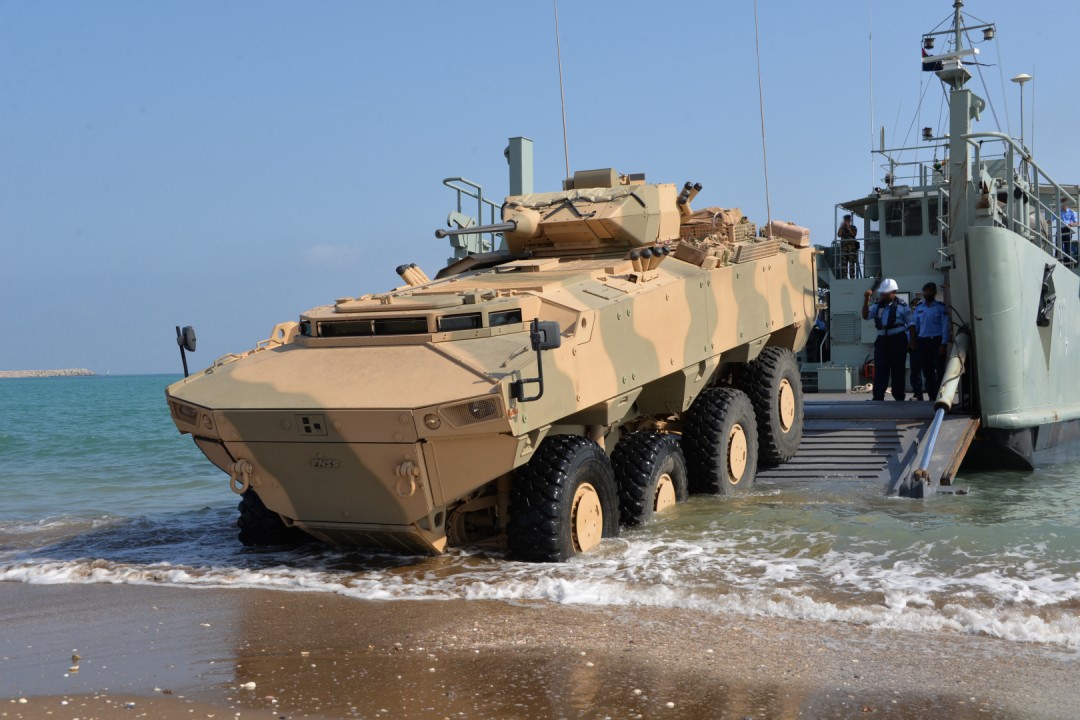

Amphibious Capability Optional
Suspension System Independent, Double Wishbone, Hydro- Pneumatic Suspension with Ride Height Control
Number of Axles 4 ea
Driven Axles All Wheel Drive
Steered Axles 1, 2, 3, 4
Transfer Case 2 Speed
Service Brakes Hydraulic and ABS at Each Wheel
Parking Brakes Integral to Driveline, Spring Activated, Hydraulically Controlled
Main Weapon System
Note Manned and Remote Controlled Turrets, Mortar and/or Missile Systems from Various Types and Origins Can be Integrated
Protection
Ballistic Protection STANAG 4569 (Level Classified)
Mine Protection STANAG 4569 (Level Classified)
IED Protection STANAG 4569 (Level Classified)
Smoke Grenade Dischargers 8 ea
Automatic Fire Suppression System Standard
CBRN Protection System Standard
A/C and Heater Standard
Details
Country of Origin Turkey
Category Land
Land
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8 m
Width
3 m
Height
2.4 m
Weight
30000 kg
Operators (1)
Turkey
