JRTC Prizrak-19 Russian Unmanned Robotic Vehicle (R2FU)
Prizrak-19
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
JRTC Prizrak-19 Russian Unmanned Robotic Vehicle (R2FU)
Designation
Prizrak-19
Alternate Designation
Prizrak-19
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
—
Date of Introduction
—
Description

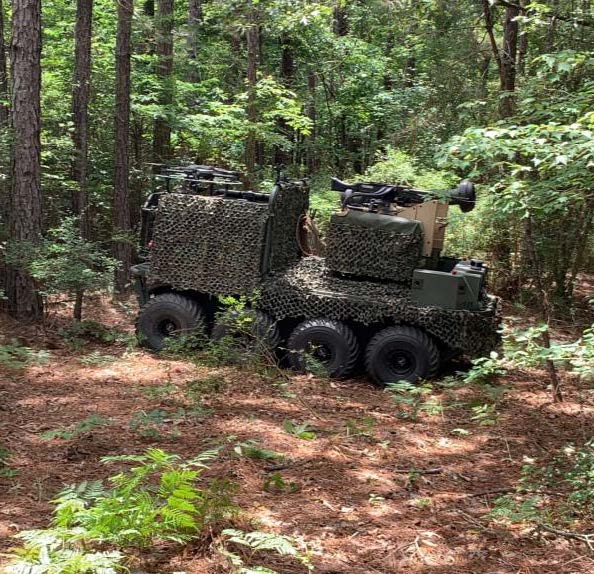

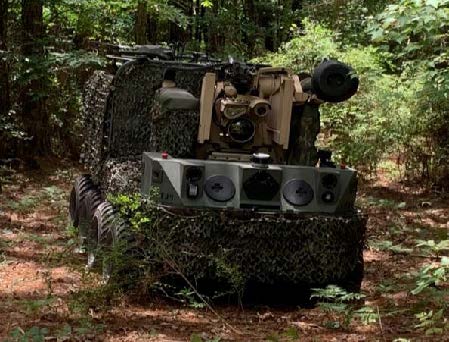

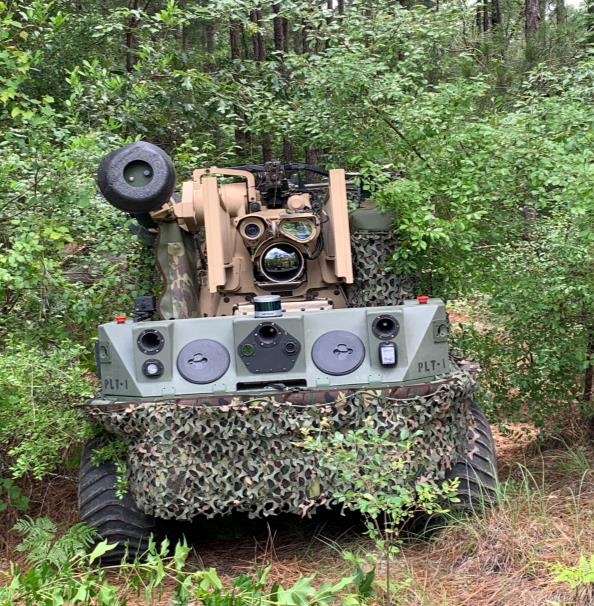

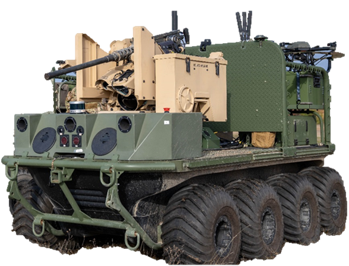

Prizrak-19 Russian Unmanned Robotic Vehicle (R2FU) s an 8-wheeled, unmanned robotic vehicle, capable of land and water mobility, with multiple functions available for use to a ground maneuver element. Primary tasks include: Establish an OP, Defend, Establish an SBF/ABF, Conduct an Ambush, Secure Perimeter, conduct logistics resupply point operations; The R2FU is not limited to these tasks.
Ground Specifications
Crew
1
Max Speed
16.1 km/h
Range
16.1 km
System
Alternative Designation
Prizrak-19
Type
Unmanned Robotic Vehicle (R2FU)
Configuration
8x8
Manufacturer
INA
Crew
1 x primary operator and 1 x alternate operator.
Controller
Dismount (backpack) controller.
Full Autonomy
Full autonomy can navigate with or
without communication to the
operator along pre-recorded or set
waypoints (distance of 10 miles).
Cargo Capacity
680 kg (1,500 pounds).
Back-Hoe
Towable electric back-hoe can dig a
standard fighting position in 40
minutes with minimal noise
UAS
Yes. Tethered UAS
T-UAS
Can move 2KM and fly the tethered UAS for up to eight hours on electric power for silent operations. T-UAS has a day camera with 10x optical zoom and a thermal camera with only digital zoom.
Dimensions
Length
127 In
Width
64 In
Height
42 In
Payload
1,200 lbs
Automotive
Primary Engine Type
48V LiFePO4 Battery
Secondary Engine Type
Diesel Generator (6 gal)
Engine Power
INA
Battery Recharge Time
3 hours
Maximum Speed
16.1 km/h (10 mph)
Range
16.1 km (10 miles) [Battery] [34 Mi Battery and Generator]
Endurance
16.1 km (10 miles) on one charge
Amphibious
Unknown
Fording
Can ford up to 24"
Main Weapon System
CROWS
Available in M240 (7.62) and M2 (50 Cal)
Javelin
Available. Javelin (Javelin mount is present but not currently functional).
Protection
Hull Armor
INA
Applique Armor
Available
Mine Clearing
INA
NBC Protection
Unknown
Smoke Equipment
Yes, 12 minutes of on-board smoke
generation.
Counter-UAS
Unknown
Details
Country of Origin
Russia
Category
Land
Land
Filter Label
J
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
3.23 m
Width
1.63 m
Height
1.07 m
Weight
—
Operators (1)
Russia
