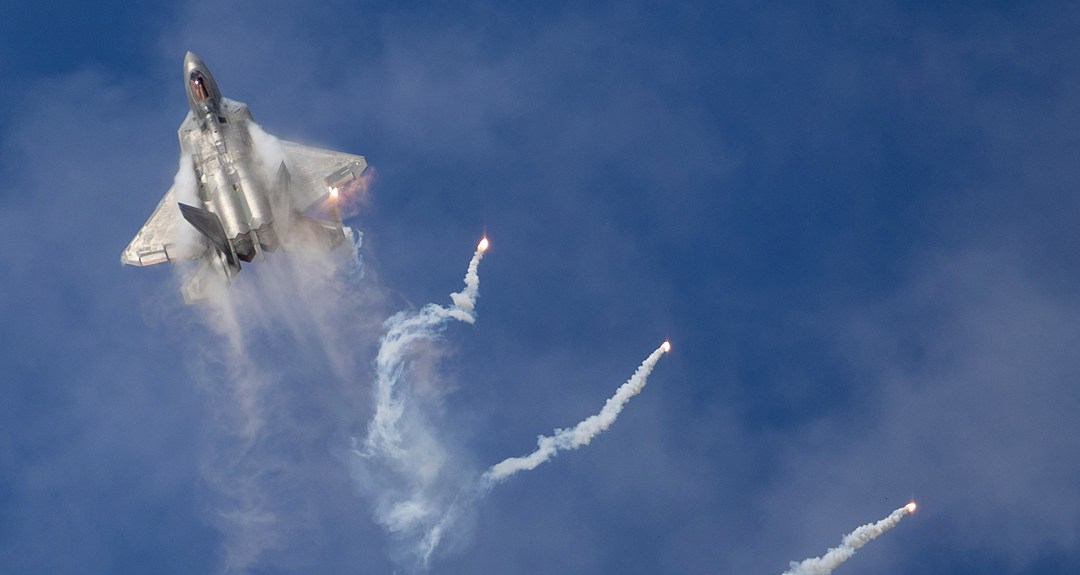

F-22C Raptor

F-22C Raptor

Air Defense Fighters
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
F-22C Raptor
Designation
F-22C Raptor
Alternate Designation
F-22 Super
Equipment Type
Air Defense Fighters
Manufacturer
Lockheed Martin
Date of Introduction
2032
Description

The F-22C Raptor is an upgraded variant intended to fit into the Indo-Pacific combat scenario by adding two external low drag, low signature external fuel tanks. The new fuel tanks may add an extra 1,000 kilometers the aircraft’s maximum range. The aircraft is also expected to get two external pylons homing infrared search and track (IRST) and electronic warfare (EW) systems. The F-22C may feature an upgraded active electronically scanned array (AESA) radar to support long range engagements using the AIM-260 JATM air-to-air missile. The US Air Force (USAF) approved the new variant in 2022 with the modified aircraft expected to make its maiden flight between 2024 and 2026. Up to 168 F-22A may be modified to the C standard between the late 2020s and early 2030s.

Air & Air Defense Specifications
Crew 1
Max Speed 2470.0 km/h
Range 1300.0 km
Service Ceiling 15240 m
Wingspan 13.60 m
Overview (Deagel)
Group Air Defense Fighters
Status Under Development
Also Known As F-22 Super
Origin United States of America
Contractor Lockheed Martin
Initial Operational Capability (IOC) 2032
First Flight March 2026
Total Production ?
Specifications (Deagel)
Crew 1
Number of Engines 2
Service Life Flight Hours 8000
Area — Radar Cross Section (RCS) 0.01 square meter
Dimensions — Height 5.1 meter
Dimensions — Length 19 meter
Dimensions — Main Gun Caliber 20 millimeter
Dimensions — Wingspan 13.6 meter
G-load — Max Maneuvering Load Factor 9.5 g
Mass — Empty Weight 43,340 pound
Mass — Fuel Load 18,000 pound
Mass — Max Takeoff Thrust 70,000 pound
Mass — Max Takeoff Weight 38,000 kilogram
Mass — Operational Weight 29,000 kilogram
Percentage — Availability 60 %
Performance — Ceiling 50,000 foot
Performance — Ferry Range 1,600 nautical mile
Performance — Max Range at Supercruise 100 nautical mile
Performance — Radius of Operation 1,300 kilometer
Speed — Cruise Speed 0.95 mach
Speed — Supercruise Speed 1.6 mach
Speed — Top Speed at High Altitude 2,470 kph
Gear (Deagel)
Item 1 Air-to-Air Missiles: AIM-260A JATM (6)
Item 2 Air-to-Air Missiles: AIM-9X Sidewinder (2)
Item 3 Communications Devices: ICNI
Item 4 Decoy Systems: AN/ALE-52
Item 5 ESM & Warning Systems: AN/AAR-56
Item 6 ESM & Warning Systems: AN/ALR-94
Item 7 Fighter Aircraft Engines: F119-PW-100 (2)
Item 8 Medium Caliber Cannons: M61A2 (1)
Item 9 Radar Systems: AN/APG-77 (1)
Variants
Variant 1 F-22A Raptor
Variant 2 FB-22
Variant 3 F-22C Raptor
Details
Country of Origin United States
Category Multirole Aircraft
Air > Multirole Aircraft
Sources

deagel.com: https://www.deagel.com/x/x/a000531

Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
19 m
Width
13.6 m
Height
5.1 m
Weight
38000 kg
Operators (1)
United States
