2A36 Giatsint-B Russian 152mm Towed Gun
2A36 Giatsint-B
Towed Gun
Other
Basic Information
Name
2A36 Giatsint-B Russian 152mm Towed Gun
Designation
2A36 Giatsint-B
Alternate Designation
2A36 Giatsint-B
Equipment Type
Towed Gun
Manufacturer
Uraltransmash
Date of Introduction
1976
Description

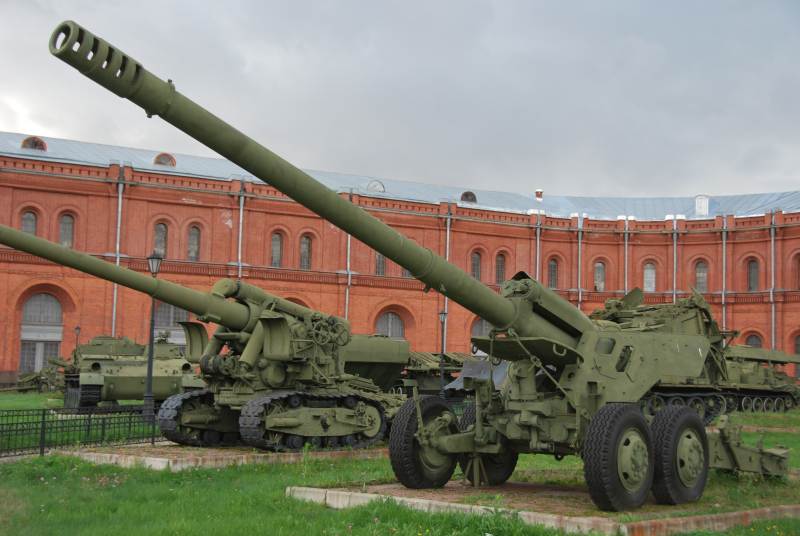

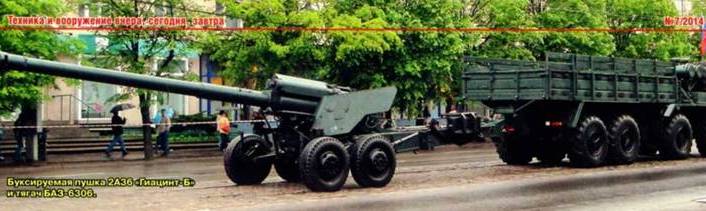

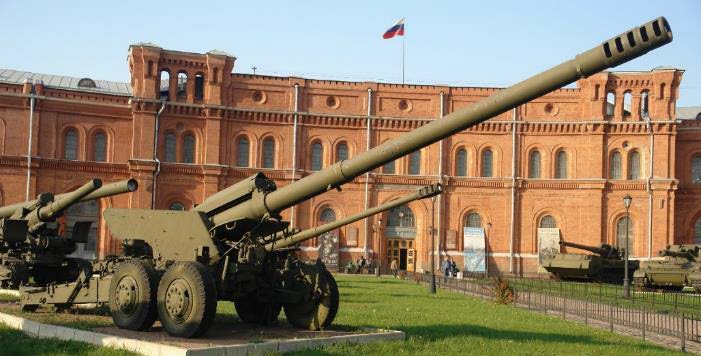

This is the towed variant of the 2S5. The most distinguishing feature of the 2A36 is its lower carriage. The large system weight required the use of tandem “walking-beam” axles and four wheels to provide mobility. A hydraulically powered firing pedestal is mounted on the front of the lower carriage and serves as part of the travel lock (similar to the D-20). Although the trails do not have the folding summer spades of the D-20, they do have two large spades similar to those found on the M-46/M-47. The weight of the 2A36 normally requires it to be towed by a heavy truck (like the KRAZ-255B). The KRAZ-255B is equipped with a special winch used to lift the trails in order to attach the gun’s lunette to the towing pintle.
Ground Specifications
Crew
8
Mobility Type
Towed
Main Weapon
152mm Towed Gun
Range
30500.0 km
Variants
2A36 Giatsint-BK
As per 2A36, with a slightly longer 2A36 barrel. The longer 152 mm barrel would give a slight increase in range, however, there is no confirmed information on the actual increase in range.
System
Alternative Designation
2A36 Giatsint-B
Type
Towed Gun
Caliber
152.4 mm
Manufacturer
Uraltransmash Works
Prime Mover
KrAZ-4556, KrAZ-255B, or AT-S
Crew
8 ea
Towing Speed Road
70 km/h
Towing Speed Off Road
20 km/h
Displacement Time
7 min
Emplacement Time
5 min
Dimensions
Length, Chassis Overall Firing
12.3 m
Length, Chassis Overall Travel
12.9 m
Height, Overall
2.7 m
Width, Firing
8.7 m
Width, Travel
2.7 m
Weight, Standard
9,800 kg
Weight, Combat
9,760 kg
Main Weapon System
System
Name
2A36 Giatsint-B
Type
Towed Gun
Caliber
152 mm
Length, Barrel
7.5 m
Rate of Fire, Burst
6 rd/min
Rate of Fire, Normal
5 rd/min
Rate of Fire, Sustained
4 rd/min
Loader Type
Semi-Automatic
Breech Type
Horizontal Sliding Wedge
Muzzle Brake Type
Multi-Baffle
Traverse, Left
25 deg
Traverse, Right
25 deg
Traverse
50 deg
Elevation
-2/+57 deg
Ammunition
Other Ammunitions Types
DPICM, DPICM-BB, Incendiary, Chemical, Flechette, Semi-active laser-guided Krasnopol-M Frag-HE. The cannon is ballistically matched to the 2S5/2S5M self-propelled gun system. Thus it can generally fire the same ammunition to the same range.
Frag-HE
Name
OF-39 (RAP)
Type
Frag-HE
Caliber
152 mm
Fuze Type
V-429 PD
Projectile Weight
43.51 kg
Muzzle Velocity
945 m/s
Range, Maximum
28,400 m
Range, Minimum
9,100 m
HEAT
Name
BP-540
Type
HEAT (for use in direct fire mode)
Caliber
152 mm
Fuze Type
GPV-2 PD
Projectile Weight
27 kg
Muzzle Velocity
655 m/s
Range, Maximum
1000 m
Range, Minimum
INA
Frag-HE
Name
OF-86
Type
Frag-HE
Caliber
152 mm
Fuze Type
V-429 PD
Projectile Weight
43.8 kg
Muzzle Velocity
945 m/s
Range, Maximum
30,500 m
Range, Minimum
INA
Fire Control System
Indirect Fire
PG-1M PANTEL
Direct Fire
N/A
Collimator
K-1
Fire Control Computer
None
Gun Display Unit
None
Details
Country of Origin
Russia
Category
Towed Gun/Howitzer Artillery Systems
Land > Artillery > Towed Gun/Howitzer Artillery Systems
Filter Label
2
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
2.7 m
Height
2.7 m
Weight
9760 kg
Operators (12)
Russia
Ukraine
Belarus
Armenia
Azerbaijan
Finland
Georgia
Iraq
Lebanon
Moldova
Uzbekistan
