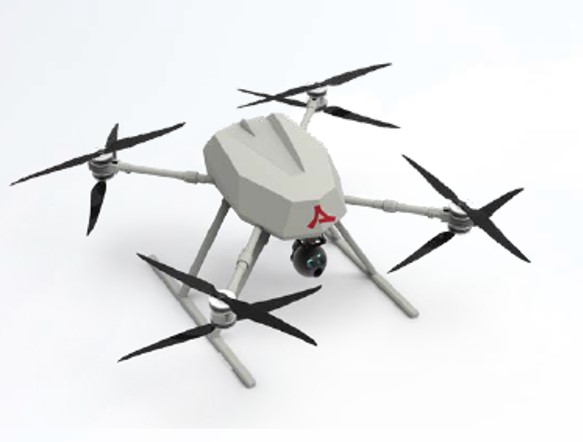

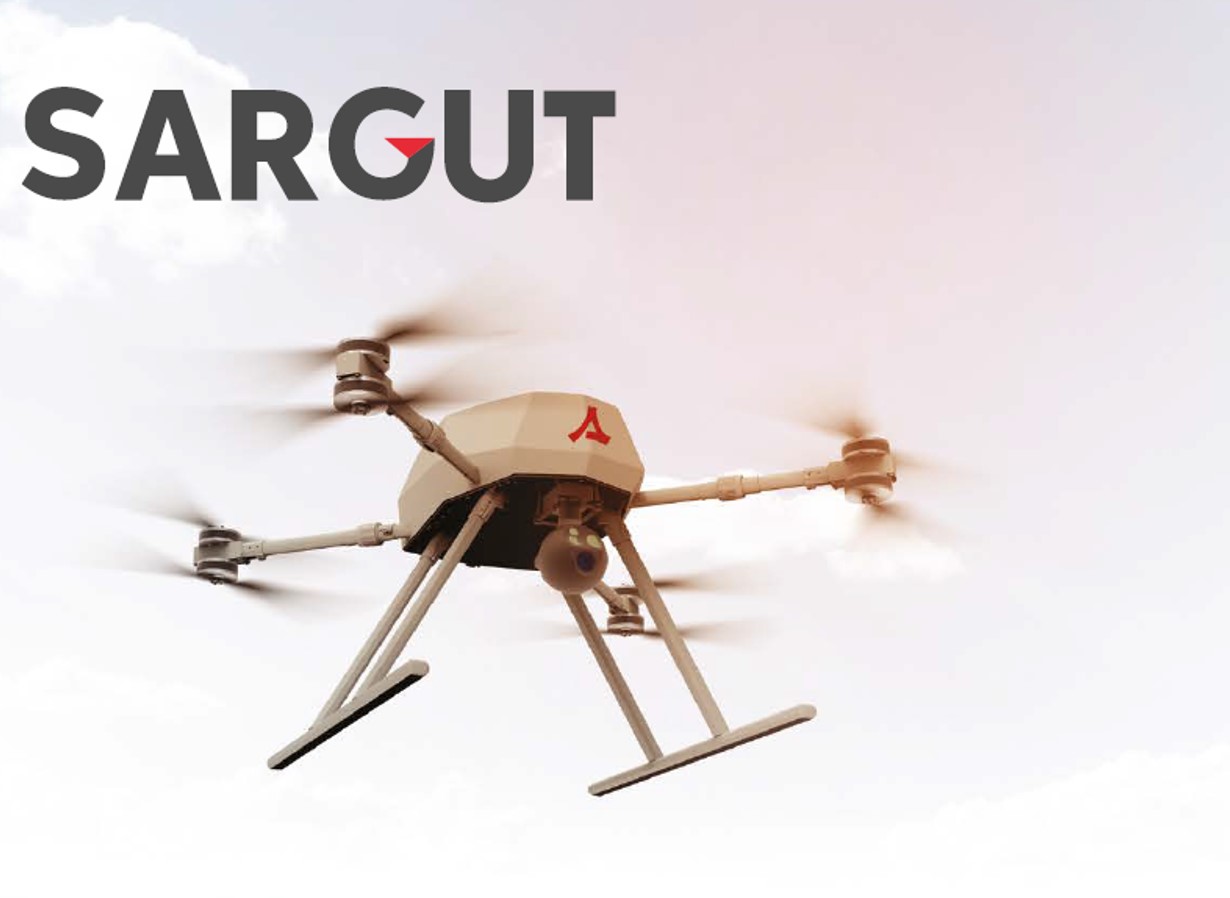

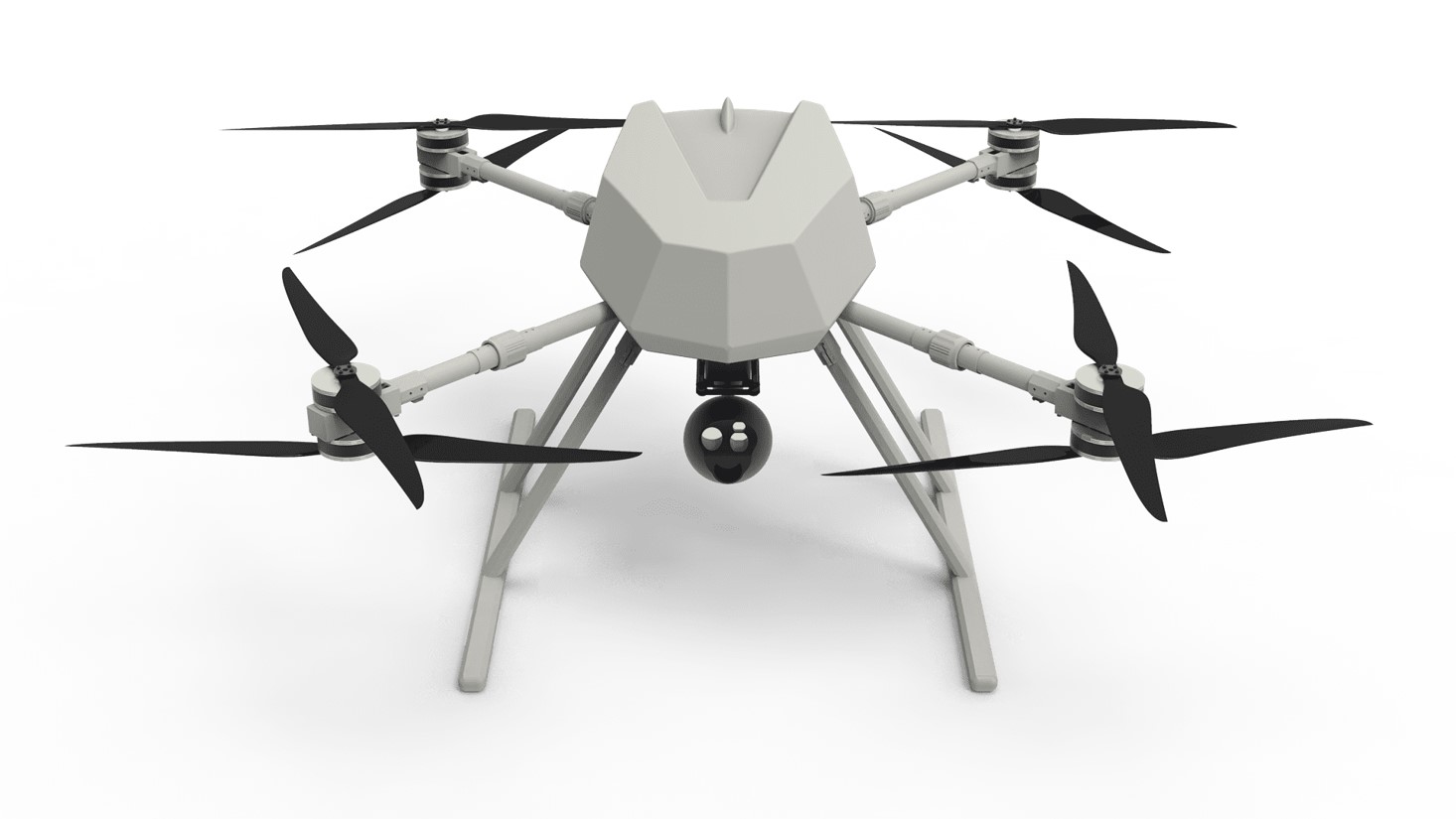

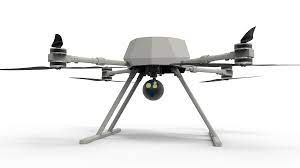

Sargut Turkish Unmanned Aerial Vehicle (UAV)

Sargut

VTOL Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Sargut Turkish Unmanned Aerial Vehicle (UAV)
Designation
Sargut
Alternate Designation
Sargut
Equipment Type
VTOL Unmanned Aerial Vehicle (UAV)
Manufacturer
Asisguard
Date of Introduction
2020
Description

The Sargut Turkish Unmanned Aerial Vehicle (UAV) is developed by ASİSGUARD to be used in civilian operations for surveillance purposes. Due to its gimbal integrated high definition camera, SARGUT drone system is suitable to be used in both day and night camera surveillance missions. SARGUT unarmed drone system’s user friendly and portable design aims to provide easiness to user during the operation such as autonomous/manual flight modes, return to home function on link-loss, mission planning, autonomous flight on planned route and in-flight mission change. Real-time monitoring and recording of high definition gimbal camera video and telemetry data of the flight is possible through its ergonomic design of Ground Control Station. Ground Control Station’s user interface also allows operator to start/stop the recording of flight or watch a record selected among the previous records.

Air & Air Defense Specifications
Engine Battery
Max Speed 54.0 km/h
Range 5.0 km
Endurance 27.00 hrs
Service Ceiling 3000 m
System
Alternate Designation Sargut
Type Vertical Take-Off and Landing (VTOL) Unmanned Aerial Vehicle (UAV)
Manufacturer Asisguard
Autonomy Semi-Autonomous
Crew Unmanned
Payload Capacity INA
Reconnaissance Equipment High definition gimbal integrated camera; Mission planning on Moving map and Autonomous Flight on Planned Route;
Operating Temperature -20°C and +50°C
Maximum Wind Speed 10 m/s
Launching System Vertical Take-Off and Landing (VTOL)
Recovery System Vertical Take-Off and Landing (VTOL)
Dimensions
Length 140 cm from rotor to rotor
Width INA
Height INA
Maximum Takeoff Weight 38 kg
Automotive
Engine Name INA
Engine Type Battery
Engine Power INA
Maximum Speed 54 km/h
Cruising Speed INA
Service Ceiling 3,000 m
Operational Range 5 km
Endurance 27 min
Details
Country of Origin Turkey
Category Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Air > Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.4 m
Width
Height
Weight
38 kg
Operators (1)
Turkey
