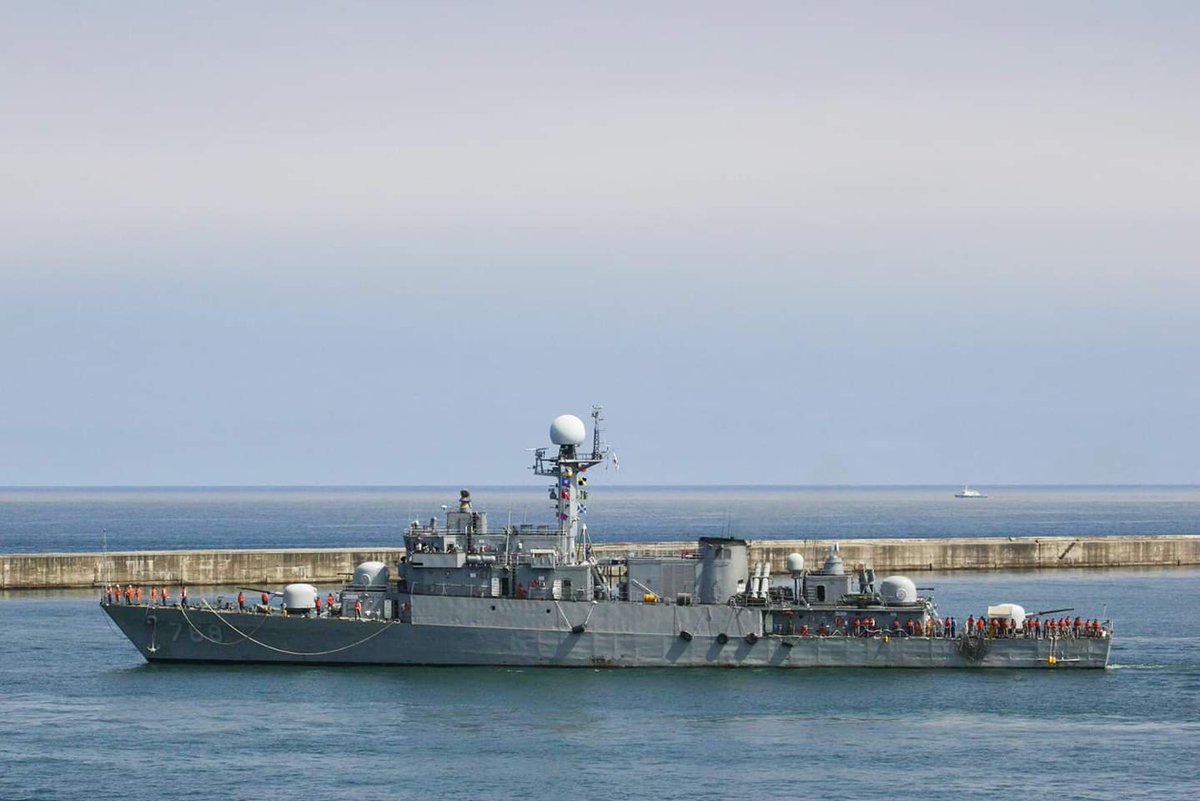

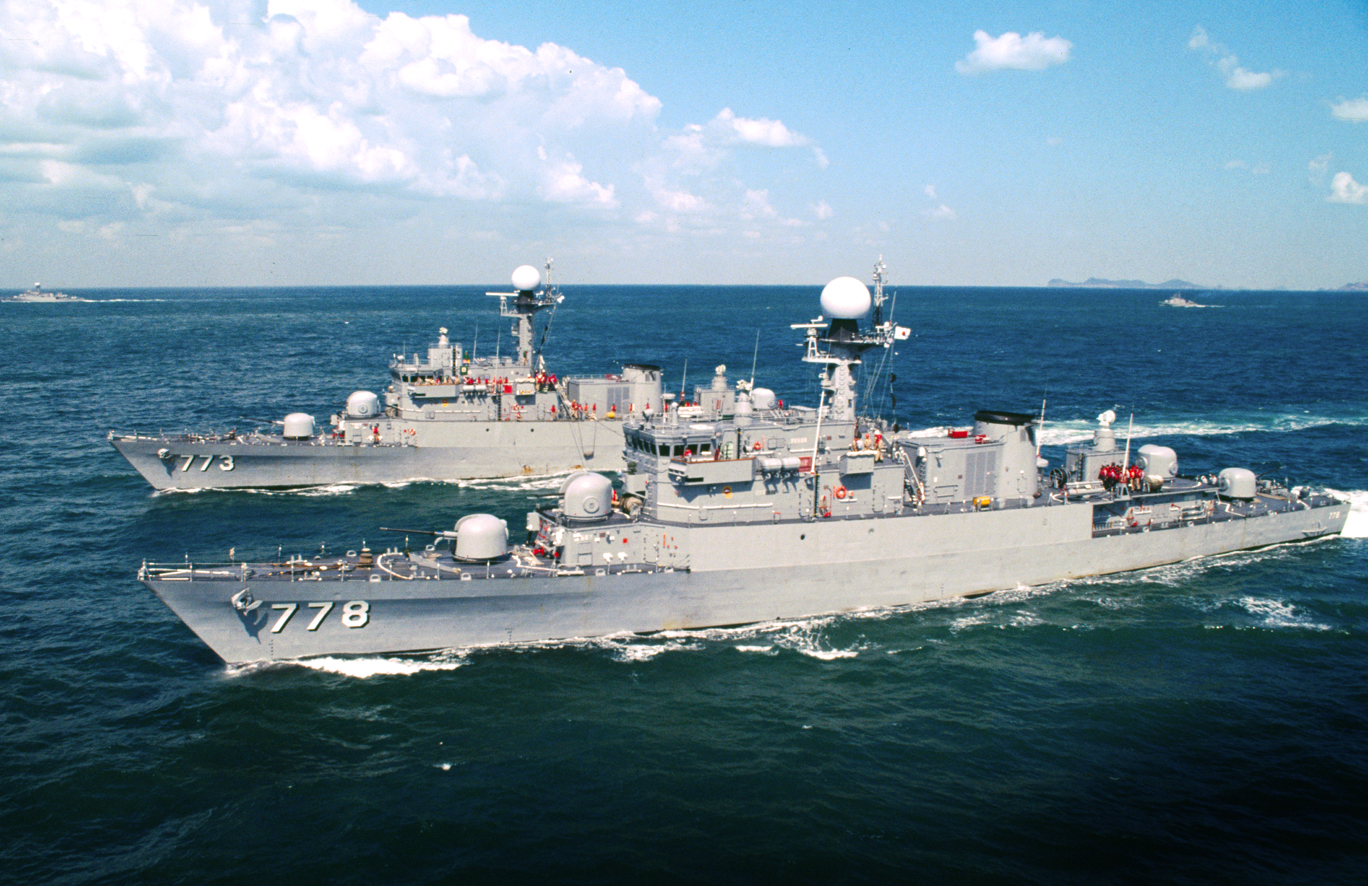

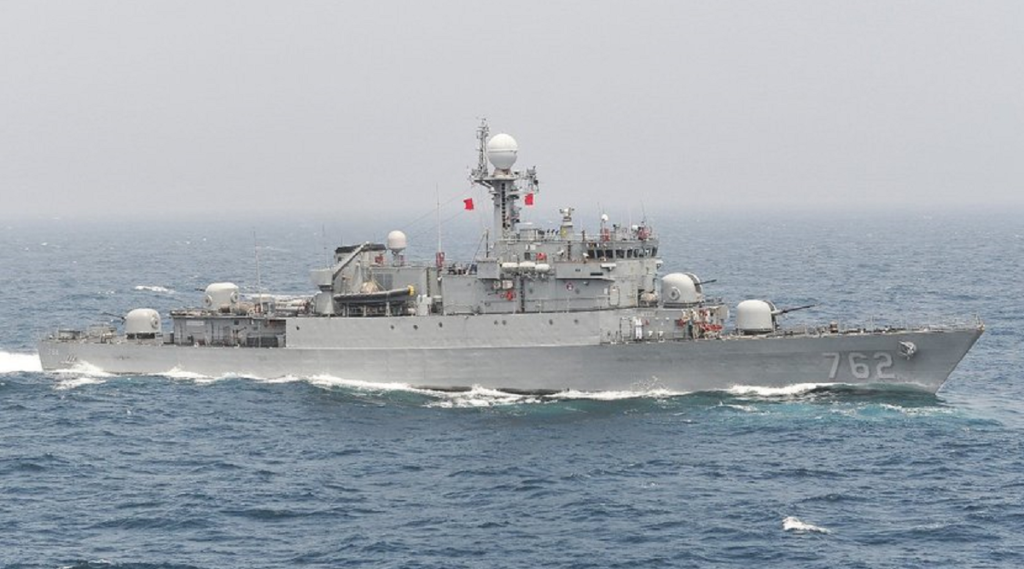

Pohang Class South Korean Corvette
Pohang Class
Corvette
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
Pohang Class South Korean Corvette
Designation
Pohang Class
Alternate Designation
Pohang Class
Equipment Type
Corvette
Manufacturer
Korean Shipbuilding & Engineering
Date of Introduction
1984
Description
The Pohang-class corvette is a class of general-purpose corvettes operated by the Republic of Korea Navy. They have served in a coastal defense role during the late Cold War and post Cold War period. A total of 24 Pohang-class vessels were built, all constructed in South Korea. 10 vessels remain in service in the ROKN as of 2020.
Naval & Littoral Specifications
Crew
95
Beam
10.00 m
Draft
2.90 m
Variants
POHANG
Commissioned: 1984
Status: Museum
KUNSAN
Commissioned: 1984
Status: Trans/Colombia
KEONGJU
Commissioned: 1986
Status: Trans/Peru
MOKPO
Commissioned: 1986
Status: Trans/Philippines
KIMCHON
Commissioned: 1985
Status: Trans/Vietnam
CHUNG JU
Commissioned: 1985
Status: Trans/Philippines
JINJU
Commissioned: 1988
Status: Active
YEOSU
Commissioned: 1988
Status: Active
CHINHAE
Commissioned: 1989
Status: Active
SUNCHON
Commissioned: 1989
Status: Active
YEEREE
Commissioned: 1989
Status: Active
WONJU
Commissioned: 1989
Status: Active
ANDONG
Commissioned: 1989
Status: Active
CHEONAN
Commissioned: 1989
Status: Sunk
SEONGNAM
Commissioned: 1989
Status: Active
BUCHEON
Commissioned: 1989
Status: Active
JECHEON
Commissioned: 1989
Status: Active
DAECHEON
Commissioned: 1989
Status: Active
SOKCHO
Commissioned: 1990
Status: Active
YEONGJU
Commissioned: 1990
Status: Active
NAMWON
Commissioned: 1990
Status: Active
KWANGMYEONG
Commissioned: 1990
Status: Active
SHINHEUNG
Commissioned: 1993
Status: Active
GONGJU
Commissioned: 1993
Status: Active
System
Alternative Designation
Pohang Class
Type
Corvette
Builder
Korean Shipbuilding & Engineering, Pusan, South Korea
Crew
95 (10 off. + 85 enl.)
Dimensions
Length
88.3 m
Beam
10.0 m
Draft
2.9 m
Displacement, Standard
950 tons
Displacement, Full Load
1,240 tons
Propulsion System
Engine Name
2 x MTU 12V956 TB82
Engine Type
Diesel
Engine Power
6,260 bhp
Propellers
2 shafts w/controllable-pitch propellers
Maximum Range
4,000 nm at 15 knots
Maximum Speed
32 knots
Endurance
INA
Gun Weapon Systems
System
Name
OTO Melara 76mm
Type
Naval Gun
Caliber
76 mm
Quantity
1 x 76-mm/62-cal Oto Melara Super Rapid DP
Barrel Length
4,724.4 mm
Weight
Empty: 7.5 tonnes (17,000 lb)
Crew
Remote Controlled
Elevation
−15°/+85°
Traverse
360°
Rate of Fire
85 rounds/min
Muzzle Velocity
915 m/s
Maximum Firing Range
16,000 m
Feed System
Magazine capacity:
80 ready rounds on Compact gun mount
Ammunition
Type
Rifle
Caliber
76 mm
Shell
76×636mmR
Basic Load
INA
Gun Weapon System #2
Name
DARDO
Type
Close-In Weapon System (CIWS)
Caliber
40 mm
Quantity
2 x twin DARDO 40mm CIWS
Barrels
2 × Breda-built Bofors-40 mm L/70
Elevation
Minimum −13°
Maximum +85°
Traverse
Full 360°
Rate of Fire
2 × 450 round/min
Maximum Firing Range
AA with HE: 8,700 m
Effective Firing Range
HE Round: 4,000 m
Feed System
Dual feed mechanism with 736 HE and 200 APFSDS rounds
Ammuntion Gun Weapon System #2
Type
Rifle
Caliber
40 mm
Shell
INA
Basic Load
INA
Missile Weapon System
Missile System #1
Name
Exocet Missile
Type
Anti-Ship Missile
Quantity
2 × 4 Exocet MM40 Block II missile launchers.
Launcher
MM40 Block II missile launchers.
Missile Basic Load
8 ea
Length
6 m
Diameter
34.8 cm
Wingspan
1.35 m
Weight
780 km
Warhead
165 km
Engine
Solid propellant engine
turbojet (MM40 Block 3 version)
Operational Range
180 km
Flight Altitude
Sea-skimming
Speed
Mach 0.93
1,148 kilometres per hour (713 mph; 319 m/s)
Guidance System
Inertial guidance and terminal active radar homing
Launch Platform
multi-platform:
*MM38 surface-launched
*AM39 air-launched
*SM39 submarine-launched
*MM40 surface-launched
Missile Weapon System #2
Name
Sea Wolf Missile
Type
Surface-to-Air Missile
Quantity
1 x VLS for Seawolf SAM Launcher
Launcher
Vertical Launching System
Missile Basic Load
16 x Sea Wolf Missile
Length
1.9 m
Diameter
180 mm
Wingspan
450 mm
Weight
82 kg
Warhead
14 kg (30.9 lb) HE Blast-Fragmentation
Detonation Mechanism
Direct contact/Proximity fuse activated
Engine
Blackcap solid fuel sustainer
Operational Range
1–10 km
Flight Ceiling
3,000 m
Speed
Mach 3 (3,675 km/h; 2,284 mph)
Guidance System
Automatic Command to Line-Of-Sight (ACLOS)
Steering System
Control surfaces
Torpedo Weapon System
Torpedo Tubes
2 x triple BAE Systems 324-mm Mark 32 ASW
Torpedo Name
Mark 46 Torpedo
Torpedo Basic Load
6 x Mark 46 Torpedo
Fire Control System (FCS)
FCS Name
1 x Marconi S-1810 fire control (PCC-766 on)
Radar Systems
Navigation Radar
1 x Raytheon AN/SPS-64 navigation
Surface / Air Search Radar
1 x Marconi ST1802 surface/air search
Sonar Systems
Hull-Mounted Sonar
1 x Thales PHS-32 hull-mounted, medium-frequency
Protection
Electronic Warfare
1 x Goldstar ULQ-12K intercept/jammer
Decoy
1 x Mk 36 SRBOC decoy system (2 6-round Mark 137 rocket launchers) (PCC-756/759) or 4 x 9-round Protean decoy rocket launchers (PCC-761 and following)
NBC Protection
Yes
Details
Country of Origin
South Korea
Category
Naval
Naval
Filter Label
P
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
88.3 m
Width
10 m
Height
—
Weight
950000 kg
Operators (5)
South Korea
Colombia
Egypt
Peru
Philippines
