Yabhon-R2

Yabhon-R2

Surveillance & Reconnaissance Airplanes
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Yabhon-R2
Designation
Yabhon-R2
Alternate Designation
Equipment Type
Surveillance & Reconnaissance Airplanes
Manufacturer
ADCOM Systems
Date of Introduction
2012
Description

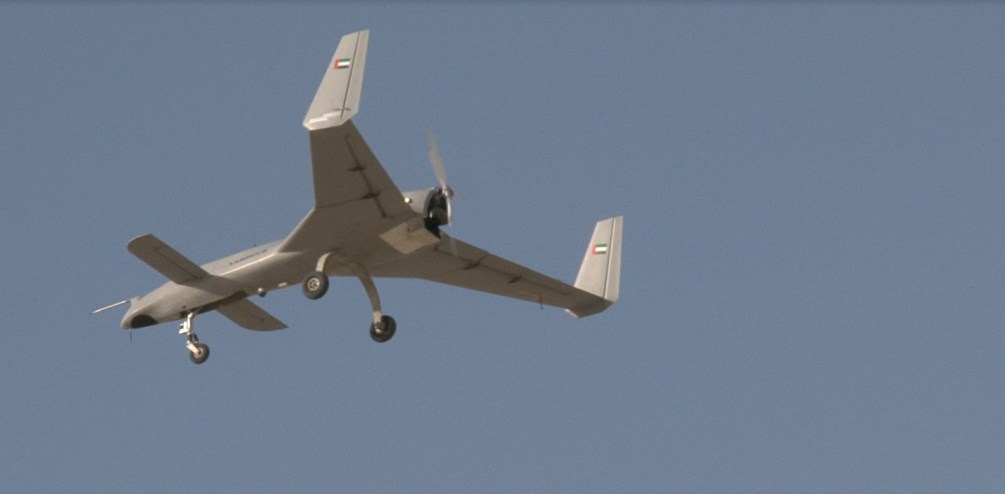

The ADCOM Systems Yabhon-R2 is an improved version of the Yabhon-R medium altitude, long endurance (MALE) unmanned aircraft system (UAS) offering greater flight endurance and maximum speed. The Yabhon-R2 is suitable for real time day/night intelligence, reconnaissance and surveillance (ISR), search and rescue (SAR), border surveillance and remote area monitoring. The delta-canard wing aircraft is powered by a single Rotax 914 UL3 115-hp engine driving a three-blade propelled at the tail. This configuration allows a maximum cruise speed of 250 kilometers per hour and a flight endurance of 30 hours. The Yabhon-R2 has been optimized for operations from unprepared and short runways with emergency landing using a built-in parachute. The payload includes electro-optical sensors such as thermal imager, TV camera, laser range finder and laser designator. The landing wheels are fully retractable.

Air & Air Defense Specifications
Max Speed 250.0 km/h
Service Ceiling 6700 m
Wingspan 8.50 m
Overview (Deagel)
Group Surveillance & Reconnaissance Airplanes
Status Active
Origin United Arab Emirates
Contractor ADCOM Systems
Initial Operational Capability (IOC) 2012
Total Production ?
Specifications (Deagel)
Crew 0
Number of Engines 1
Propeller Blades 3
Area — Wing Area 12 square meter
Dimensions — Height 2.3 meter
Dimensions — Length 5.5 meter
Dimensions — Wingspan 8.5 meter
Mass — Empty Weight 385 kilogram
Mass — Max Takeoff Weight 650 kilogram
Mass — Payload 270 kilogram
Performance — Ceiling 6,700 meter
Power — Max Power at TakeOff 115 hp
Speed — Cruise Speed 200 kph
Speed — Stall Speed 93 kph
Speed — Top Speed at High Altitude 250 kph
Time — Flight Endurance 30 hour
Volume — Fuel Tank Capacity 270 liter
Gear (Deagel)
Item 1 Optronic Systems: ADFLIR GSP (1)
Variants
Variant 1 Yabhon-R
Variant 2 Yabhon-R2
Details
Country of Origin United Arab Emirates
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
5.5 m
Width
8.5 m
Height
2.3 m
Weight
650 kg
Operators (1)
United Arab Emirates
