HQ-22 (SA-20) Chinese Long-Range Air Defense Missile System
Other

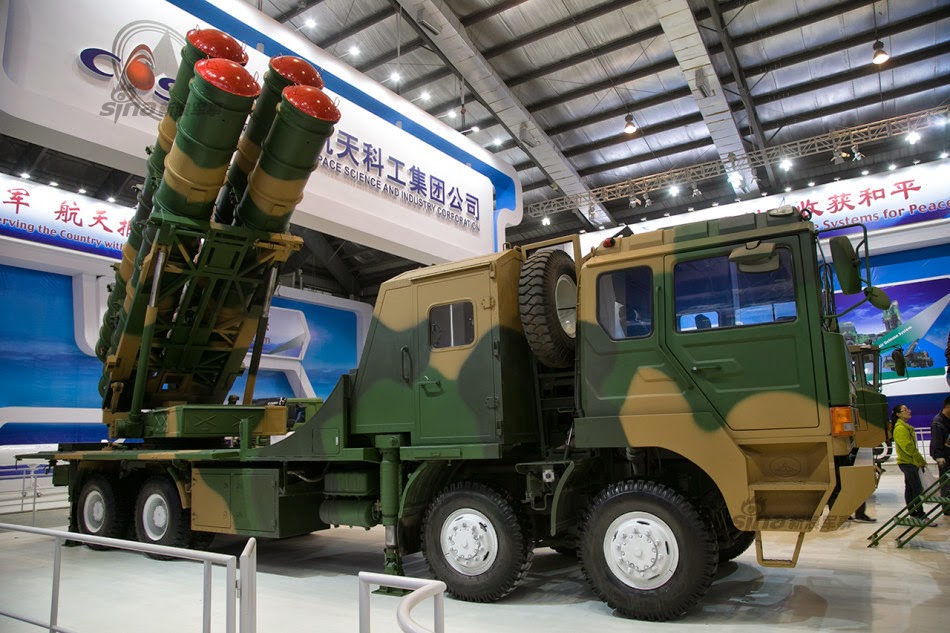

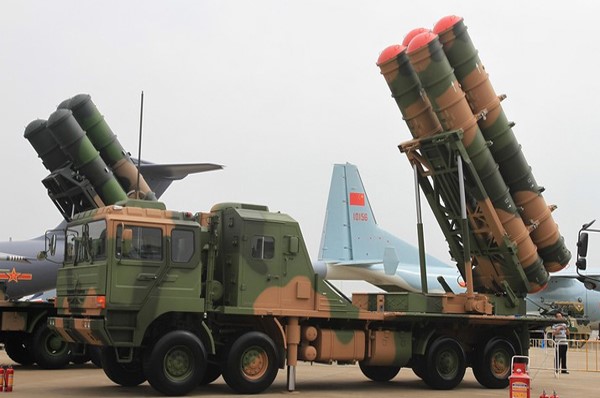

HQ-22Airdef(C).jpgTRADOC ODIN WEG
Basic Information
Name
HQ-22 (SA-20) Chinese Long-Range Air Defense Missile System
Designation
HQ-22
Alternate Designation
HQ-22; NATO: SA-20; FK-3
Equipment Type
Long-Range Air Defense Missile System
Manufacturer
—
Date of Introduction
2017
Description

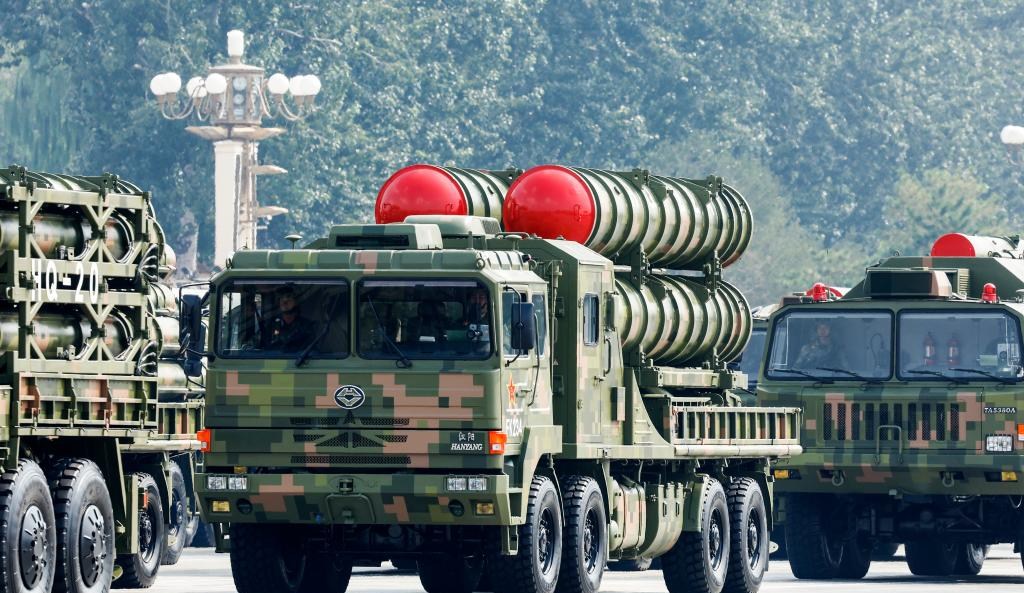

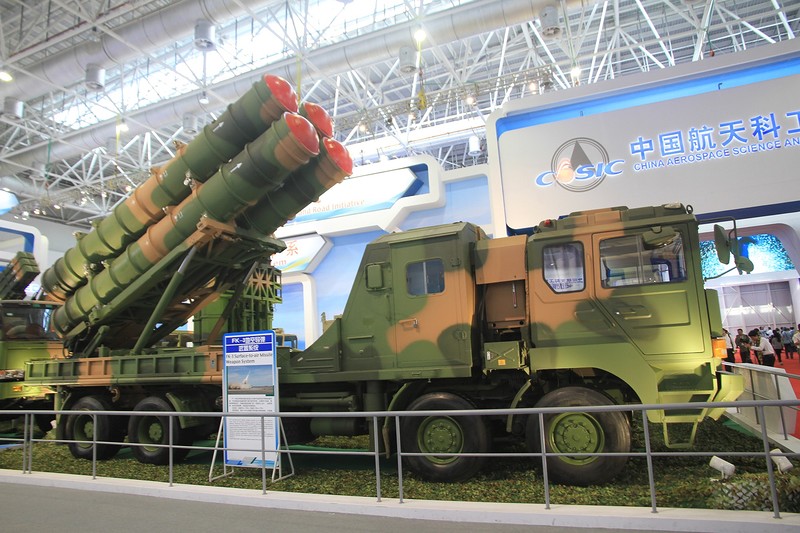

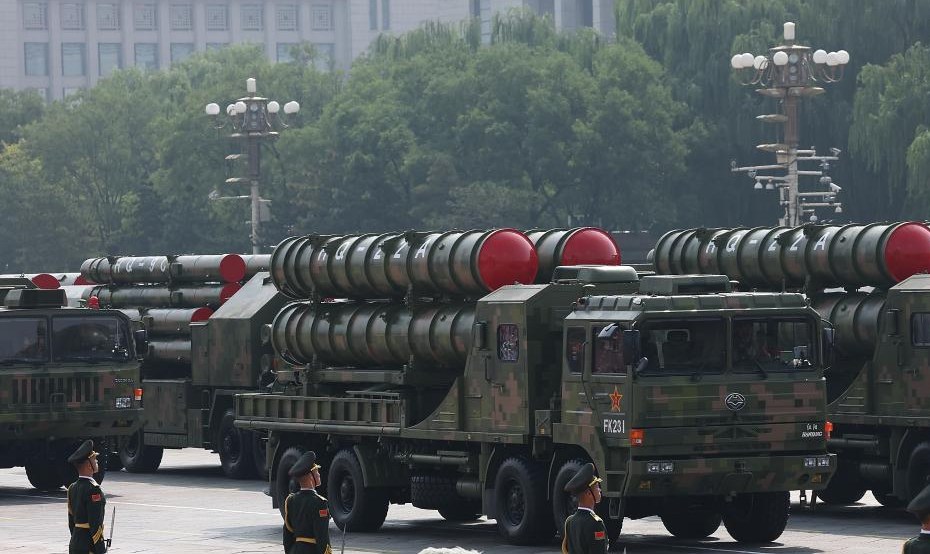

The HQ-22 (SA-20) Chinese Long-Range Air Defense Missile System, also known as FK-3, is a long-range air defense system developed by China to engage a wide range of aerial targets at ranges of up to 170 kilometers. The missile system has been designed to engage fourth-generation aircraft, helicopters, cruise missiles, and drones, as well as a variety of aerodynamic threats. Besides, the new weapon system has been designed to withstand electronic countermeasures and operate in heavy jamming environments. This new air defense system relies on 8x8 vehicles that transport four vertically launched missiles each. The HQ-22 long-range surface-to-air missile system was unveiled at the 2016 China Airshow.

Ground Specifications
Mobility Type Wheeled (8x8)
Active Protection None
Range 170.0 km
System
Alternative Designation HQ-22; NATO: SA-20; FK-3
Type Long-Range Air Defense Missile System
Crew INA
Chassis The launcher is based on a Hanyang special chassis with 8x8 configuration.
Mission The HQ-22 air defense system can engage aircraft, helicopters, UAVs, ballistic and cruise missiles.
Displacement Time INA
Emplacement Time INA
Note A typical battery of HQ-22 includes 3 launcher vehicles. A battery can engage 6 air targets simultaneously.
Dimensions
Length INA
Width INA
Height INA
Weight, Combat INA
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Cruising Range INA
Maximum Road Speed INA
Speed Maximum Swim Not Amphibious
Missile System
Name INA
Missile Length 7 m
Missile Diameter 0.7 m
Missile Weight 1 300 kg
Warhead Type HE-FRAG
Warhead Weight 180 kg
Guidance System Semi-Active GPS
Maximum Ceiling 27 km
Maximum Range 100 km
Note The complex (three PU) is able to fire 12 missiles on six targets simultaneously.
Fire Control
Fire Control System
Name INA
Computerized FCS Yes
Direct Fire No
Indirect Fire Yes
Radar
Name INA
Protection
Hull Armor INA
Applique Armor No
Explosive Reactive Armor No
Active Protection System No
NBC Protection INA
Smoke Equipment No
Image Sources
Notes https://armyrecognition.com/defense_news_august_2020_global_security_army_industry/serbia_plans_to_acquire_chinese_fk-3_air_defense_missile_systems.html; https://mil.in.ua/en/news/china-shipped-the-modern-air-defense-systems-to-serbia-media/; https://en.topwar.ru/174060-zenitki-raznyh-urovnej-v-ssha-o-zakupke-serbiej-kitajskih-zrk-vmesto-rossijskih.html;
Details
Country of Origin China
Category Radar Guided Missile Systems
Land > Air Defense > Radar Guided Missile Systems
Filter Label
H
Sources

deagel.com: https://www.deagel.com/x/x/a003805 deagel.com: https://www.deagel.com/x/x/a003806

Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
0.7 m
Height
—
Weight
—
Operators (2)
China
Serbia
