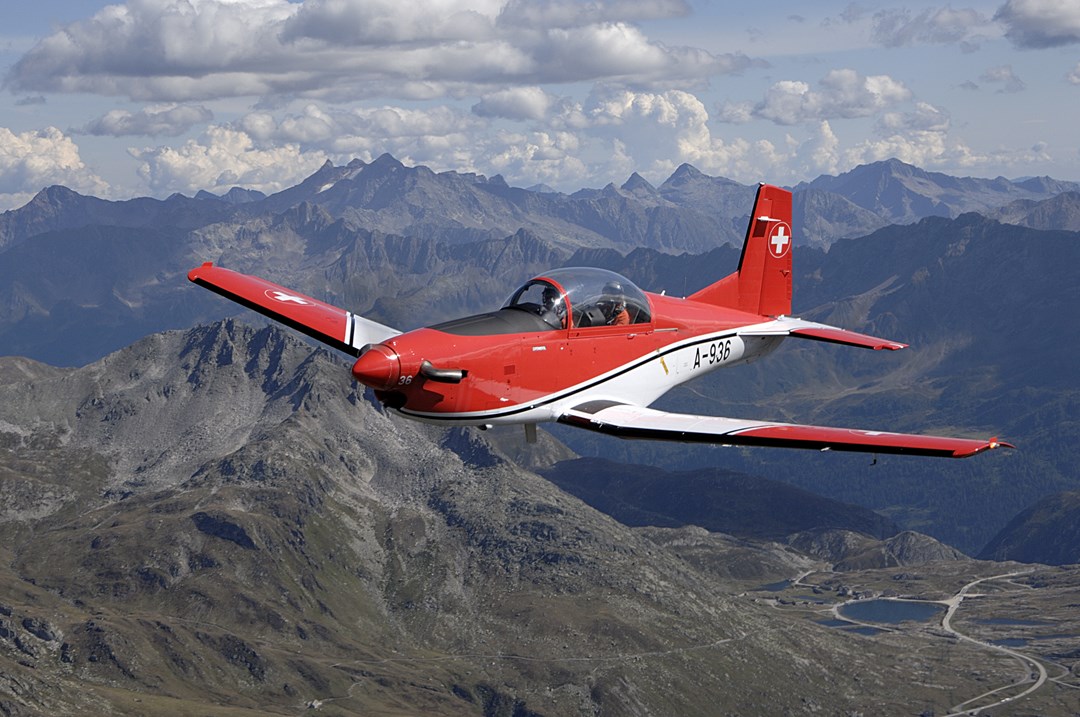

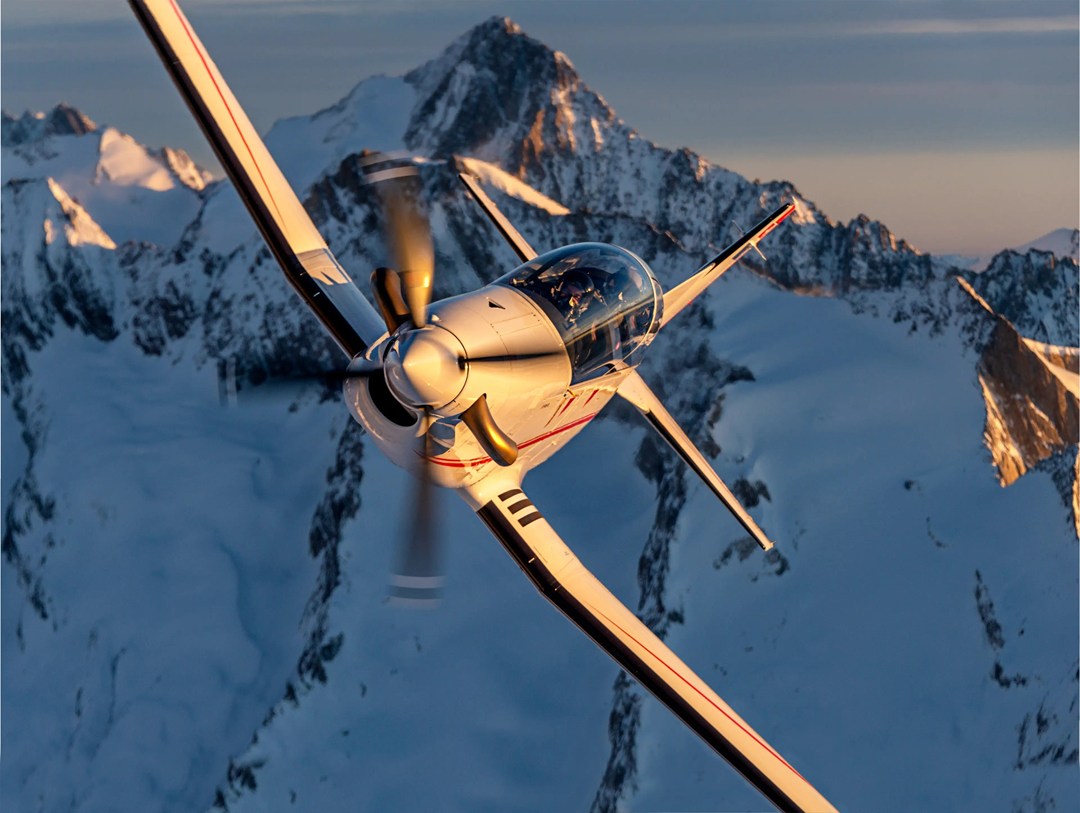

Pilatus PC-7

Pilatus PC-7

Training Turboprop Aircrafts
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Pilatus PC-7
Designation
Pilatus PC-7
Alternate Designation
Equipment Type
Training Turboprop Aircrafts
Manufacturer
Pilatus Aircraft
Date of Introduction
Description

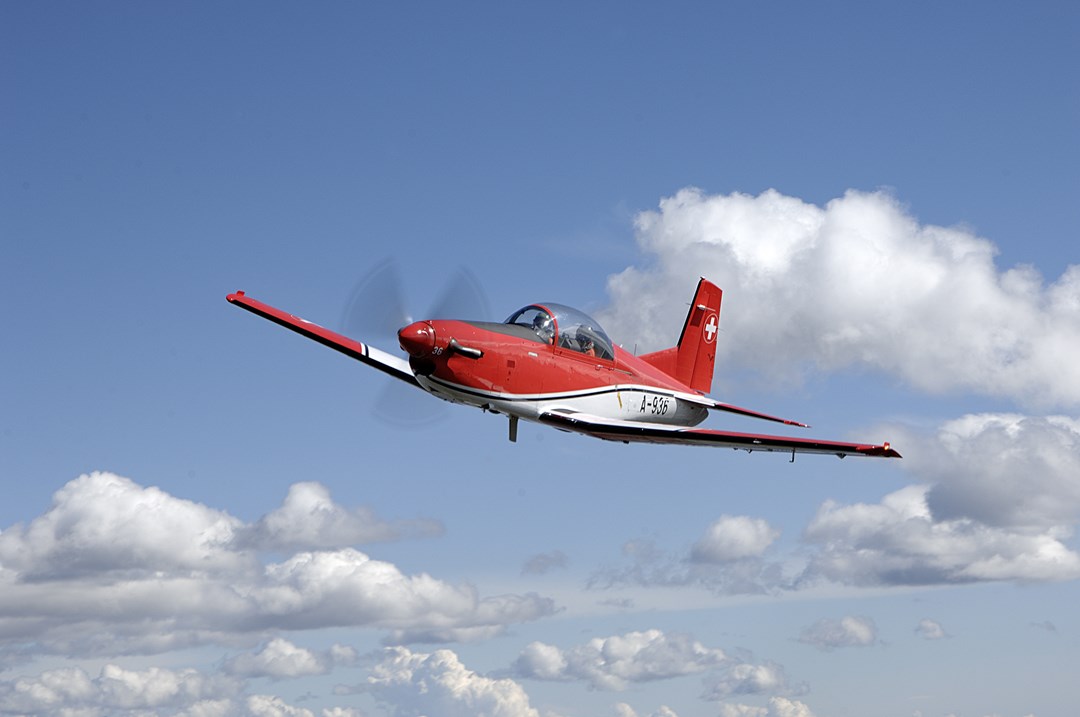

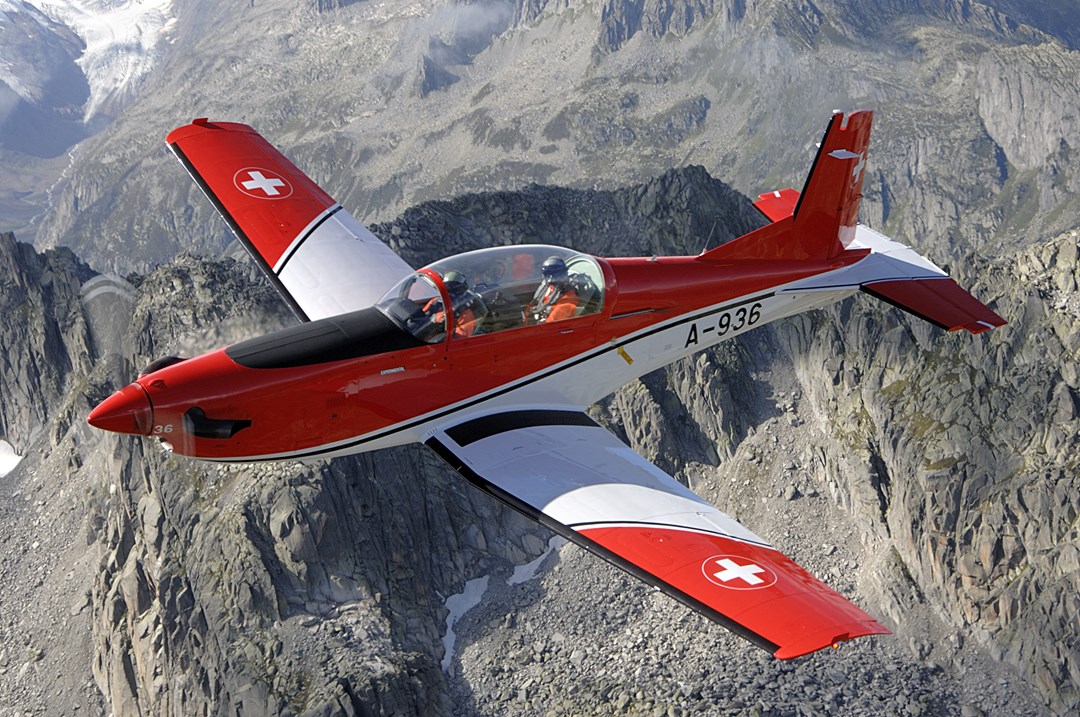

The Pilatus PC-7 Turbo-Trainer is a single-engine, tandem two-seat turboprop aircraft designed to perform basic training missions for military customers. It was developed by Pilatus Aircraft based upon the Pilatus PC-3 training aircraft which was introduced in the 1950s. The first PC-7 prototype performed its maiden flight on April 12, 1966, and the first production aircraft first flew in August 1978. The first production aircraft was delivered to the Air Force of Burma/Myanmar in December 1978. The Pilatus PC-7 trainer received a large number of orders in the 1980s entering into service with over 20 air forces providing basic training becoming thus the most successful military aircraft program for Pilatus Aircraft.

Air & Air Defense Specifications
Crew 2
Range 1200.0 km
Overview (Deagel)
Group Training Turboprop Aircrafts
Status Active
Origin Switzerland
Contractor Pilatus Aircraft
Initial Operational Capability (IOC) December 1978
First Flight April 12, 1966
Total Production ?
Specifications (Deagel)
Crew 2
Number of Engines 1
Propeller Blades 3
Area — Wing Area 16.6 square meter
Dimensions — Height 3.2 meter
Dimensions — Length 9.8 meter
Dimensions — Wingspan 10.4 meter
Mass — Empty Weight 1,330 kilogram
Mass — Max Takeoff Weight 1,900 kilogram
Performance — Ceiling 33,000 foot
Performance — Max Range 1,200 kilometer
Performance — Operational Altitude 25,000 foot
Power — Max Power at TakeOff 550 shp
Speed — Climb Rate 2,150 fpm
Speed — Cruise Speed 412 kph
Speed — Economical Speed 317 kph
Gear (Deagel)
Item 1 Turboprop Engines: PT6A-25A (1)
Variants
Variant 1 Pilatus PC-7 Turbo-Trainer
Variant 2 Pilatus PC-7 Mk II

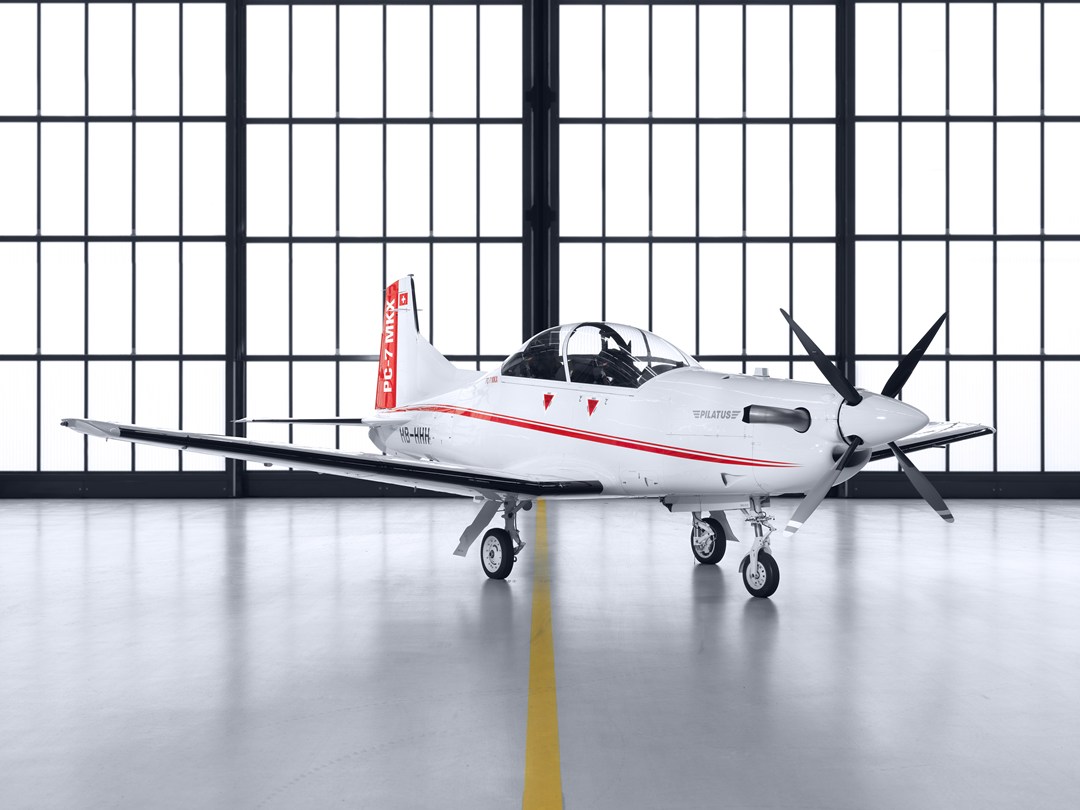

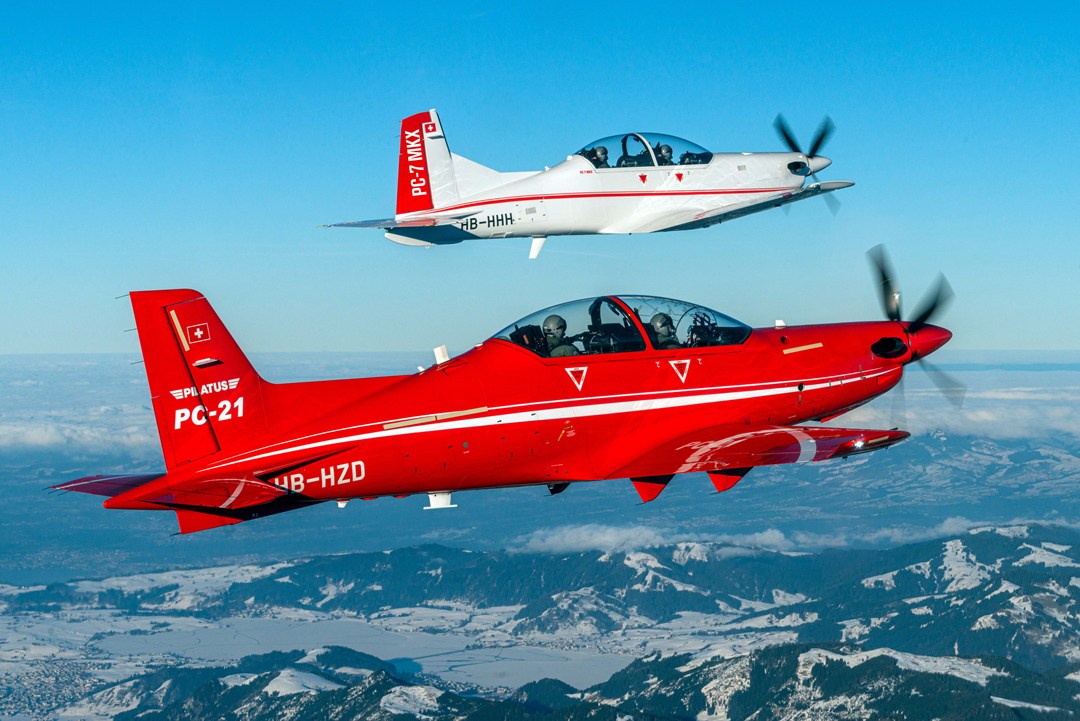

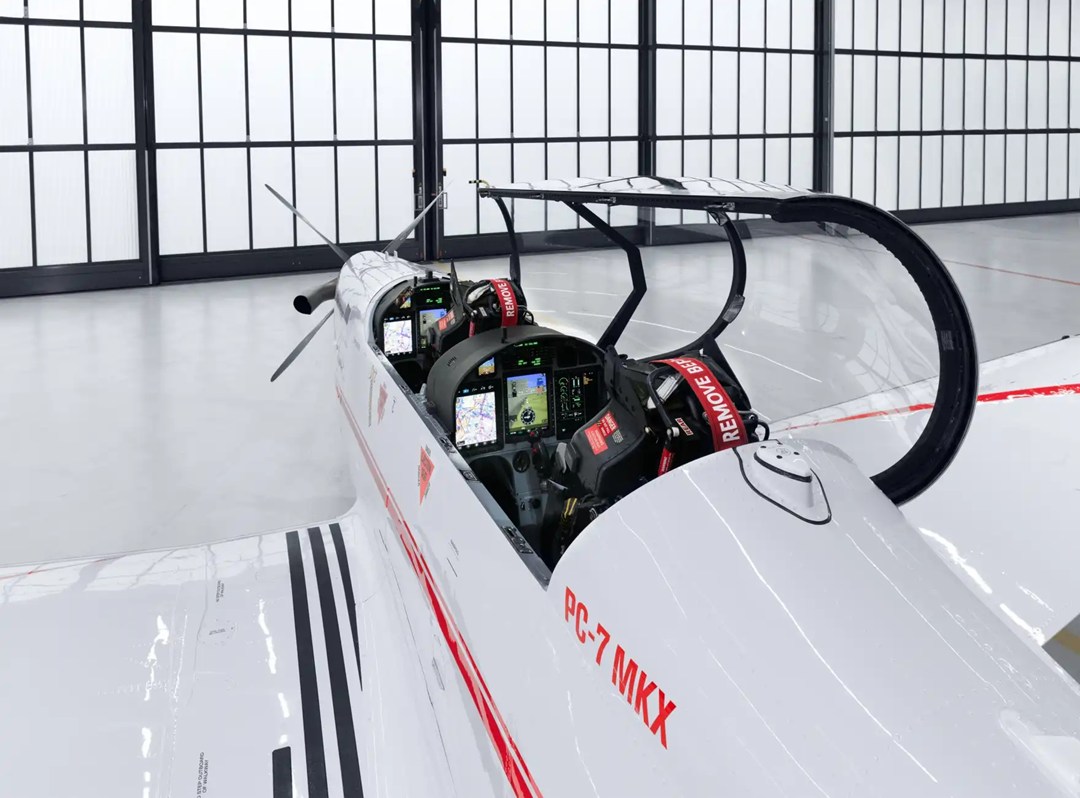

Variant 3 Pilatus PC-7 MKX
Details
Country of Origin Switzerland
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
9.8 m
Width
10.4 m
Height
3.2 m
Weight
1900 kg
Operators (1)
Myanmar
