JAIS 6x6 Emirati Mine-Resistant Ambush Protected (MRAP)

JAIS 6x6

Mine-Resistant Ambush Protected (MRAP)
Spotted an error? Sign in to suggest an edit.
JAIS 6x6 Emirati Mine-Resistant Ambush Protected (MRAP)
Other

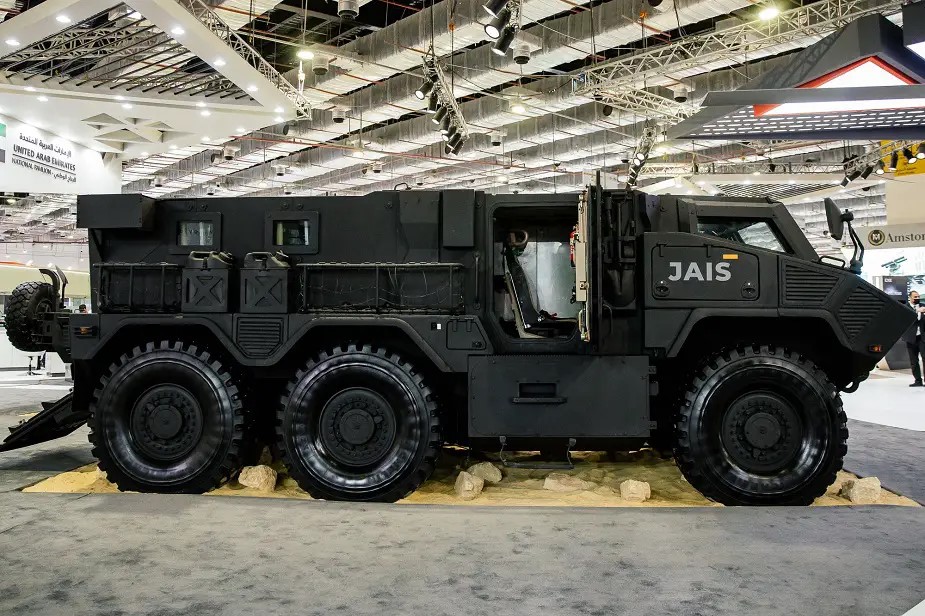

JAIS 6x6 Emirati MRAP (A)TRADOC ODIN WEG
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Basic Information
Name
JAIS 6x6 Emirati Mine-Resistant Ambush Protected (MRAP)
Designation
JAIS 6x6
Alternate Designation
JAIS 6x6
Equipment Type
Mine-Resistant Ambush Protected (MRAP)
Manufacturer
NIMR
Date of Introduction
2022
Description

The JAIS 6x6 Emirati Mine-Resistant Ambush Protected (MRAP) vehicle features a substantial internal volume and a payload capacity of 7,500 kg. It is designed for multi-role applications and can be configured for various purposes. The vehicle can accommodate a wide range of weapon systems and mission equipment. Standard equipment on the JAIS 6x6 MRAP includes a power management system, run-flat tires, and a central tire inflation system. Additionally, both vehicle variants can be outfitted with various onboard military equipment, including a Battlefield Management System (BMS), a C4I (command, control, communications, computers, and intelligence) system, night and day vision capabilities, a Situational Awareness System (SAS), and a display monitor. The JAIS 6x6 serves as an excellent complement to the 4x4 version, allowing users to fulfill a diverse array of operational requirements.

Ground Specifications
Crew 2
Mobility Type Wheeled (6x6)
Engine Diesel (600 hp)
NBC Protection Yes
Max Speed 100.0 km/h
Range 700.0 km
System
Alternative Designation JAIS 6x6
Type Mine-Resistant Ambush Protected (MRAP)
Manufacturer NIMR
Configuration 6x6
Crew 2 ea
Passengers 9 ea
Payload Capacity 7,500 kg
Dimensions
Length 6,920 mm
Width 2,825 mm
Height 2,630 mm
Wheelbase 4,650 mm
Weight, Combat 27,000 kg
Automotive
Engine Name Caterpillar
Engine Type Diesel
Engine Power 600 hp
Engine Torque 1,900 Nm
Maximum Range 700 km
Maximum Speed 100 km/h
Amphibious No
Gradient 60%
Side Slope 600 mm
Vertical Step 500 mm
Trench 1,150 mm
Fording 900 mm
Main Weapon System
Note The roof of the JAIS 6x6 can be fitted with a range of weapon systems including one- or two-man light and medium turrets armed with weapons up to 30mm caliber. The vehicle can also be equipped with a remotely operated weapon station.
Protection
Armor It is an MRAP vehicle (Mine Resistant Ambush Protected) that provides ballistic protection up to STANAG 4569 Level 4 (14.5×114mm AP / B32 at 200 meters with 911 m/s) and mine protection STANAG 4569 up to Level 4A/4B (10 kg of mine blast explosion under the wheels (4a) and floor (4b). The crew survivability is centered around a combat-proven "crew citadel" protection system that is very efficient against mines, IEDs (Improvised Explosive Devices), and ballistic threats.
Applique Armor Available
NBC Protection Yes
Smoke Equipment Yes
Image Sources
Notes https://edgegroupuae.com/solutions/jais-6x6; https://armyrecognition.com/archives/archives-land-defense/land-defense-2021/nimr-from-edge-group-displays-jais-6x6-mrap-vehicle-at-edex-2021; https://armyrecognition.com/archives/archives-land-defense/land-defense-2021/idex-2021-nimr-jais-combat-proven-mine-resistant-ambush-protected-mrap-vehicle-made-in-uae
Details
Country of Origin United Arab Emirates
Category Mine-Resistant Ambush Protected (MRAP)
Land > Infantry Vehicles > Mine-Resistant Ambush Protected (MRAP)
Filter Label
J
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.92 m
Width
2.83 m
Height
2.63 m
Weight
27000 kg
Operators (1)
United Arab Emirates
