Abukuma

Abukuma

Corvettes
Spotted an error? Sign in to suggest an edit.
Abukuma

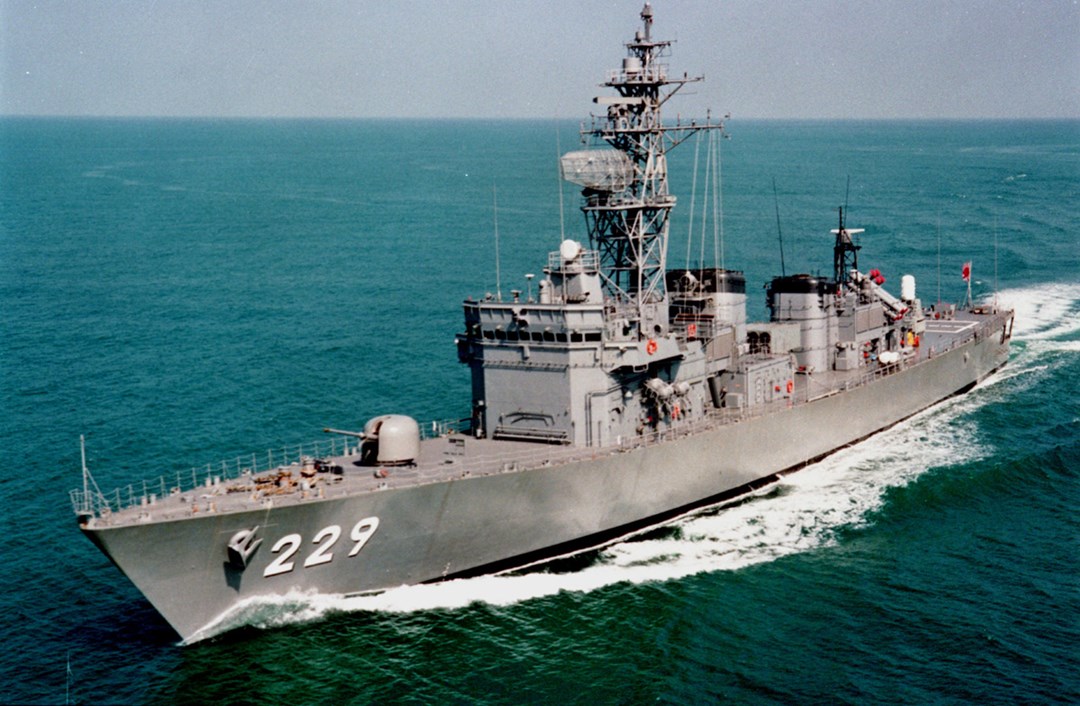

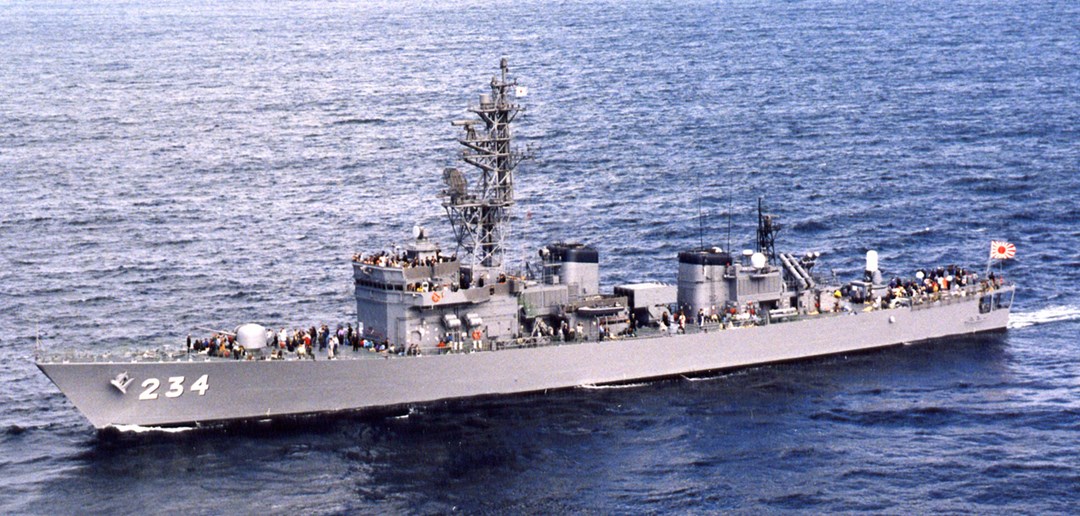

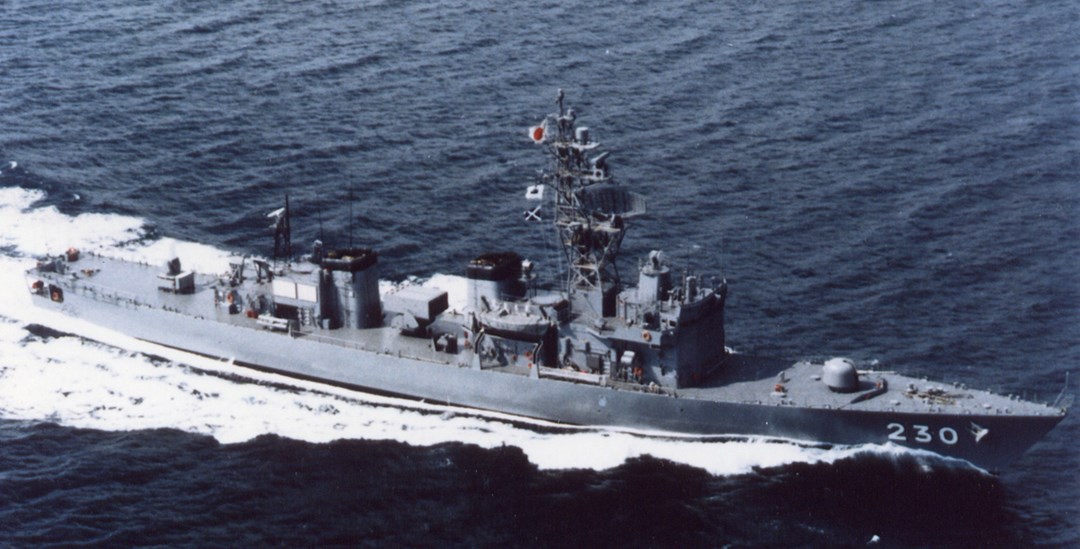

Operational Photo
deagel.com

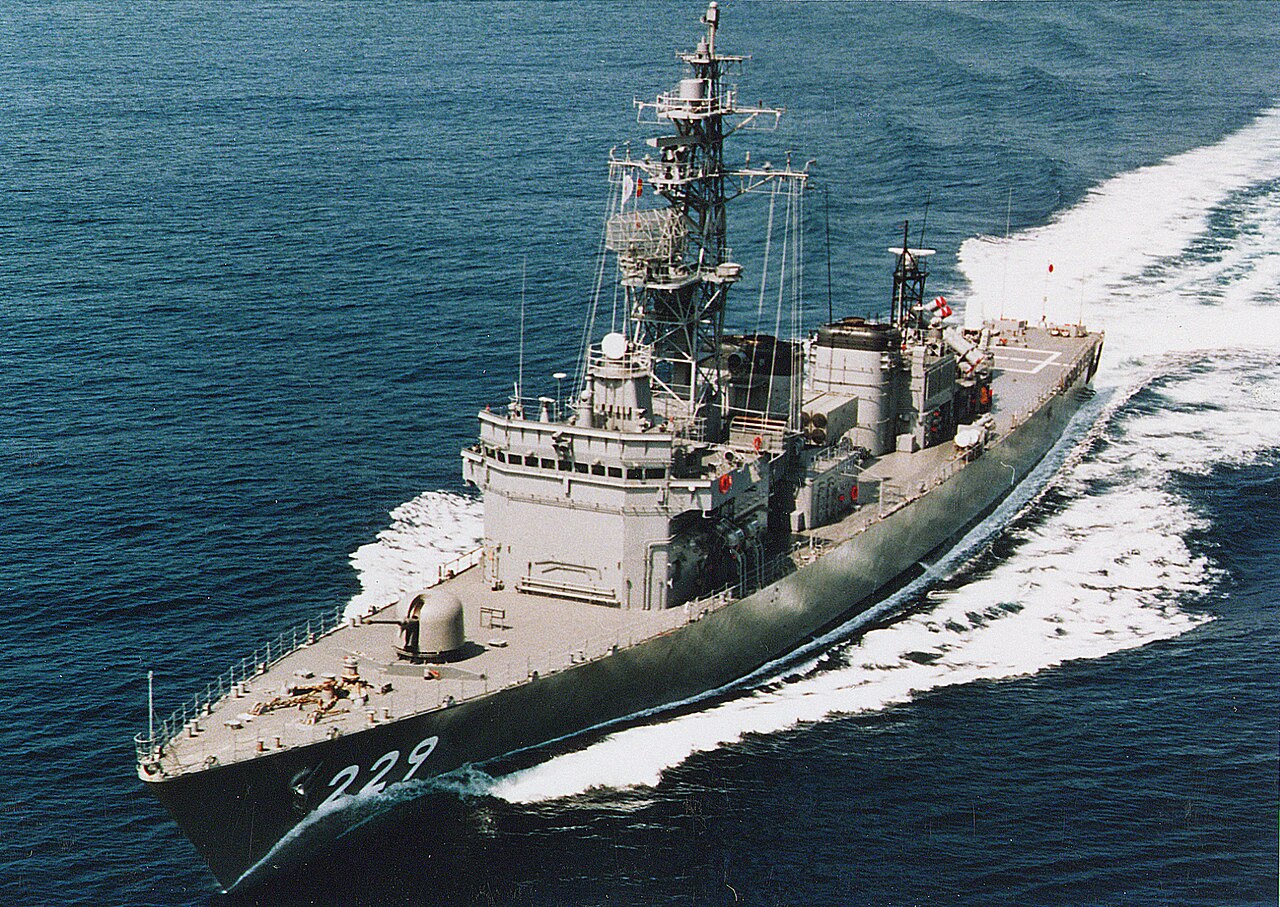

JS Abukuma (DE-229) (3).jpg

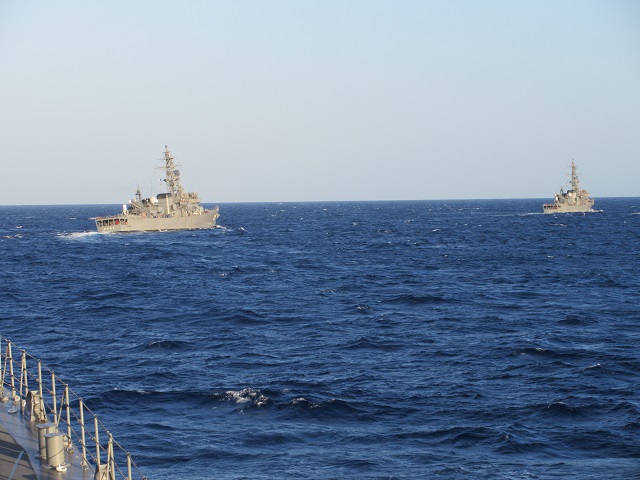

"Abukuma" and "Tone" in a single vertical formation.jpg

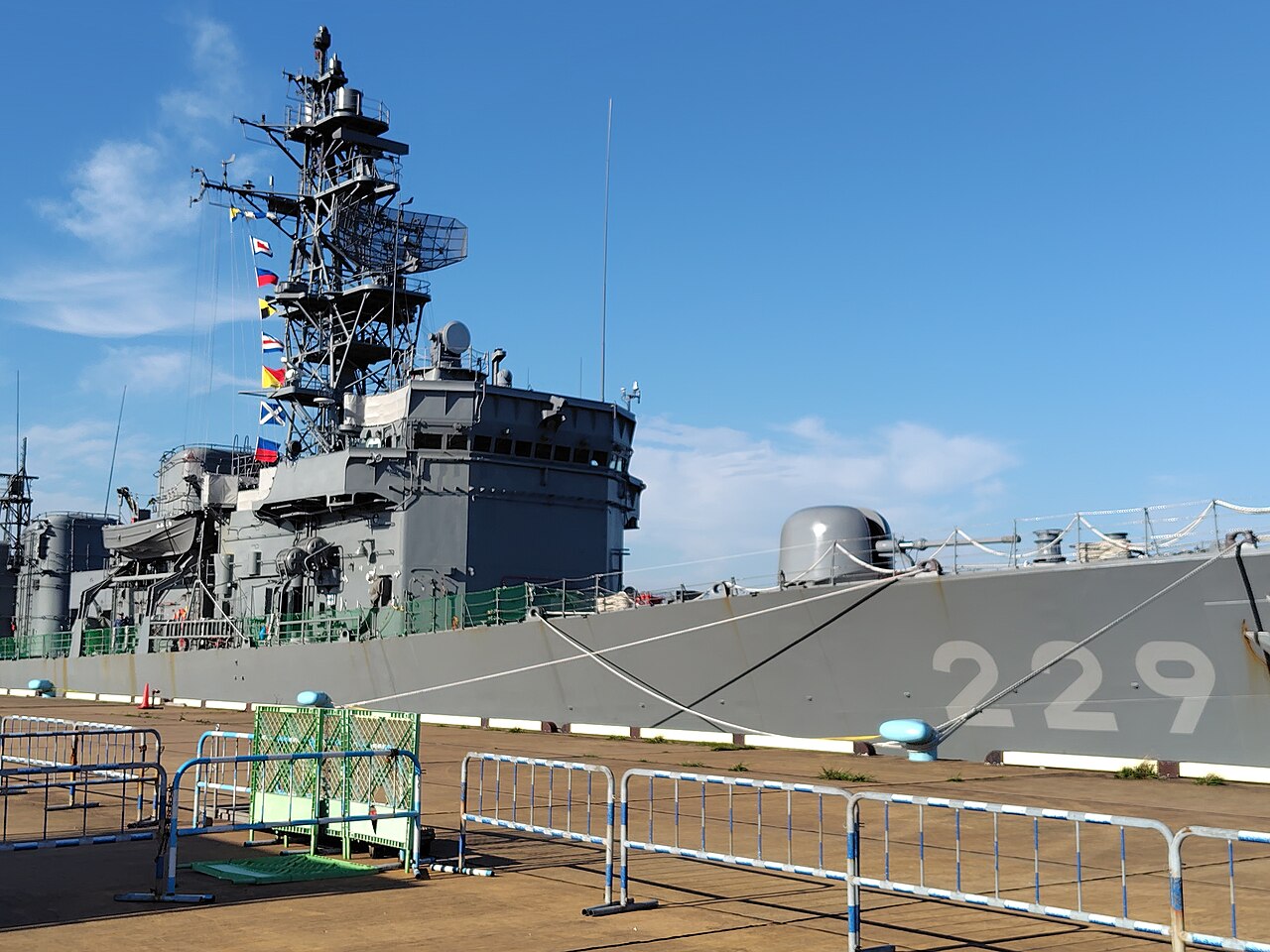

Abukuma beppu.jpg

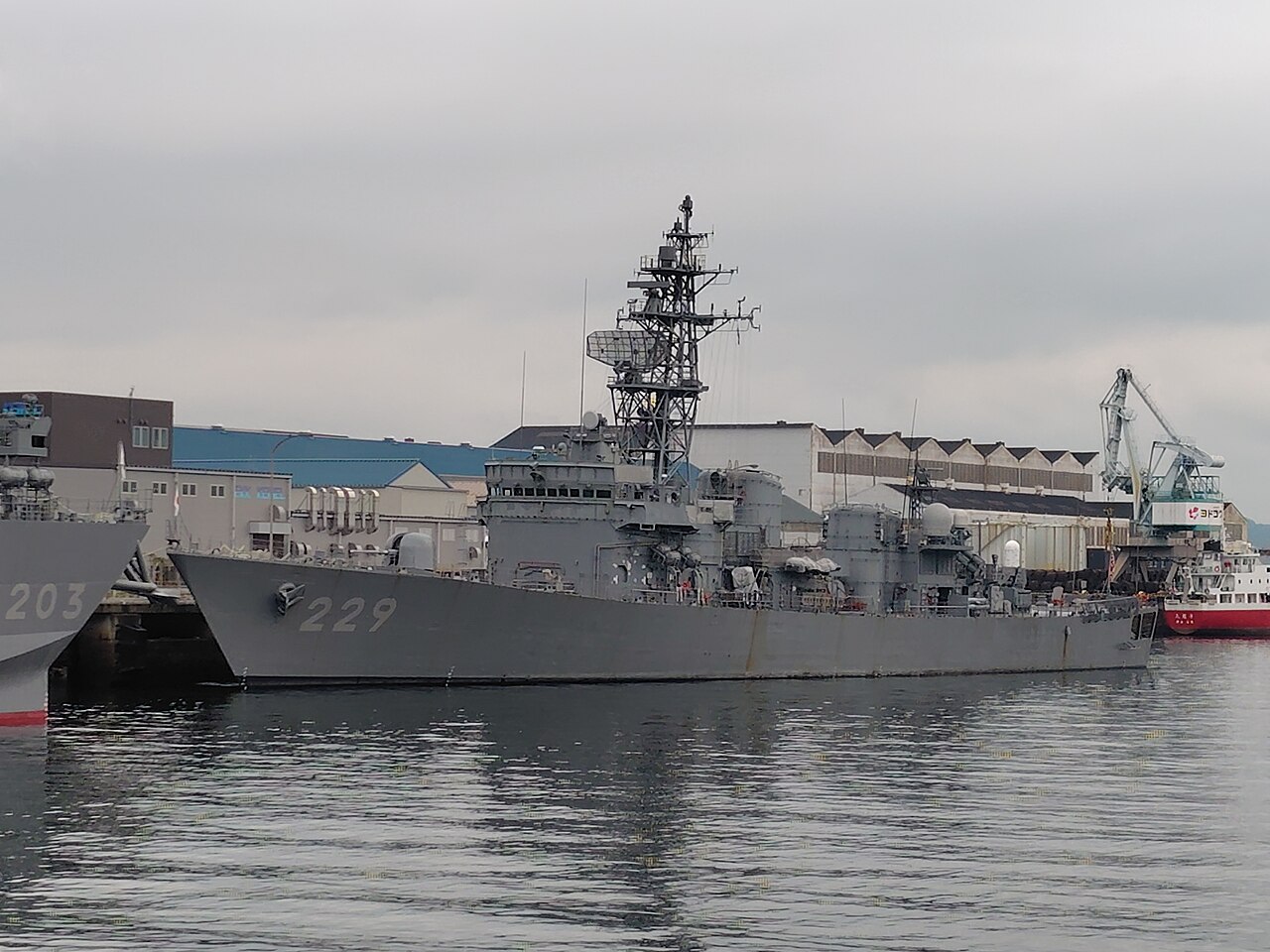

Abukuma kure.jpg
Basic Information
Name
Abukuma
Designation
Abukuma
Alternate Designation
DE 229
Equipment Type
Corvettes
Manufacturer
Mitsui Engineering & Shipbuilding
Date of Introduction
1989
Description

The Japan Marine Self Defense Force (JMSDF) Abukuma is a class of escort corvettes, destroyers for MSDF, with limited anti-submarine (ASW) and anti-surface warfare (ASuW) capabilities. Its propulsion system combines a cruise diesel engine with a boost gas turbine developing 27,000-shp of power and enabling a top speed of 27 knots. Abukuma features an aft flight deck to allow operation of a single SH-60J helicopter. The weapon system consists of a 76mm dual purpose gun, a 20mm Phalanx gun system mounted before the flight deck, eight Harpoon anti-ship missiles, ASROC rockets and two triple 12.75-in torpedo tubes. MSDF commissioned six ships between 1989 and 1993.

Naval & Littoral Specifications
Crew 120
Displacement 2000.00 tonnes
Beam 13.40 m
Draft 3.80 m
Max Speed 27.0 knots
Overview (Deagel)
Group Corvettes
Status Active
Also Known As DE 229
Origin Japan
Initial Operational Capability (IOC) 1989
Total Production 6
Specifications (Deagel)
Crew 120
Number of Weapons 24
Torpedo Tubes 6
Dimensions — Beam 13.4 meter
Dimensions — Draft 3.8 meter
Dimensions — Length 109 meter
Dimensions — Main Gun Caliber 76 millimeter
Mass — Full Displacement 2,000 ton
Power — Total Combined Power 27,000 shp
Speed — Top Speed 27 knot
Gear (Deagel)
Item 1 Anti-Ship Missiles: RGM-84D Harpoon (8)
Item 2 Anti-Submarine Rockets: RUR-5 ASROC (16)
Item 3 ASW Helicopters: SH-60J (1)
Item 4 Naval Gun Systems: 76/62 Compact (1)
Item 5 Sea-Based Air Defense Systems: Mk 15 Phalanx Block 0 (1)
Details
Country of Origin Japan
Category Corvettes
Naval > Corvettes
Sources

deagel.com: https://www.deagel.com/x/x/a002052 Wikidata (https://www.wikidata.org/wiki/Q11258228)

Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
109 m
Width
13.4 m
Height
—
Weight
2000000 kg
Operators (1)
Japan
