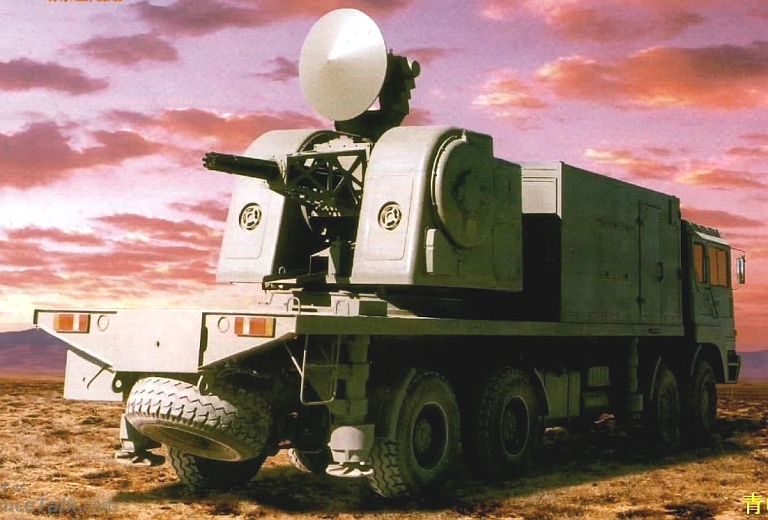

LD-2000 (LuDun-2000) Chinese 8x8 Mobile Air Defense Gun Missile System
LD-2000 Gai
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
LD-2000 (LuDun-2000) Chinese 8x8 Mobile Air Defense Gun Missile System
Designation
LD-2000 Gai
Alternate Designation
LD-2000 Gai; HQ-6A, LuDun-2000
Equipment Type
—
Manufacturer
NORINCO
Date of Introduction
2005

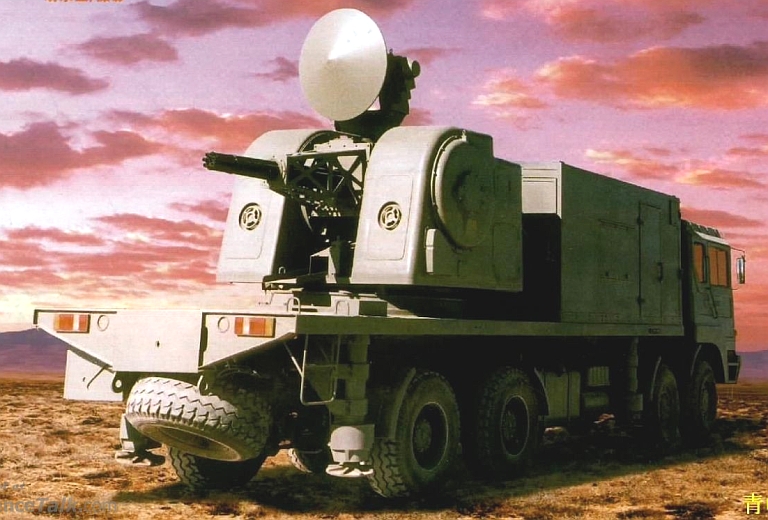

Description
The LD-2000 (LuDun-2000) is a ground-based anti-aircraft air defense weapon system designed, developed, and manufactured by the Chinese Defense Company NORINCO (China North Industries Corporation). The system was unveiled during the defense exhibition IDEX in 2005. Modern critical ground assets are vulnerable to a growing number of precision-guided weapon and aerial threats, and particularly to cruise missiles. In response. China North Industries Corporation (NORINCO) has developed a unique and effective solution to these threats - the LD2000 Ground-Based Close-In Weapon System based on the proven CIWS of naval application. LD2000 is an effective and efficient weapon system for close-in air defense in various scenarios. With highly accurate firepower and multiple target engagement capability. The LD2000 achieves satisfying hit probability to typical low-altitude, high-speed cruise missile targets. The system is also highly capable of intercepting low-altitude aircraft and UAVs. The LD2000 can intercept flying targets at a velocity of Mach 2 or below. It has a reaction time of 9.8 sec and the capability to track up to 48 targets.
Ground Specifications
Crew
9
Mobility Type
Wheeled (8x8)
Main Weapon
30mm Gatling Gun
NBC Protection
Yes
Max Speed
75.0 km/h
Range
650.0 km
Variants

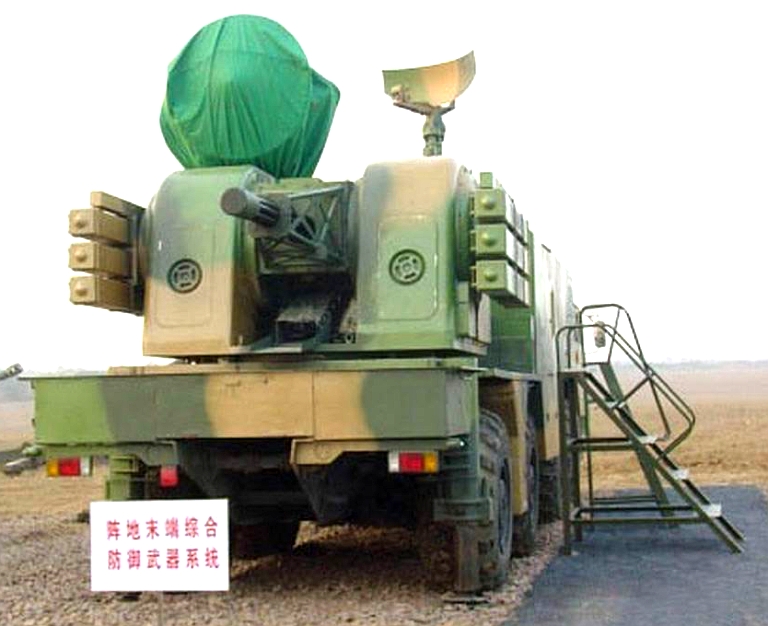

LD 2000 with Missiles
Some LD 2000s have up to 6 SAMs attached to the side(s) of the gun mount (see pictures). Versions with missiles have an additional radar mounted on top of the shelter between the cab of the truck and the gun. Missile option include: TY-90, DK-9, and HQ-10 SAM
LD 2000 with 11 barreled "Gatling" gun
Has higher rate of fire than the seven-barreled version.
System
Alternative Designation
LD-2000 Gai; HQ-6A, LuDun-2000
Chassis
8 x 8, WS-2400
Manufactuer
NORINCO
Crew
9 ea
Target
Low altitude, high speed cruise missiles; low altitude aircraft; and UAVs traveling less than Mach 2
Number of Tracks System Can Manage
Up to 48 targets
Reaction Time
9.8 sec
Range
2.5 km for gun attacking air threats and 3km attacking ground threats; 6km for SAMs
In Service
2005-Present
Note
LD2000 includes a combat unit that consists of an Intelligence & Command Vehicle (ICV) and up to eight Combat Vehicles (CV), supported by Ammunition Supply Vehicles (ASV). and other combat support vehicles. Besides the ready-to-service basic configuration and extended configuration, LD2000 also can be upgraded to multi-layer gun-missile integrated air defense system
Dimensions (Chassis: WS2400)
Length
11.44 m
Width
3.05 m
Height
2.97 m
Weight, Empty
19 tons
Automotive (Chassis: WS2400)
Engine Name
Deutz Diesel
Engine Type
Diesel
Engine Power
517 hp
Operational Range
650 km
Speed
75 km/h
Payload Capacity
22 tons

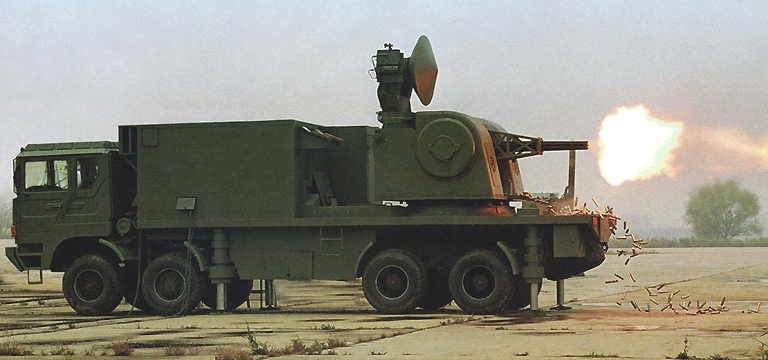

Main Weapon System
Note #1
The 30-mm cannon is remotely controlled and mounted to the rear of the truck
Note #2
The cannon is operated by a gunner in the fully enclosed module to the behind the cab
System
Name
1 x Type 730C (Land Based) Gatling Gun
Type
Gatling Gun
Caliber
30 mm
Crew
Automated, with human oversight
Barrels
7 ea
Length
INA
Diameter
INA
Traverse Range
360 deg
Traverse Left
180 deg
Traverse Right
180 deg
Maximum Elevation
INA
Fire on Move
No
Minimum Elevation
INA
Reaction Time
9.8 sec
Rate of Fire
4,600 - 5,800 cyclic rpm
Maximum Effective Range
2.5 km attacking air threats and 3km attacking ground threats
Feed System
Two ammunition boxes, each holding 500 rounds (total 1000 rounds)
Guidance System
TR47C J-band radar
OFC-3 electro-optical fire control system
Basic Load
1,000 rounds (500 rounds in each of two magazines located on either side of the cannons. Each magazine is loaded with a type of 30mm ammunition, AP, APDS, or HEI)
Ammunitionn
Name
INA
Type
Sabot Armor-Piercing Rounds
Caliber
30 mm
Muzzle Velocity
INA
Basic Load
1,000 rounds (500 rounds in each of two magazines located on either side of the cannons. Each magazine is loaded with a type of 30mm ammunition, AP, APDS, or HEI)
Note
The LD2000 can fire tungsten APDS and HEI ammunitions for improved airborne weapon target destruction. One direct hit of APDS projectile will definitely detonate the warhead of incoming air-to-ground weapon target
Auxiliary Weapon System
Missile System
Name
6 x TY-90 (Sky Swallow-90) Surface-to-Air Missile
Type
Surface-to-Air Missile
Manufacturer
China Aviation Industry Corporation
Length
1.9 m
Diameter
90 mm
Weight
20 kg
Warhead Weight
3 kg
Detonation Mechanism
Impact / proximity
Engine
Solid-fuel rocket motor
Propellant
Solid fuel
Operational Range
0.5 – 6 km
Flight Ceiling
6 km
Flight Altitude
0 – 6 km
Speed
> Mach 2
Guidance System
ImIR IR
Basic Load
6 x TY-90 (Sky Swallow-90) Surface-to-Air Missile
Fire Control System
FCS Name
OFC-3
Computerized FCS
Yes
FCS Type
Photoelectric tracking system
Laser Rangefinder
Yes
IFF
INA
Guidance System
TR47C J-band radar
OFC-3 electro-optical fire control system
Main Gun Stabilization
INA
Night Vision Camera
Yes

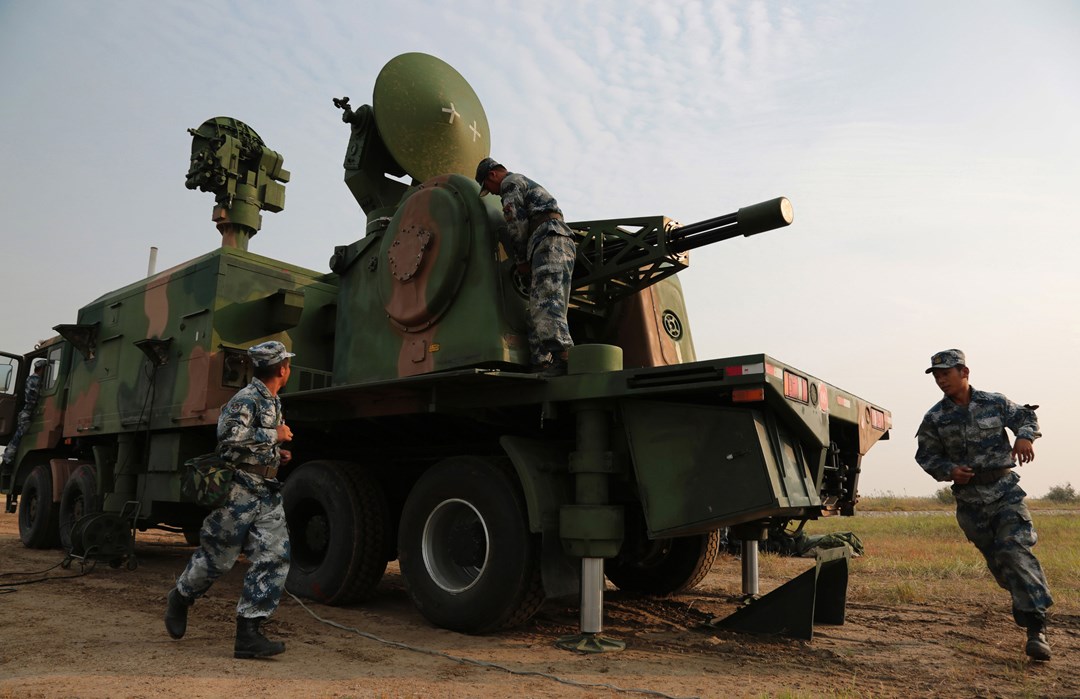

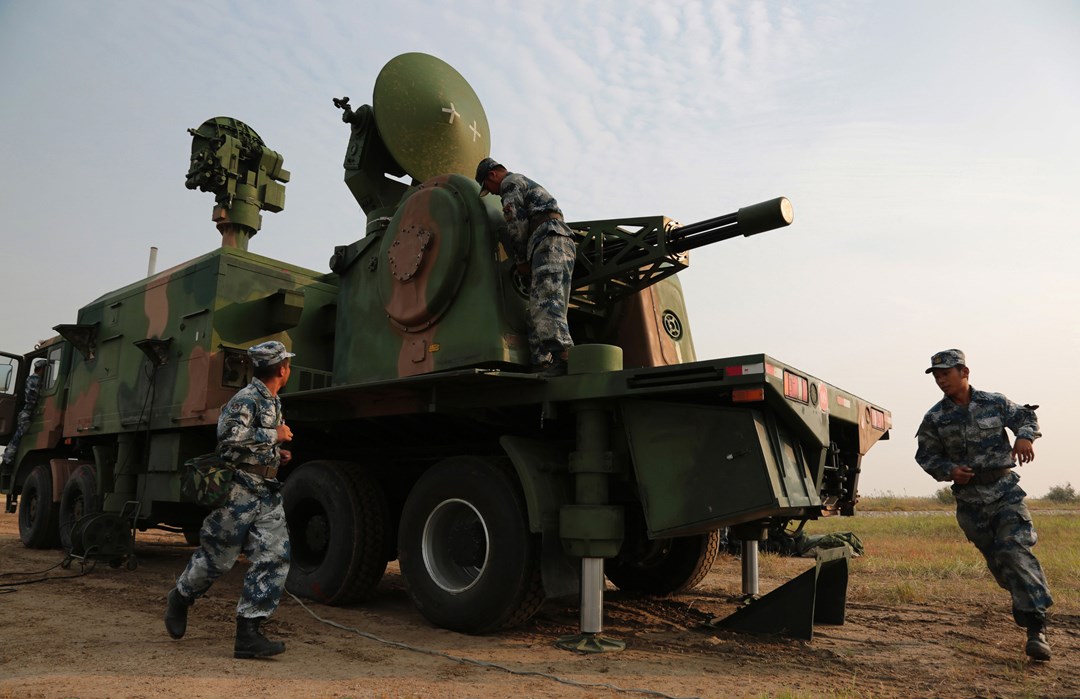

Radar
Name
TR47C
Type
Fire Control Radar
Band
J
CCD Camera
Yes
Laser Rangefinder
Yes
Infrared Thermal Imager
Yes
Detection Range, Small Target
10 km
Azimuth Scan
The Azimuth is scanned mechanically, while the elevation is scanned electronically, incorporating a total of 169 transceivers of phased array technology that enables the radar to pick up the splashes of 30 mm rounds.
Number of targets
Up to 48
Note
The system can track a sea-skimming target with 0.1 square metre radar cross section at 8 km, extended to 15 km if the radar cross section is increased to 2 square metres, and further extended to 20 km if the radar cross section is increased to 10 square metres, though the targets could not be engaged until much closer (3 km) due to the limited range of the gun
Protection
Hull Armor
INA
Turret Armor
INA
Applique Armor
INA
Explosive Reactive Armor
No
Active Protection System
INA
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
Yes
Smoke Equipment
INA
Details
Country of Origin
China
Category
Self-Propelled Anti-Aircraft Guns
Land > Air Defense > Self-Propelled Anti-Aircraft Guns
Filter Label
L
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
11.44 m
Width
3.05 m
Height
2.97 m
Weight
19000 kg
Operators (1)
China
