Talwar Class (Project 11356 Class) Indian Frigate
Talwar Class
Frigate
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
Talwar Class (Project 11356 Class) Indian Frigate
Designation
Talwar Class
Alternate Designation
Talwar Class; Project 11356 Class
Equipment Type
Frigate
Manufacturer
Russia
Date of Introduction
2023
Description

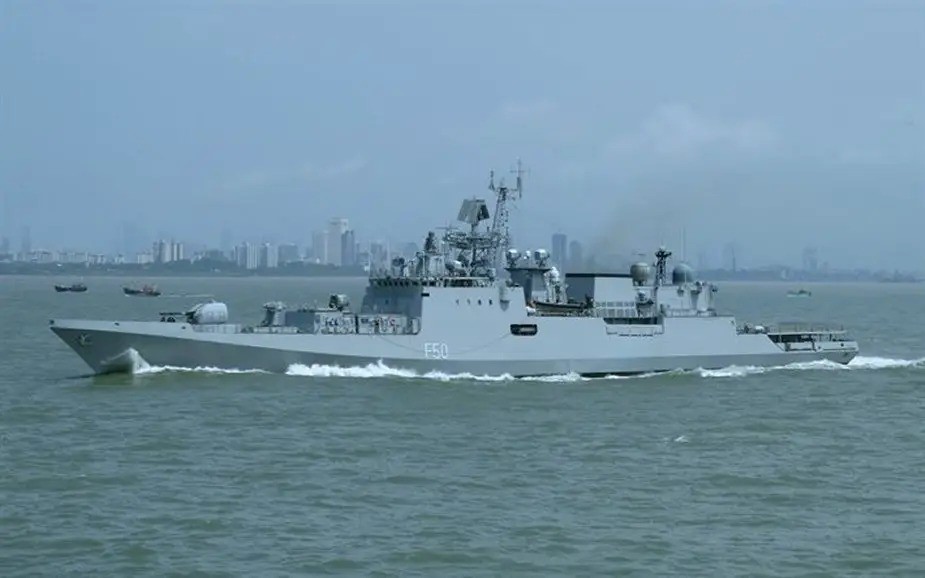

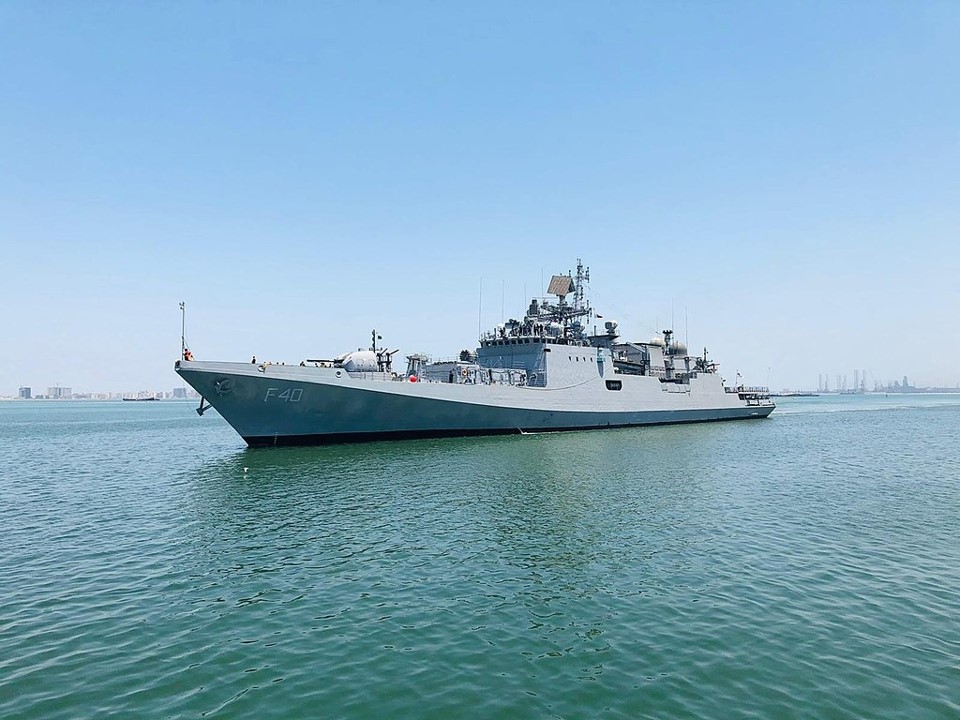

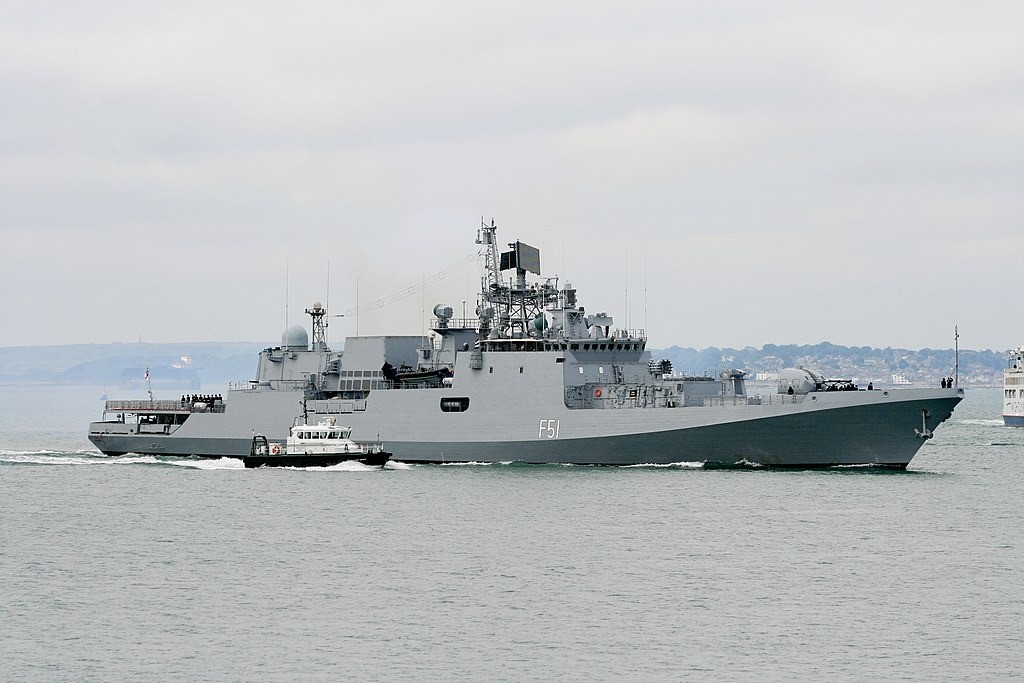

The Talwar Class (Project 11356 Class) Indian Frigate are a class of stealth guided-missile frigates designed and built by Russia for the Indian Navy. The Talwar-class guided missile frigates are the improved versions of the Krivak III-class (Project 1135) frigates used by the Russian Coast Guard.
Naval & Littoral Specifications
Crew
180
Beam
15.20 m
Draft
4.70 m
Variants
Talwar
Commissioned: 2003
Status: Active
Trishul
Commissioned: 2003
Status: Active
Tabar
Commissioned: 2004
Status: Active
Teg
Commissioned: 2012
Status: Active
Tarkash
Commissioned: 2012
Status: Active
Trikand
Commissioned: 2013
Status: Active
Tushil (ex-Admiral Butakov)
Commissioned: 2024
Status: Active
System
Alternative Designation
Talwar Class; Project 11356 Class
Type
Frigate
Builder
Baltiysky Zavod; Yantar Shipyard; Goa Shipyard
Crew
Enlisted: 180; Officers: 18
Dimensions
Length
124.8 m
Height
INA
Beam
15.2 m
Draft
4.7 m
Displacement, Standard
3,620 tons
Displacement, Full Load
4,035 tons
Propulsion System
Engine Name
2 x Zorya-Mashproekt DT-59 (UGT-16000)
Engine Type
Gas Turbines
Engine Power
82,820 hp
Maximum Range
8,982.2 km at 14 kt (25.9 km/h); 2,963.2 km at 30 kt (55.6 km/h) (34.5 mph)
Maximum Speed
32 kt (59.3 km/h)
Main Weapon Systems
Combat Data System
1 x Trebovaniye-M.
Electro-Optic Systems
2 x KB Ametist SP-520 EO surveillance/optronic directors. 1 x BEL EON-51 optronic director.
Missile System
Surface-to-Surface Missiles (SSM)
1 x UKSK 3S-14 8-cell VLS; 8 x Novator 3M-54TE Club-N (SS-N-27A Sizzler); inertial guidance and active radar terminal homing to 220 km (120 n miles) at Mach 0.8 (cruise) and Mach 2.9 (attack); warhead 200 kg; sea-skimmer; or 8 x Brahmos PJ-10; inertial guidance and active/passive radar terminal homing to 292 km (157.7 n miles) at Mach 2.5 (high level)/Mach 2.0 (sea level); warhead 300 kg; sea skimmer.
Surface-to-Air Missiles (SAM)
1 x 3K-90-1E Shtil-1 (SA-N-7B Grizzly); 24 x 9M317 missiles; inertial guidance with command updates and semi-active radar terminal homing to 42.6 km (23.0 n miles) at Mach 3.61–3.73; altitude 5–15,000 m; warhead 70 kg. 3K-90ME Shtil-1 VL (SA-N-7C Gollum); 1 x 24-cell VLS; 24 x 9M317M missiles; inertial guidance with command updates and semi-active radar terminal homing to 29.6 km (16 n miles) at Mach 4.41–-4.56; altitude 30-14,000 m; warhead 62 kg.
Gun System
Guns
1 x A-190E 100 mm/70; 80 rds/min to 21.5 km (11.6 n miles); weight of shell 15.6 kg or 1 x Leonardo 76 mm/62 Super Rapid; 120 rds/min to 16 km (8.6 n miles); weight of shell 6 kg (F 43). 2 x AK-630M 30 mm/65; 6 barrels per mounting; 4,000 rds/min combined to 4 km (2.2 n miles). 4 x 12.7 mm MGs.
Torpedo System
Torpedo Tubes
4 x DTA-53 533 mm (2 twin) fixed launchers
Torpedoes
INA
Radar Systems
Air Search Radar
1 x MR-760E Fregat-M2EM (Top Plate); 3D; E-band.
Air/Surface Search Radar
1 x MR-352E Pozitiv-E (Cross Dome); E/F-band.
Surface Search/Fire Control Radar
1 x 3Ts-25E Garpun B (Plank Shave) or 1 x NISL/Terma Scanter; I-band
Surface Search/ Navigation Radar
1 x Kelvin Hughes Nucleus 2 5000; E/F-band. 2 x MR-212/201 Nyada (Palm Frond) or 2 x Raytheon NautoScan NX; I-band.
Fire Control Radar
4 x MR-90E Orekh (Front Dome); H/I-band (for SA-N-7). 1 x Ratep 5P-10E Puma; I-band (for 100 mm gun). 1 x BEL Lynx U2; I-band (for 76 mm/100 mm gun).
Sonar System
Sonar
1 x BEL HUMSA; hull mounted; active/passive medium frequency. 1 x Atlas Elektronik Advanced Towed Array Sonar (ACTAS) active; low frequency.
Aviation
Helicopters
1 x Ka-28 Helix-A or 1 x Ka-31 Helix-B Helicopter.
Protection
Hull
INA
Physical Countermeasures
PK-10 DLS; 4 KT-216 10-barrel 120 mm fixed launchers; IR flares and chaff.
Electronic Countermeasures
ASOR (TK-25E-5) suite; RESM and jammer. Being replaced by Varuna ESM (F 43, F 44 and being retrofitted). Nayan CESM (on F 50).
NBC Water Washdown System
Yes
Source Images
Note
https://www.defensenews.com/global/asia-pacific/2024/12/19/india-commissions-russian-built-warship-amid-enduring-ties-with-moscow/; https://timesofindia.indiatimes.com/india/indias-military-studying-options-for-any-china-war-on-taiwan/articleshow/103493936.cms; https://armyrecognition.com/news/navy-news/2021/rosoboronexport-makes-offer-to-modernize-indian-talwar-class-frigates
Details
Country of Origin
India
Category
Naval
Naval
Filter Label
T
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
124.8 m
Width
15.2 m
Height
—
Weight
3620000 kg
Operators (2)
Russia
India
