Iguana FV4

Iguana FV4

Tactical Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Iguana FV4
Designation
Iguana FV4
Alternate Designation
LAWV Iguana
Equipment Type
Tactical Vehicles
Manufacturer
Sabiex
Date of Introduction
2002
Description

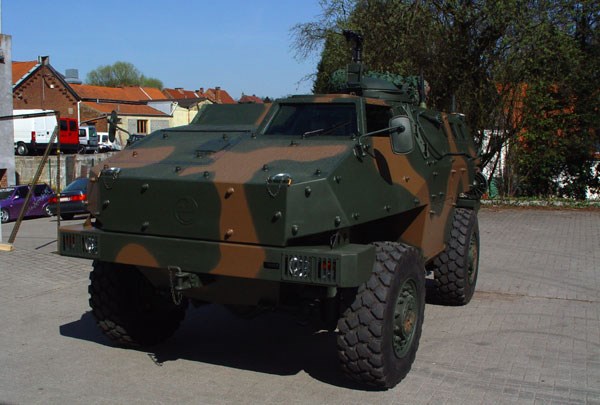

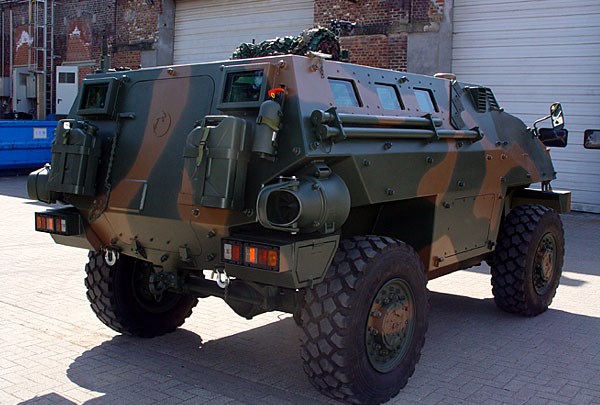

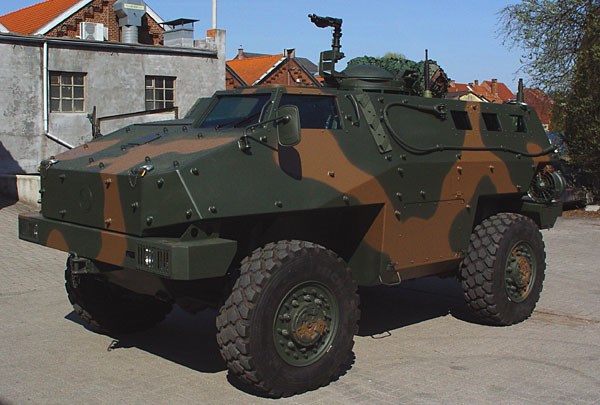

Sabiex Iguana FV 4, also known as LAWV (Light Armored Wheeled Vehicle) Iguana, is a 4x4 amphibious armored vehicle suitable for a wide range of tactical missions. Its armor and hull design provides crew protection against small arms fire (full coverage against 7.62mm ammunition impacts) and mine blasts. High mobility on road and off road is achieved through a multi-link hydro-pneumatic suspension. Equipped with a Daimler-Chrysler turbo-diesel Intercooled engine rated at 215-hp gives a top speed of 108 kph. A fully equipped Iguana carrying the two-man crew and six passengers weighs between 8,500 and 10,000 kg. Due to its versatility the vehicle can be configured to suit a wide range of applications. Its steel-made hull can provide additional protection through add-on armor to withstand 14.5mm ammunition ballistic impacts. Iguana weapon options include from a 7.62mm roof-mounted machine gun to missile systems as well as other overhead weapon stations.

Ground Specifications
Crew 2
Troop Capacity 6
Mobility Type Wheeled (4x4)
Main Weapon 7.62mm roof-mounted machine gun (8mm)
Max Speed 108.0 km/h
Range 600.0 km
Overview (Deagel)
Group Tactical Vehicles
Status Active
Also Known As LAWV Iguana
Origin Belgium
Contractor Sabiex
Initial Operational Capability (IOC) 2002
Total Production ?
Specifications (Deagel)
Crew 2
Troops 6
Wheel Drive 4
Wheels 4
Dimensions — Height 2.0 meter
Dimensions — Length 4.7 meter
Dimensions — Main Gun Caliber 7.6 millimeter
Dimensions — Width 2.5 meter
Mass — Empty Weight 6,000 kilogram
Mass — Max Weight 10,000 kilogram
Mass — Payload 2,500 kilogram
Performance — Max Range 600 kilometer
Power — Power 215 shp
Speed — Cruise Speed 27.8 mps
Speed — Top Speed 30 mps
Details
Country of Origin Belgium
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.7 m
Width
2.5 m
Height
2 m
Weight
10000 kg
Operators (1)
Belgium
