VCC 80 Dardo
VCC 80 Dardo
Tracked Armored Vehicles

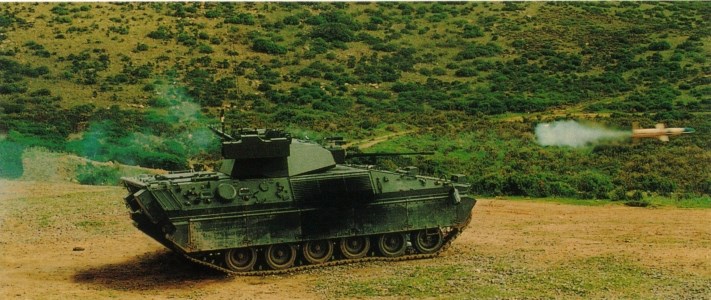

Operational Photo
Basic Information
Name
VCC 80 Dardo
Designation
VCC 80 Dardo
Alternate Designation
—
Equipment Type
Tracked Armored Vehicles
Manufacturer
Oto Melara
Date of Introduction
2002
Description
The VCC 80 Dardo is an infantry fighting vehicle armed with a 25mm gun, a 7.62mm machine gun, and two turret-mounted single TOW missile launcher in each side. It will transport infantry to the front-line providing protection and fire support to them. It will replace current VCC (upgraded M113) vehicles in the Italian Army armored regiments. The VCC 80 Dardo armored vehicle will provide high mobility and high firepower. The Dardo vehicle can be equipped with different turrets assuming anti-tank, command and control, and recovery missions.
Ground Specifications
Crew
3
Troop Capacity
6
Max Speed
70.2 km/h
Range
600.0 km
Overview (Deagel)
Group
Tracked Armored Vehicles
Status
Active
Origin
Italy
Contractor
Oto Melara
Initial Operational Capability (IOC)
2002
Total Production
200
Specifications (Deagel)
Ammunition Load
200
Crew
3
Troops
6
Dimensions — Height
2.6 meter
Dimensions — Length
6.7 meter
Dimensions — Main Gun Caliber
25 millimeter
Dimensions — Width
3 meter
Mass — Combat Weight
23,400 kilogram
Performance — Max Range
600 kilometer
Power — Power
520 shp
Speed — Top Speed
19.5 mps
Gear (Deagel)
Item 1
Anti-Tank Guided Missiles: BGM-71C ITOW (2)
Item 2
Anti-Tank Guided Missiles: BGM-71D TOW 2 (2)
Item 3
Anti-Tank Guided Missiles: BGM-71E TOW 2A (2)
Item 4
Anti-Tank Guided Missiles: BGM-71F TOW 2B (2)
Details
Country of Origin
Italy
Sources
deagel.com: https://www.deagel.com/x/x/a000464
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.7 m
Width
3 m
Height
2.6 m
Weight
23400 kg
Operators (1)
Italy
