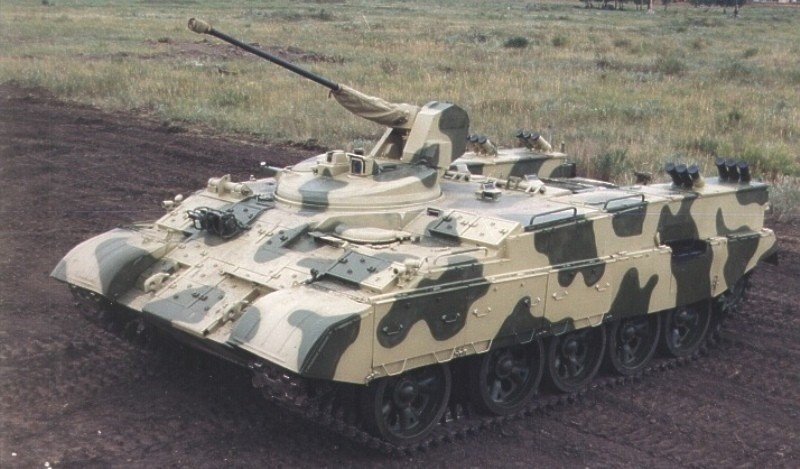

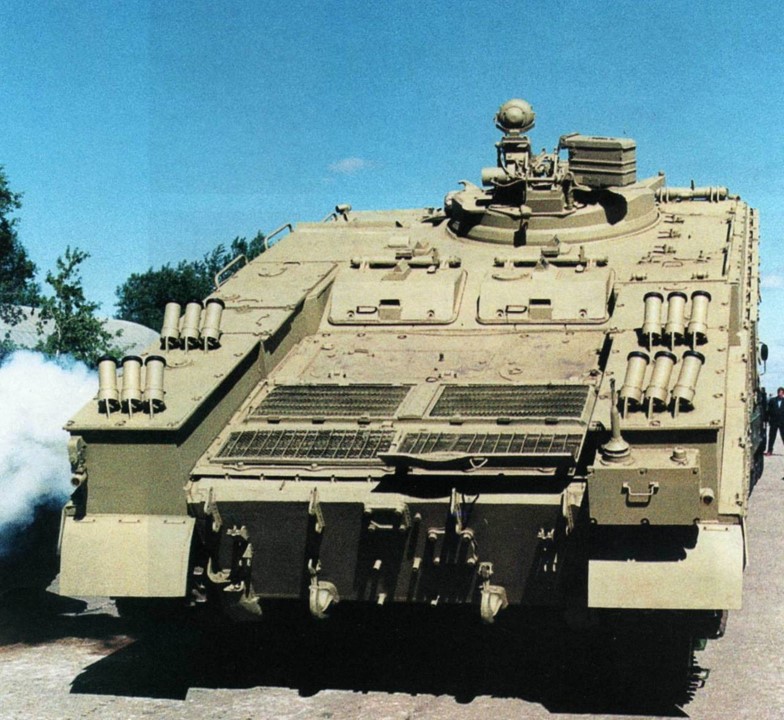

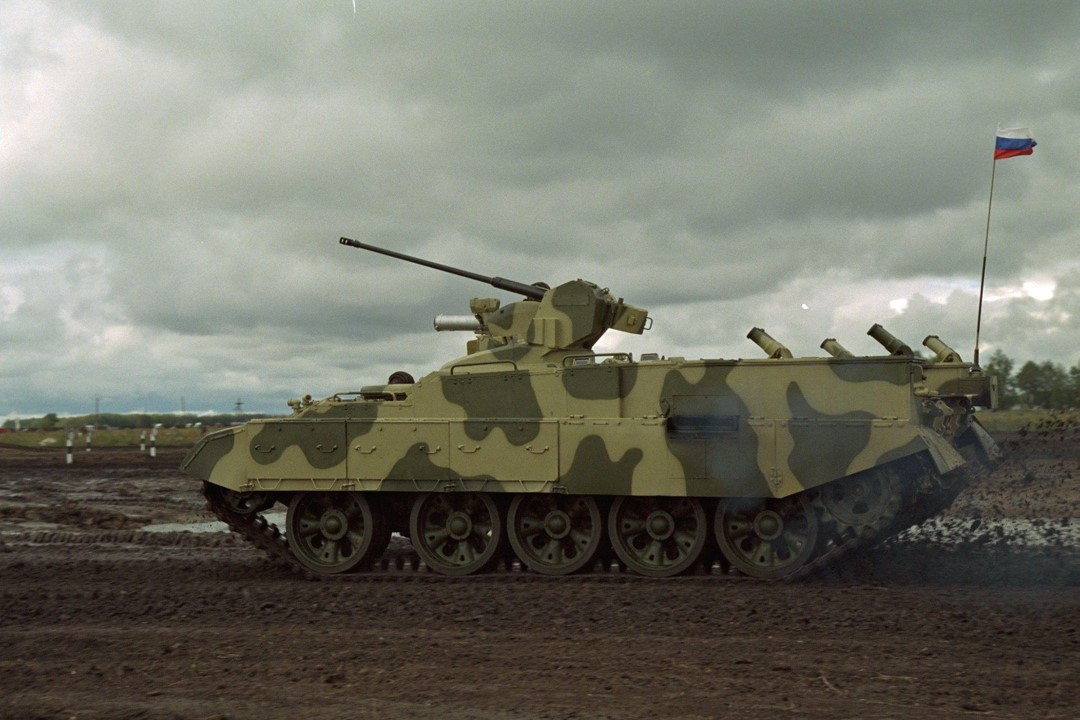

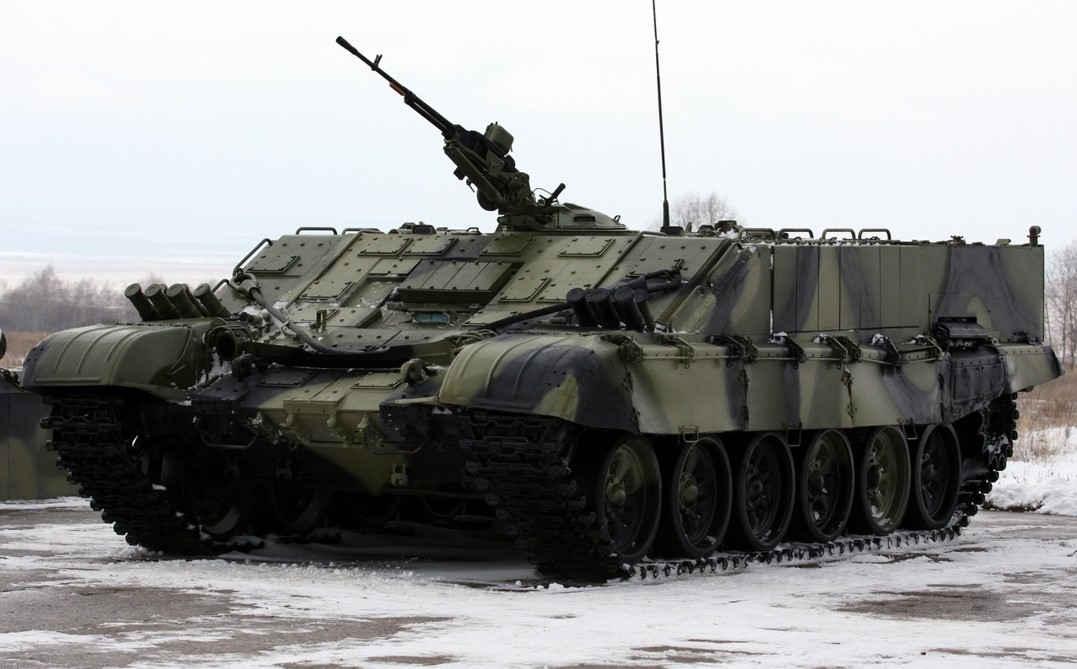

BTR-T Russian Heavy Armored Personnel Carrier (APC)

BTR-T

Heavy Armored Personnel Carrier (APC)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
BTR-T Russian Heavy Armored Personnel Carrier (APC)
Designation
BTR-T
Alternate Designation
BTR-T
Equipment Type
Heavy Armored Personnel Carrier (APC)
Manufacturer
Omsktransmash
Date of Introduction
1997
Description

The BTR-T ‘Armoured Transporter–Heavy’) is a Russian heavy infantry combat vehicle, designed by the Design Bureau of Transport Machine-Building (Omsk Transmash) state-run production association. It is based on the hull of the T-55 tank and answers the need for a heavy, well protected and well armed vehicle adapted to urban combat. The need for a heavy IFV appeared after the First Chechen War during which APCs such as the BTR-80 and BMP-2 suffered heavy losses in urban areas at the hands of Chechen rebels using RPG shoulder-launched anti-tank weapons. As a result, the design incorporates thicker armour, with built-in reactive armour. It also has heavier armament with sufficient elevation to engage targets in multi-story buildings. The choice of the T-55 hull rather than that of a more modern tank was decided as a cost-cutting measure and also probably in order to validate a conversion solution for the many T-55s in use around the world. It was influenced by Israel's IDF Achzarit that created virtually the same modifications in the 1980s. However, no export contracts have been signed.

Ground Specifications
Crew 2
Mobility Type Tracked
Main Weapon 2A42 automatic gun (caliber 30 mm)
Engine Diesel (520 hp)
NBC Protection Yes
Max Speed 50.0 km/h
Range 500.0 km
System
Alternative Designation BTR-T
Type Heavy Armored Personnel Carrier (APC)
Manufacturer Omsktransmash
Crew 2 ea
Personnel Capacity 5 ea
Dimensions
Length 6.2 m
Width 3.27 m
Height 2.5 m
Weight, Combat 38.5 tons
Ground Pressure INA
Automotive
Engine Name INA
Engine Type Diesel
Engine Power 520 hp
Cruising Range 500 km
Speed, Maximum Road 50 km/h
Speed, Average Cross INA
Speed Maximum Swim Not Amphibious
Gradient 60 deg
Side Slope 40 deg
Vertical Step 0.8 m
Trench 2.7 m
Fording Depth 1.4 m
Communications
Radio INA
Main Gun
Turret Type low profile turret
Turret Traverse Range 360 deg
Turret Traverse Right 180 deg
Turret Traverse Left 180 deg
Note At customer's request the following armament complexes are available*: 1. 2A42 automatic gun (caliber 30 mm); Launcher of Konkurs ATGM (caliber 135 mm ; quantity 2 pcs); 2. 2A42 automatic gun (caliber 30 mm); AGS-17 automatic grenade launcher (caliber 30 mm); 3. 2A38 twin-barrel submachine gun (caliber 135 mm ; quantity 2 pcs); 4. NSV anti-air-machine gun (caliber 12.7 mm); Launcher of Konkurs ATGM (caliber 135 mm ; quantity 2 pcs); 5. NSV anti-air machine gun (caliber 12.7 mm); AGS-17 automatic grenade launcher (caliber 30 mm).
System
Name Shipunov 2A42
Type 30mm autocannon.
Manufacturer Tulamashzavod
In Service 1980-Present
Length 3.027 m
Barrel Length 2,416 mm
Weight 115 kg
Barrels 1 ea
Action Gas-operated
Rate of Fire, Low 200-300
Rate of Fire, High 550-800
Effective Firing Range 2,000 metres (2,200 yd) (AP-T)
Maximum Firing Range 4,000 metres (4,400 yd) (HEI)
Feed System Twin feed
Ammunition
Type Rifle
Caliber 30 mm
Cartridge 30 × 165 mm
Muzzle Velocity 960 m/s
Basic Load 900 ea
Anti-Tank Guided Missile (ATGM)
System
Name 9M113 Konkurs (AT-5 Spandrel)
Type Soviet SACLOS wire-guided anti-tank missile.
Manufacturer Tula Machinery Design Bureau (Tula KBP) – Tulsky Oruzheiny Zavod
Proliferation Widely Proliferated throughout Asia and the Middle East
In Service 1970-Present
Length, with Gas Generator 1,150 mm
Length, Without Gas Generator 875 mm
Diameter 135 mm
Wingspan 468 mm
Weight, Missile 14.6 kg
Weight, 9P135 Launching Post 22.5 kg
Wahread Type 9N131 HEAT
Warhead Weight 2.7 kg
Detonation Mechanism Contact
Engine Solid-fuel rocket
Operarational Range 70 m - 4 km
Speed 208 mm/s
Guidance system Wire-guided SACLOS
Steering System Two control surfaces
Fire Control
Name INA
Computerized FCS No
Thermal Sight Vehicle Commander Yes
Thermal Sight Gunner Yes
Main Gun Stabilization Yes
Protection
Hull Armor 600mm
Turret Armor INA
Applique Armor Available
Explosive Reactive Armor Yes
Active Protection System INA
Mine Clearing Yes, with additional anti-mine protection plates
Self-Entrenching Blade INA
NBC Protection Yes
Smoke Equipment Yes, smoke grenade dischargers placed in the rear part of the hull
IR Signature INA
Automatic Fire Suppression Equipment Yes
Details
Country of Origin Russia
Category Land
Land
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.2 m
Width
3.27 m
Height
2.5 m
Weight
38500 kg
Operators (1)
Russia
