ISDM Zemledeliye Russian 8x8 Mine-Laying System
ISDM Zemledeliye
Modular Pack Mine System (MOPMS)
Other
Basic Information
Name
ISDM Zemledeliye Russian 8x8 Mine-Laying System
Designation
ISDM Zemledeliye
Alternate Designation
ISDM Zemledeliye
Equipment Type
Modular Pack Mine System (MOPMS)
Manufacturer
NPO Splav
Date of Introduction
2020
Description

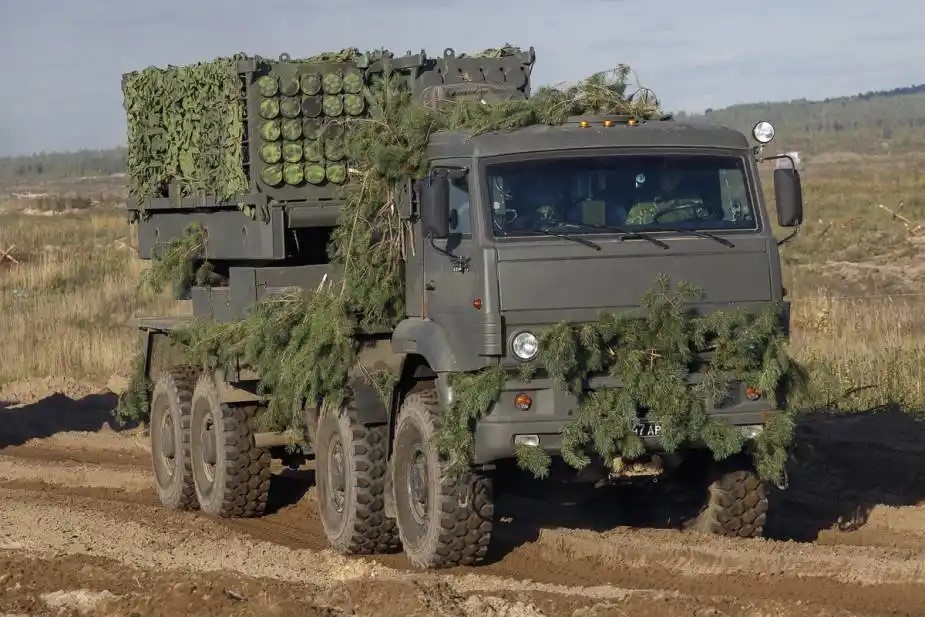

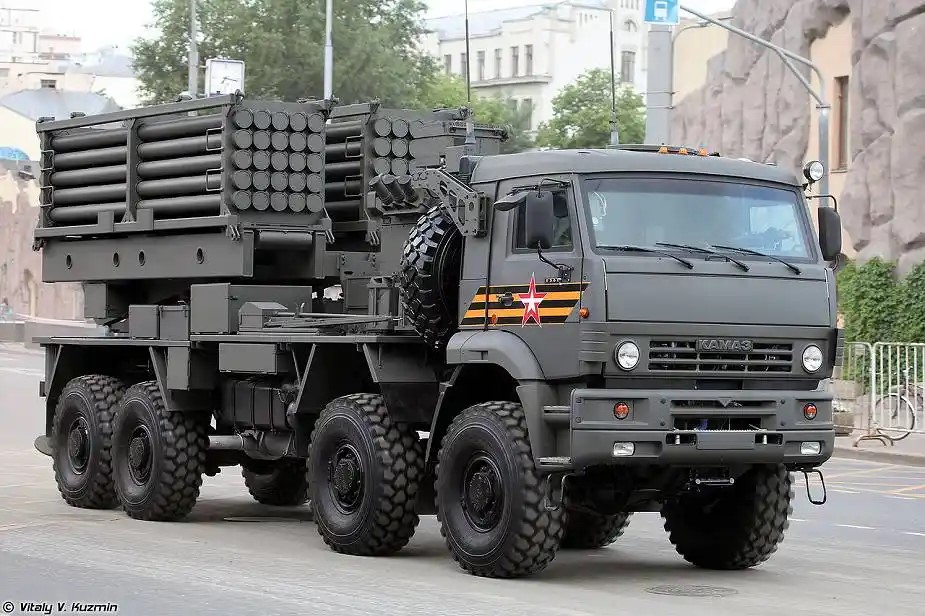

The ISDM Zemledeliye Russian 8x8 Mine-Laying System is a remote-mining engineering system that was unveiled in June 2020 during the Victory Parade. The vehicle is based on a KamAZ 6560 8x8 military truck chassis with a mine launching system mounted at the rear. The system has been developed by Ganichev NPO Splav.
Ground Specifications
Crew
3
Mobility Type
Wheeled (8x8)
Main Weapon
122-mm rocket equipped with mines
Engine
Diesel (400 hp)
Max Speed
90.0 km/h
Range
1000.0 km
System
Alternative Designation
ISDM Zemledeliye
Type
Mine-Laying System
Manufacturer
Ganichev NPO Splav
Configuration
8x8
Chassis
KamAZ-6560
Cab Seating
1+2 in cab
Reloading System

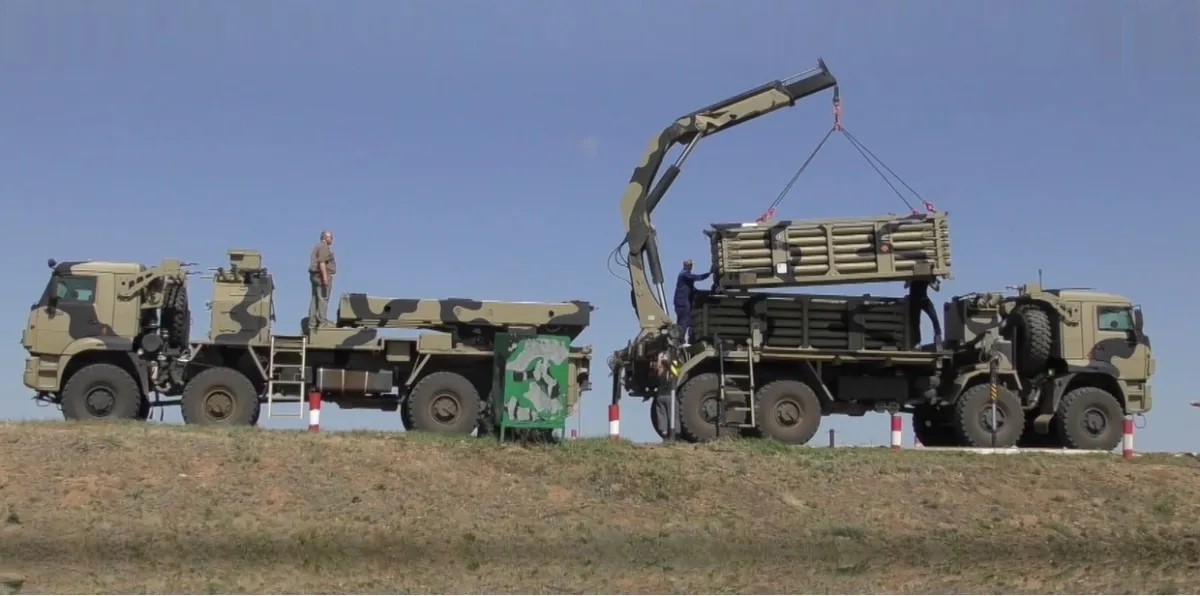

The reloading system includes a transport-loading unit, also based on an 8x8 KamAZ chassis.
Dimensions
Length
10.3 m
Width
2.5 m
Height
3.27 m
Wheelbase
3.6 m
Weight, Curb
14.85 tons
Automotive
Engine Name
YaMZ-5367
Engine Type
Diesel
Engine Power
400 hp
Maximum Range
1,000 km
Maximum Speed
90 km/h
Amphibious
No
Gradient
60%
Side Slope
40%
Vertical Step
0.6 m
Trench
2.0 m
Fording
1.8 m
Mine-Laying System
System

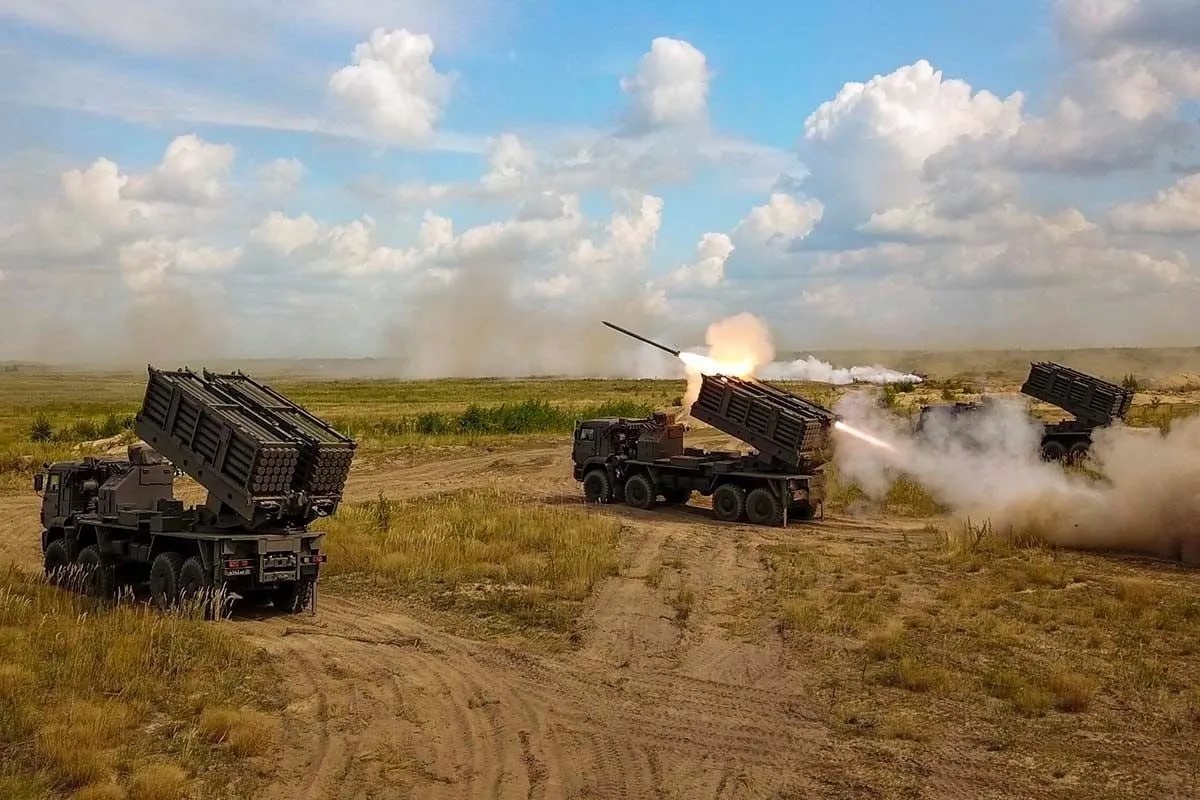

The ISDM fires solid-fuel rockets carrying various types of land mines. The system marks areas with mines on an electronic map and transmits data to higher levels of the command chain. Remote mine-laying has a number of advantages as it features an increased speed of mine laying in complex environments. the ISDM combat vehicle is fitted 50-barrel multiple launch rocket system consisting of two blocks with five rows of tube launchers. Each tube can fire one 122-mm rocket equipped with mines of various types. All the firing operations are controlled from inside of the crew cabin using a computerized automatic launching system. The system is supposed to be a mine dispenser working like air-dropped cluster bombs.
Mines
POM-3, also known as “Medallion,” that is equipped with a seismic sensor to detect an approaching person and eject an explosive charge into the air. The subsequent detonation of the charge and metal fragments it projects can cause death and injury within a 16-meter radius, according to the limited information available publicly on this landmine.
The POM-3 is reportedly equipped with a self-destruct device that destroys the mine after a certain amount of time, such as hours or days after deployment.
Firing Range
5-15 km
Protection
Armor
None
NBC
INA
Image Sources
Notes
https://frontierindia.com/russia-tests-artificial-intelligence-controlled-smart-minefields-with-combat-vehicles-isdm-zemledeliye-umz-k-klesh/#google_vignette; https://defence-blog.com/ukrainian-artillery-destroys-russias-rare-mine-laying-system-in-precise-strike/; https://www.planetminecraft.com/project/1-5-1-scale-isdm-zemledeliye-mine-laying-simple/; https://www.armyrecognition.com/defense_news_september_2021_global_security_army_industry/russian_army_deploys_new_isdm_zemledeliye_mine_layer_at_zapad-2021_exercise.html;
Details
Country of Origin
Russia
Category
Mine Laying Equipment
Land > Engineer Systems > Counter-Mobility > Mine Laying Equipment
Filter Label
I
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
10.3 m
Width
2.5 m
Height
3.27 m
Weight
14850 kg
Operators (1)
Russia
