TZM-T Russian Heavy Transport and Loading Vehicle
TZM-T
Heavy Utility Truck
Other
Basic Information
Name
TZM-T Russian Heavy Transport and Loading Vehicle
Designation
TZM-T
Alternate Designation
TZM-T; Object 563
Equipment Type
Heavy Utility Truck
Manufacturer
—
Date of Introduction
2001
Description

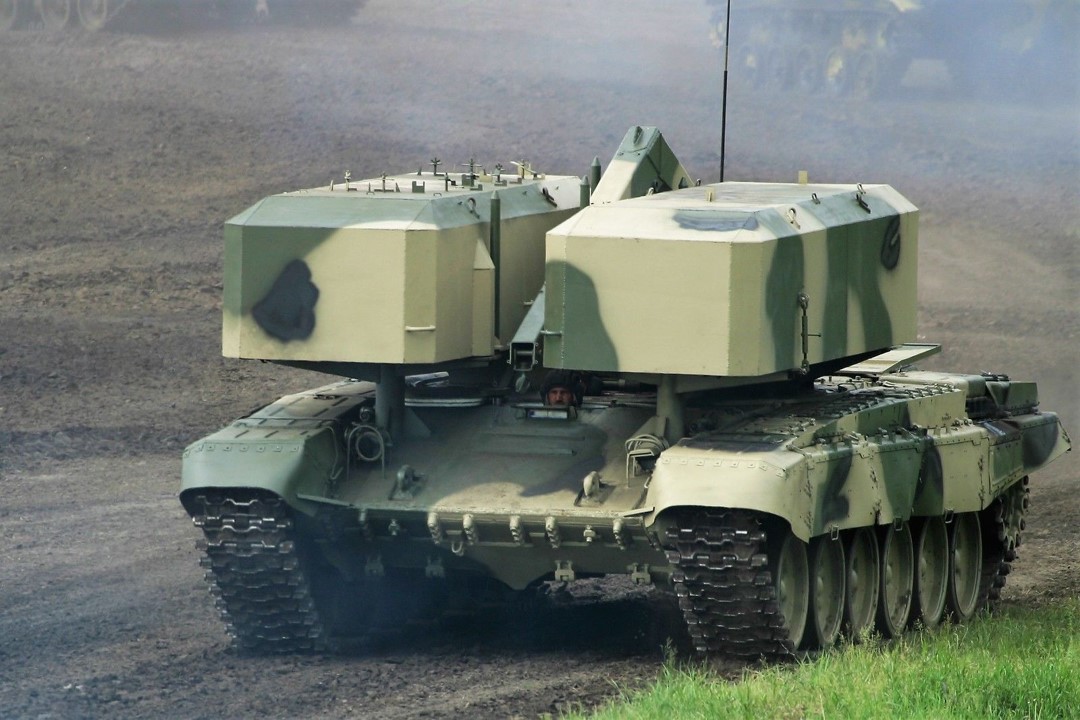

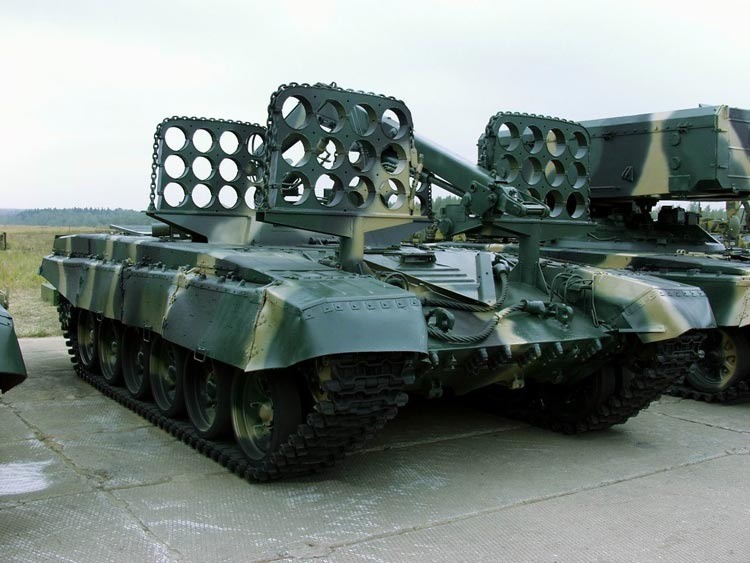

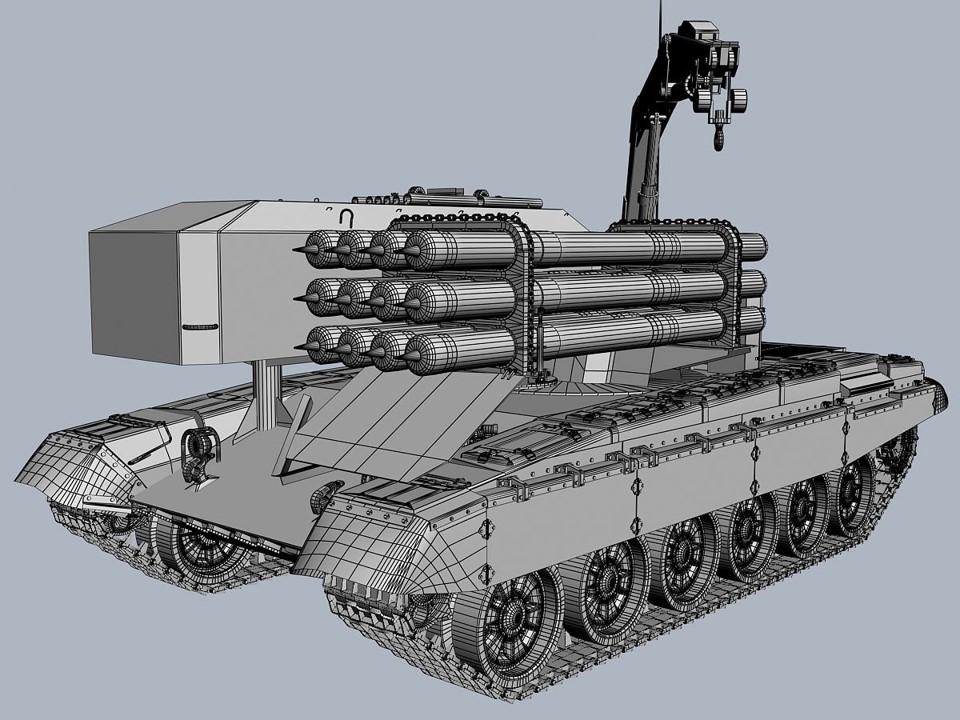

The TZM-T Russian Heavy Transport and Loading Vehicle. The main task of the TZM-T is to discharge and reload the BM-1 combat vehicle, which is part of the TOS-1A Solntsepik multiple rocket launcher system. The vehicle is capable of transporting up to 24 unguided rockets. The missiles in the transport position are covered with a special armor casing. All equipment is mounted on an armored tracked chassis based on the T-72A main battle tank.
Ground Specifications
Crew
3
Mobility Type
Tracked
Main Weapon
5.45-mm RPKS-74 machine gun
Engine
Diesel (840 hp)
Max Speed
60.0 km/h
Range
450.0 km
System
Alternative Designation
TZM-T; Object 563
Type
Heavy Transport and Loading Vehicle
Manufacturer
INA
Configuration
Tracked
Chassis
T-72A main battle tank.
Crew
The crew consists of 3 people: a driver, a tank commander and an operator.
Bulldozer
The TZM-T transport and charging machine has built-in bulldozer-type equipment for self-digging.
Crane

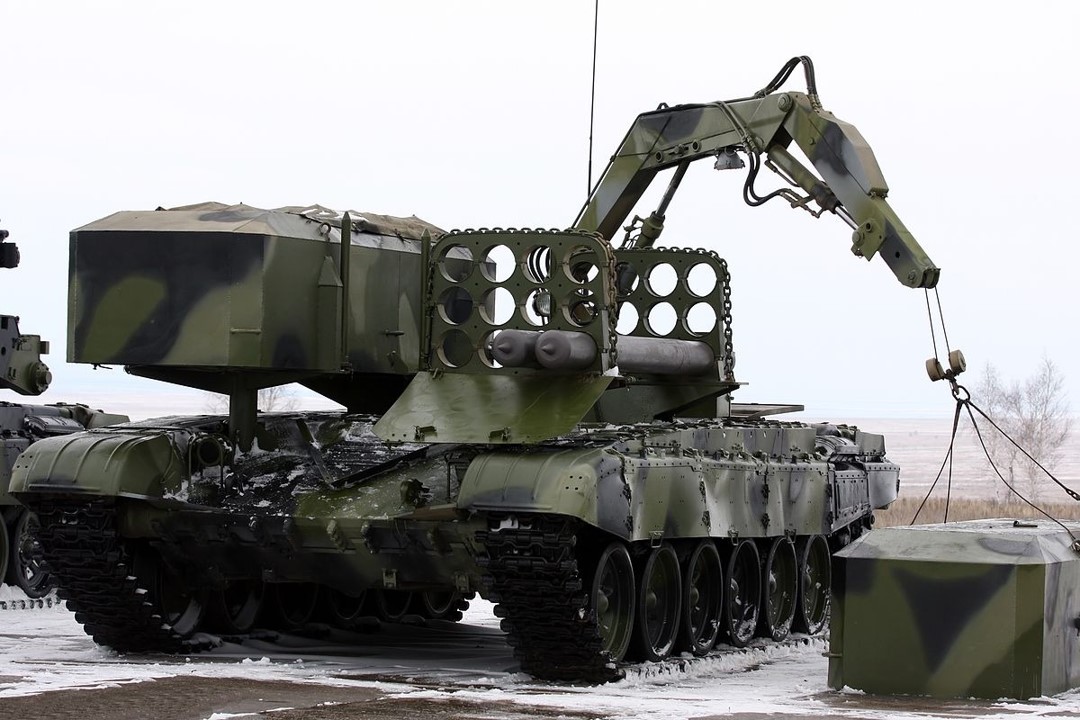

Loading and unloading of missiles and charging and discharging of the BM-1 combat vehicle is carried out using a special crane-manipulator with a lifting capacity of 1 ton. The crane is controlled remotely by a hydraulic drive. A full charging/discharging cycle is performed in 24 minutes. The guaranteed service life of the crane is 200 cycles. The crane's boom angles are 50° to the left and 210° to the right.
Rockets
Each vehicle carries 2x12 spare rockets.
Fuel
400 liters of fuel for the BM-1.
Dimensions
Length
6.86 m
Width
3.60 m
Height
INA
Weight, Combat
39.0 tons
Automotive
Engine Name
V-84MS
Engine Type
Diesel
Engine Power
840 hp
Maximum Range
450 km on road;
550 km on road with external fuel
Maximum Speed
60 km/h on road;
35 km/h off road
Amphibious
No
Gradient
30%
Side Slope
INA
Vertical Step
0.85 m
Trench
2.8 m
Fording
1.2 m unprepared;
5 m with snorkel
Communications
Note
External communication is carried out by the VHF radio R-163-50U, capable of operating in the frequency bands from 30025 to 79975 kHz on 10 pre-prepared channels. The radio has a range of about 20 km. Internal communication between the crew is carried out by a tank intercom R-174 for 3 subscribers.
Main Weapon System
Note
The TZM-T is equipped with a 5.45-mm RPKS-74 machine gun as the main defense weapon. The transported ammunition is 1,440 rounds. In addition, the vehicle has: 2 x AKS-74 rifles with 600 rounds of ammunition; 5 x RPG-26 “Aglen” anti-tank grenades;
10 x F-1 grenades.
Protection
Armor
Welded steel hull;
Cast steel turret with laminate armor;
Metal lined rubber side skirts
Applique Armor
Available
NBC Protection
Yes, it can operate in conditions of chemical and nuclear weapons use, for this purpose a filter-ventilation unit is installed in the vehicle, as well as a GO-27 radio and chemical reconnaissance device.
Smoke Equipment
To camouflage the vehicle on the ground, the TZM-T is equipped with thermal smoke equipment capable of creating a dense, impenetrable smoke screen. The length of the curtain is from 250 to 400 meters.
Details
Country of Origin
Russia
Category
Logistics
Land > Combat Support Vehicles > Logistics
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.86 m
Width
3.6 m
Height
—
Weight
39000 kg
Operators (1)
Russia
