A109
A109
Utility & Transport Helicopters

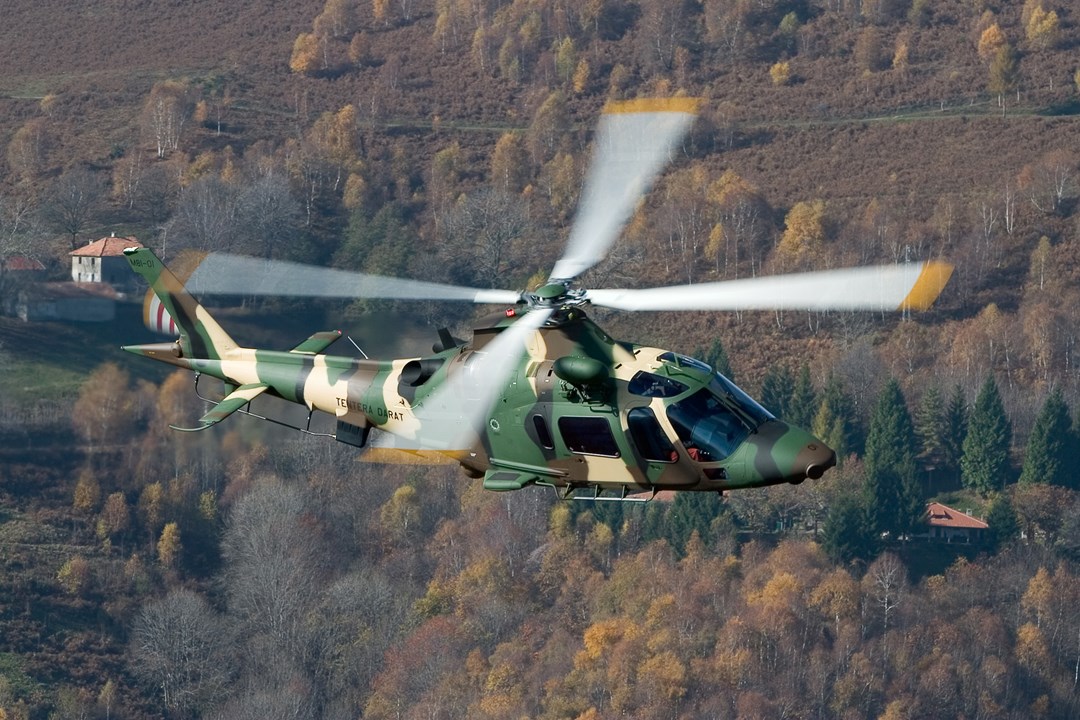

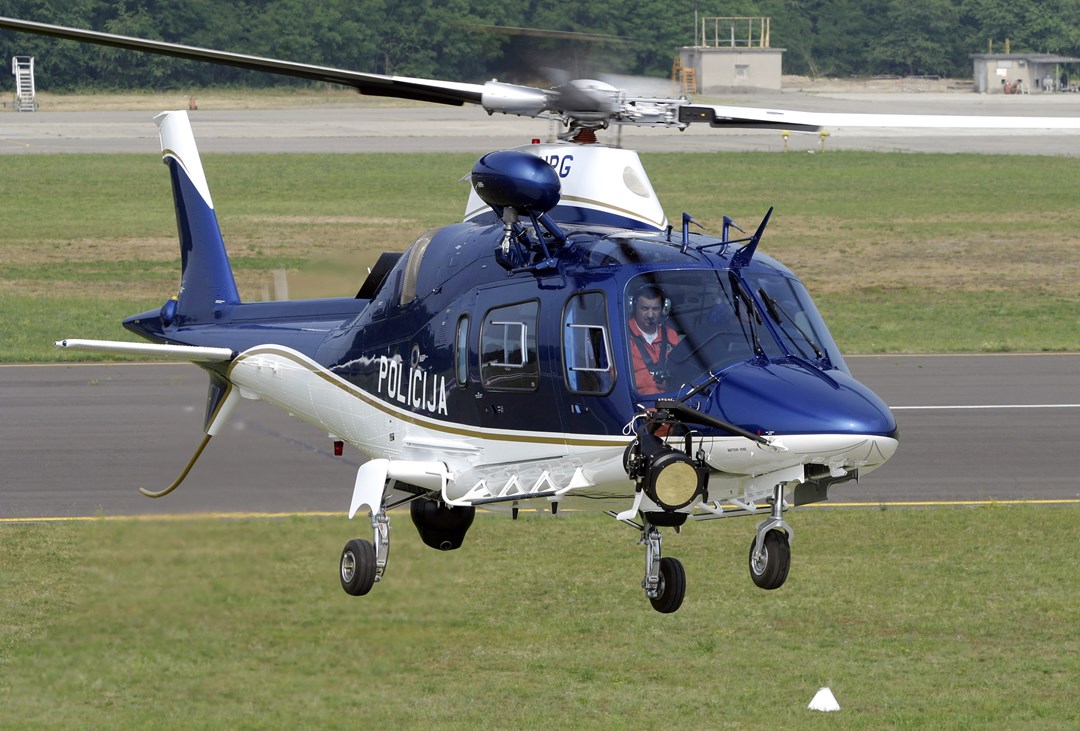

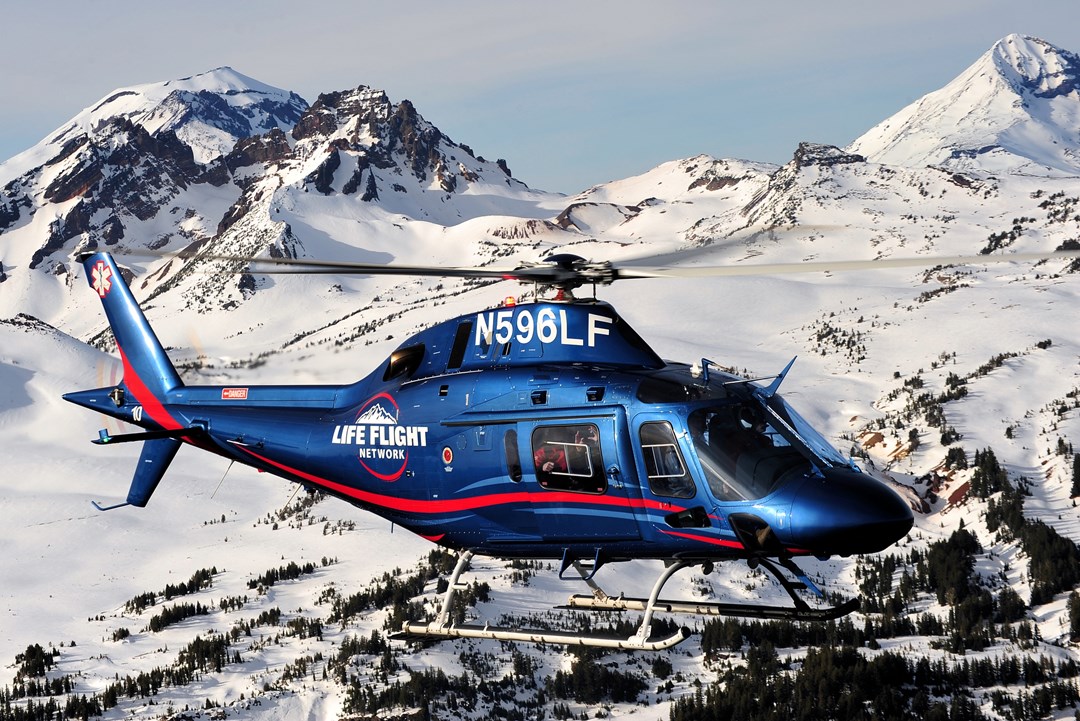

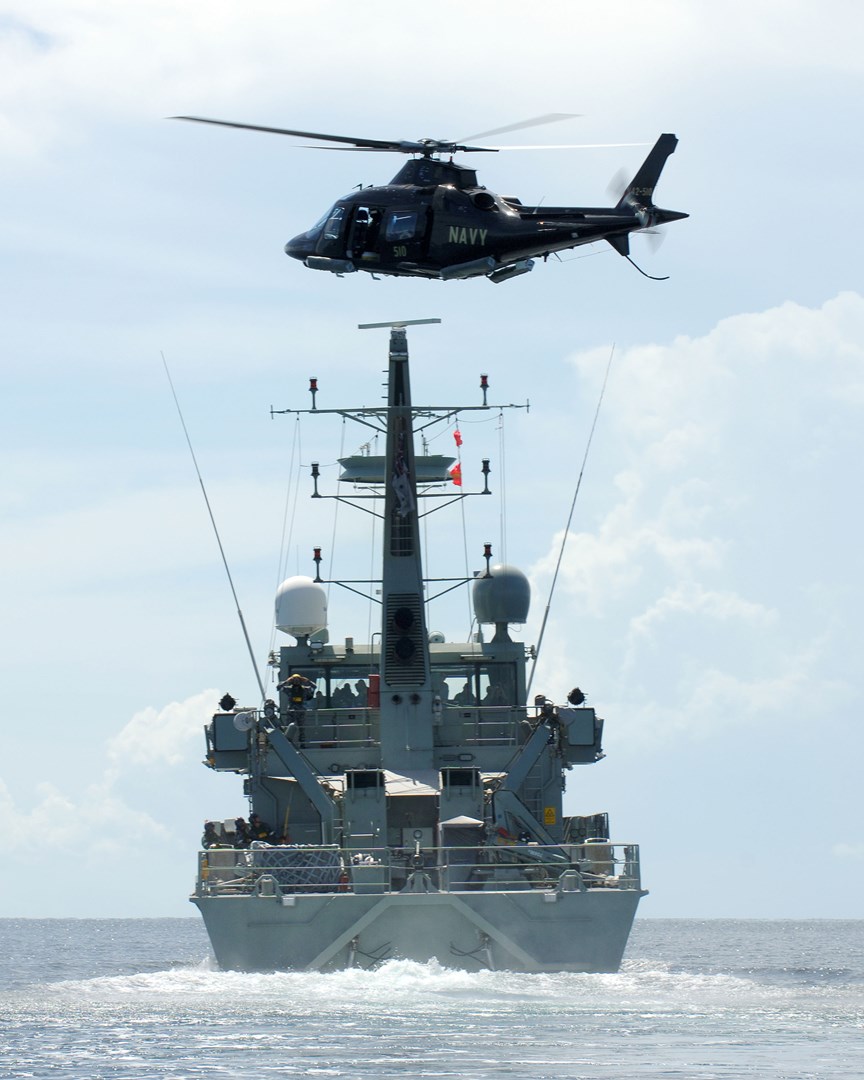

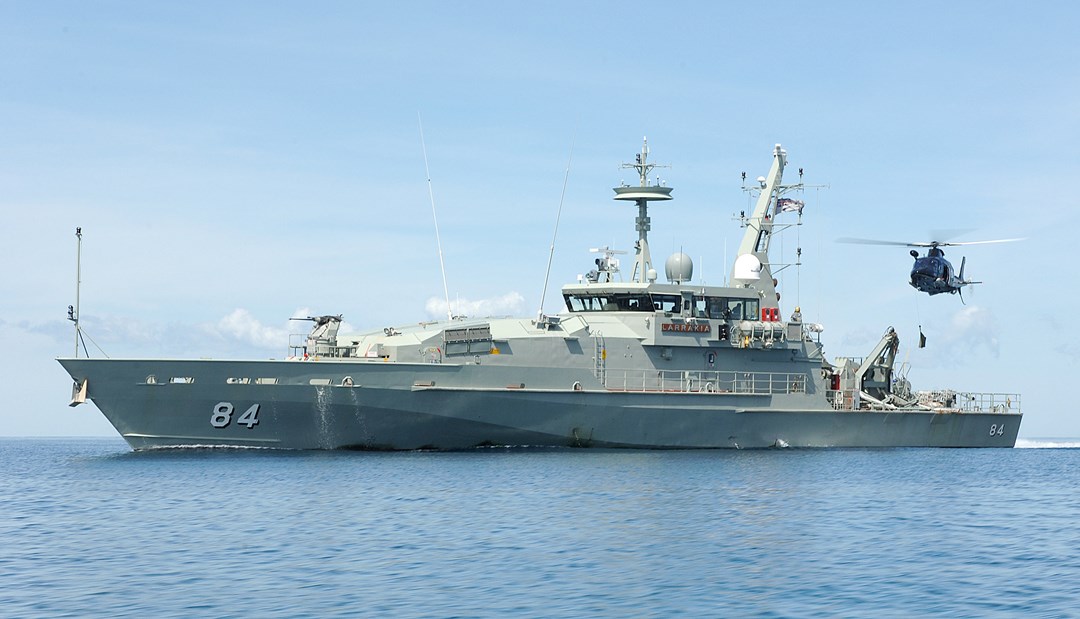

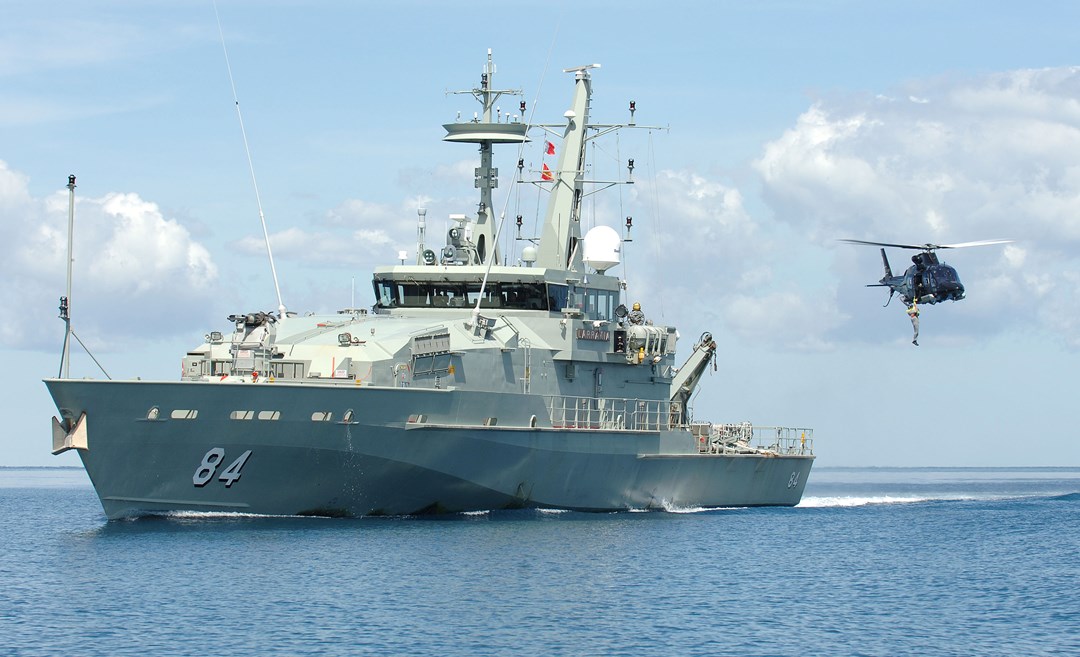

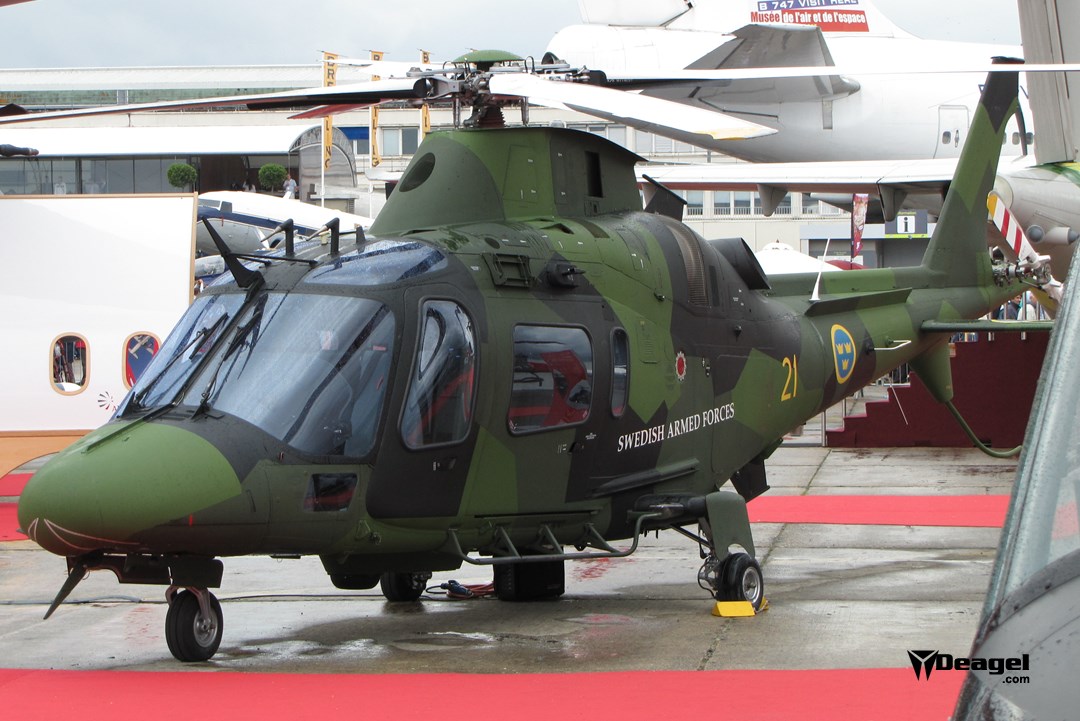

Operational Photo
Basic Information
Name
A109
Designation
A109
Alternate Designation
—
Equipment Type
Utility & Transport Helicopters
Manufacturer
—
Date of Introduction
—
Description
The AgustaWestland A109 twin-engine helicopter was developed to meet the requirements of both military and civil customers. A109 is a multi-role/utility lightweight helicopter certified to carry weapons in its military versions. Its main rotor has four blades and is powered by either two Pratt & Whitney Canada PW206C or Turbomeca Arriel 1K1 turboshaft engines each rated at 567- and 632-shp. Currently, A109 production models are A109 LUH and A109 Power.
Overview (Deagel)
Group
Utility & Transport Helicopters
Status
Active
Also Known As
A-109 Hirucondo, A109 Hirundo, A109 LOH, A109 LUH, A109BA, A109CM, A109E, A109EOA, A109HA, A109HO, A109K, A109K2, A109KM, HKP15, Light Utility Helicopter
Origin
Italy
Contractor
Leonardo Helicopters
Total Production
?
Unitary Cost
EUR €11.4 million
Specifications (Deagel)
Crew
2
Main Rotor Blades
4
Number of Engines
2
Troops
6
Dimensions — Height
3.5 meter
Dimensions — Length
13 meter
Dimensions — Main Rotor Diameter
11 meter
Dimensions — Width
2.9 meter
Mass — Max Takeoff Weight
2,850 kilogram
Mass — Payload
1,500 kilogram
Performance — Ceiling
6,100 meter
Performance — Max Range
500 kilometer
Power — Max Power at TakeOff
1,422 shp
Speed — Cruise Speed
73.7 mps
Speed — Top Speed at High Altitude
84.8 mps
Time — Flight Endurance
4 hour
Gear (Deagel)
Item 1
Anti-Tank Guided Missiles: BGM-71E TOW 2A (8)
Item 2
Anti-Tank Guided Missiles: HOT (8)
Item 3
Turboshaft Engines: Arriel 1K1 (2)
Item 4
Turboshaft Engines: Arrius 2K1 (2)
Item 5
Turboshaft Engines: PW200 (2)
Variants
Variant 1
AW109 LUH
Variant 2
MH-68 Stingray
Variant 3
AW109 Power
Variant 4
AW109 Trekker
Details
Country of Origin
Italy
Category
Transport Helicopter
Air > Transport Helicopter
Sources
deagel.com: https://www.deagel.com/x/x/a000737
Classification
Domain
Air & Air Defense
Equipment Status
Active
