Hayabusa Class Japanese Guided Missile Patrol Boat
Hayabusa Class
Patrol Boat
Other
Basic Information
Name
Hayabusa Class Japanese Guided Missile Patrol Boat
Designation
Hayabusa Class
Alternate Designation
Hayabusa Class
Equipment Type
Patrol Boat
Manufacturer
Mitsubishi Heavy Industries, Shimonoseki
Date of Introduction
2002
Description
The Hayabusa Class Japanese Guided Missile Patrol Boat is a guided missile patrol boat class of the Japan Maritime Self-Defense Force (JMSDF). Six boats were built between 2002 and 2004. This patrol boat provides the JMSDF a fast response ship-to-ship missile capability and has a full suite of enhanced offensive and defensive systems.
Naval & Littoral Specifications
Crew
21
Beam
8.40 m
Draft
4.20 m
Variants
Wakataka (PG-825)
Commissioned: 2002
Status: Active
Otaka (PG-826)
Commissioned: 2003
Status: Active

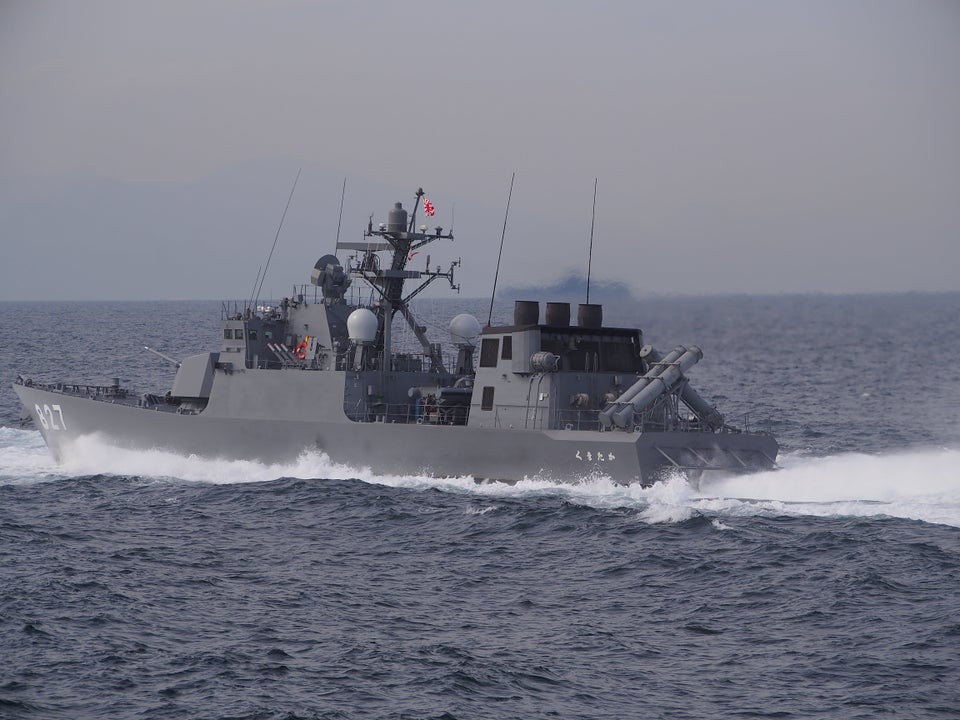

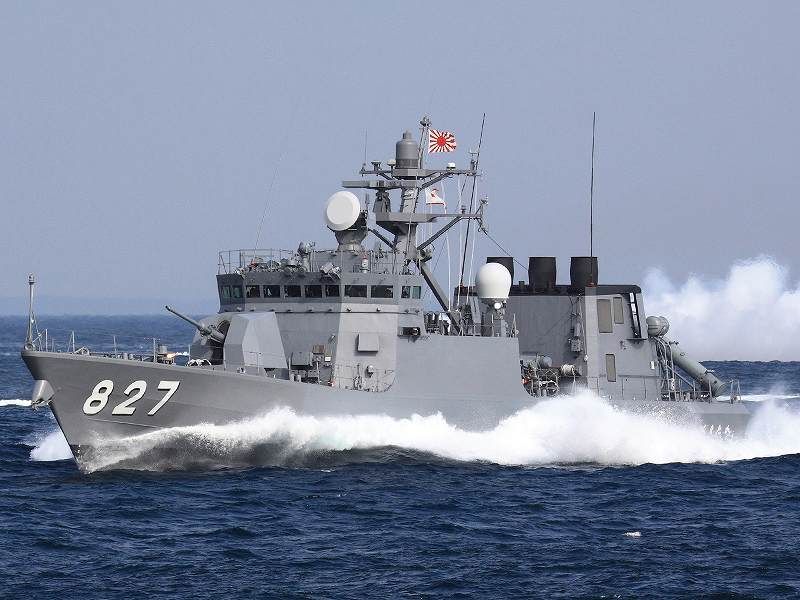

Kumataka (PG-827)
Commissioned: 2003
Status: Active
Umitaka (PG-828)
Commissioned: 2004
Status: Active

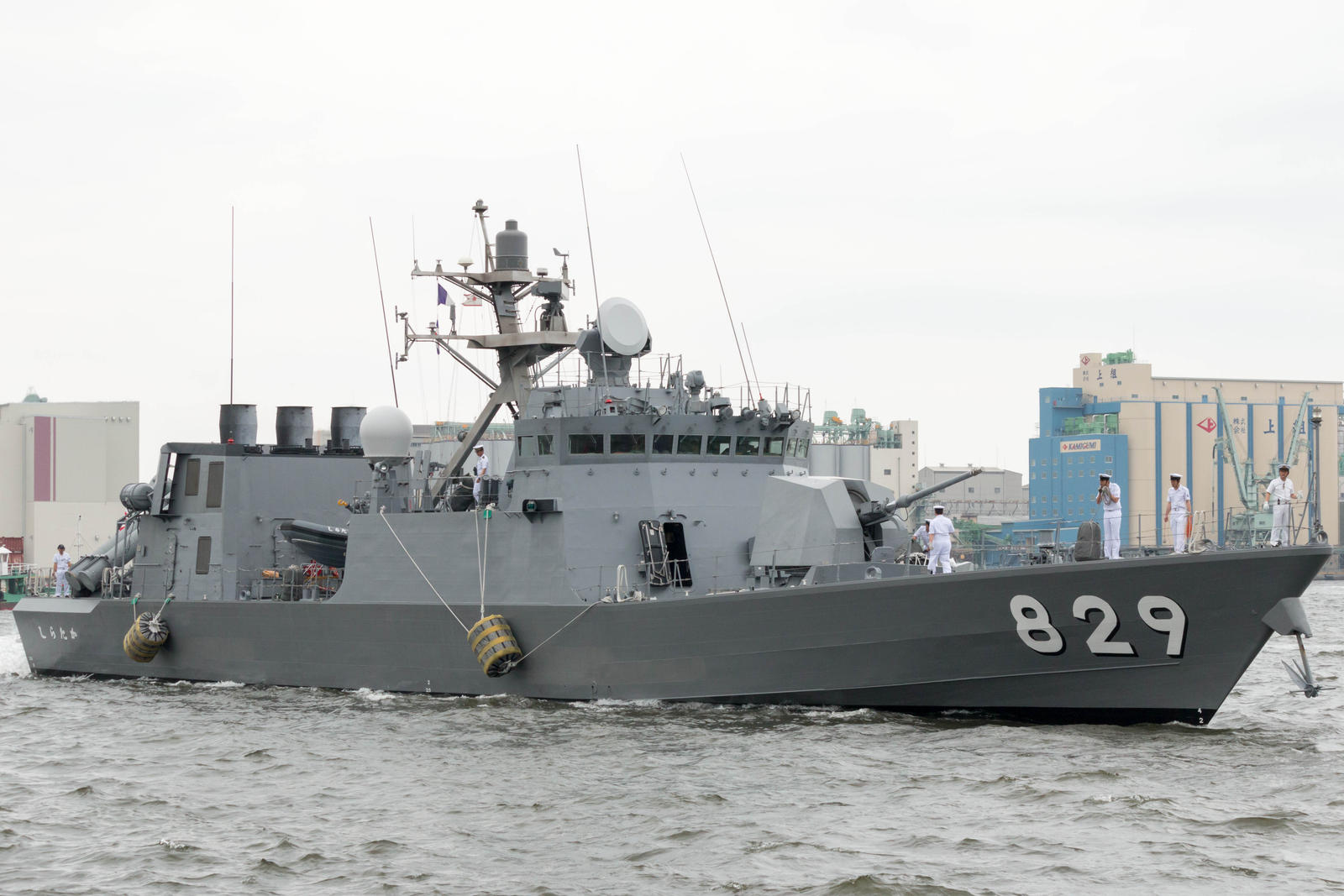

Shiritaka (PG-829)
Commissioned: 2004
Status: Active
System
Alternative Designation
Hayabusa Class
Type
Guided Missile Patrol Boat
Builder
Mitsubishi Heavy Industries, Shimonoseki
Crew
21 ea
Dimensions
Length
50.1 m
Beam
8.4 m
Draft
4.2 m
Displacement, Standard
INA
Displacement, Full Load
INA
Propulsion System
Engine Name
3 x General Electric LM500-G07
Engine Type
Gas Turbine
Propulsion
Pump-jet
Engine Power
INA
Maximum Speed
46 knots
Maximum Range
INA
Weapons Systems
Weapons System #1
Name
2 x Type 90 SSM-1B (Twin Launcher)
Type
Ship-to-Ship / Anti-ship Cruise Missile
Mass
661 kg
Length
5.08 m
Diameter
350 mm
Warhead
High Explosive
Warhead Weight
260 kg
Engine
TJM2 Turbojet + 1 x Solid Rocket Booster
Operational Range
150 km
Guidance System
Inertial Guidance and Terminal Active Radar Homing
Weapons System #2
Name
Otobreda Cannon (Italian Manufacturer)
Type
Naval Gun / Deck Gun
Caliber
76 mm
Maximum Firing Range (High Explosive Cartridge)
16,000 m
Weapons System #3
Name
2 x M2 Browning .50 Caliber Machine Guns
Type
Heavy Machine Gun
Caliber
12.7 mm
Cartridge
.50 BMG (12.7×99mm NATO)
Feed System
Belt-fed (M2 or M9 links)
Fire Control System (FCS)
Name
OYQ-8B Tactical Data Processing System
Digital FCS
Yes, includes OAX-2 Optronic Sight
Combat System
FCS-2-31C Gun FCS
Radar Systems
Surface Search Radar
OPS-18-3
Surveillance Radar
INA
Navigation Radar
OPS-20
Protection
Countermeasures
Mark 36 Super Rapid Bloom Offboard Countermeasures Chaff and Decoy Launching System. Can also be fitted with the TORCH infrared "flare" decoy system.
NBC Water Washdown System
INA
EW
"Flyrt" Radar-Decoy Drone
Image Sources
Details
Country of Origin
Japan
Category
Naval
Naval
Filter Label
H
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
50.1 m
Width
8.4 m
Height
—
Weight
—
Operators (1)
Japan
