Pandur II

Pandur II

Wheeled Armored Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Pandur II
Designation
Pandur II
Alternate Designation
Equipment Type
Wheeled Armored Vehicles
Manufacturer
Steyr-Daimler-Puch Spezialfahrzeug GmbH
Date of Introduction
Description

Pandur II is a wheel-drive family of medium armored combat vehicles composed of mission specific variants that provide different functionalities. Steyr-Daimler-Puch Spezialfahrzeug GmbH of Austria designed, developed and manufactures the Pandur II family of combat vehicles which entered service in 1996. Steyr company based in Vienna, Austria, was acquired by General Dynamics in the early 2000s turning into a part of General Dynamics European Land Combat Systems, a business unit of General Dynamics. These amphibious vehicles have been optimized for superior survivability and mobility, and rapid deployment and maintenance. Moreover, weighing up to 20 tons Pandur II combat vehicles meet demanding force protection requirements on peacekeeping missions using a cost-effective, versatile, high-performance transportation system. To date, Pandur II have been ordered by Austria, Belgium, Kuwait, Slovenia, United States of America (US Army) and Portugal. Elements common to Pandur II vehicles include two steered axle, an independent suspension system, and run flat tires for advanced mobility, a high level of embedded armor protection, spall liners for the crew compartments, and drivetrain and steering linkages within the hull for superior survivability. Fast and Easy maintenance can be done through a computer-based interactive maintenance and repair diagnostic system. The power plant can be removed and replaced by another unit in approximately 30 minutes.

Ground Specifications
Crew 2
Mobility Type Wheeled (6x6)
Main Weapon 90 millimeter
Max Speed 105.0 km/h
Range 600.0 km
Overview (Deagel)
Group Wheeled Armored Vehicles
Status Active
Also Known As Pandur 6x6 EVO
Origin Austria
Contractor General Dynamics
Initial Operational Capability (IOC) 1996
Total Production 474
Unitary Cost EUR 5.3 million
Specifications (Deagel)
Crew 2
Troops 10
Wheel Drive 6
Wheels 6
Dimensions — Height 2.1 meter
Dimensions — Length 6.6 meter
Dimensions — Main Gun Caliber 90 millimeter
Dimensions — Width 2.7 meter
Mass — Combat Weight 15,500 kilogram
Mass — Empty Weight 12,000 kilogram
Mass — Payload 3,500 kilogram
Performance — Max Range 600 kilometer
Power — Power 405 shp
Speed — Top Speed 105 kph
Variants
Variant 1 Pandur II 6x6

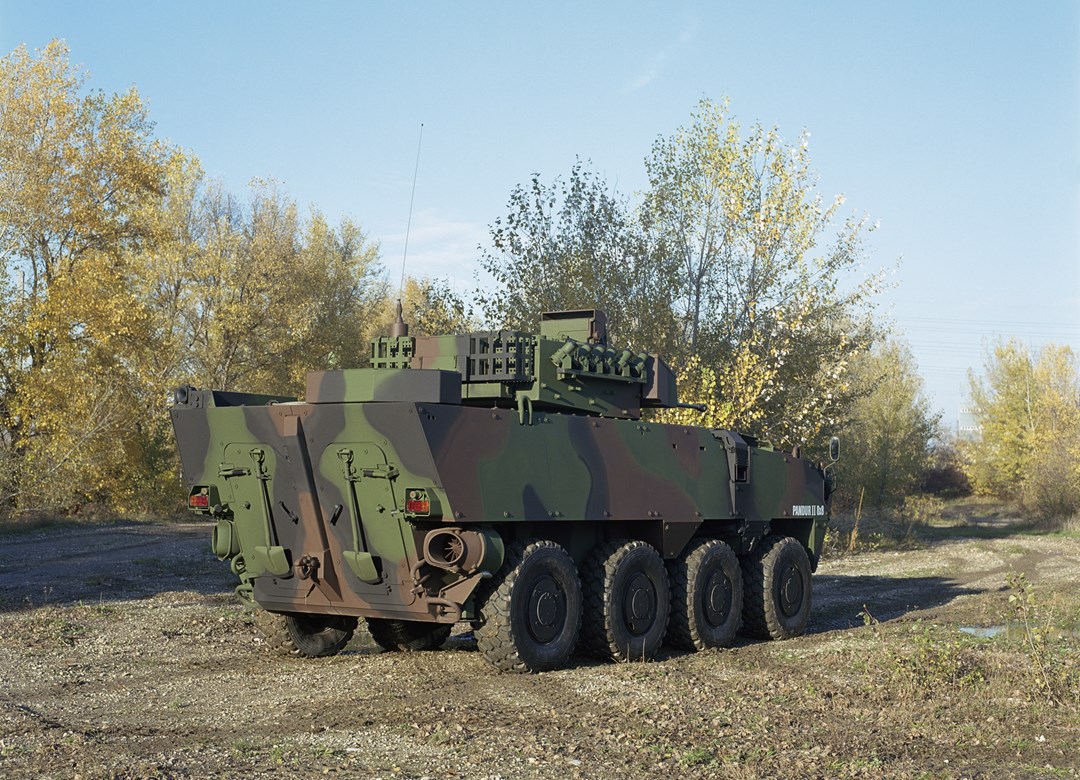

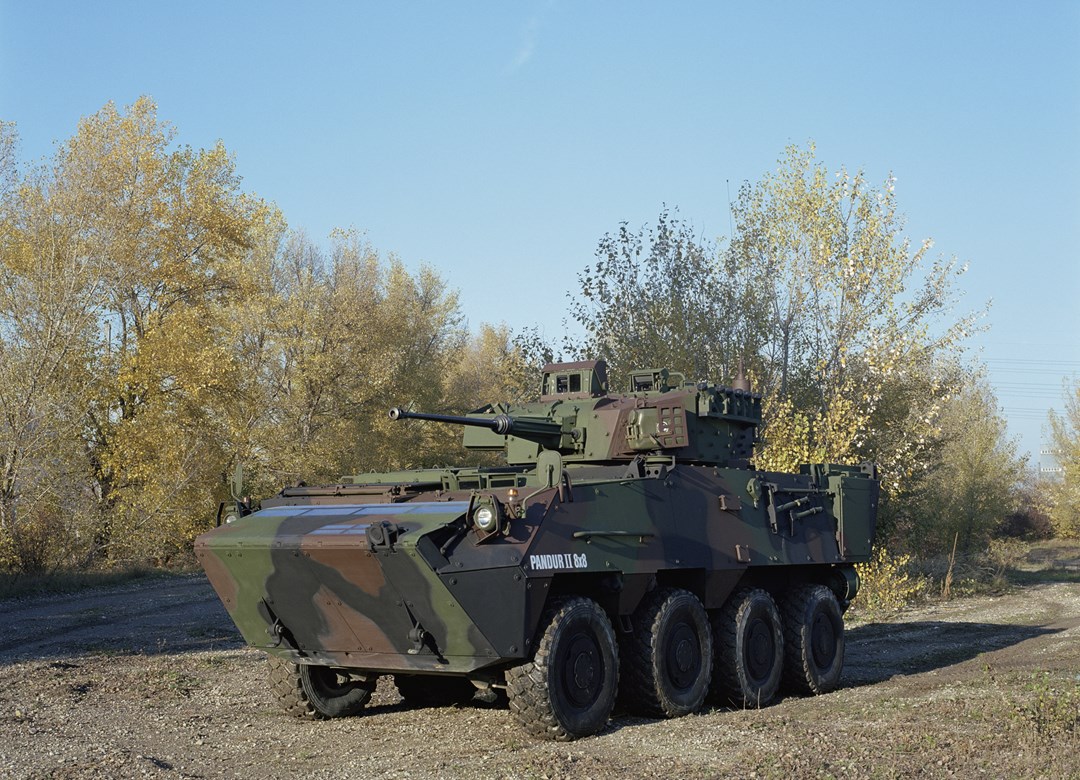

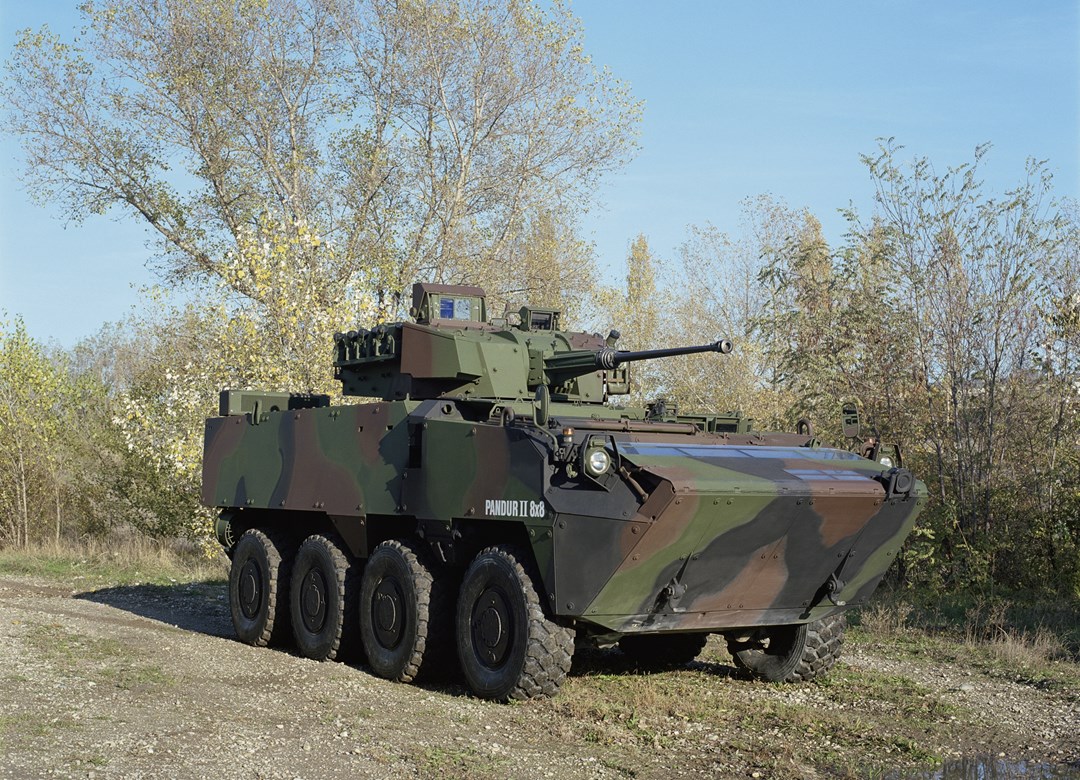

Variant 2 Pandur II 8x8
Variant 3 Pandur Sabrah
Variant 4 Pandur 6x6 Skyranger
Details
Country of Origin Austria
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.6 m
Width
2.7 m
Height
2.1 m
Weight
15500 kg
Operators (6)
United States
Austria
Belgium
Kuwait
Portugal
Slovenia
