AGM-86B ALCM
AGM-86B ALCM
Cruise Missiles
Basic Information
Name
AGM-86B ALCM
Designation
AGM-86B ALCM
Alternate Designation
Air Launched Cruise Missile
Equipment Type
Cruise Missiles
Manufacturer
Boeing
Date of Introduction
1982
Description

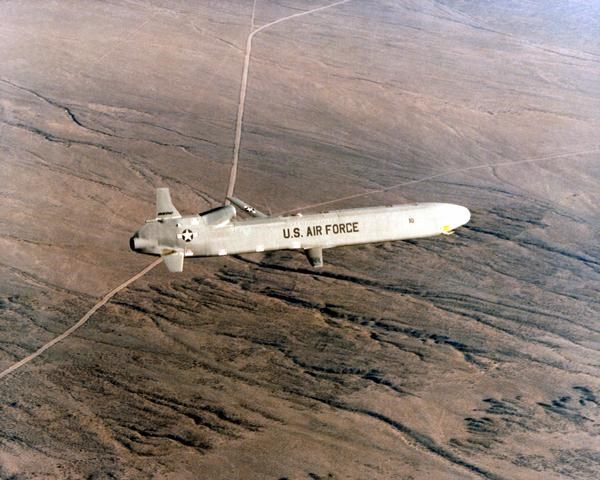

The AGM-86B ALCM (Air Launched Conventional Missile) is armed with a nuclear warhead and can be carried and launched internally and externally from the B-52H bomber. Its long range allows the B-52H to operate out of the enemy air defenses while AGM-86B's cruise flight profile makes itself survivable against the air defenses. The navigation system consists of a terrain-correlation system which provides location updates in flight. The US Air Force plans to convert part of existing nuclear-armed AGM-86Bs to conventionally-armed AGM-86C/D configurations.
Air & Air Defense Specifications
Max Speed
871.2 km/h
Range
2450.0 km
Wingspan
3.70 m
Overview (Deagel)
Group
Cruise Missiles
Status
Active
Also Known As
Air Launched Cruise Missile
Origin
United States of America
Contractor
Boeing
Initial Operational Capability (IOC)
1982
Total Production
1,739
Unitary Cost
USD $1.0 million
Specifications (Deagel)
Dimensions — Diameter
620 millimeter
Dimensions — Length
6.3 meter
Dimensions — Wingspan
3.7 meter
Mass — Thrust
600 pound
Mass — Weight
1,429 kilogram
Performance — Max Range
2,450 kilometer
Speed — Top Speed
242 mps
Yield — Yield
150 kiloton
Gear (Deagel)
Item 1
Warheads: W80 (1)
Variants
Variant 1
AGM-86B ALCM
Variant 2
AGM-86C CALCM
Variant 3
AGM-86D CALCM
Details
Country of Origin
United States
Sources
deagel.com: https://www.deagel.com/x/x/a001068
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
6.3 m
Width
3.7 m
Height
—
Weight
—
Operators (1)
United States
