AH-64 Apache

AH-64 Apache

Attack Helicopters
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
AH-64 Apache
Designation
AH-64 Apache
Alternate Designation
Equipment Type
Attack Helicopters
Manufacturer
Date of Introduction
Description

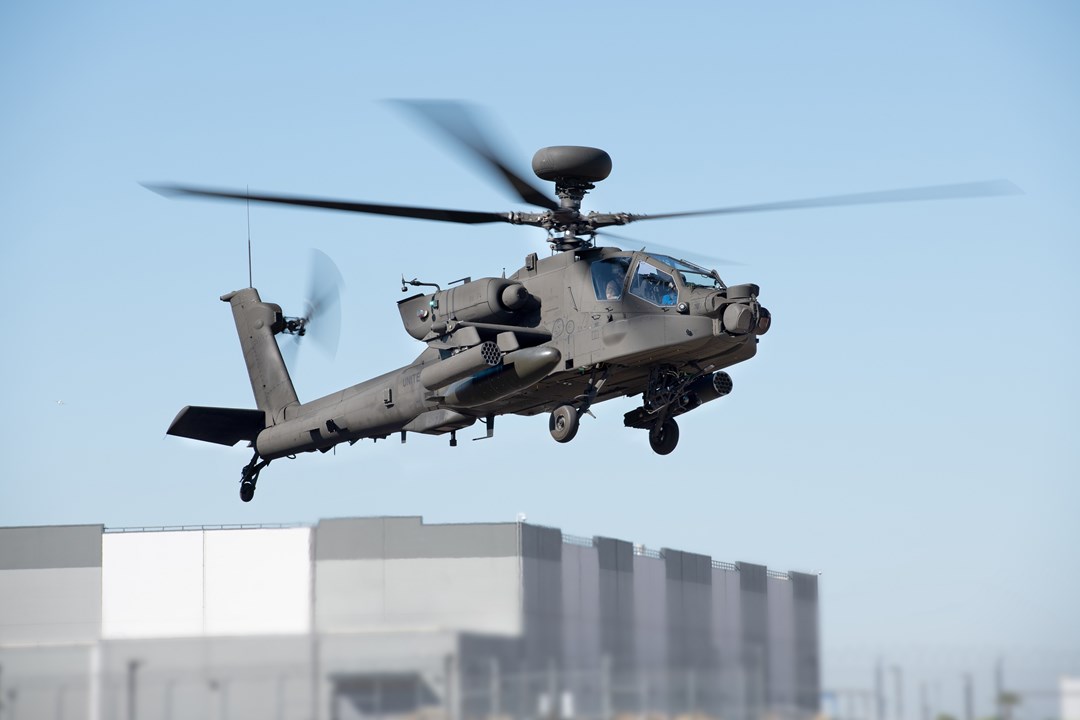

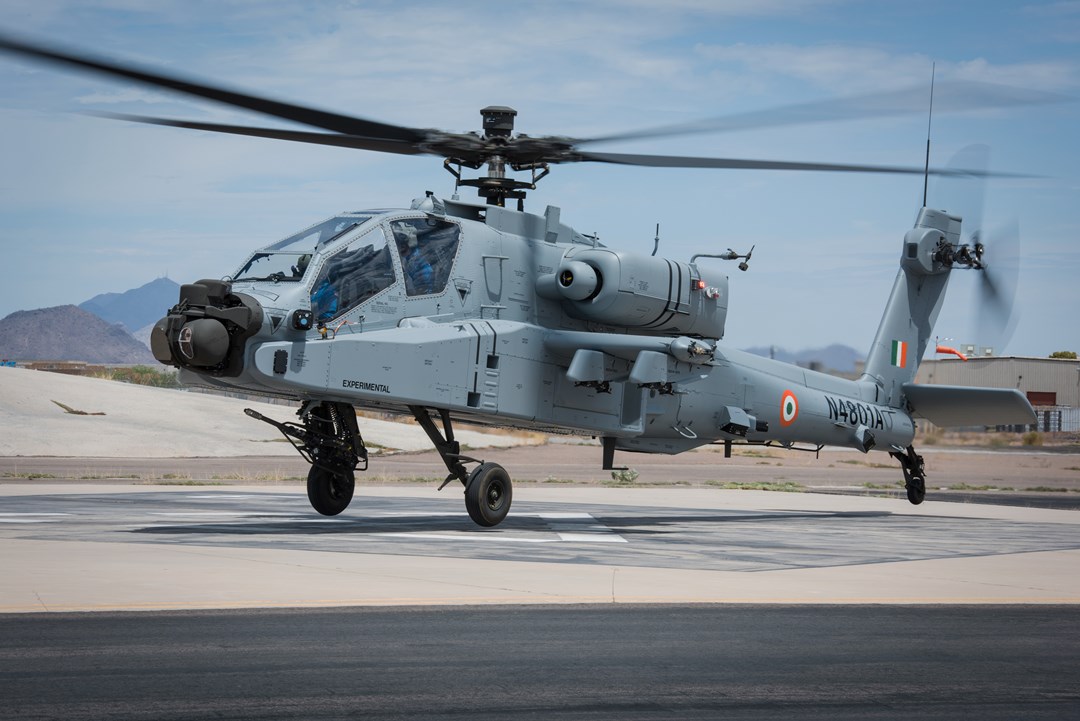

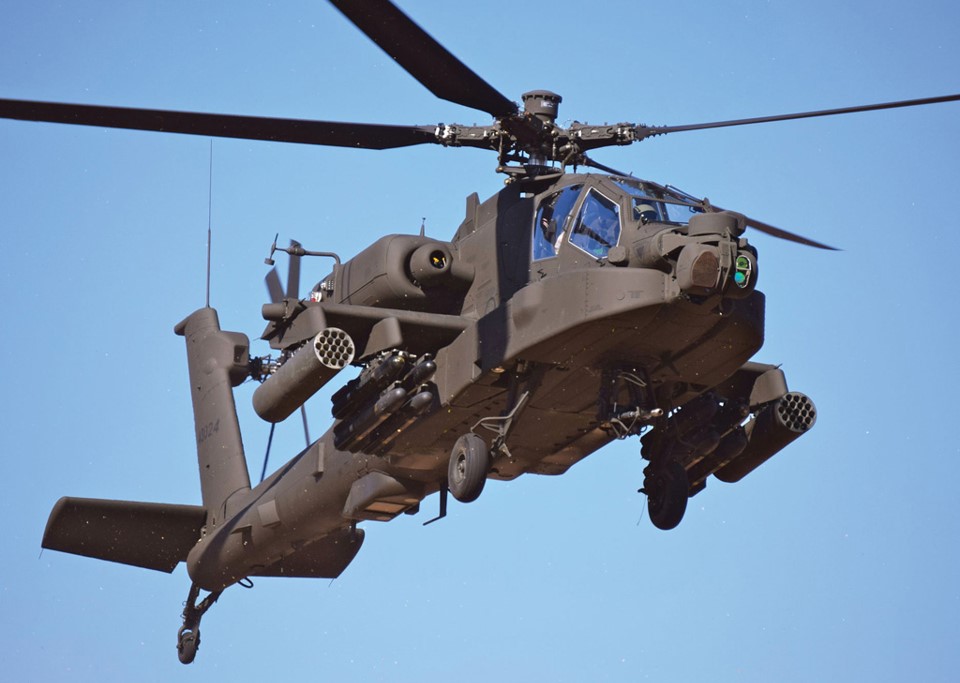

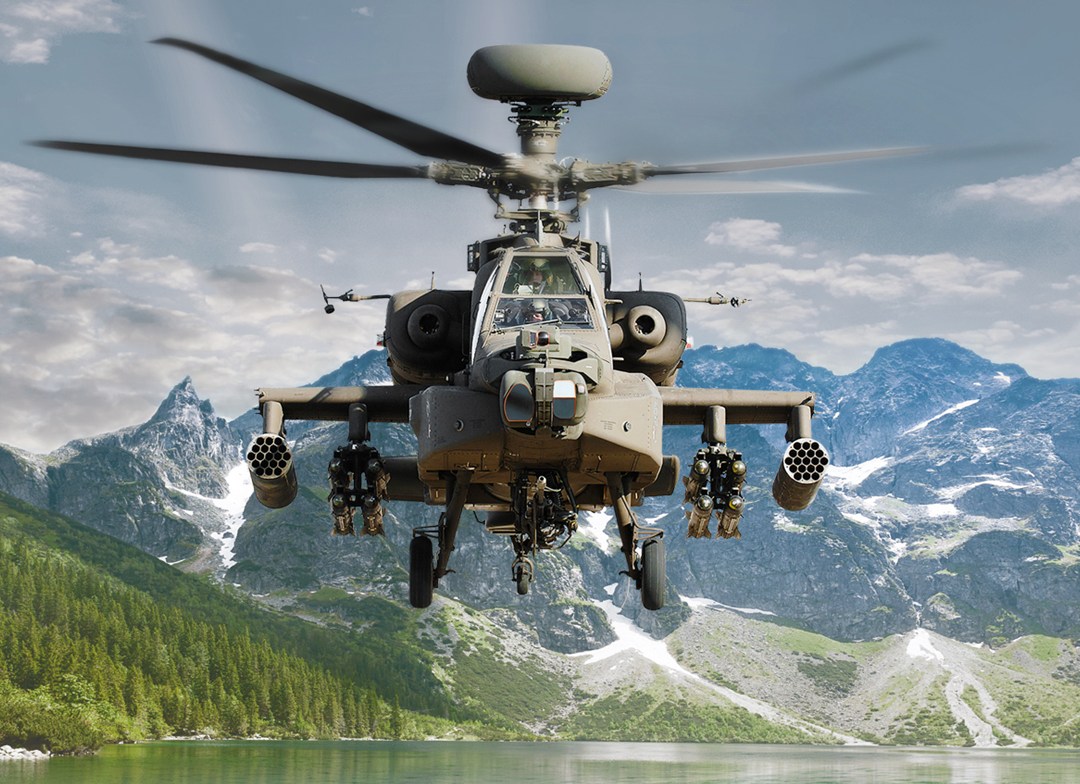

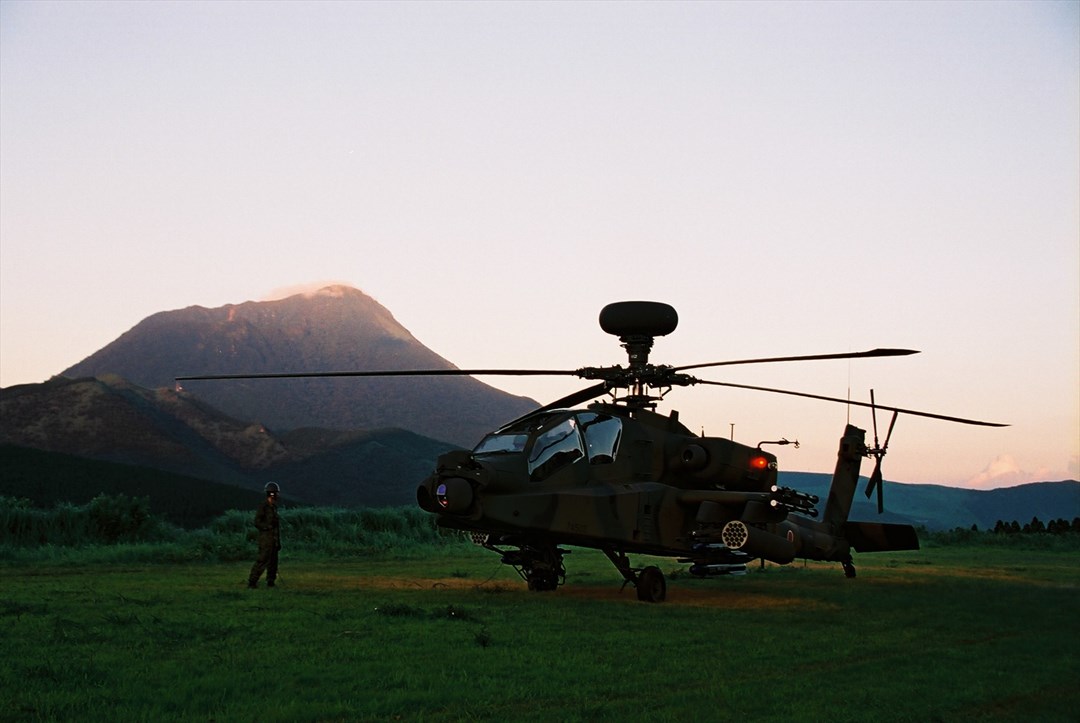

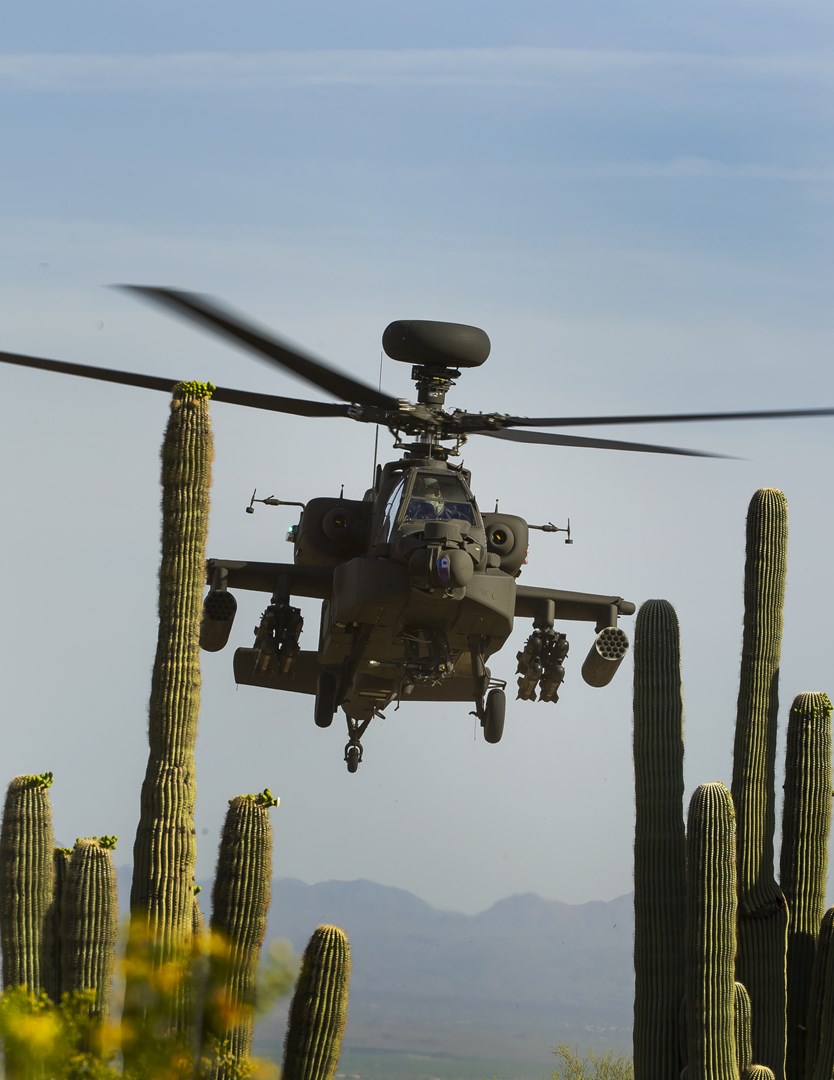

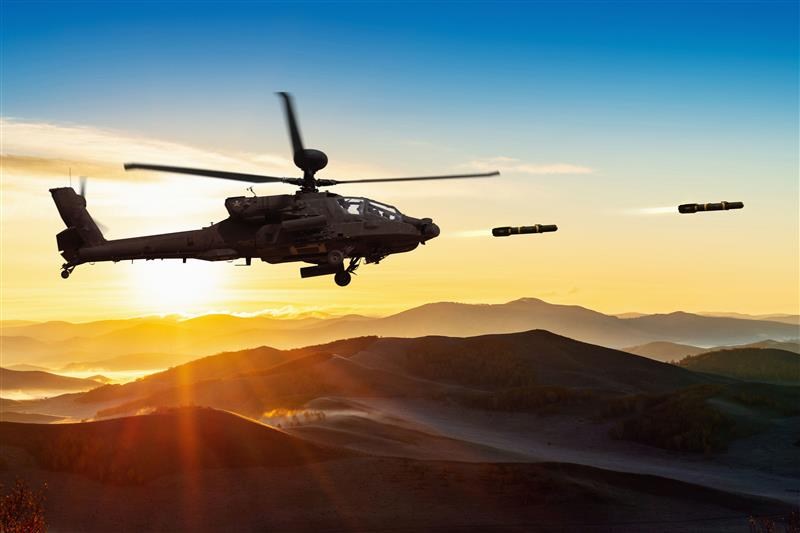

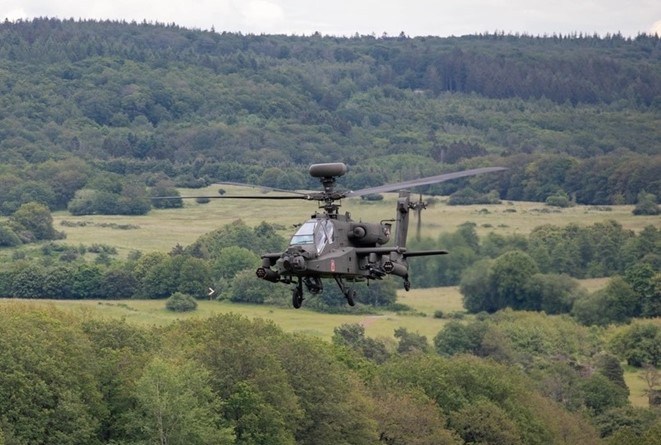

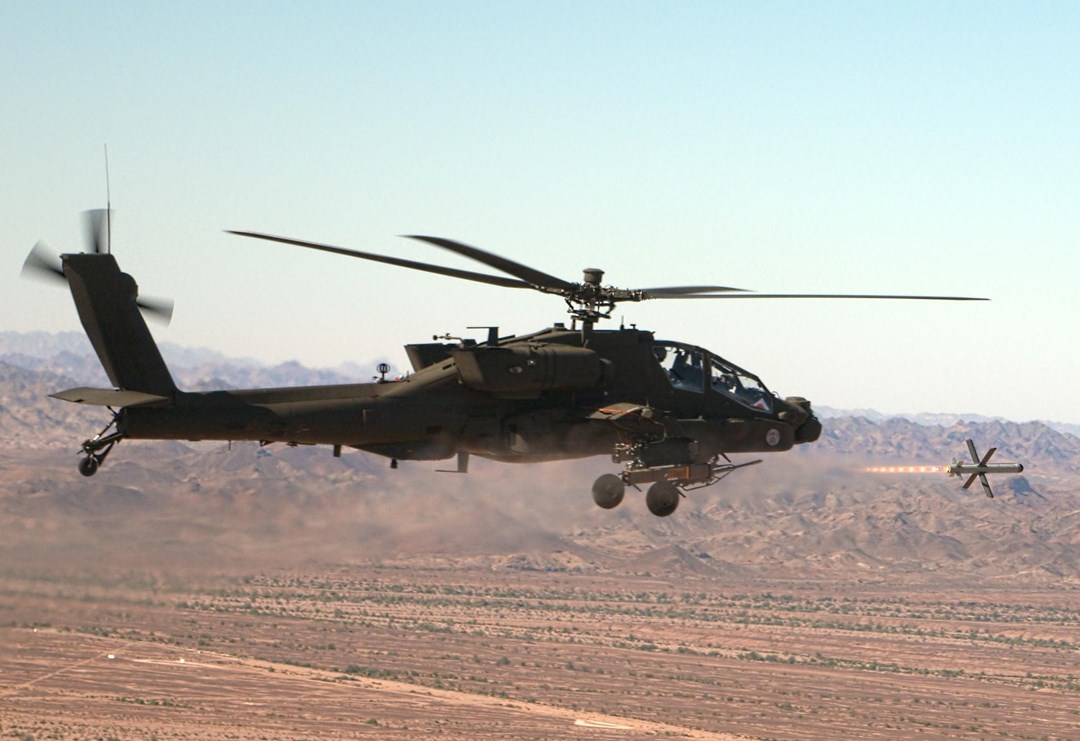

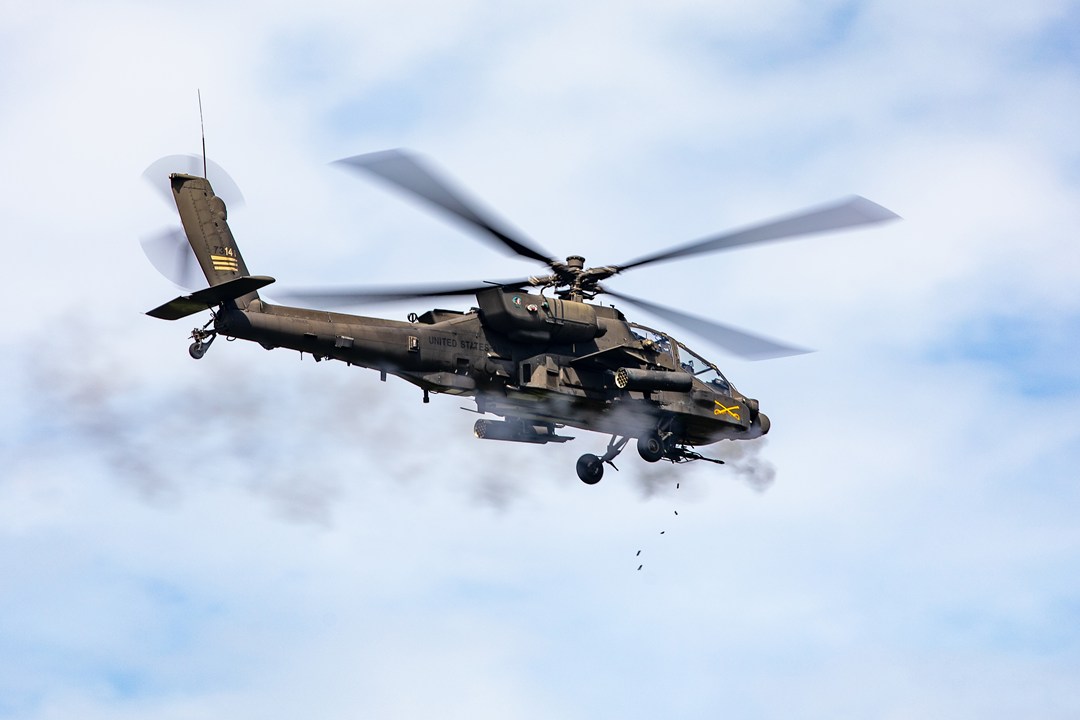

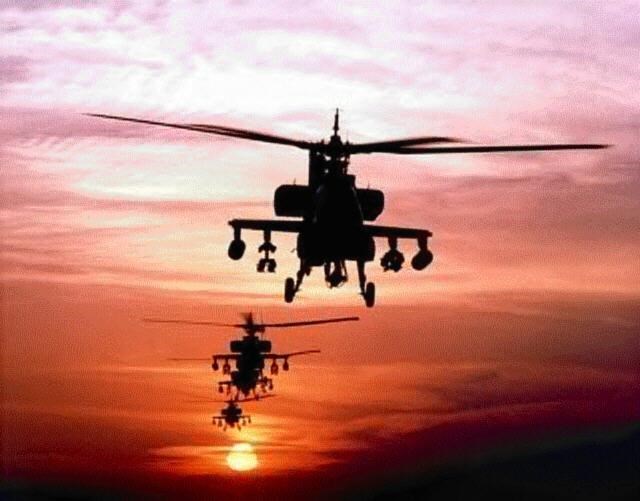

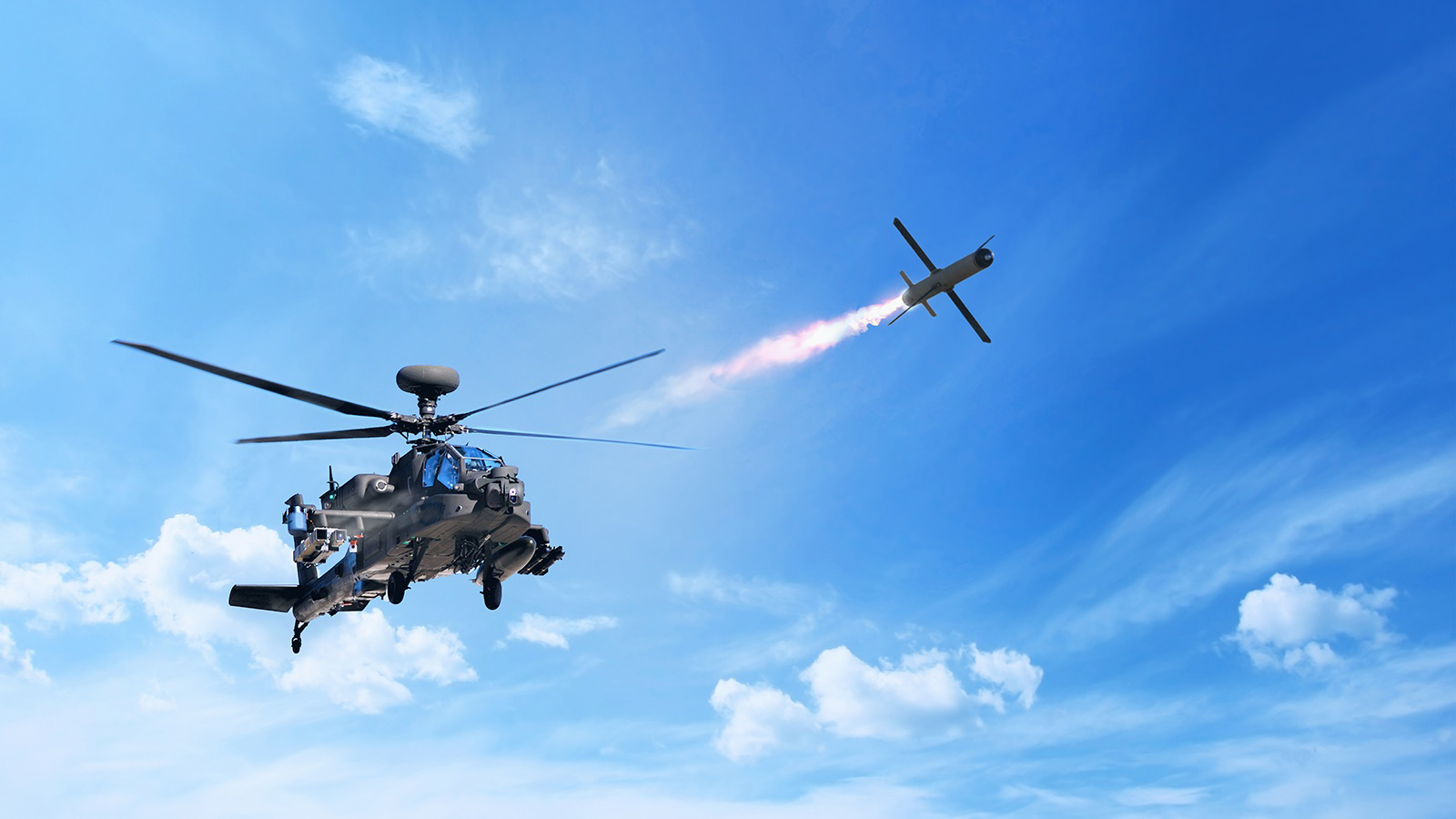

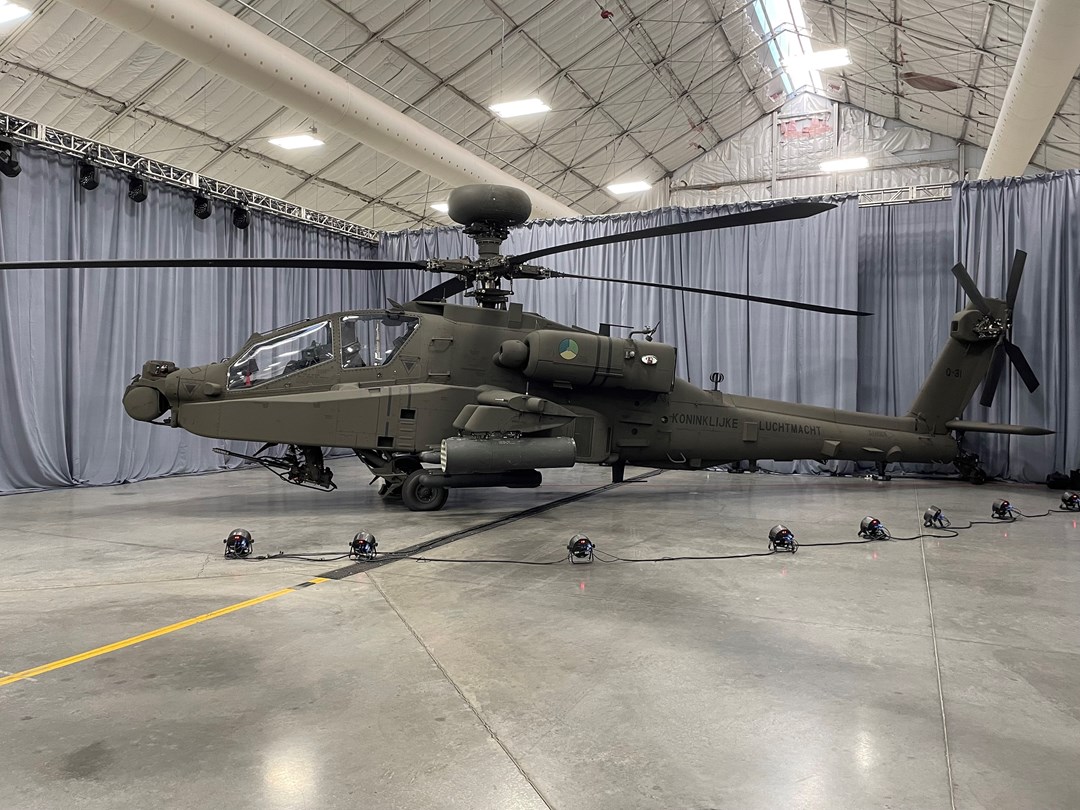

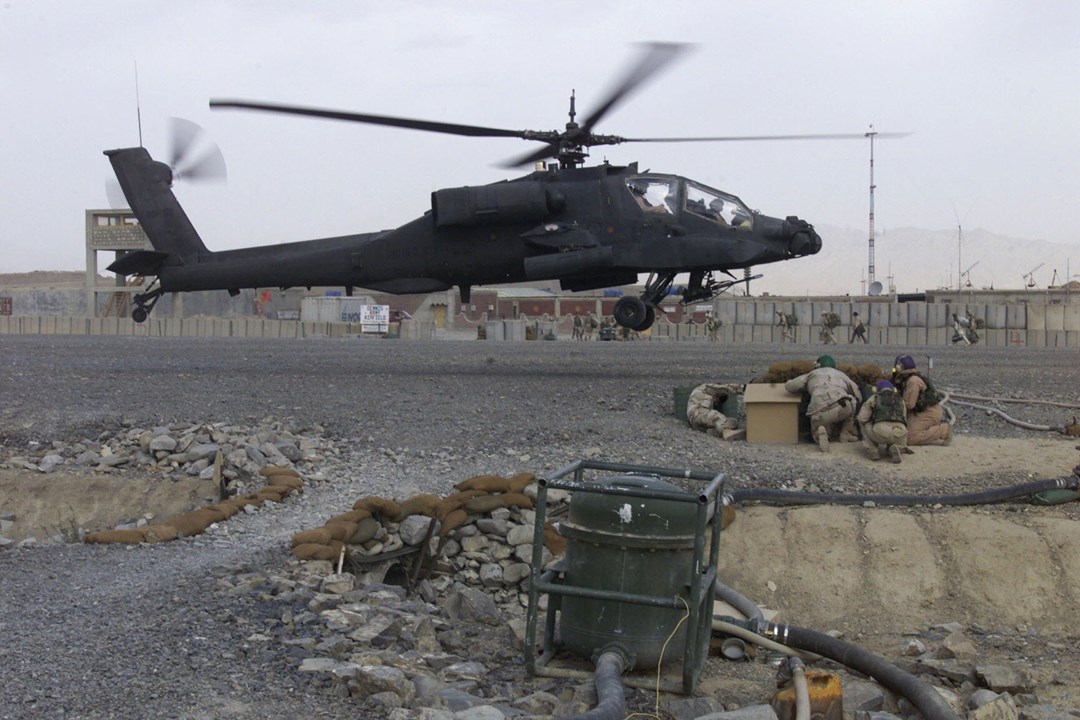

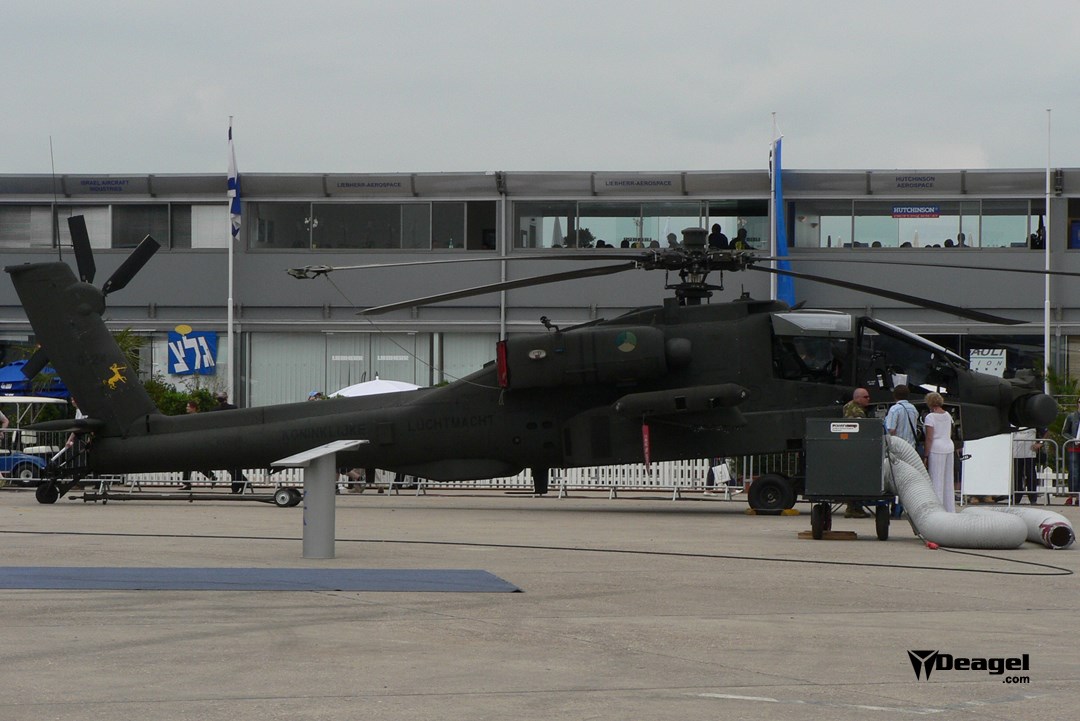

The AH-64 Apache is a twin-turbine engine, armored, attack helicopter designed to defeat the most advanced main battle tanks at standoff ranges. It employs a combination of advanced sensors and Hellfire anti-tank missiles (up to 16), as well as a 30mm nose-mounted M230 chain gun (1,200 rounds) and 70mm unguided rockets (up to 76). The Apache is capable of operation at night, in darkness, and in adverse weather, even in presence of obscurants. The M230 chain gun fires M788 30mm target practice rounds and M848 30mm dummy ammunition during training. They were deployed for the first time in Panama during operation Just Cause in 1989 and subsequently in other military campaigns with less impact than during the Gulf War. In 1991 the AH-64As played a vital role destroying Iraqi armored battle tanks stationary and moving. In 2003 during operation Iraqi Freedom they provided close air support to American armored units while they were deploying throughout Iraq. There are three generations or blocks of the Apache attack helicopter: AH-64A Block I in the mid-1980s, AH-64D Block II in the late 1990s and AH-64E Block III in the early 2010s.

Overview (Deagel)
Group Attack Helicopters
Status Active
Also Known As AH-64A Peten (Israel)
Origin United States of America
Contractor Boeing
Initial Operational Capability (IOC) 1984
Total Production 937
Specifications (Deagel)
Crew 2
Main Rotor Blades 4
Number of Engines 2
Dimensions — Height 4.6 meter
Dimensions — Length 17.7 meter
Dimensions — Main Gun Caliber 30 millimeter
Dimensions — Main Rotor Diameter 14.6 meter
Dimensions — Width 5.2 meter
Mass — Max Takeoff Weight 6,838 kilogram
Performance — Max Range 482 kilometer
Power — Max Power at TakeOff 3,392 shp
Speed — Top Speed at High Altitude 79 mps
Time — Flight Endurance 3 hour
Gear (Deagel)
Item 1 Anti-Radiation Missiles: AGM-122A Sidearm (2)
Item 2 Anti-Ship Missiles: AGM-114B Hellfire (16)
Item 3 Anti-Tank Guided Missiles: AGM-114A Hellfire (16)
Item 4 Anti-Tank Guided Missiles: AGM-114C Hellfire (16)
Item 5 Anti-Tank Guided Missiles: AGM-114F Hellfire (16)
Item 6 Anti-Tank Guided Missiles: AGM-114K Hellfire II (16)
Item 7 ESM & Warning Systems: AN/APR-48A RFI (1)
Item 8 Jamming Systems: AN/ALQ-136 (1)
Item 9 Jamming Systems: AN/ALQ-144A
Item 10 Jamming Systems: AN/ALQ-162
Item 11 Medium Caliber Cannons: M230 Chain Gun (1)
Item 12 Optronic Systems: TADS/PNVS (1)
Variants
Variant 1 AH-64A Apache
Variant 2 AH-64D Apache

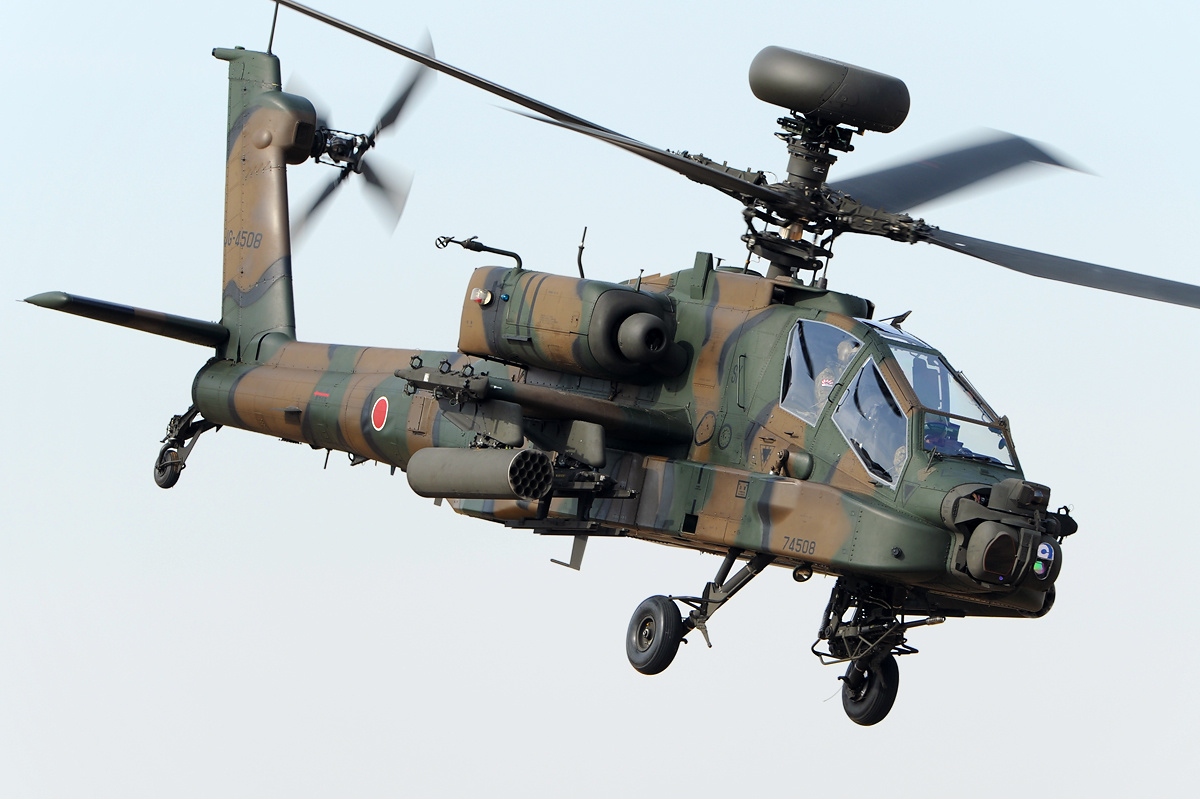

Variant 3 AH-64D Apache Longbow
Variant 4 AH-64E Apache Guardian
Details
Country of Origin United States
Category Rotary Wing Aircraft
Air > Rotary Wing Aircraft
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
6838 kg
Related Equipment (4)
