M60D American 7.62mm General-Purpose Machine Gun

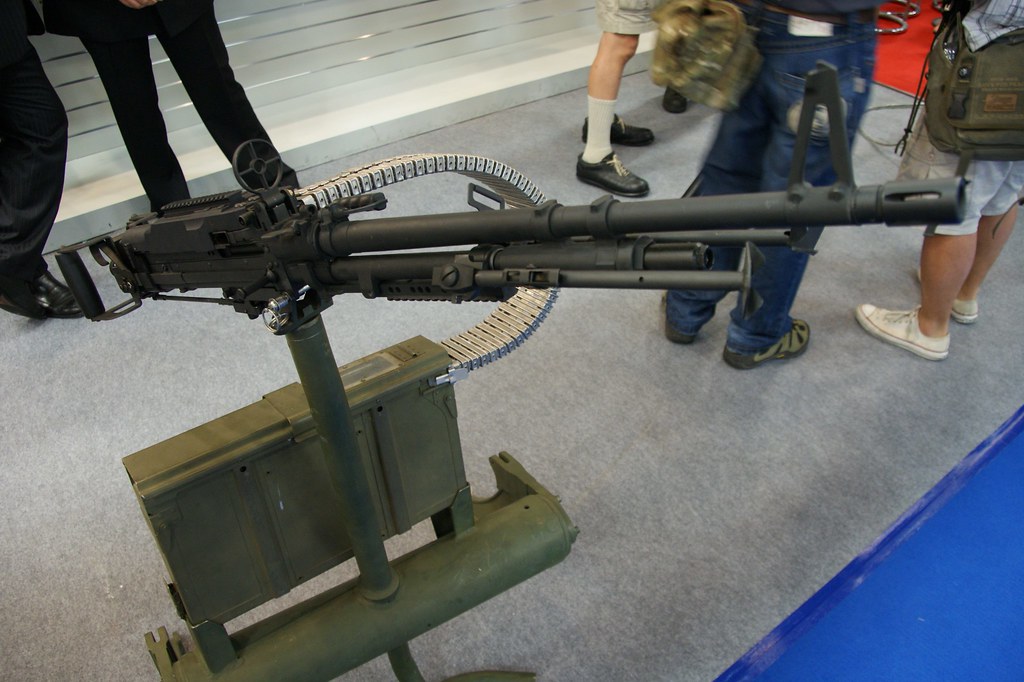

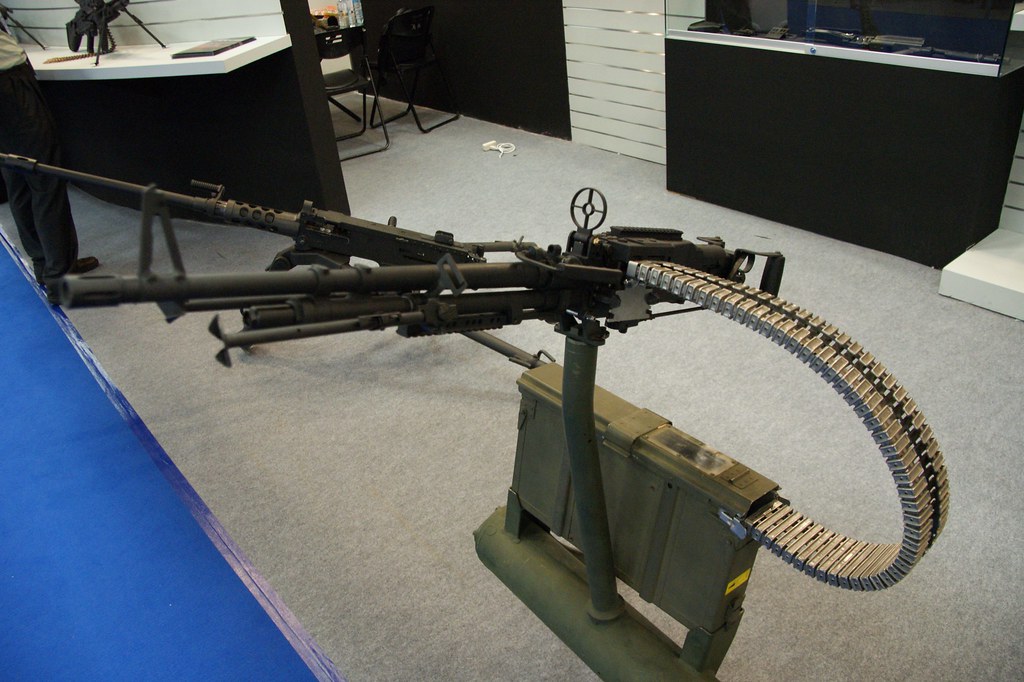

The M60D is a mounted variant of the standard M60. It can be mounted on boats, vehicles and as a pintle-mounted door gun in helicopters. When used in aircraft, it differs from the M60C in that it is not controlled by the pilot—rather, it is mounted in a door and operated by a member of the crew. Like the rest of the M60 family, it is an air-cooled, gas-operated, belt-fed weapon. Unlike other models, however, the M60D normally has spade grips and an aircraft ring-type sight or similar, as well as an improved ammunition feed system. A canvas bag is also affixed to the gun to capture ejected casings and links, preventing them from being sucked into the rotor blades or into an engine intake. The M60D was equipped on the UH-1B Huey (using the M23, XM29, M59, and the Sagami mounts), the CH-47 Chinook (using the M24 and M41 mounts) in both door and ramp locations, the ACH-47A "Guns-A-Go-Go" variant of the Chinook (using the XM32 and XM33 mounts), and on the UH-60 Black Hawk (using the M144 mount). The M60D is also used by the British on Royal Air Force Chinooks. In US service, the M60D has been primarily replaced by the M240H. The M60D is still manufactured by U.S. Ordnance and still used on the SH-60 Seahawk. The M60 is a belt-fed machine gun that fires the 7.62×51mm NATO cartridge (similar to .308 Winchester), which is commonly used in larger rifles. It is generally used as a crew-served weapon and operated by a team of two or three individuals. The team consists of the gunner, the assistant gunner (AG), and the ammunition bearer. The gun's weight and the amount of ammunition it can consume when fired make it difficult for a single soldier to carry and operate. The gunner carries the weapon and, depending on his strength and stamina, anywhere from 200 to 1,000 rounds of ammunition. The assistant carries a spare barrel and extra ammunition, and reloads and spots targets for the gunner. The ammunition bearer carries additional ammunition and the tripod with associated traversing and elevation mechanism, if issued, and fetches more ammunition as needed during firing. The M60 can be accurately fired at short ranges from the shoulder thanks to its design. This was an initial requirement for the design and a hold-over in concept from the M1918 Browning Automatic Rifle. It may also be fired from the integral bipod, M122 tripod, and some other mounts. M60 ammunition comes in a cloth bandolier containing a cardboard box of 100 pre-linked rounds. The M60 uses the M13 ammunition link, a change from the older M1 link system with which it was not compatible. The cloth bandolier is reinforced to allow it to be hung from the current version of the feed tray. Historically, units in Vietnam used B3A cans from C-rations packs locked into the ammunition box attachment system to roll the ammunition belts over for a straighter and smoother feed to the loading port to enhance reliability of feed. The later models changed the ammunition box attachment point and made this adaptation unnecessary. The M60 has been adopted by various military agencies around the world, it also has been updated and modernized throughout the years to meet modern military requirements.
