HY473 (Type 82) Chinese 6x6 Heavy Equipment Transporter

HY473

Heavy Armored Personnel Carrier (APC)
Spotted an error? Sign in to suggest an edit.
HY473 (Type 82) Chinese 6x6 Heavy Equipment Transporter
Other

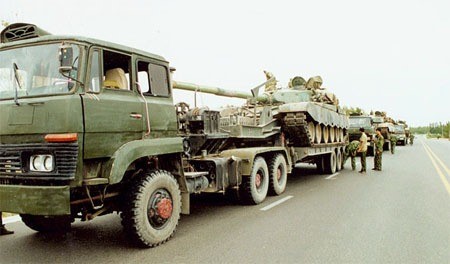

HY473 (Type 82) Chinese 6x6 Vehicle (A)TRADOC ODIN WEG
Thumbnail
Thumbnail
Thumbnail
Basic Information
Name
HY473 (Type 82) Chinese 6x6 Heavy Equipment Transporter
Designation
HY473
Alternate Designation
HY473; Type 82
Equipment Type
Heavy Armored Personnel Carrier (APC)
Manufacturer
Hanyang Special Auto Works
Date of Introduction
1979
Description

The HY473 (Type 82) Chinese 6x6 Heavy Equipment Transporter comprises a Hanyang Special Vehicle Works HY473 6X6 tractor truck and a three-axle HY962 semi-trailer. The HY473 tractor truck has a twin-winch located behind the driving cab and a number of variants have been developed.

Ground Specifications
Crew 6
Mobility Type Wheeled (6x6)
Engine Diesel (355 hp)
Max Speed 64.0 km/h
Variants
HY4160 HET tractor, 4X4.
HY4191 HET tractor, 4X4, 25 ton.
HY473AS HET tractor, 6X6, 50 ton.
HY4301S HET tractor, 6X6, 30 ton.
HY4320AH HET tractor, 6X6, 50 ton.
HY4320S HET tractor, 6X6, 60 ton.
HY4390S HET tractor, 8X8, 60 ton.
System
Alternative Designation HY473; Type 82
Type Heavy Equipment Transporter
Manufacturer Hanyang Special Auto Works
Configuration 6x6
Seating 1 + 5 ea
Maximum Load 50,000 kg
Dimensions
Length (tractor only) 7.345 m
Width 2.580 m
Height (when laden) 2.95 m
Wheel Base 3.500 m + 1.500 m
Track (front/rear) 2.05 m / 1.92 m
Ground Clearance 340 mm
Weight (unladen, without semi-trailer) 12,500 kg
Weight (unladen, with semi-trailer) 32,000 kg
Weight (laden, with semi-trailer) 91,000 kg
Automotive
Engine Name NORINCO KHD F12L413F
Engine Type Diesel
Engine Power 355 hp
Maximum Range INA
Maximum Speed 64 km/h
Amphibious No
Gradient 22%
Side Slope INA
Vertical Step INA
Trench INA
Fording INA
Protection
Armor INA
Applique Armor No
NBC Protection INA
Smoke Equipment No
Image Sources
Note https://fdra.blogspot.com/2018/03/camion-militar-hanyang-hy473-962-china.html; https://www.chinatrailers.com/military-tank-transporter/; https://www.militaryimages.net/media/df-21a-css-5.14578/
Details
Country of Origin China
Category Transportation
Land > Combat Support Vehicles > Transportation
Filter Label
H
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.35 m
Width
2.58 m
Height
2.95 m
Weight
91000 kg
Operators (1)
China
