LG1 French 105mm Towed Howitzer

LG1

Towed Gun
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
LG1 French 105mm Towed Howitzer
Designation
LG1
Alternate Designation
LG1
Equipment Type
Towed Gun
Manufacturer
Date of Introduction
1990
Description

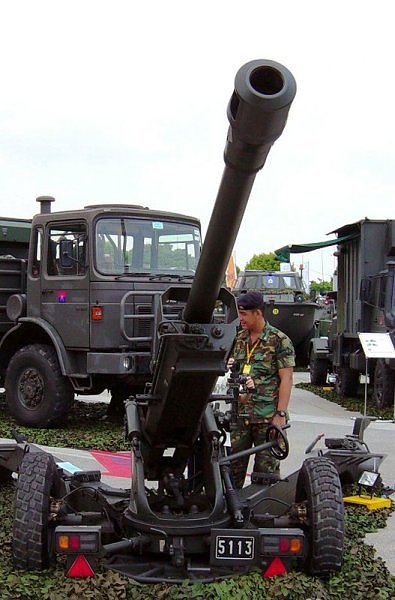

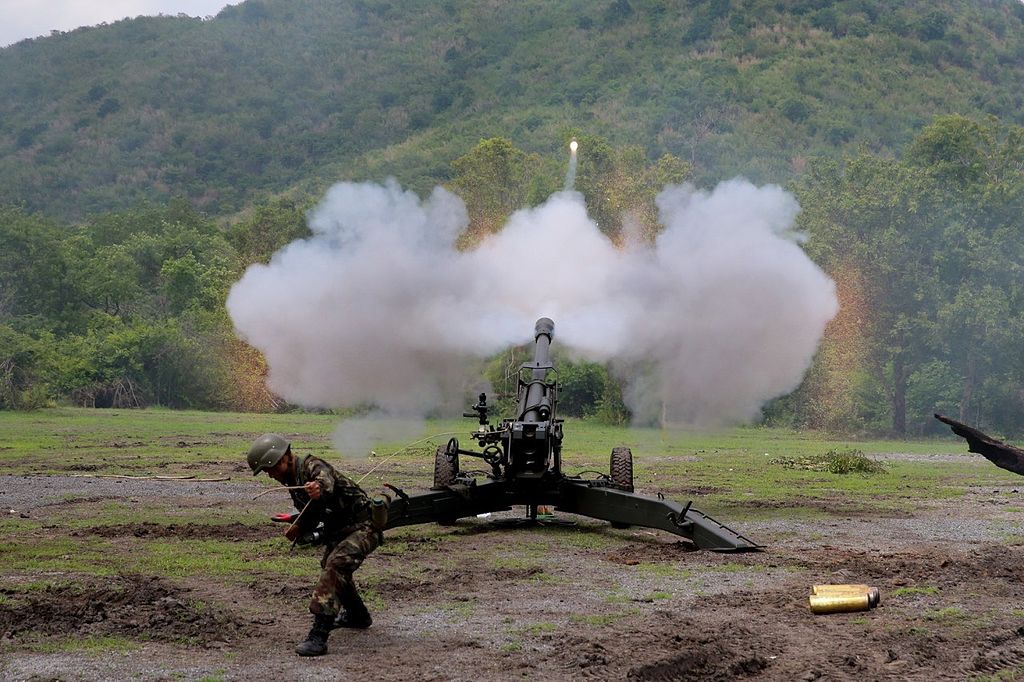

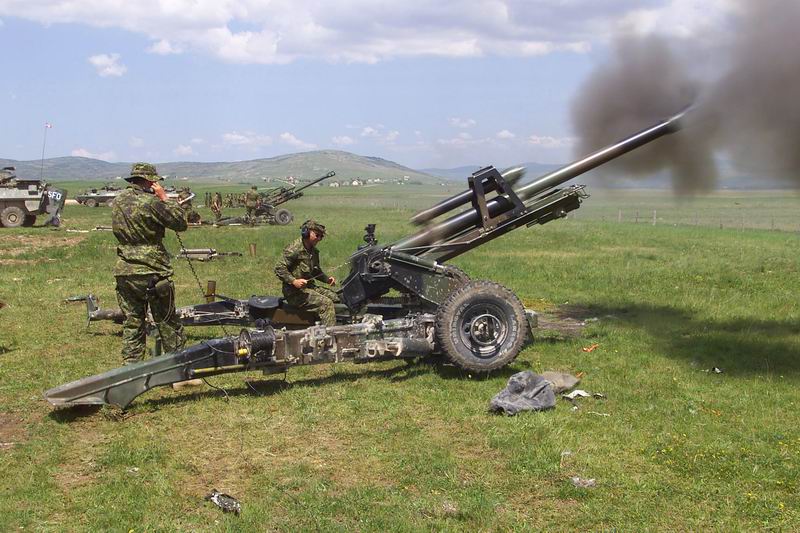

The LG1 is a modern 105 mm towed howitzer designed and produced by GIAT Industries (now Nexter group) of France. The LG1 howitzer is a 105 mm towed artillery piece that features both low weight and a high level of accuracy over long distances. Its lightweight construction gives the barrel a relatively short lifespan. The equivalent full charge (EFC) count is suggested to be approximately 7,500; however, during fire and practice, has yielded only around 1,500 EFCs. The gun was specifically designed for use by rapid deployment forces with attributes such as ruggedness, ease of operation, and reduced weight. It can fire all NATO standard 105 mm ammunition up to a range of 18.5 and 19.5 kilometers (11.5 and 12.1 mi) using HE-ER G2 and US M913 rounds.

Ground Specifications
Crew 5
Variants
LG1 Mk II This variant is an LG1 Mk I with a autofrettaged barrel (a method of pre-stressing the barrel hydraulically during production to instill greater strength); this allows the use of more powerful, longer range ammunition. The layout of the recoil system is improved to simplify maintenance and the shield is removed to reduce weight.
LG1 Mk III This is an upgrade proposed by Nexter that includes an inertial three-dimensional aiming and positioning system and muzzle-velocity radar, which could be connected to the EADS STAREM command, control, communications, and intelligence (C3I) system.
LG1 Mk IV/V These are proposed upgrades to the LG1. The Mk IV would add automatic aiming and require a reduced crew of three. The Mk V would add automatic loading.
M101 upgrade Giat Industries (now Nexter) developed an upgrade kit for the U.S.-built M101 105-mm howitzer that involves replacing the original 23-caliber barrel with the 30-caliber barrel used by the LG1. The kit has been ordered by Thailand and the Philippines.
System
Alternative Designation LG1
Type Towed Howitzer
Caliber 105 mm
Crew 5 ea
Trail Type Split
Bore Type 05-mm/30-cal, rifled, fitted w/double-baffle muzzle brake, semi-automatic breech, hydropneumatics recoil system
Rate of Fire 12 rounds/min
Elevation -3 deg to 70 deg
Traverse 36 deg (360 deg on platform)
Emplacement Time Less than 10 minutes
Displacement Time Less than 10 minutes
Dimensions
Length, Traveling 5.20 m
Length, Firing 6.65 m
Barrel Length 3.15 m
Width 1.85 m
Height, Traveling 1.62 m
Ground Clearance 0.32 m
Weight 1,485 kg
Ammunition
Ammunition (Option 1)
Name OE 105
Type LP
Muzzle Velocity 660 mps
Maximum Range 17,500 m
Projectile Weight 13.0 kg
Ammunition (Option 2)
Name OE CCR 105
Type HE
Muzzle Velocity 675 mps
Maximum Range 15,000 m
Projectile Weight 10.9 kg
Ammunition (Option 3)
Name OCC 105
Type HEAT
Muzzle Velocity 700 mps
Maximum Range 900 m
Projectile Weight 10.9 kg
Details
Country of Origin France
Category Towed Gun/Howitzer Artillery Systems
Land > Artillery > Towed Gun/Howitzer Artillery Systems
Filter Label
L
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
Width
1.85 m
Height
1.62 m
Weight
1485 kg
Operators (7)
Belgium
Canada
Colombia
Indonesia
Malaysia
Singapore
Thailand
