UBot-SCU B10 Chinese Unmanned Ground Vehicle (UGV)
UBot-SCU B10
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
UBot-SCU B10 Chinese Unmanned Ground Vehicle (UGV)
Designation
UBot-SCU B10
Alternate Designation
UBot-SCU B10
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
HRSTEK Co Ltd, China
Date of Introduction
2018
Description
The UBot-SCU B10 Chinese Unmanned Ground Vehicle (UGV) has been developed as a robotic scout inspection robot. The platform is ideally suited for under-vehicle inspection (UVI) duties. The robot can also be used to check large counters, underneath shelves and containers as well as the bottom of desks and other narrow and low spaces.
Ground Specifications
Engine
Electric
System
Alternative Designation
UBot-SCU B10
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
HRSTEK Co Ltd, China
Configuration

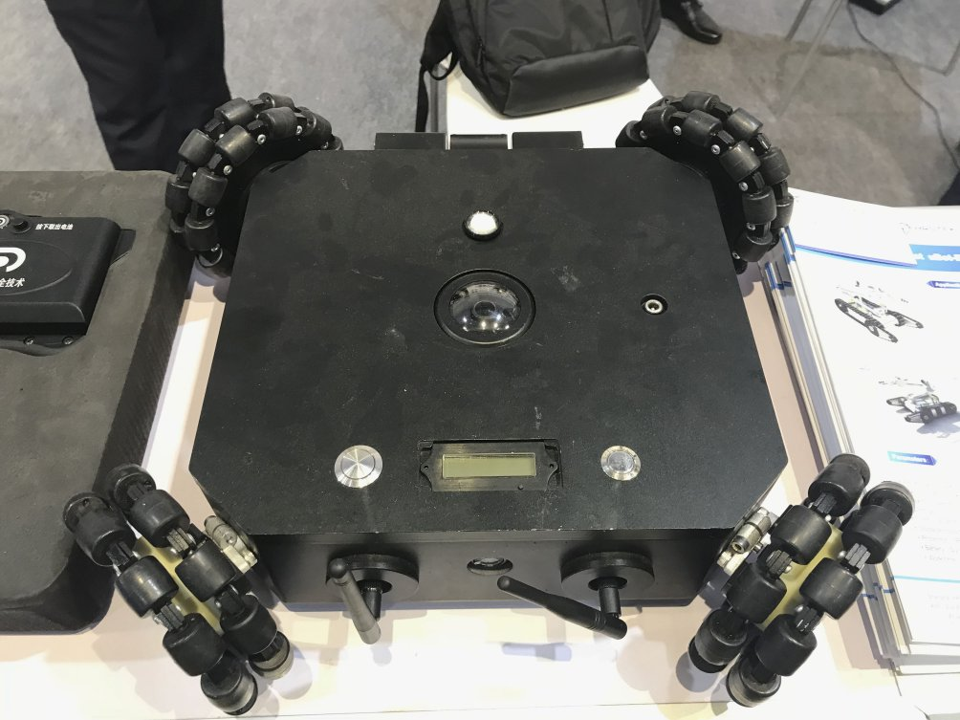

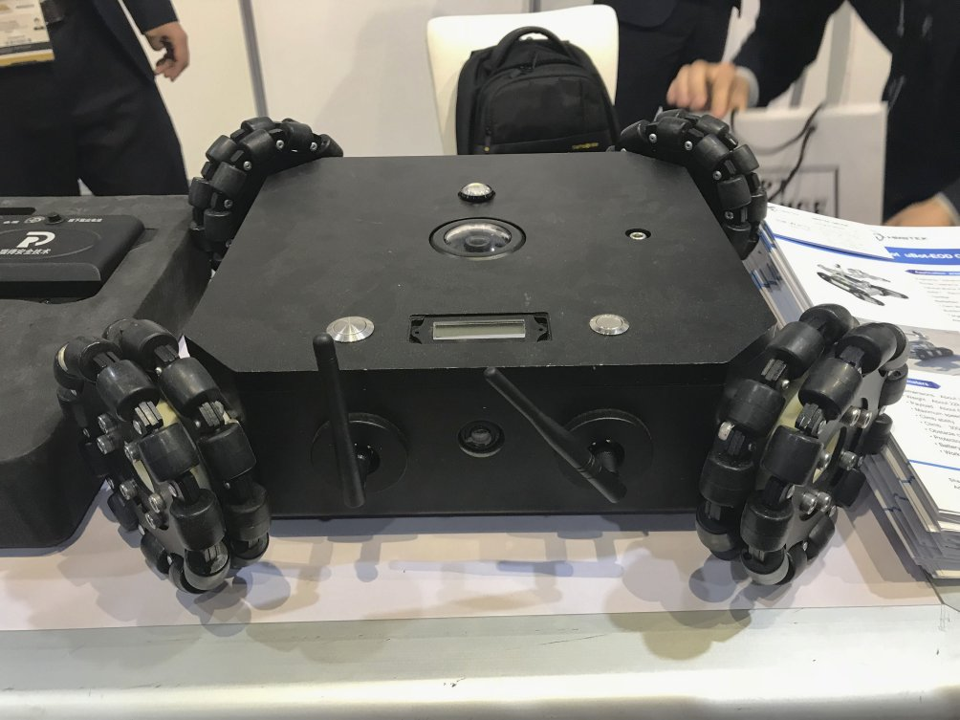

The robot is a flat, square shaped structure with wheels facing outwards at each corner.
Mission
The UBot-SCU B10 Chinese Unmanned Ground Vehicle (UGV) has been developed as a robotic scout inspection robot. The platform is ideally suited for under-vehicle inspection (UVI) duties. The robot can also be used to check large counters, underneath shelves and containers as well as the bottom of desks and other narrow and low spaces.
Crew
Unmanned
Control
INA
Cameras
A three-channel video system is fitted as well as a HD wide-angle (CCD HD, night vision) camera .
Environmental
IP65
Dimensions
Length
0.38 m
Width
0.36 m
Height
0.14 m
Weight
7 kg
Automotive
Engine Name
INA
Engine Type
Electric
Engine Power
INA
Range
INA
Maximum Land Speed
4 km/h
Endurance
5 hours
Protection
Armor
INA
Applique Armor
INA
Details
Country of Origin
China
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
U
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.38 m
Width
0.36 m
Height
0.14 m
Weight
7 kg
Operators (1)
China
