Akinci

Akinci

Reconnaissance & Strike Drones
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Akinci
Designation
Akinci
Alternate Designation
Akinci B, Akinci C
Equipment Type
Reconnaissance & Strike Drones
Manufacturer
Baykar
Date of Introduction
2021
Description

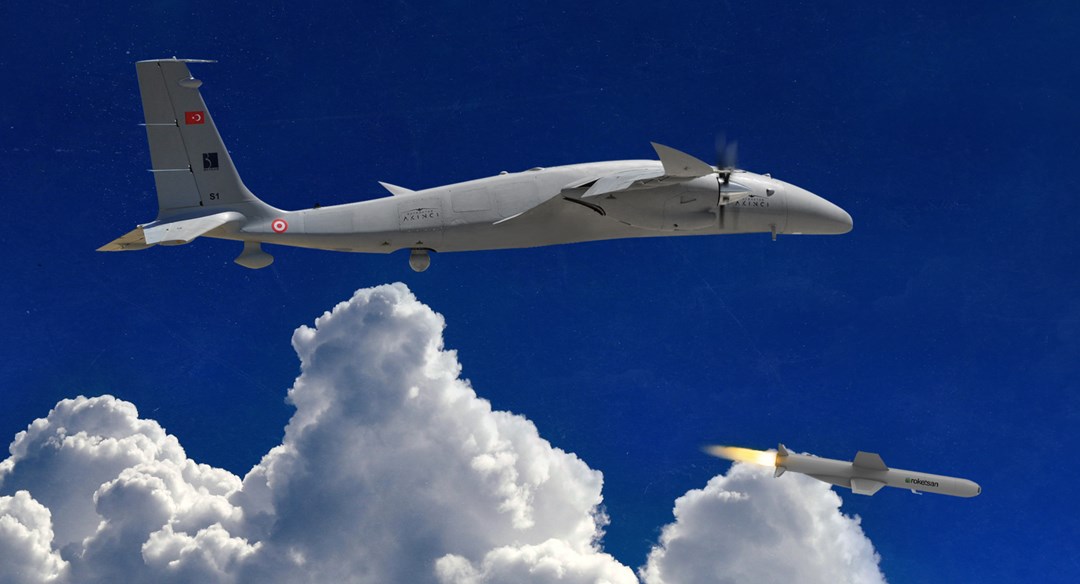

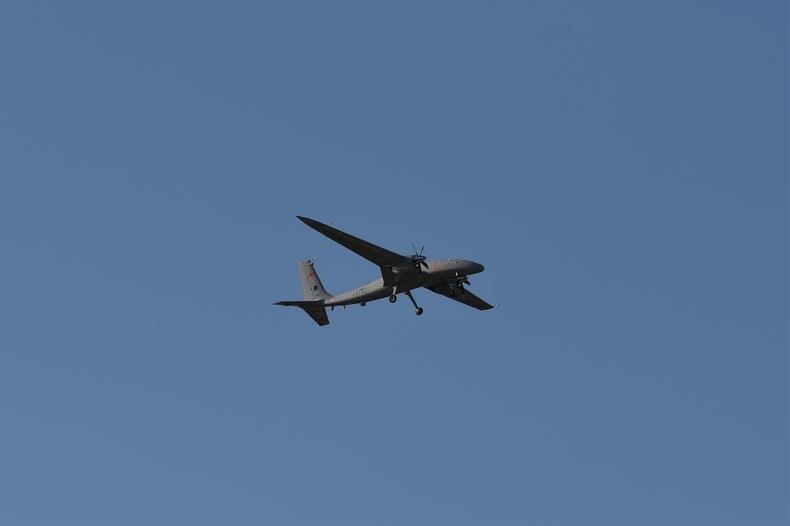

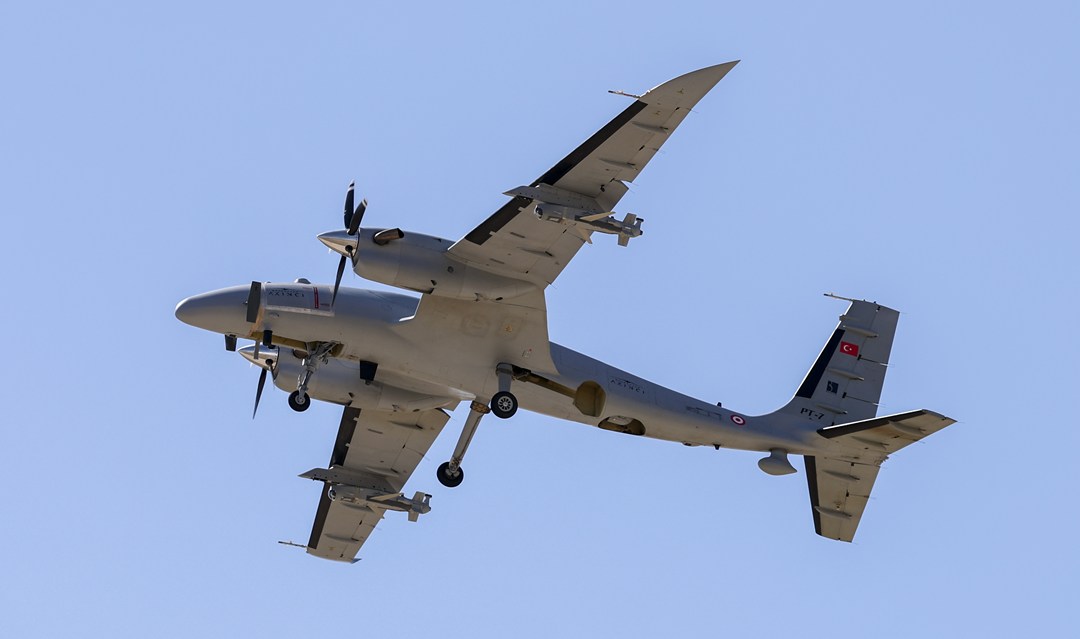

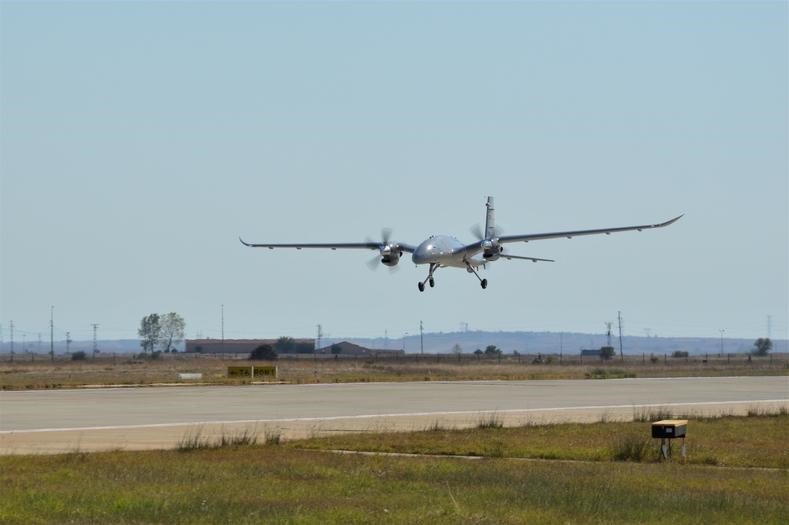

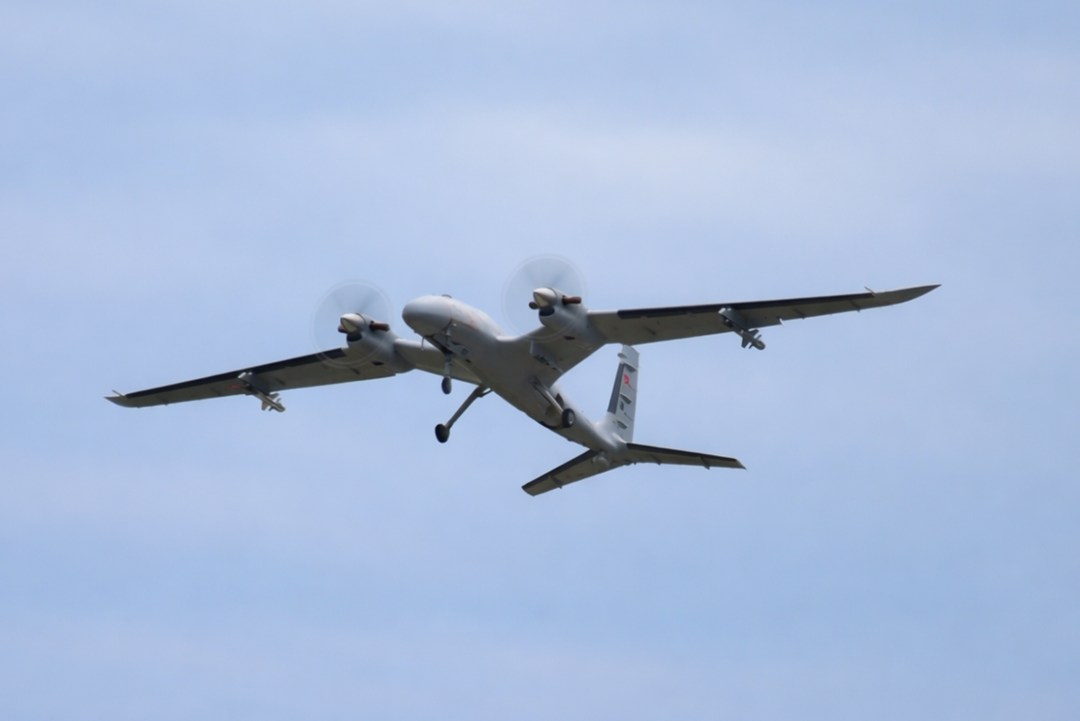

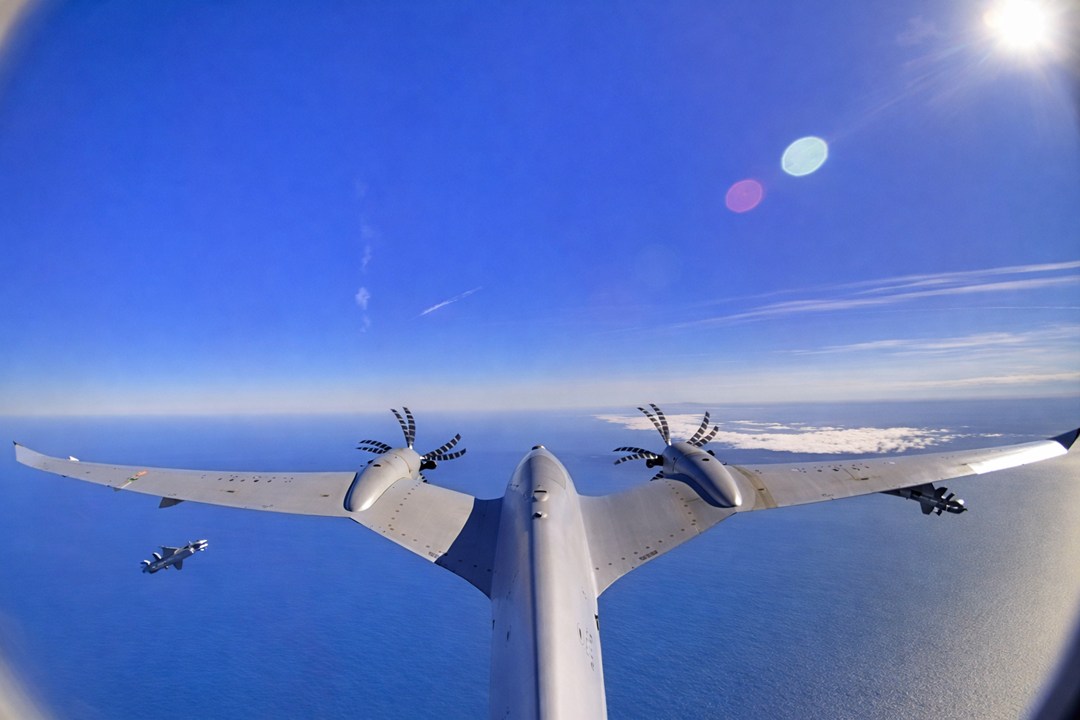

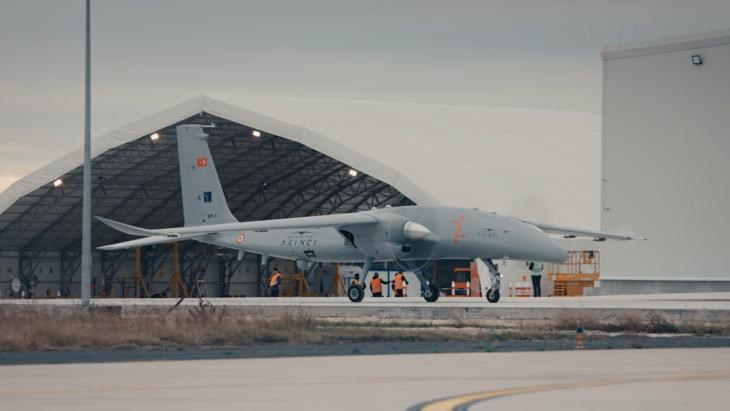

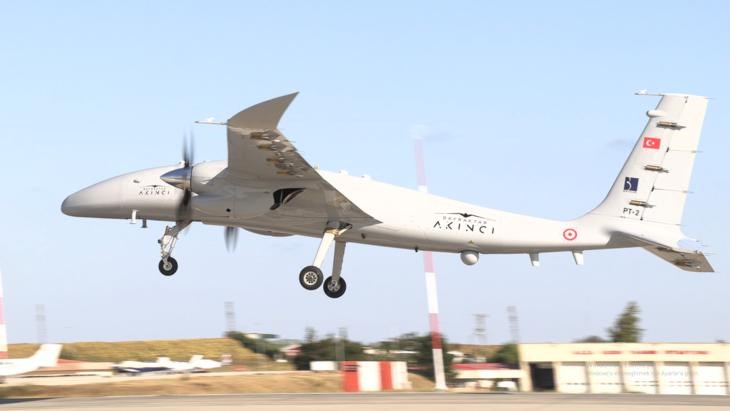

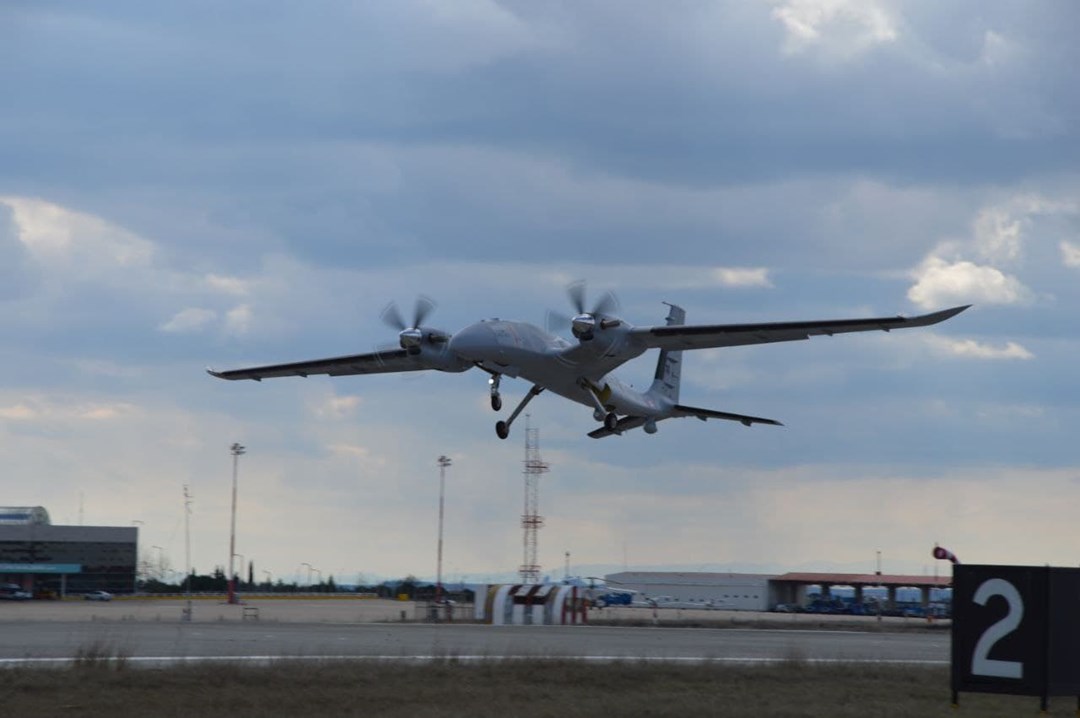

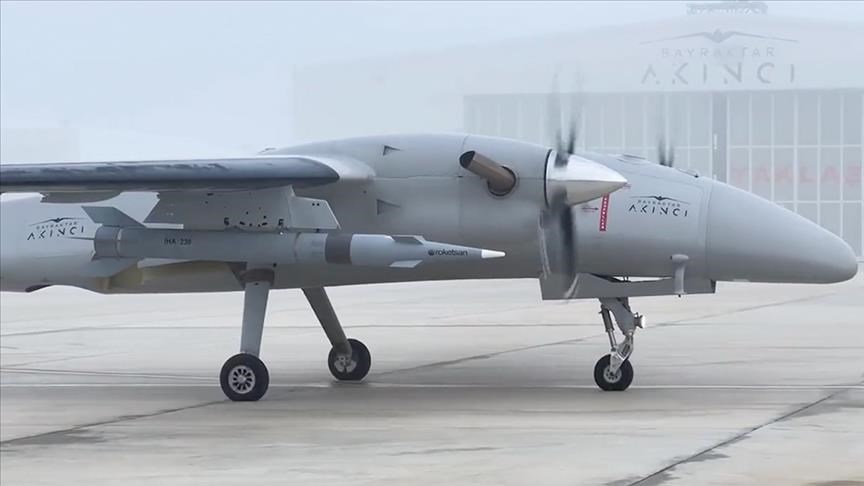

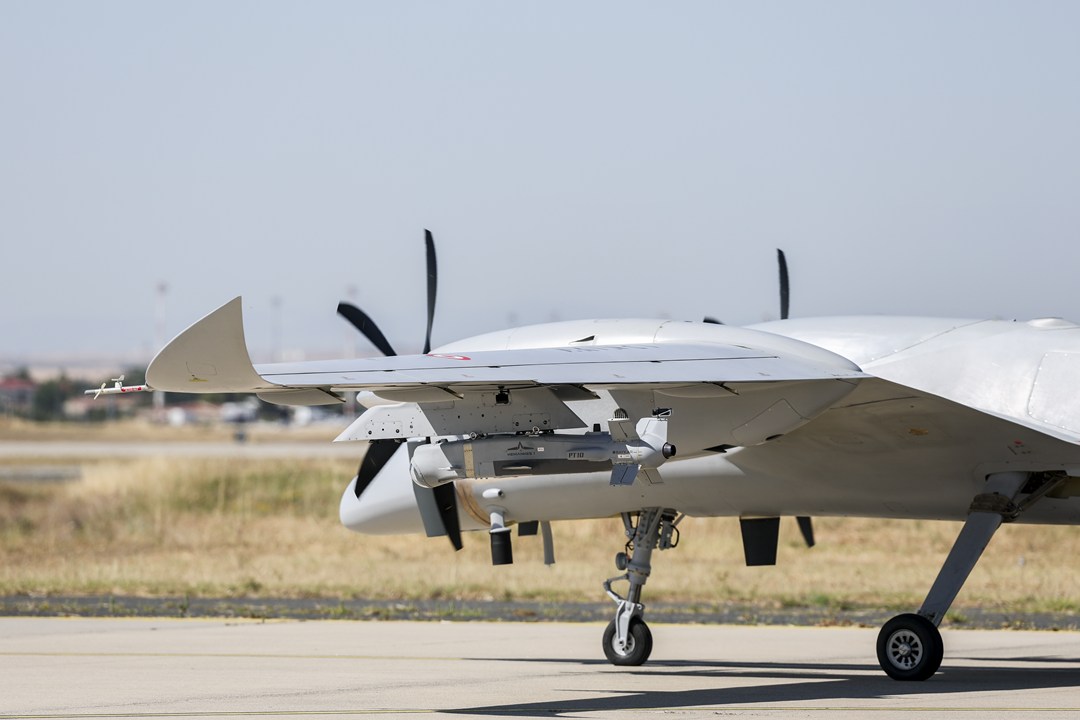

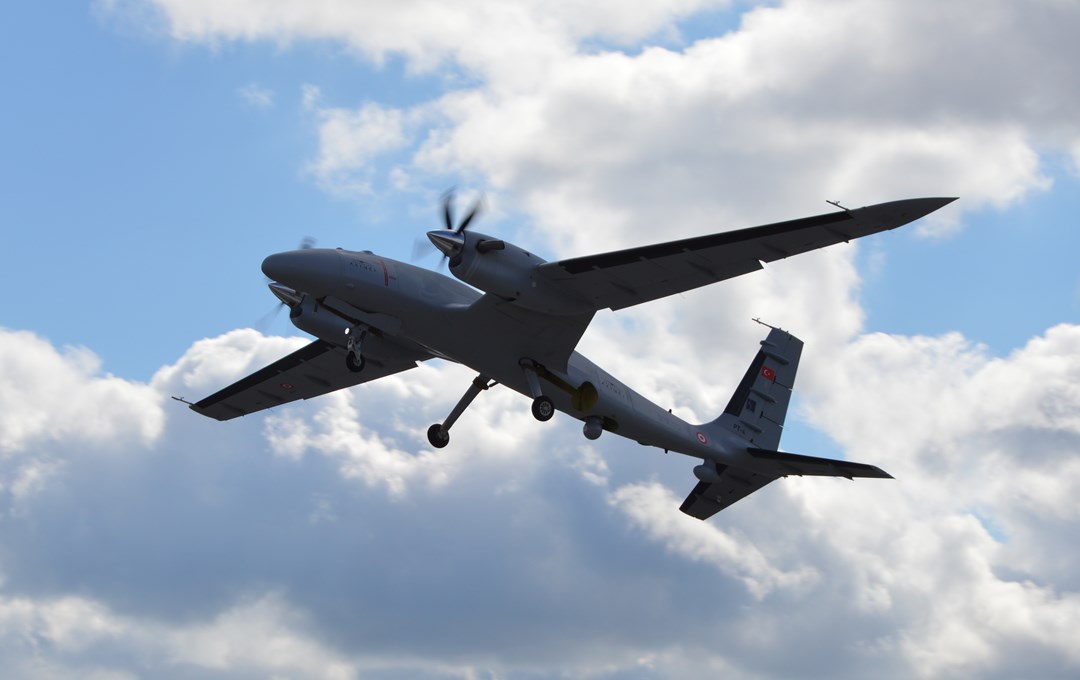

The Akinci is a multi-purpose unmanned aerial vehicle (UAV) developed by Baykar to serve as a reconnaissance and strike asset for the Turkish Armed Forces. The Akinci features two propellers each powered by a 550-hp engine and can be armed with a wide array of bombs and missiles. Besides, the unmanned aircraft can perform electronic intelligence (ELINT) and communications intelligence (COMINT) missions. The sensor package includes a nose-mounted multi-mode AESA radar and an electro-optical (EO) payload mounted under the belly as well as beyond-the-line-of-sight satellite communications (SATCOM). The 4.5-ton airplane can stay airborne for up to 24 hours and has six external hard points to carry bombs and missiles such as SOM-J also developed for the Turkish Armed Forces. The Akinci UAV is expected to achieve initial operational capability with the Turkish Security Forces in late 2020 or early 2021. The first Akinci prototype took to the skies on December 6, 2019. The aircraft is expected to fire the Gokdogan and Bozdogan air-to-air missiles as well as other ammunition. The Akinci also features six Artificial Intelligence (AI) computers responsible for the flight control, replacing the GPS for navigation functions and target information gathering. The final max takeoff weight of the Akinci is 5,500 kilogram and can be powered by two 450-hp or 750-hp engines. It can transport 900 kilogram externally and 450 kilogram internally. The Akinci B model is powered by two 750-hp engines (1,500-hp in total) and made its maiden flight on March 2, 2022. The Akinci C is powered by two 950-hp engines (1,900-hp in total) and is expected to make its maiden flight in 2023.

Air & Air Defense Specifications
Service Ceiling 12192 m
Wingspan 20.00 m
Overview (Deagel)
Group Reconnaissance & Strike Drones
Status Active
Also Known As Akinci B, Akinci C
Origin Turkiye
Contractor Baykar
Initial Operational Capability (IOC) 2021
First Flight December 6, 2019
Total Production ?
Specifications (Deagel)
Crew 0
External Stations 6
Number of Engines 2
Propeller Blades 5
Dimensions — Height 4.1 meter
Dimensions — Length 12.3 meter
Dimensions — Wingspan 20 meter
Mass — Max Takeoff Weight 5,500 kilogram
Mass — Payload 1,350 kilogram
Performance — Ceiling 40,000 foot
Power — Max Power at TakeOff 900 hp
Time — Flight Endurance 24 hour
Gear (Deagel)
Item 1 Air-to-Air Missiles: Bozdogan (6)
Item 2 Air-to-Air Missiles: Gokdogan (6)
Item 3 Anti-Tank Glider Weapons: Bozok
Item 4 Anti-Tank Guided Missiles: LUMTAS
Item 5 Anti-Tank Guided Missiles: MAM-L
Item 6 Bombs: GBU-30 JDAM
Item 7 Bombs: GBU-32 JDAM
Item 8 Bombs: GBU-38 JDAM
Item 9 Loitering Weapons: Kemankes 1 (2)
Item 10 Rockets: CIRIT
Item 11 Rockets: MAM-C
Item 12 Rockets: TRG-230-IHA (2)
Item 13 Standoff Weapons: CAKIR (2)
Item 14 Standoff Weapons: SOM-A
Item 15 Standoff Weapons: SOM-J (4)
Details
Country of Origin Turkey
Category UAVs
Air > UAVs
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
12.3 m
Width
20 m
Height
4.1 m
Weight
5500 kg
Operators (4)
Turkey
Azerbaijan
Ethiopia
Saudi Arabia
