ARMA

ARMA

Wheeled Armored Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
ARMA
Designation
ARMA
Alternate Designation
Equipment Type
Wheeled Armored Vehicles
Manufacturer
Date of Introduction
Description

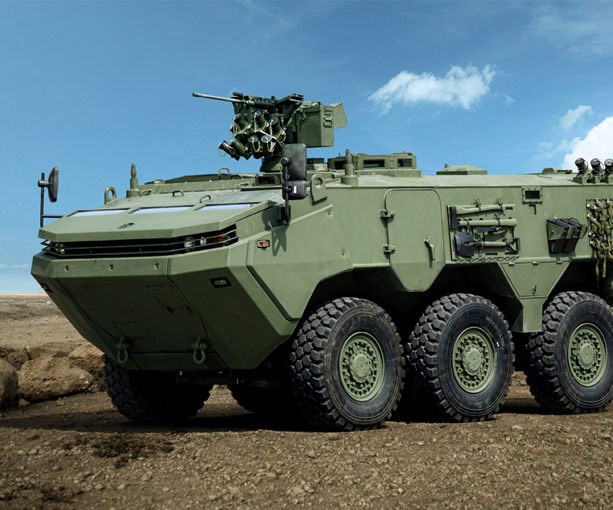

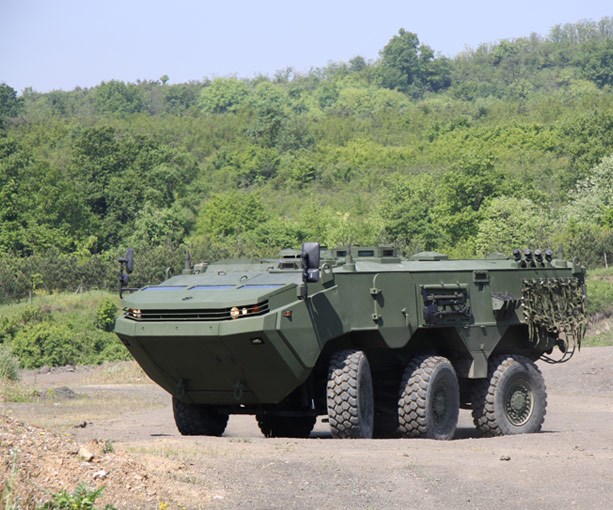

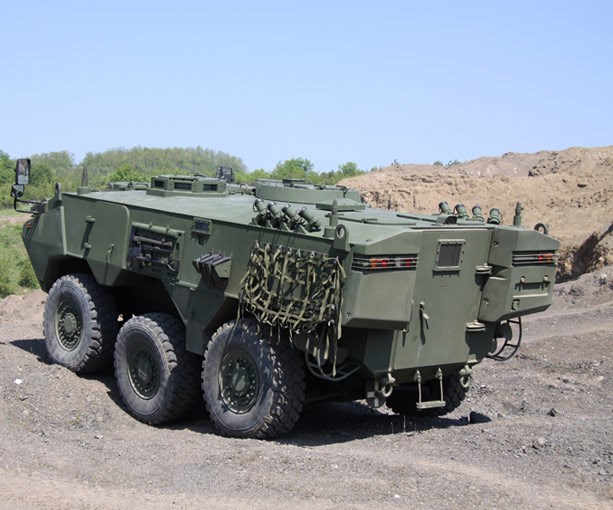

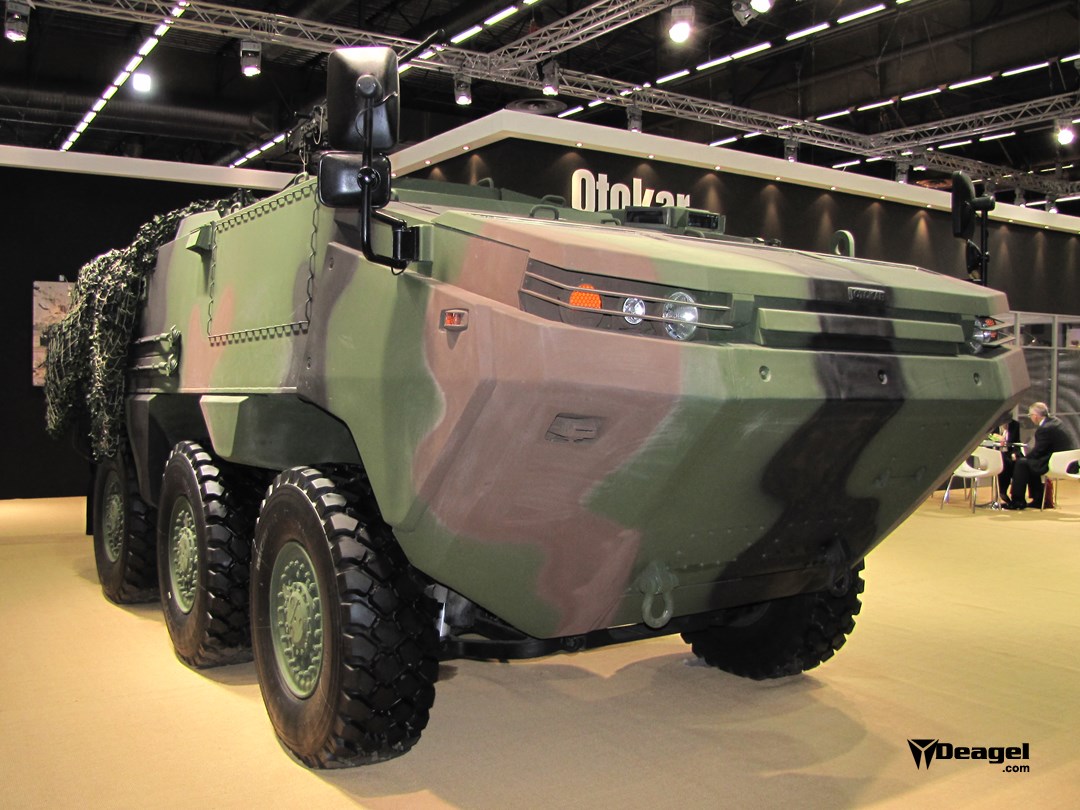

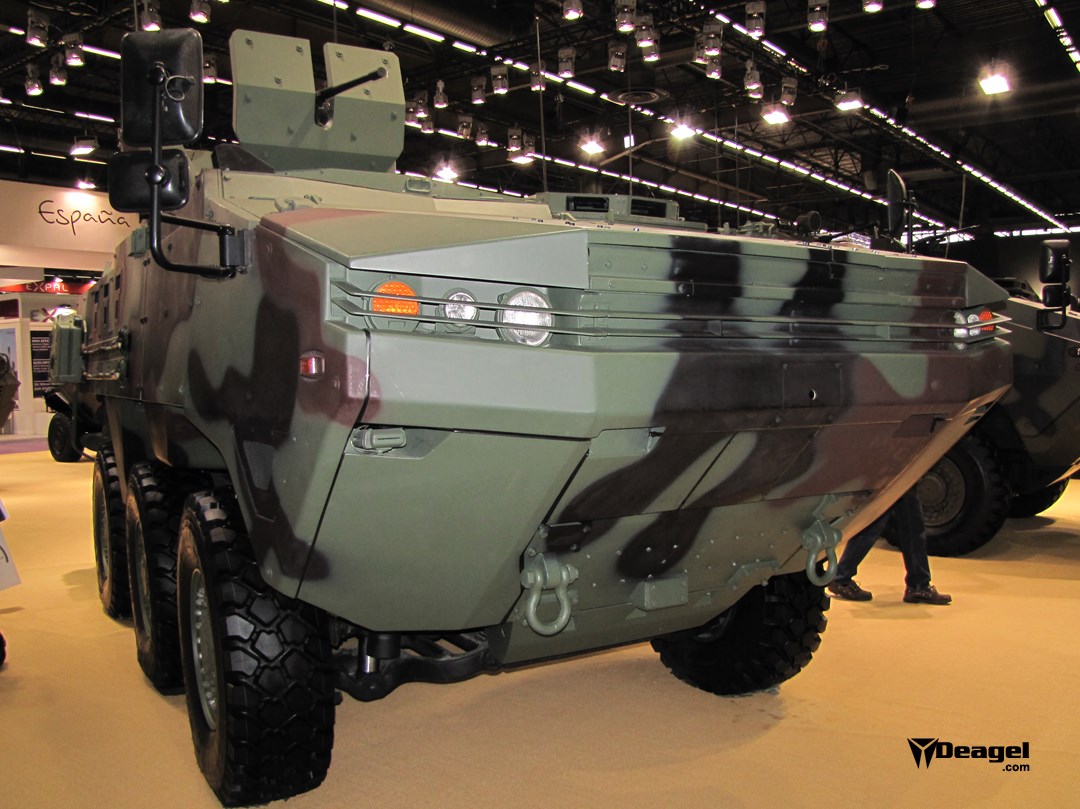

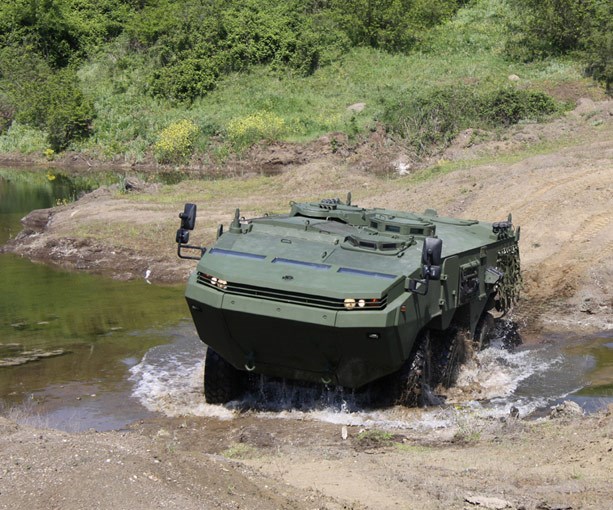

The ARMA is a family of modular wheeled combat vehicles featuring high mobility and outstanding ballistic and mine protection thanks to its high hardness monocoque steel hull and anti-mine seats. Its design allows integration of a variety of mission-specific equipment or armament. Besides, the hull is protected against Nuclear, Bacteriological and Chemical (NBC) threats. Tire run flat capability and Central inflation system are supplied as standard equipment. The engine is located at the right front of the vehicle, allowing a high internal volume with the personnel keeping eye contact continuously among each other. In amphibious mode is powered by two hydraulically driven propellers. Otokar started the development of the ARMA wheeled combat vehicle family in 2007 and displayed the ARMA 6x6 vehicle at the Eurosatory exhibition in June 2010.

Overview (Deagel)
Group Wheeled Armored Vehicles
Status Active
Origin Turkiye
Contractor Otokar
Initial Operational Capability (IOC) 2010
Total Production 203
Specifications (Deagel)
Crew 2
Troops 8
Wheel Drive 6
Wheels 6
Degree — Approach Angle 45 °
Degree — Departure Angle 45 °
Dimensions — Height 2.2 meter
Dimensions — Length 6.4 meter
Dimensions — Width 2.7 meter
Mass — Combat Weight 18,500 kilogram
Mass — Payload 4,500 kilogram
Percentage — Gradient 60 %
Percentage — Side Slope 30 %
Performance — Fording Depth 1.2 meter
Performance — Step Climbing Ability 0.60 meter
Performance — Turning Radius 7.8 meter
Power — Power 450 hp
Speed — Top Speed 105 kph
Variants
Variant 1 ARMA 6x6
Variant 2 ARMA 8x8
Details
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
18500 kg
