A119 Koala

A119 Koala

Civil Helicopters
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
A119 Koala
Designation
A119 Koala
Alternate Designation
AW119 Koala
Equipment Type
Civil Helicopters
Manufacturer
Leonardo Helicopters
Date of Introduction
2000
Description

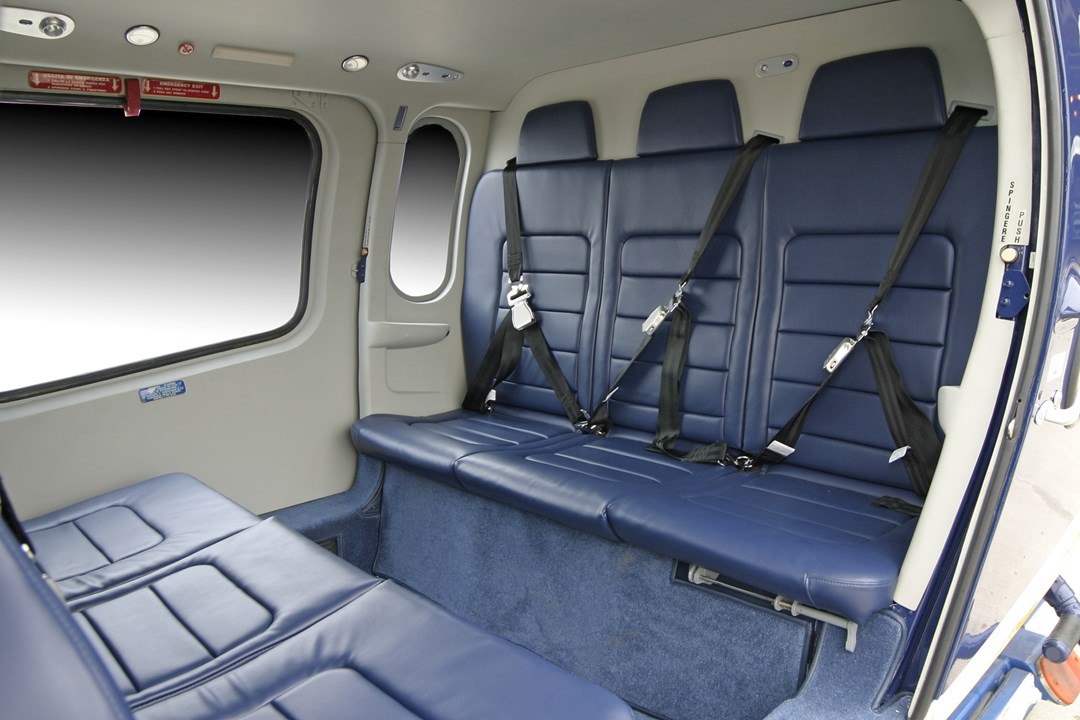

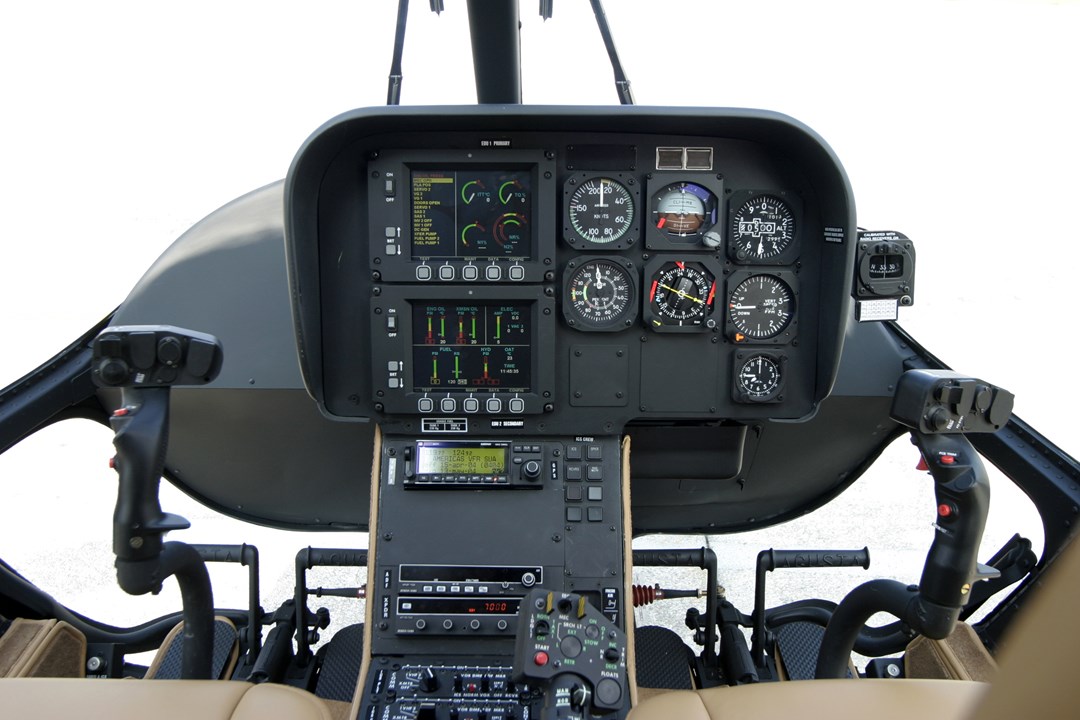

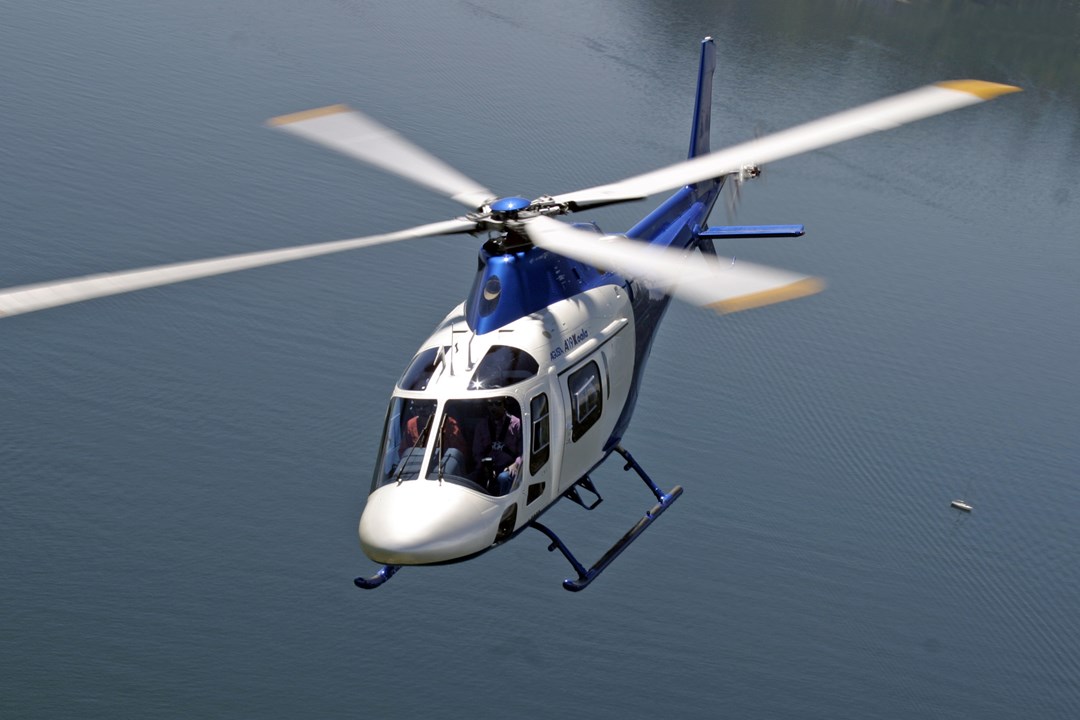

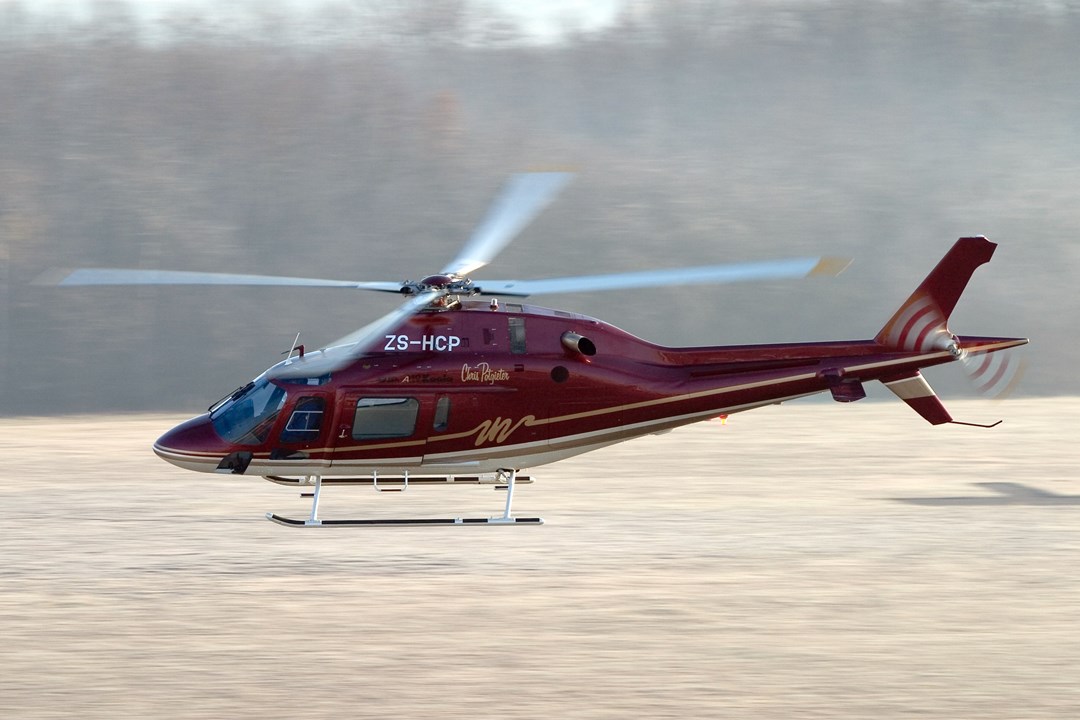

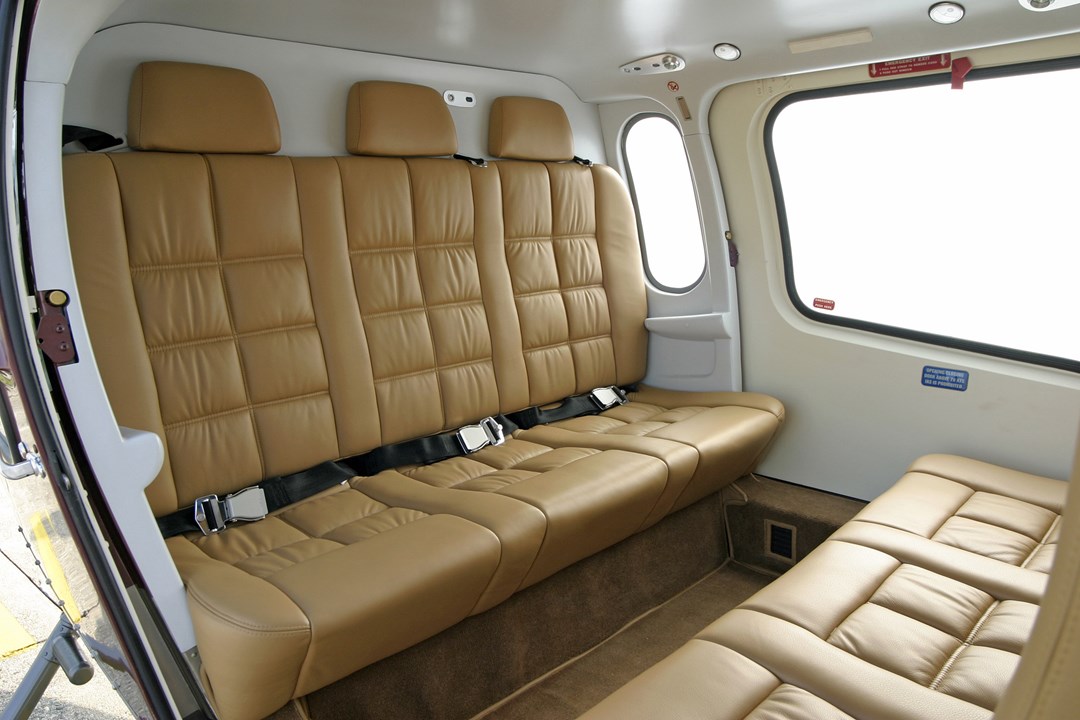

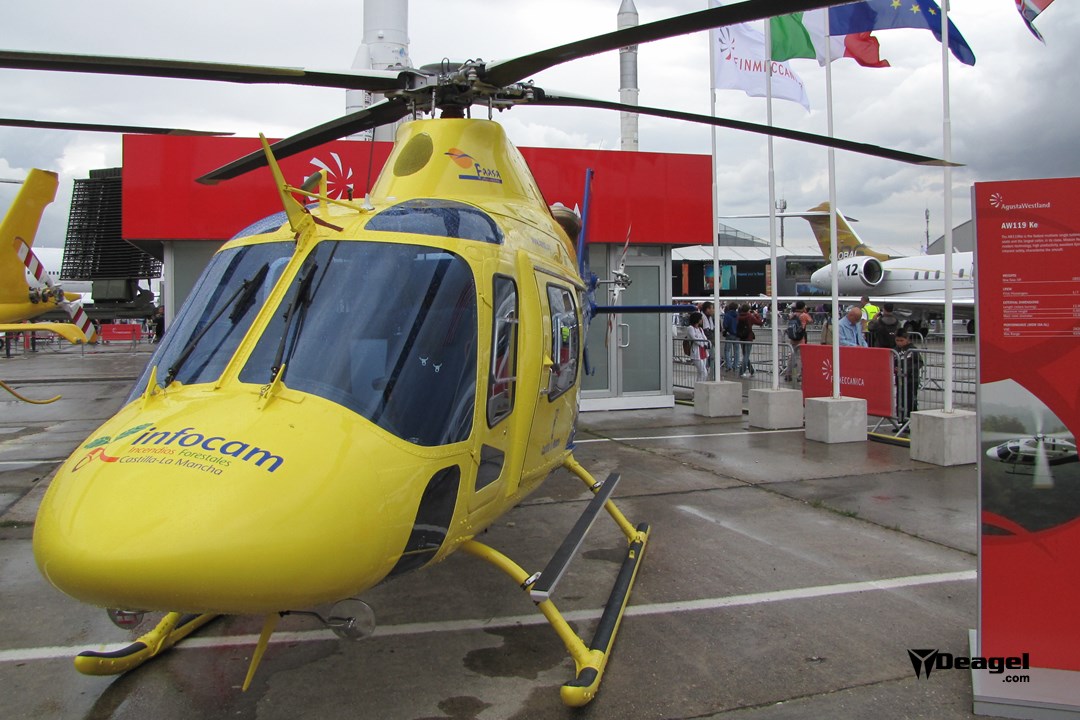

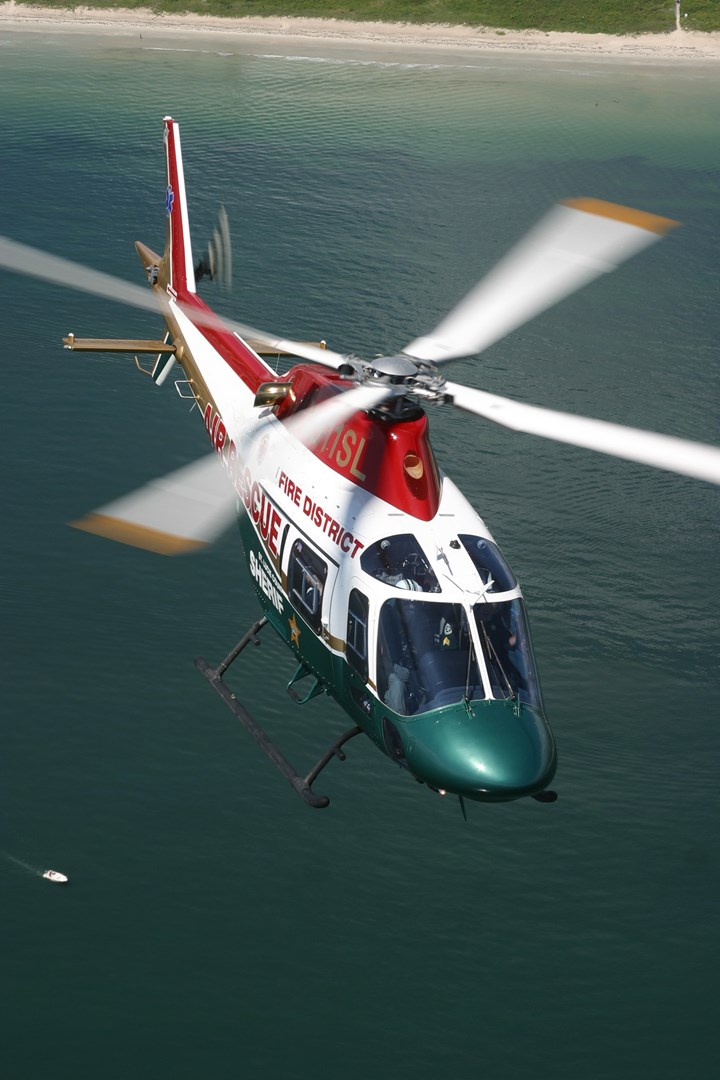

AgustaWestland's A119 Koala is a lightweight, single Pratt & Whitney PT6-37A engine, low cost, high performance helicopter intended for law enforcement, Emergency Medical Service (EMS), fire fighting, offshore operations and transport applications. It can accommodate up to eight persons including one pilot and up to seven passengers. It is fitted with modern avionics, liquid crystal displays and many improvements to reduce pilot's workload. The spacious cabin is complemented by a large baggage bay. As of 2005, the helicopter is in service in seven countries serving commercial operators and public agencies such as Police Departments. The A119 is also available for military customers but no sales of such a militarized models have been reported to date. The A109 Light Utility Helicopter (LUH) configuration is the same that AgustaWestland is offering for the militarized variant of the A119 helicopter. The AgustaWestland A119 Koala entered revenue service in 2000 with Australia's LinFox carrier. Since then, the A119 has been ordered by passenger transport-oriented operators and police departments to conduct law enforcement missions. Its flexible and multi-mission capabilities allow the aircraft to be fitted with FLIR, cargo hook, medical litter, rescue hoist and gun pods. On 3 August 2006, Mexican carrier Aerolineas Ejecutivas signed a five-year distribution agreement with AgustaWestland including two A109 Power and one A119 Koala, one Grand and one AW139 plus options for 37 helicopters.

Air & Air Defense Specifications
Crew 1
Max Speed 267.1 km/h
Range 991.0 km
Service Ceiling 6096 m
Overview (Deagel)
Group Civil Helicopters
Status Active
Also Known As AW119 Koala
Origin Italy
Contractor Leonardo Helicopters
Initial Operational Capability (IOC) 2000
Total Production 112
Specifications (Deagel)
Crew 1
Main Rotor Blades 4
Number of Engines 1
Passengers 7
Dimensions — Height 3.8 meter
Dimensions — Length 11.2 meter
Dimensions — Main Rotor Diameter 10.8 meter
Dimensions — Width 2.1 meter
Mass — Empty Weight 1,430 kilogram
Mass — Max Takeoff Weight 3,150 kilogram
Performance — Ceiling 6,096 meter
Performance — Max Range 991 kilometer
Power — Max Power at TakeOff 872 shp
Speed — Top Speed at High Altitude 74.2 mps
Time — Flight Endurance 5.8 hour
Gear (Deagel)
Item 1 Turboshaft Engines: PT6B (1)
Variants
Variant 1 A119 Koala
Variant 2 AW119 Ke
Variant 3 AW119 Kx

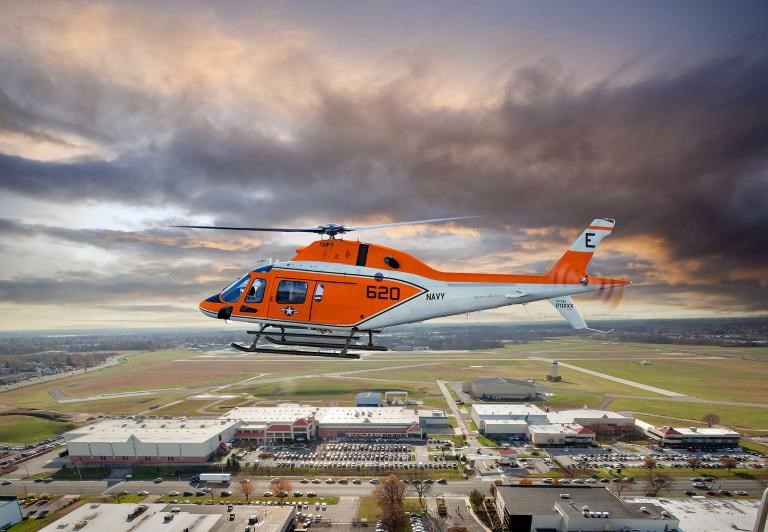

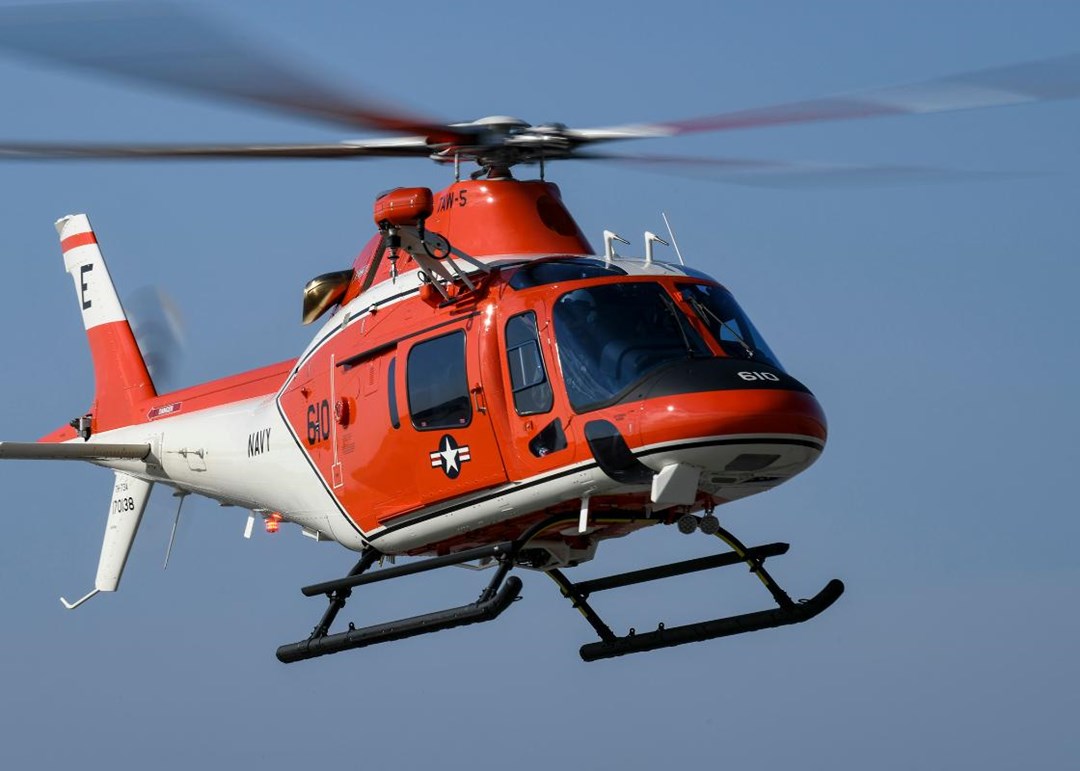

Variant 4 TH-73A Trasher
Details
Country of Origin Italy
Category Rotary Wing Aircraft
Air > Rotary Wing Aircraft
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
11.2 m
Width
2.1 m
Height
3.8 m
Weight
3150 kg
Operators (13)
United States
United Kingdom
Brazil
South Africa
Australia
Austria
Canada
Libya
Malaysia
Mexico
New Zealand
Uganda
Venezuela
