Dragon

Dragon

Anti-Tank Guided Missiles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Dragon
Designation
Dragon
Alternate Designation
Dragon II, FGM-77 Dragon, M-47, SuperDragon
Equipment Type
Anti-Tank Guided Missiles
Manufacturer
Boeing
Date of Introduction
1970
Description

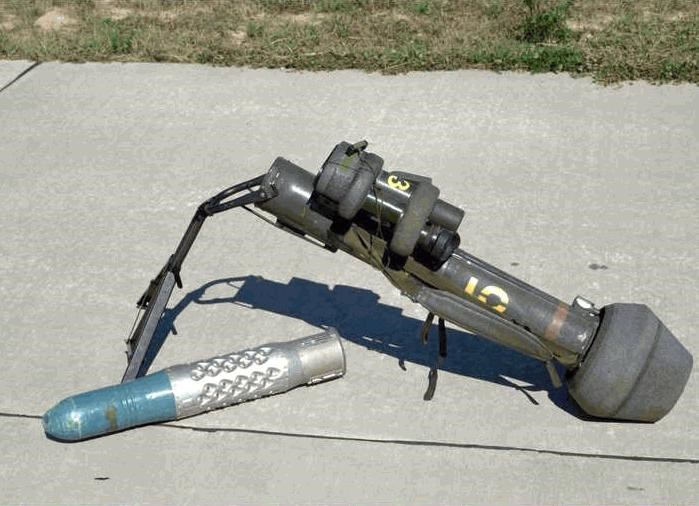

Dragon is a lightweight, man-portable anti-tank weapon system intended for use by infantry units. The weapon system can be operated by an individual and comprises Dragon missile, launch and sight units. Its wire-guided missile is capable of defeating armored vehicles and fortifications at up to 1,000 meters. The missile warhead can pierce 500mm in armor. Originally it was developed to meet the requirements of the US Army achieving IOC in 1970. Thereafter Dragon anti-tank weapon system has been sold to at least ten allied nations all over the world. SuperDragon and Dragon II are two further versions of this weapon system introduced to bridge performance deficiencies detected in the initial Dragon. The improved models extended Dragon missile range out to 1,500 meters. However, the US Army has developed the far more capable Javelin anti-tank weapon system as a replacement for Dragon. Javelin features longer range, fire-and-forget capability and higher kill probability than Dragon.

Ground Specifications
Max Speed 720.0 km/h
Range 1.5 km
Overview (Deagel)
Group Anti-Tank Guided Missiles
Status Active
Also Known As Dragon II, FGM-77 Dragon, M-47, SuperDragon
Origin United States of America
Contractor Boeing
Initial Operational Capability (IOC) 1970
Total Production 50,000
Specifications (Deagel)
Dimensions — Diameter 140 millimeter
Dimensions — Length 852 millimeter
Mass — Warhead 5.4 kilogram
Mass — Weight 10 kilogram
Performance — Max Range 1,500 meter
Performance — Min Range 75 meter
Performance — Piercing in Armor 500 millimeter
Speed — Top Speed 200 mps
Details
Country of Origin United States
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
852 m
Width
Height
Weight
10 kg
Operators (3)
United States
Iran
Spain
