Naze'at 10-H Iranian Close-Range Ballistic Missile

Naze'at 10-H , Naze'at 10

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Naze'at 10-H Iranian Close-Range Ballistic Missile
Designation
Naze'at 10-H , Naze'at 10
Alternate Designation
Naze'at 10-H , Naze'at 10
Equipment Type
Manufacturer
Date of Introduction
1982
Description

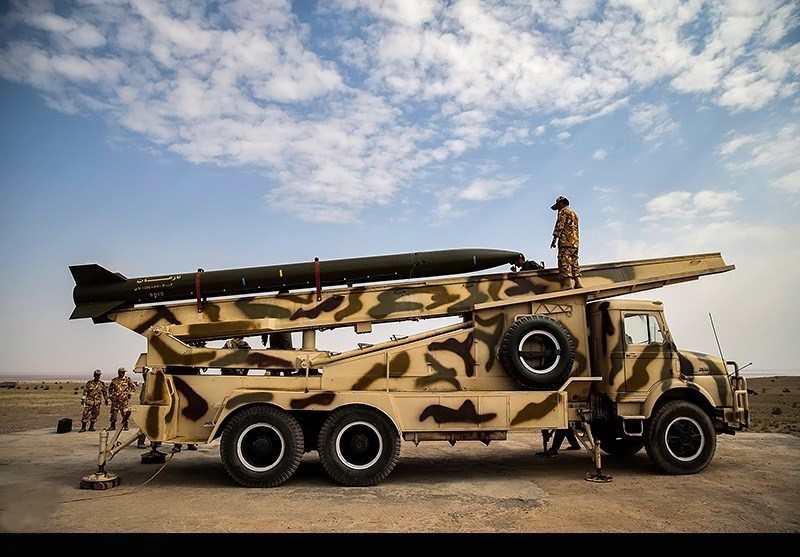

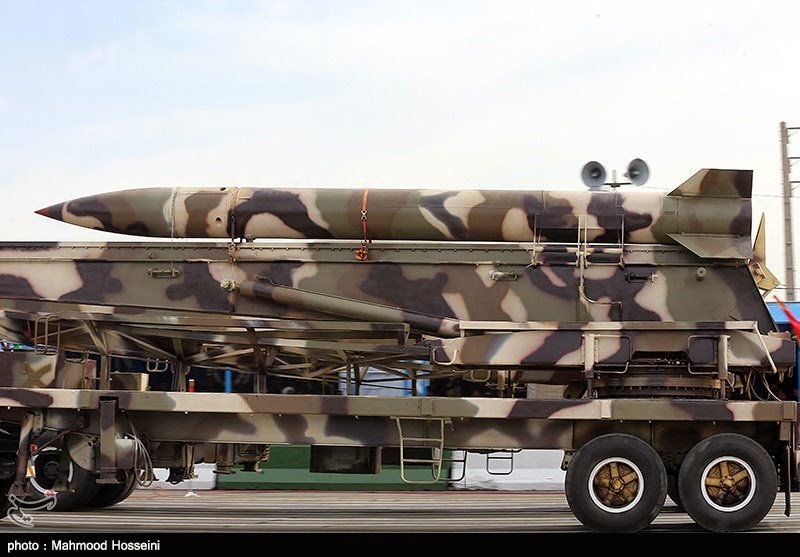

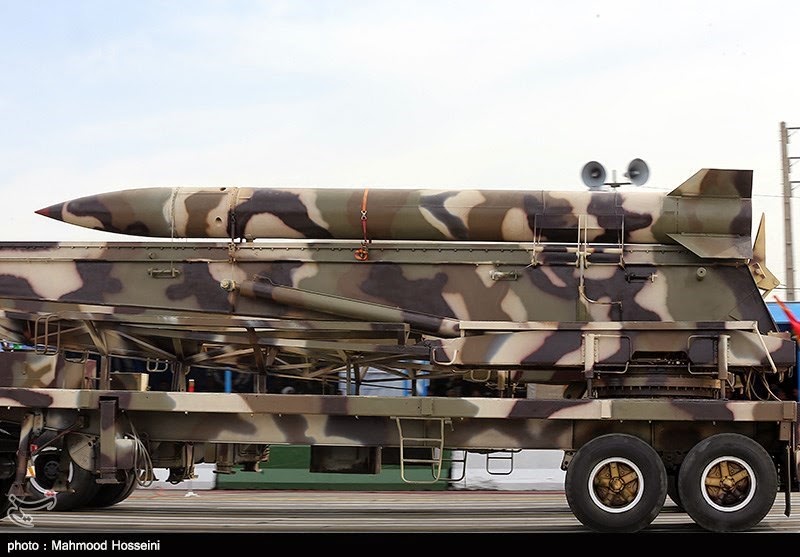

Hezbollah Proliferation. The Naze'at 6-H and Naze'at 10-H (Persian: نازعات‎) are two Iranian long-range artillery rockets with ranges of about 100 km. The Naze'at 10-H is larger, more powerful, and has a longer range than the Nazeat 6-H. Like Iran's similar shaped Zelzal rockets, Naze'at rockets do not have a guidance system. Both systems are also widely known without the -H suffix, as the Naze'at 6 and Naze'at 10. The Naze'at 10 is launched from a transporter erector launcher (TEL) and carries a conventional warhead, and potentially a chemical or biological one. A complete Naze'at system includes a TEL and communications vans, meteorological vans, and a GPS system for surveying the launch site. Both Naze'at rockets have a closing velocity of mach 4-5. The reliability and accuracy of Naze'at rockets is assessed as poor.

Air & Air Defense Specifications
Max Speed 6174.0 km/h
Range 100.0 km
Variants
Naze'at 6-H Earlier version with less range compared to the Naze'at 10-H
System
Alternative Designation Naze'at 10-H , Naze'at 10
Family Naze'at
Proliferation Hezbollah
Crew INA
Chassis INA
Displacement Time INA
Emplacement Time INA
Dimensions (Chassis)
Length INA
Width INA
Height INA
Weight, Combat INA
Ground Pressure INA
Automotive (Chassis)
Engine Name INA
Engine Type INA
Engine Power INA
Cruising Range INA
Speed, Maximum Road INA
Speed, Average Cross INA
Speed Maximum Swim INA
Fording Depth INA
Communications
Primary INA
Missile System
Missile Launcher
Name INA
Type Transporter Erector Launcher
Fire on the Move No
Missile
Name Naze'at 10-H rocket
Type Long-Range Artillery Rocket
Length 8,020 mm
Diameter 457 mm
Initial Weight 1,830 kg
Propellant Weight 865 kg
Propellant Type Solid Hydroxyl-terminated polybutadiene
Warhead Weight 230 kg
Maximum Range 125 km
Minimum Range 110 km
CEP <5% Max. range
Average Action Time 10 seconds
Specific Impulse 240 seconds
Service Life 7 Years
Speed Mach 5
Fire Control
Name INA
Computerized FCS INA
Thermal Sight Vehicle Commander No
Thermal Sight Gunner No
Main Gun Stabilization INA
Protection
Hull Armor INA
Turret Armor INA
Applique Armor INA
Explosive Reactive Armor No
Active Protection System No
Mine Clearing No
Self-Entrenching Blade INA
NBC Protection Yes
Smoke Equipment No
Details
Country of Origin Iran
Category Ground-Launched Ballistic Missiles (GLBM) (50 km - 300 km)
Air > Ground-Launched Ballistic Missiles (GLBM) (50 km - 300 km)
Filter Label
N
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
8.02 m
Width
0.46 m
Height
Weight
1830 kg
Operators (2)
Iran
Non-State Actors
