Shaanxi SX2306 Chinese 8x8 Heavy Utility Truck
Shaanxi SX2306
Heavy Utility Truck
Other
Basic Information
Name
Shaanxi SX2306 Chinese 8x8 Heavy Utility Truck
Designation
Shaanxi SX2306
Alternate Designation
Shaanxi SX2306
Equipment Type
Heavy Utility Truck
Manufacturer
Shaanxi Automobile Group
Date of Introduction
2020
Description

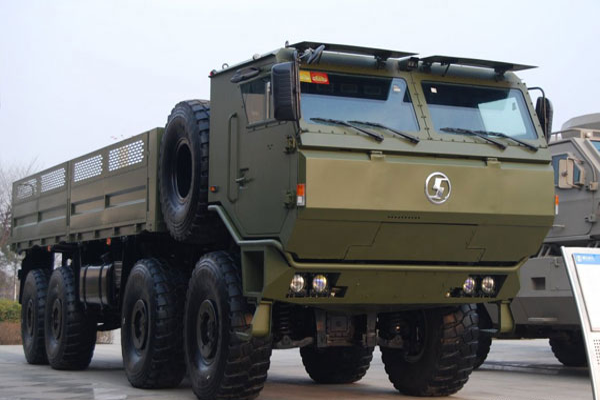

The Shaanxi SX2306 Chinese 8x8 Heavy Utility Truck is a new Chinese military truck. It will become a replacement for the ageing Huanghe JN252.
Ground Specifications
Crew
1
Mobility Type
Wheeled (8x8)
Engine
Diesel (450 hp)
Max Speed
100.0 km/h
Range
800.0 km
Variants
Shaanxi SX2220
a smaller version with 6x6 configuration. It has a payload capacity of around 12 tons.
System
Alternative Designation
Shaanxi SX2306
Type
Heavy Utility Truck
Manufacturer
Shaanxi Automobile Group
Configuration
8x8
Crew
1 ea
Cab Seating
1 + 1
Maximum Cargo Capacity
15 Tons
Towing Capability
It can also tow trailers and artillery pieces.
Dimensions
Length
10 m
Width
2.5 m
Height
2.6 m
Weight, Empty
15 tons
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
450 hp
Range
800 km
Speed, Maximum Road
100 km/h
Speed Maximum Swim
Not Amphibious
Gradient
60 %
Side Slope
30 %
Vertical Step
0.6 m
Trench
1.8 m
Fording Depth
1.2 m
Main Weapon System
Note
There are no crew-served weapons mounted on the Shaanxi SX2306 Chinese 8x8 Heavy Utility Truck.
Protection
Armor
This truck has an armored cab. It provides protection against small arms fire and artillery shell splinters.
Applique Armor
Available
Mine Clearing
No
NBC Protection
No
Smoke Equipment
No
Details
Country of Origin
China
Category
Logistics
Land > Combat Support Vehicles > Logistics
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
10 m
Width
2.5 m
Height
2.6 m
Weight
15000 kg
Operators (1)
China
