SkyFend Blader Chinese Anti-Drone Jammer
Blader
Counter-UAS System
Other
Basic Information
Name
SkyFend Blader Chinese Anti-Drone Jammer
Designation
Blader
Alternate Designation
Blader
Equipment Type
Counter-UAS System
Manufacturer
Skyfend Technology
Date of Introduction
2022
Description

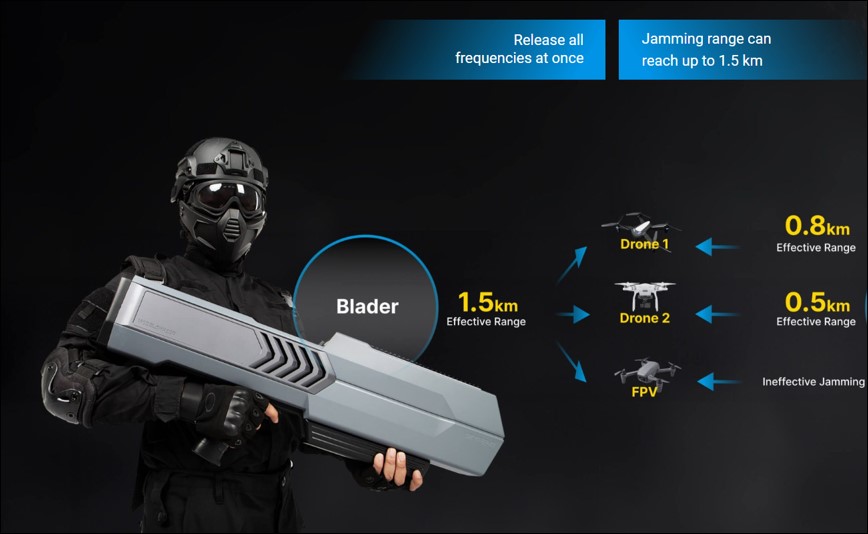

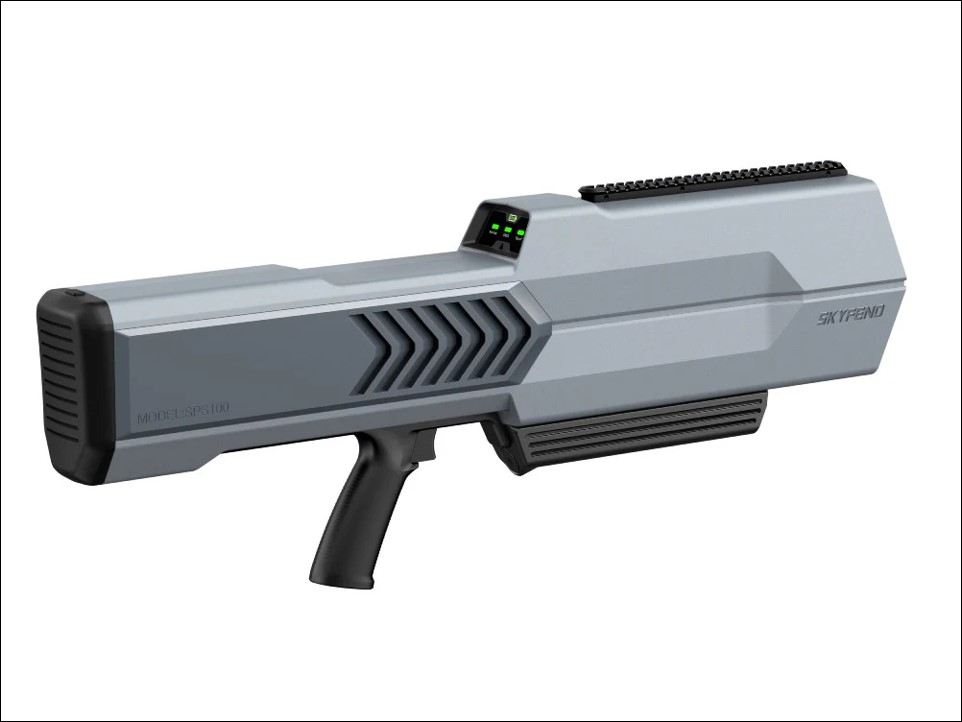

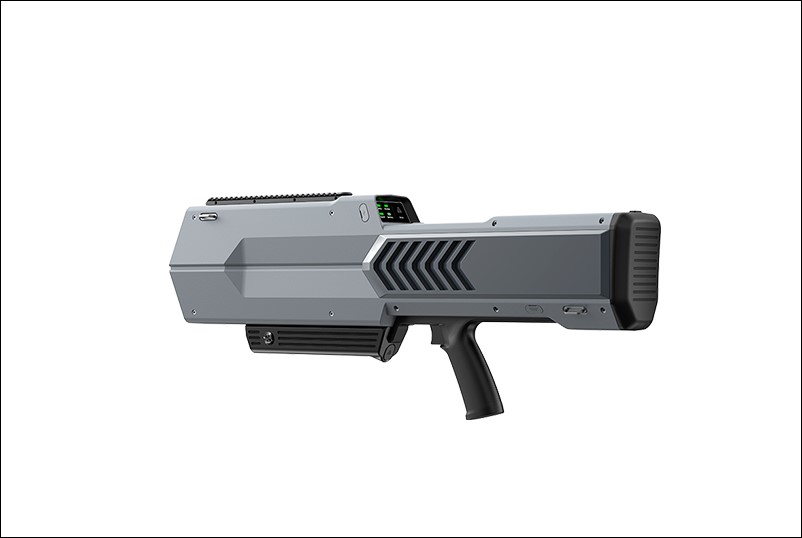

The Blader Chinese Anti-Drone Jammer is a portable jammer for SUAVs. Featuring countermeasures for UAV flight control, map transmission, and GNSS bands, it can repel drones or force them to crash to solve the threat of rogue SUAVs. Counter UAV/Counter UAS/Anti-Drone.
Ground Specifications
Crew
1
Range
1.5 km
System
Alternate Designation
Blader
Type
Anti-Drone Jammer
Manufacturer
Skyfend Technology
Crew
1 ea
Jamming Frequency
868MHz / 915MHz / 1.2GHz / 1.4GHz / 1.6GHz / 2.4GHz / 4.95GHz / 5.2GHz / 5.35GHz / 5.6GHz / 5.8GHz
FoV
Azimuth: ±15° Pitch: ±10°
Consociate Spoofing
Blader can connect to GPS spoofing equipment via a Type-C interface, enabling the user to control the UAV to either land at a specific location or cause it to lose control and crash.
Jamming Range
1.5 km
Jamming Time
30 min
User's Log
Blader records every jamming offline. If any malfunction occurs, users can export the event log to us and there will be analysis and feedback from professional after-sale engineers promptly.
Battery
Rechargeable
Temperature Range
Operating temperature(℃): -20 ~ +55;
Storage temperature(℃): -20 ~ +60
Water Resistance
IP65 rating
Dimensions
Length
795 mm
Height
100 mm
Width
304 mm
Weight
4 kg
Details
Country of Origin
China
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.8 m
Width
0.3 m
Height
0.1 m
Weight
4 kg
Operators (1)
China
