Zhaotou Class Chinese Patrol Cutter
Zhaotou Class
Patrol Boat
Other
Basic Information
Name
Zhaotou Class Chinese Patrol Cutter
Designation
Zhaotou Class
Alternate Designation
Zhaotou Class
Equipment Type
Patrol Boat
Manufacturer
Jiangnan Shipyard
Date of Introduction
2015
Description
The Zhaotou Class Chinese Patrol Cutter is the largest armed coast guard cutter in the world, surpassing the previous record holder, the Japanese Shikishima class.
Naval & Littoral Specifications
Beam
21.80 m
Variants
Haijing 2901
Commissioned: 2015
Status: Active

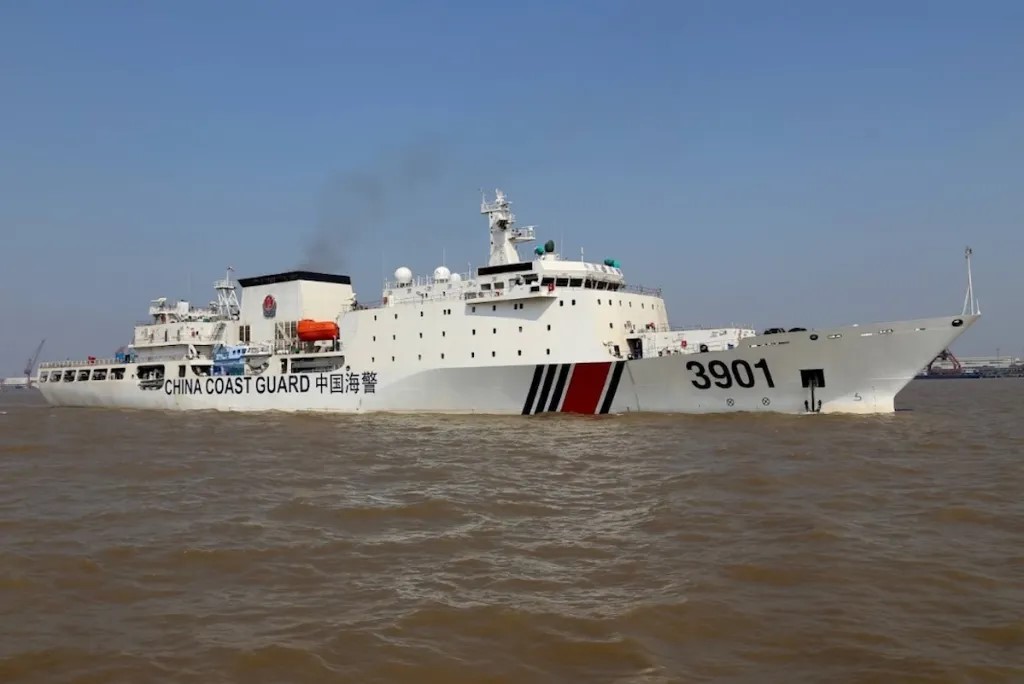

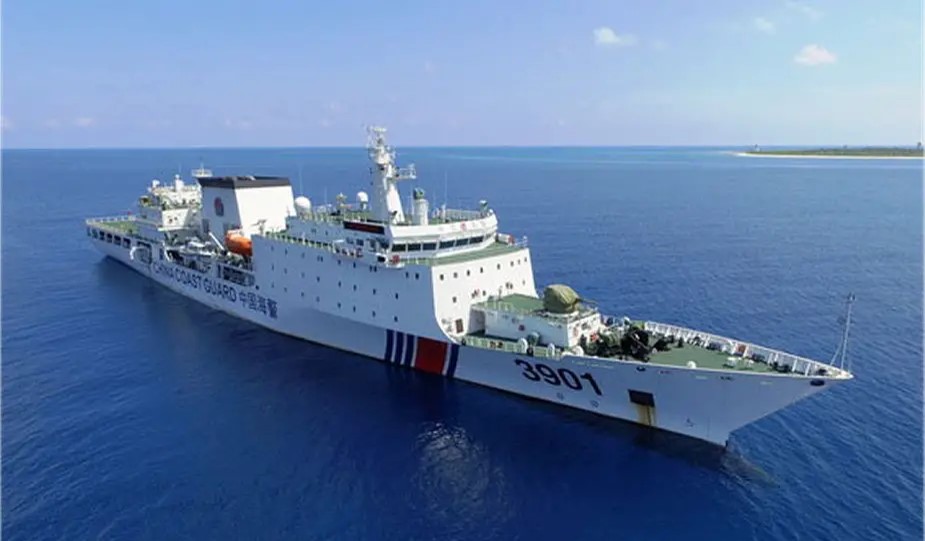

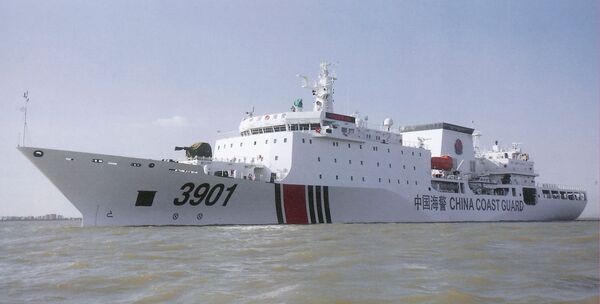

Haijing 5901 (ex-Haijian 3901)
Commissioned: 2015
Status: Active
System
Alternative Designation
Zhaotou Class
Type
Patrol Cutter
Builder
Jiangnan Shipyard
Crew
INA
Dimensions
Length
165.0 m
Height
INA
Beam
21.8 m
Draft
INA
Displacement, Full Load
11,859 tons
Propulsion System
Engine Name
INA
Engine Type
4 x Diesle Enignes and 2 x Bow Thrusters
Engine Power
INA
Maximum Range
15,000 nmi (28,000 km) estimate.
Maximum Speed
25 kt (46.3 km/h)
Main Weapon System
Note
1 x H/PJ26 76 mm/59 (AK-176). 2 x H/PJ-17 30 mm.
Radar Systems
Air/Surface Search Radar
1 x H/LJQ-361A; H/I-bands.
Navigation Radar
2 x 1 E/F/-band. 1 I-band.
Fire Control Radar
1 x Type 349A (H/LJP-349A); I-band (for 76 mm).
Avaition
Helicopters
2 x Z-8 helicopters
Hangar Facility
Yes
Protection
Hull
INA
Countermeasures
INA
NBC Water Washdown System
Yes
Image Sources
Note
https://gcaptain.com/new-chinese-coast-guard-cutter-nicknamed-the-beast-to-patrol-south-china-sea/; https://x.com/CN_military_21/status/1503373839815770117; https://www.armyrecognition.com/archives/archives-naval-defense/naval-defense-2023/indonesia-navy-sends-warships-to-counter-china-coast-guard-vessel
Details
Country of Origin
China
Category
Naval
Naval
Filter Label
Z
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
165 m
Width
21.8 m
Height
—
Weight
11859000 kg
Operators (1)
China
