GQL-111 (HZQL75) Chinese 8x8 Scissor-Type Bridging System
GQL-111
Scissor-Type Bridging System
Other
Basic Information
Name
GQL-111 (HZQL75) Chinese 8x8 Scissor-Type Bridging System
Designation
GQL-111
Alternate Designation
GQL-111; HZQL75
Equipment Type
Scissor-Type Bridging System
Manufacturer
NORINCO
Date of Introduction
2001
Description

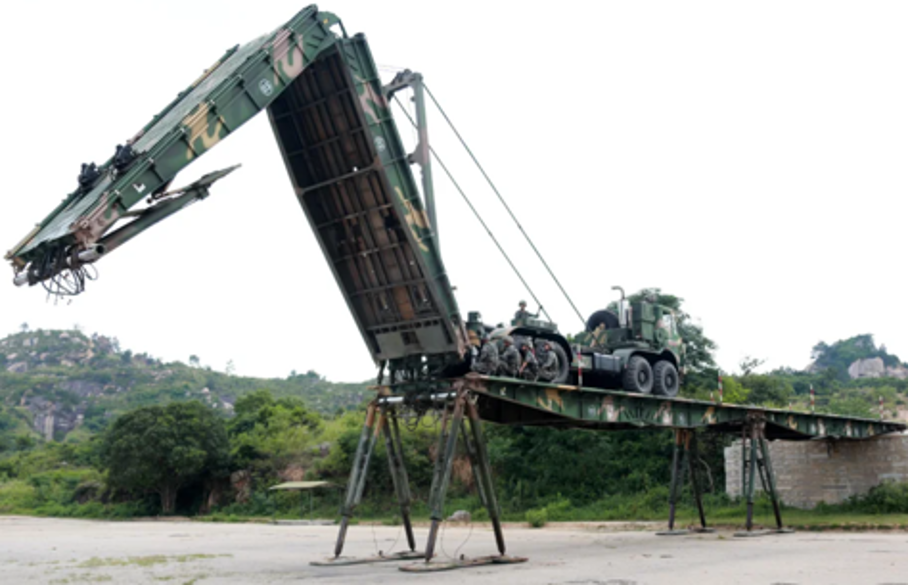

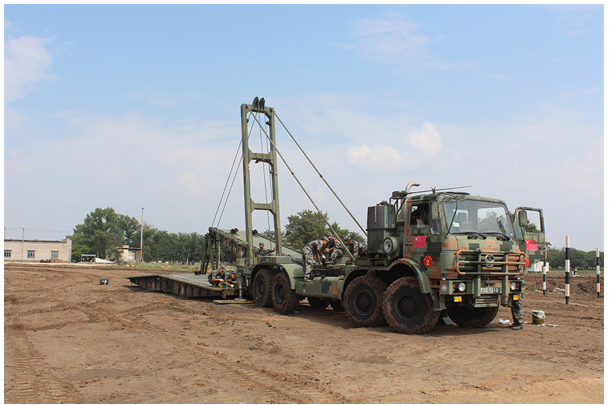

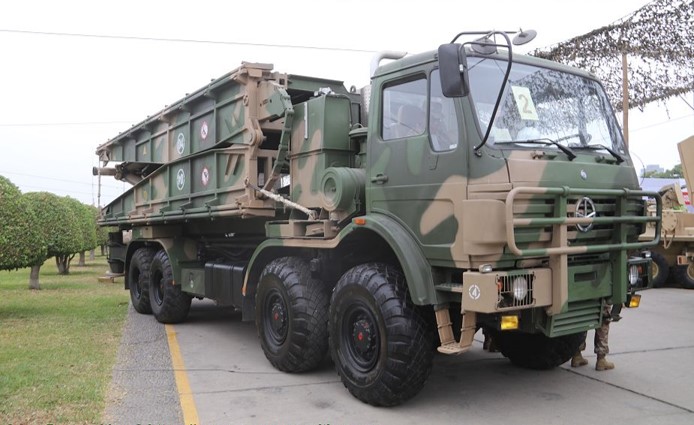

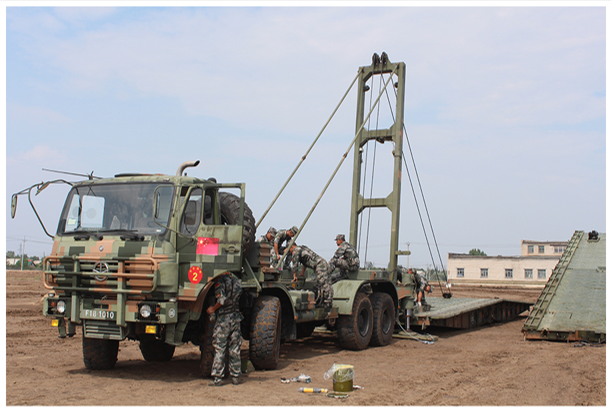

GQL-111 (HZQL75) Chinese 8x8 Scissor-Type Bridging System is known to deploy a significant number of truck-mounted bridge systems. This is conceptually similar to the Russian TMM-6 heavy bridge building system. One section can be used to span a gap of up to 15 m, and a complete set of five can span a gap of 75 m. The GQL111 can be used to span wet and dry gaps, with each scissors bridge having an adjustable leg that can be extended to 5.5 m below. It can also be used with pontoons to enable wider rivers to be crossed.
Ground Specifications
Crew
2
Mobility Type
Wheeled (8x8)
Variants
60T Modified Heavy Mechanized Bridge
A modified version that has a increased capacity of 60 tons.
System
Alternative Designation
GQL-111; HZQL75
Type
Scissor-Type Bridging System
Manufacturer
Norinco
Chassis
Cross-country truck chassis
Configuration
8x8
Crew
2 ea
Emplacement Time
INA
Displacement Time
INA
Bridging System
Single Bridge System
One section can be used to span a gap of up to 15 m
Complete Bridge System
A complete set of five can span a gap
of 75 m
Wet and Dry Gap Capable
The GQL111 can be used to span wet and dry gaps, with each scissors bridge having an adjustable leg that can be extended to 5.5 m below
Load Capacity, Tracked Vehicles
up to 50 tons
Load Capacity, Wheeled Vehicles
up to 13 tons
Trench
A segment can be used to bridge a trench up to 15 m
Note
The GQL-111 system can be used in combination with pontoons to cross wider rivers
Dimensions
Length
INA
Width
INA
Height
INA
Weight
INA
Automotive
Chassis
8x8 Cross-country truck chassis
Main Weapon System
Note
There are no crew-served weapons mounted on the GQL-111 Chinese 8x8 Scissor-Type Bridging System
Protection
Armor
INA
Applique Armor
INA
NBC Protection
INA
Smoke Equipment
INA
Image Sources
Notes
https://www.armyrecognition.com/defense_security_exhibition_2019_pictures_gallery/sitdef_2019_tv_web_television_pictures_defense_exhibition_peru.html; https://eng.mil.ru/en/mcis/multimedia/photo/gallery.htm?id=31078@cmsPhotoGallery; https://eng.mil.ru/en/mcis/multimedia/photo/gallery.htm?id=31078@cmsPhotoGallery; https://www.reddit.com/r/TankPorn/comments/dkgvw3/gql111_rapidly_emplaced_bridge_system_2000x1333/?rdt=40877;
Details
Country of Origin
China
Category
Mobility
Land > Combat Support Vehicles > Mobility
Filter Label
G
Classification
Domain
Ground
Equipment Status
Active
Operators (3)
China
Myanmar
Peru
