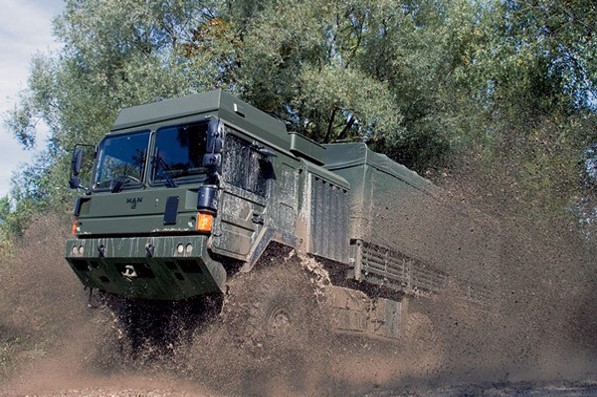

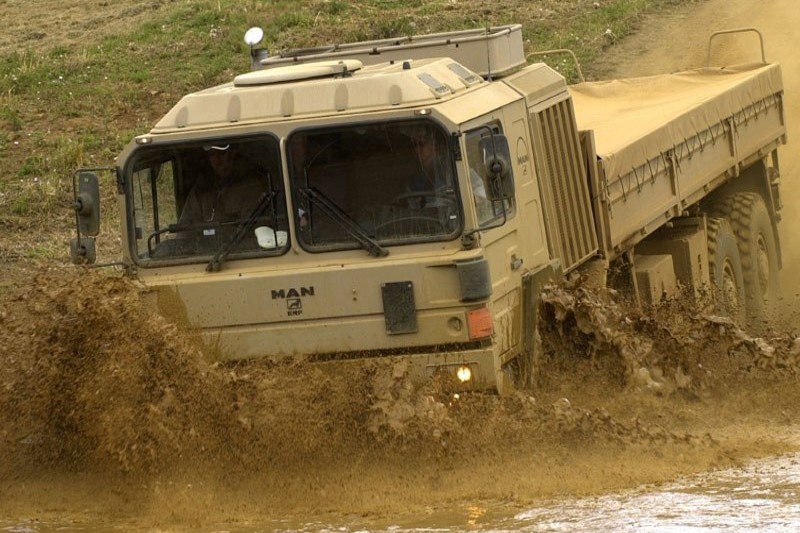

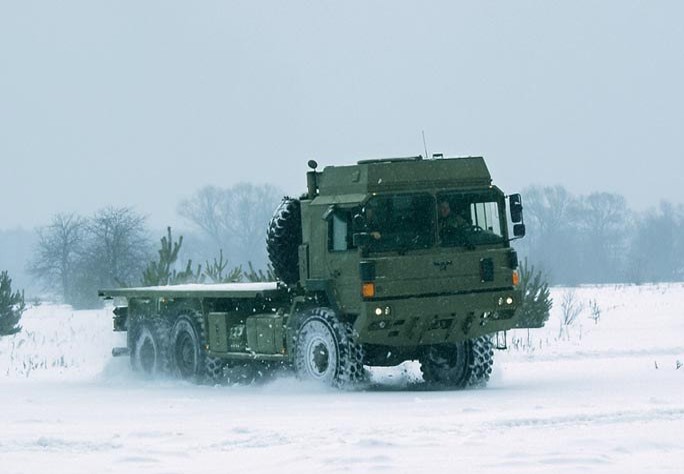

MAN HX58 German 6x6 Heavy Utility Truck
HX58
Heavy Utility Truck
Other
Basic Information
Name
MAN HX58 German 6x6 Heavy Utility Truck
Designation
HX58
Alternate Designation
HX58; HX 26.440
Equipment Type
Heavy Utility Truck
Manufacturer
MAN
Date of Introduction
2007
Description
The MAN HX58 is a tactical military truck. Vehicle has a 6x6 configuration. This military truck is in service with Germany, New Zealand and UK.
Ground Specifications
Crew
1
Engine
10.518 liter, in line-6, turbocharged, common rail injection, water cooled, 4 stroke, diesel (440 hp)
Active Protection
None
Max Speed
88.0 km/h
Range
800.0 km
Variants
HX58
HX 26.440 6×6 BB.
HX60
HX 18.330 4×4 BB.
HX61
INA
HX77
The MAN HX77 is an 8x8 heavy tactical truck. It is a part of HX range of tactical trucks.
HX81
HET.
System
Alternative Designation
HX58; HX 26.440
Type
Heavy Utility Truck
Manufacturer
MAN
Configuration
6x6
Family
MAN RMMV HX range of tactical trucks
Crew
1 ea
Cab Seating
1 + 2
Payload Capacity
13,000 kg (chassis carrying capacity)
Tow Load Capacity
19,000 kg
Airlift Capability
It can be airlifted by the C-130 Hercules cargo aircraft with little preparation.
Note
The MAN HX series was succeeded in production by an improved HX2 series. Also production of more capable MAN SX series reportedly ceased in 2019.
Dimensions
Length
8.68 m
Width
2.55 m
Height
3.2 m
Wheel Base
4.5 m
Empty Weight
11,800kg (chassis-cab)
Gross Vehicle Weight
25,000 kg (permissible GVW, single tires)
Ground Clarence, Front
428 mm (front)
Ground Clearance, Rear
428 mm (rear, both)
Automotive
Engine Name
MAN D2066 LF, EURO IV
Engine Type
10.518 liter, in line-6, turbocharged, common rail injection, water cooled, 4 stroke, diesel
Engine Power
440 hp at 1,900 rpm
Fuel Capacity
400 litres
Gearbox
ZF 12 AS 2301 OD AS-Tronic with12 forward and 2 reverse gears
Transfer Case
MAN G172 two-speed with engageable front axle drive
Electrical System
24 V (three-phase)
Alternator
28 V, 110 A
Steering
ZF 8098, hydraulic power-assistance
Suspension
front axle; parabolic leaf springs with progressively acting rubber assistors and shock-absorbers: rear axles; inverted multi-leaf trapezoidal springs with radius rods, shock-absorbers and anti-roll bar on second rear axle
Brakes
dual circuit, air, drums on all axles, Electronic Brake System (EBS) with ABS with off-road logic included supplemented by air-actuated exhaust brake with additional Exhaust Valve Brake system
Maximum Speed
88 km/h (limited)
Range
800 km
Gradient
60%
Side Slope
40%
Vertical Step
0.6 m
Trench
1.2 m
Fording
1.2 m
Turning Radius
9.55 m
Main Weapon System
Note
There is no weapons system mounted on the MAN HX58.
Protection
Armor
The MAN HX58 is fitted with an all-steel solid modular cab.
Applique Armor
Yes, The cab can be fitted with add-on armor.
Active Protection System
No
Mine Clearing
No
NBC Protection
INA
Smoke Equipment
No
Details
Country of Origin
Germany
Category
Logistics
Land > Combat Support Vehicles > Logistics
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.68 m
Width
2.55 m
Height
3.2 m
Weight
25000 kg
Operators (5)
Germany
United Kingdom
Denmark
New Zealand
Vietnam
