Renault Sherpa 2/3

Renault Sherpa 2/3

Tactical Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Renault Sherpa 2/3
Designation
Renault Sherpa 2/3
Alternate Designation
Equipment Type
Tactical Vehicles
Manufacturer
Renault Trucks Defense
Date of Introduction
Description

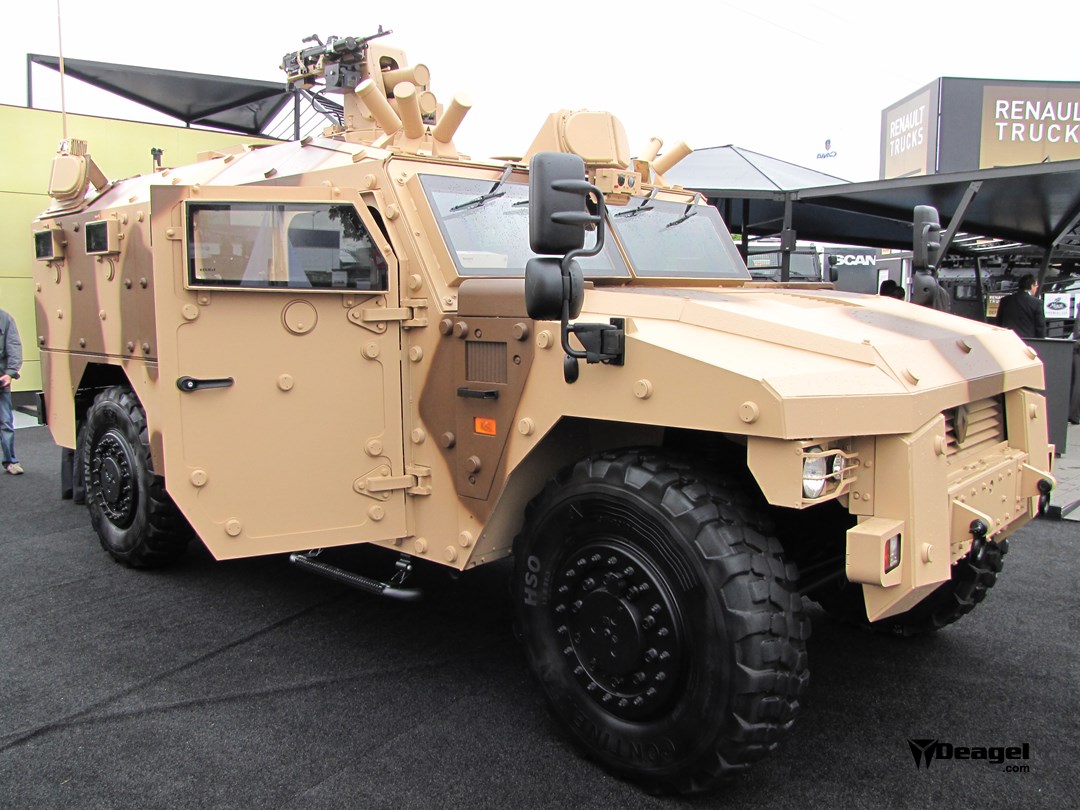

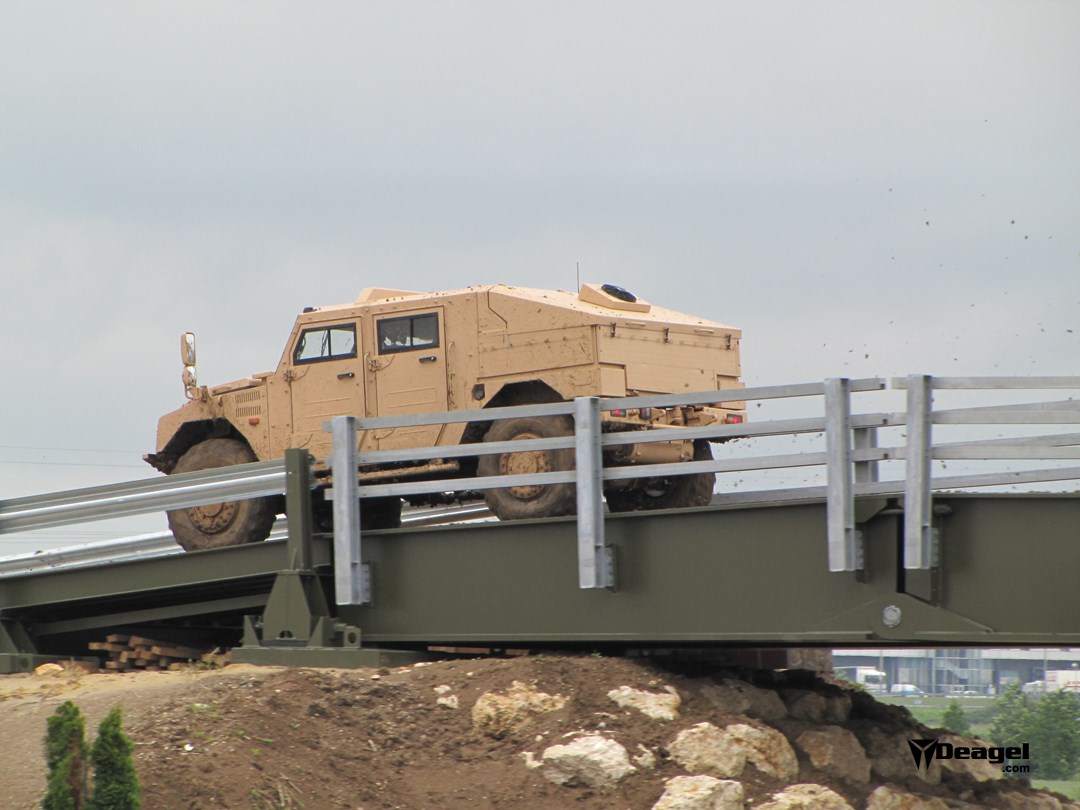

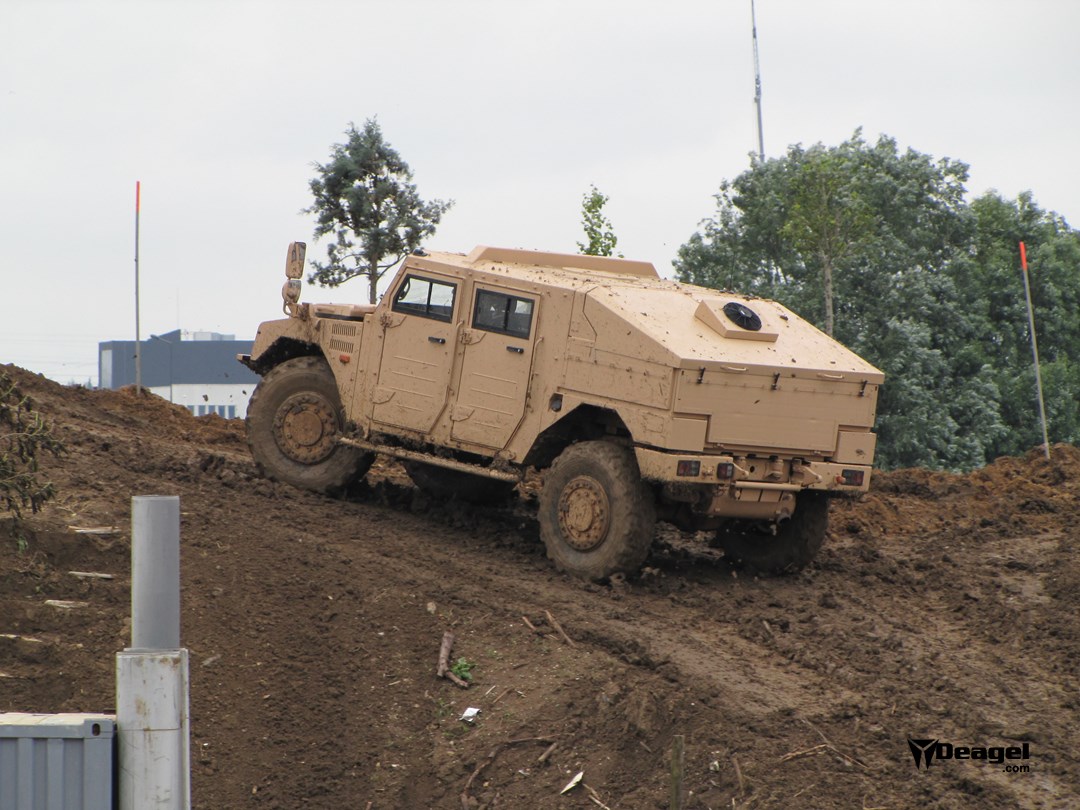

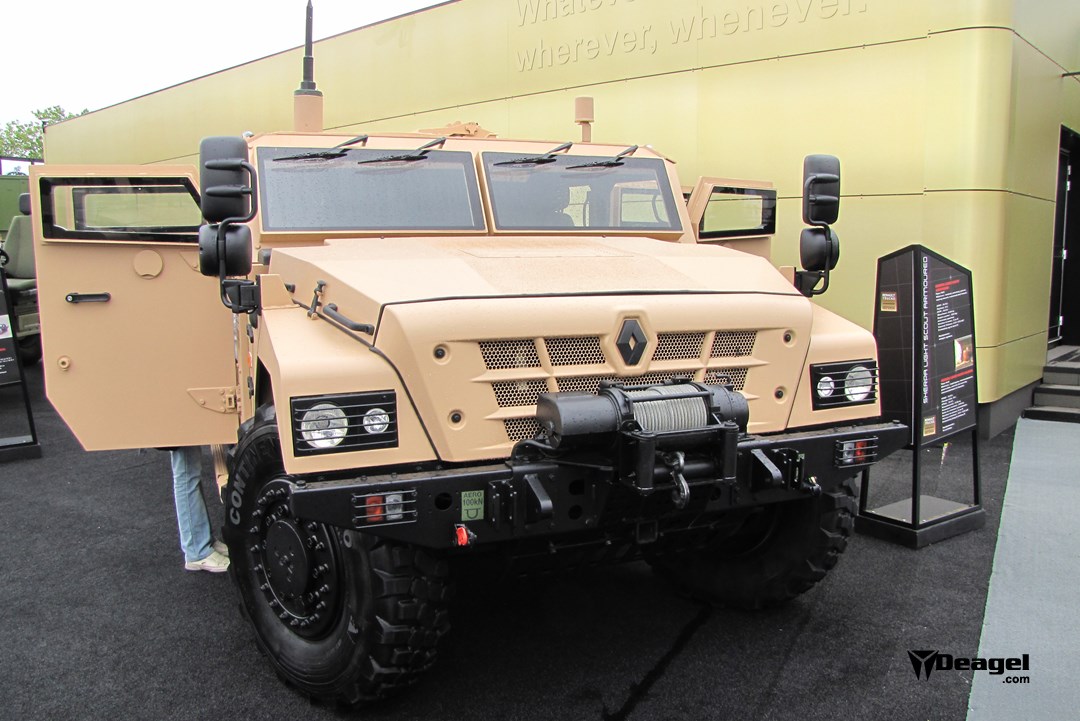

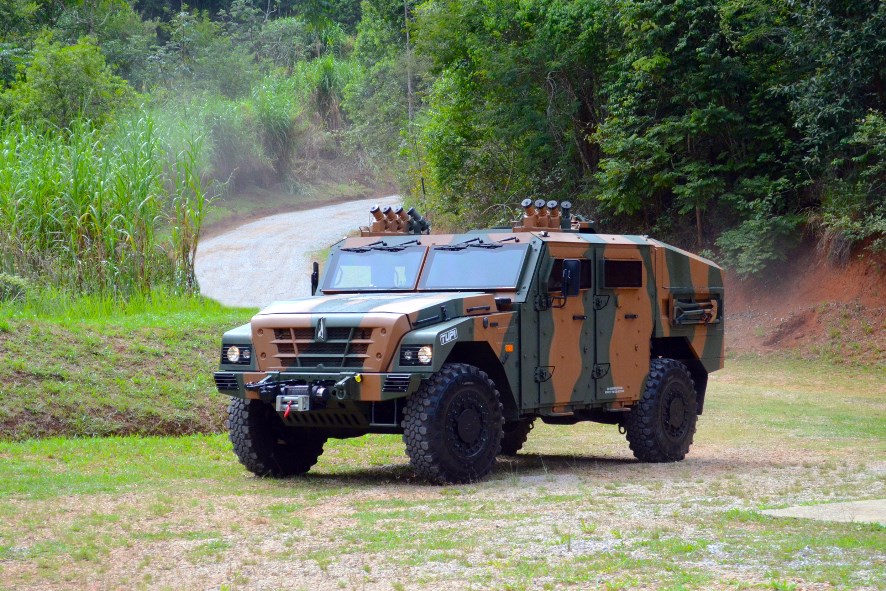

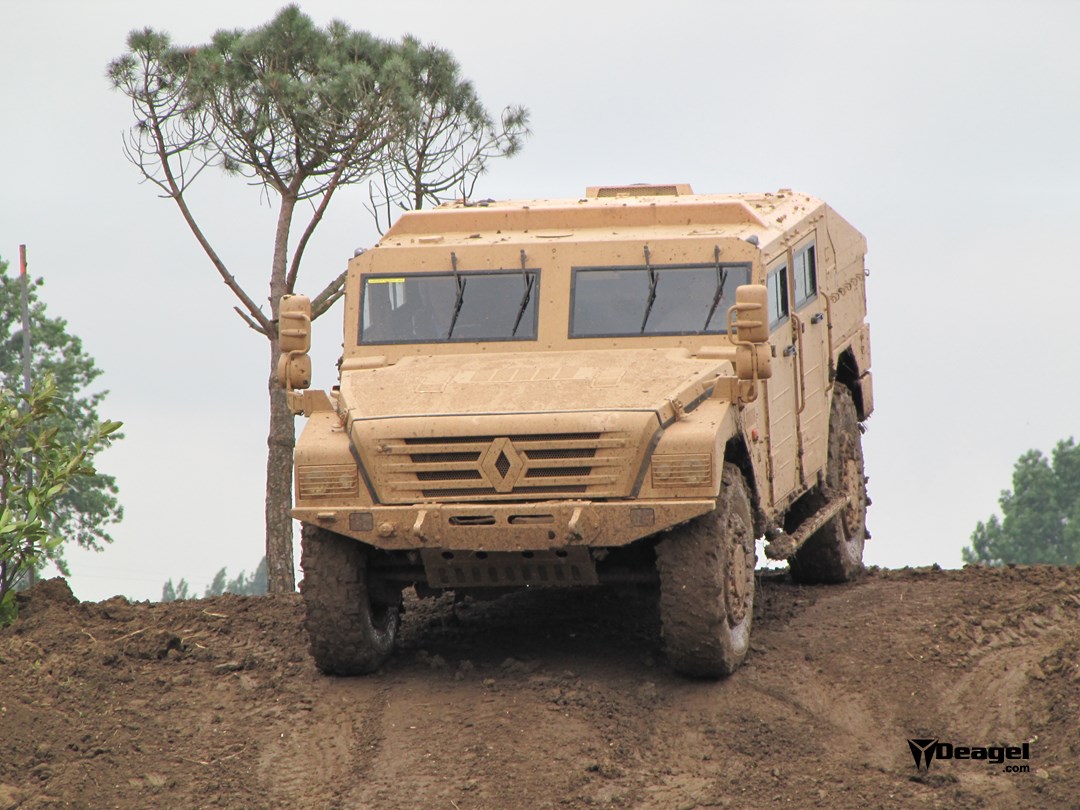

The Sherpa 3 is a 4x4, all-terrain, military truck intended to carry a 4.5-ton payload in support of rapid reaction forces. The high mobility Sherpa 3 features a reduced silhouette, advanced armor protection and a two-man crew and is able to receive a 10' flat bed with a 4.5-ton loading. In addition the Sherpa 3 cab can be equipped with retractable armor panels and add-on armor kits providing ballistic and mine protection. The Sherpa 3 tactical vehicle is available in many configurations which are air transportable and air droppable. The 10-ton class Sherpa 3 is powered by a 4-cylinder Euro 4 220-hp engine which allows for a maximum speed of 120 kph on road and a cruising range of 800 km at 70 kph with a 200-l fuel tank. Optional equipment includes: air conditioning, radio, add-on armor kits, engine speed control, central tire inflation system, adjustable steering wheel, roof-mounted 7.62mm or 12.7mm machine gun, heating system, etc.

Ground Specifications
Crew 2
Mobility Type Wheeled (4x4)
Main Weapon 7.62mm or 12.7mm machine gun
Max Speed 120.0 km/h
Range 800.0 km
Overview (Deagel)
Group Tactical Vehicles
Status Active

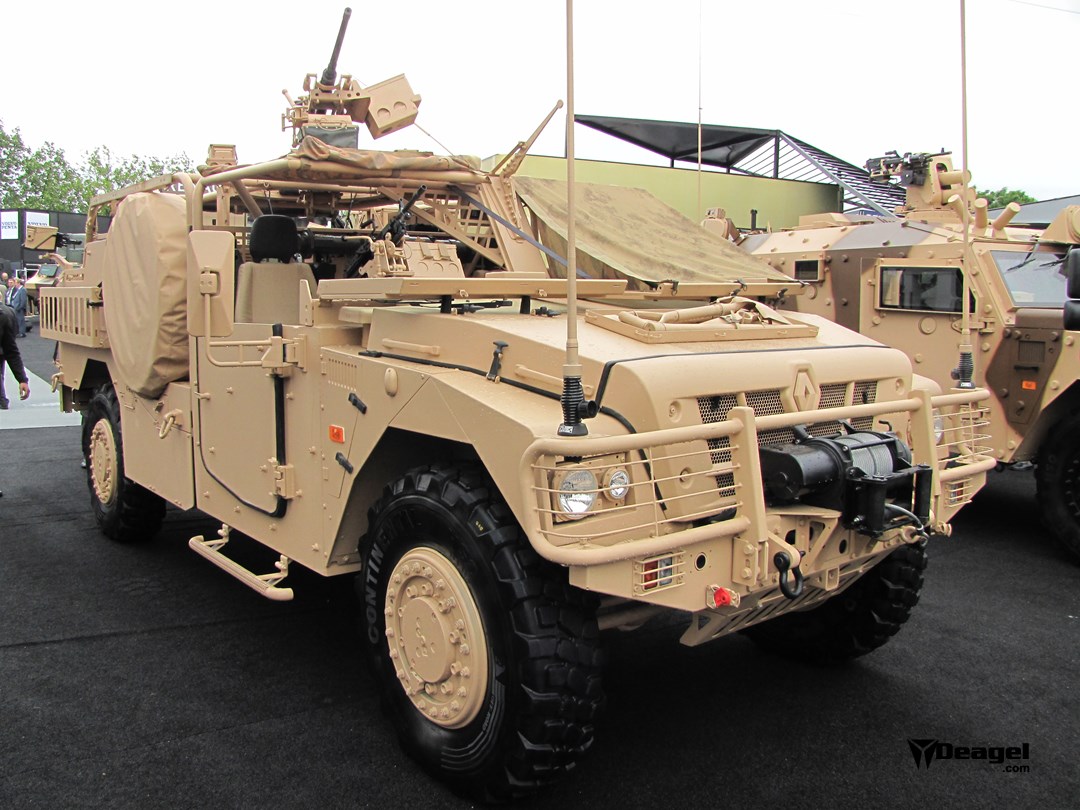

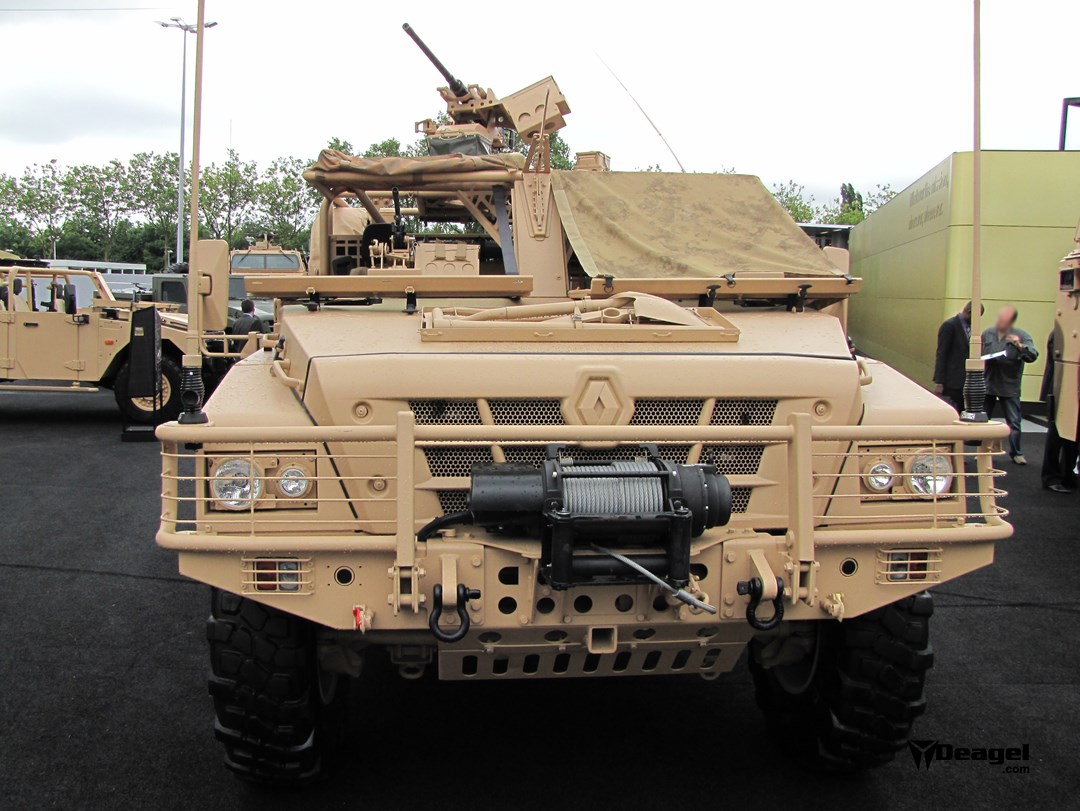

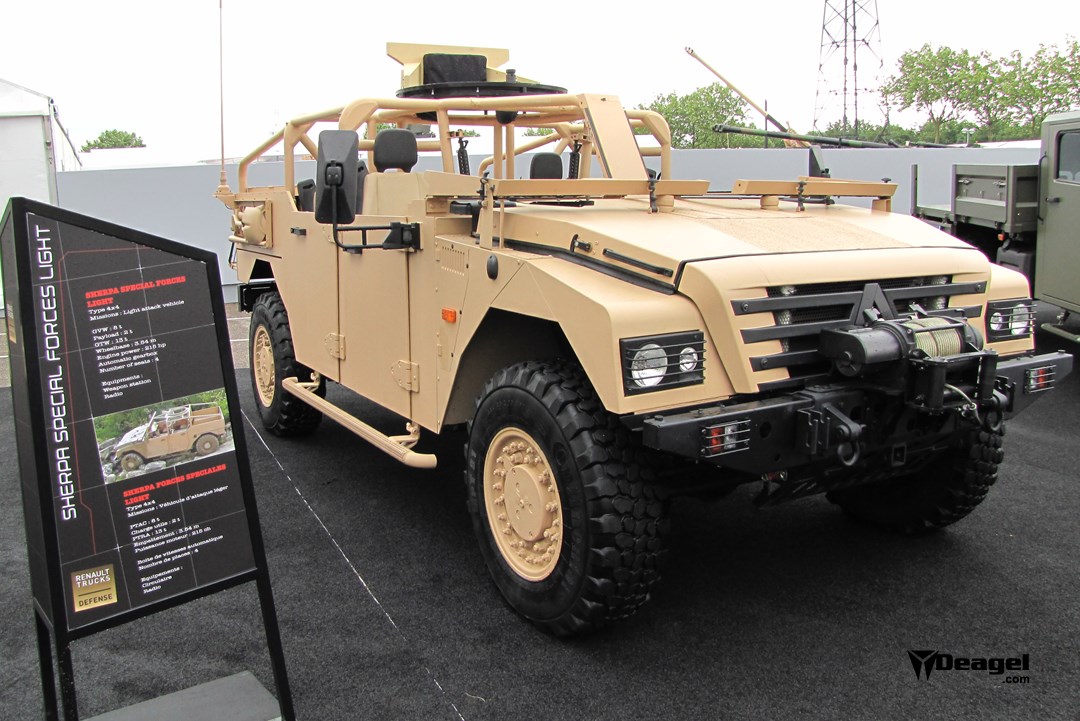

Also Known As Sabre, Sherpa Light Carrier, Sherpa Light FS Heavy, Sherpa Light Station Wagon, Sherpa Special Forces Heavy
Origin France
Contractor Renault Trucks Defense
Total Production ?
Specifications (Deagel)
Crew 2
Wheel Drive 4
Wheels 4
Dimensions — Ground Clearance 330 millimeter
Dimensions — Height 2.1 meter
Dimensions — Length 6.3 meter
Dimensions — Main Gun Caliber 12.7 millimeter
Dimensions — Width 2.3 meter
Mass — Empty Weight 9,400 kilogram
Mass — Max Weight 13,000 kilogram
Mass — Payload 4,100 kilogram
Performance — Max Range 800 kilometer
Power — Power 220 hp
Speed — Cruise Speed 70 kph
Speed — Top Speed 120 kph
Volume — Fuel Tank Capacity 200 liter
Variants
Variant 1 Sherpa 3

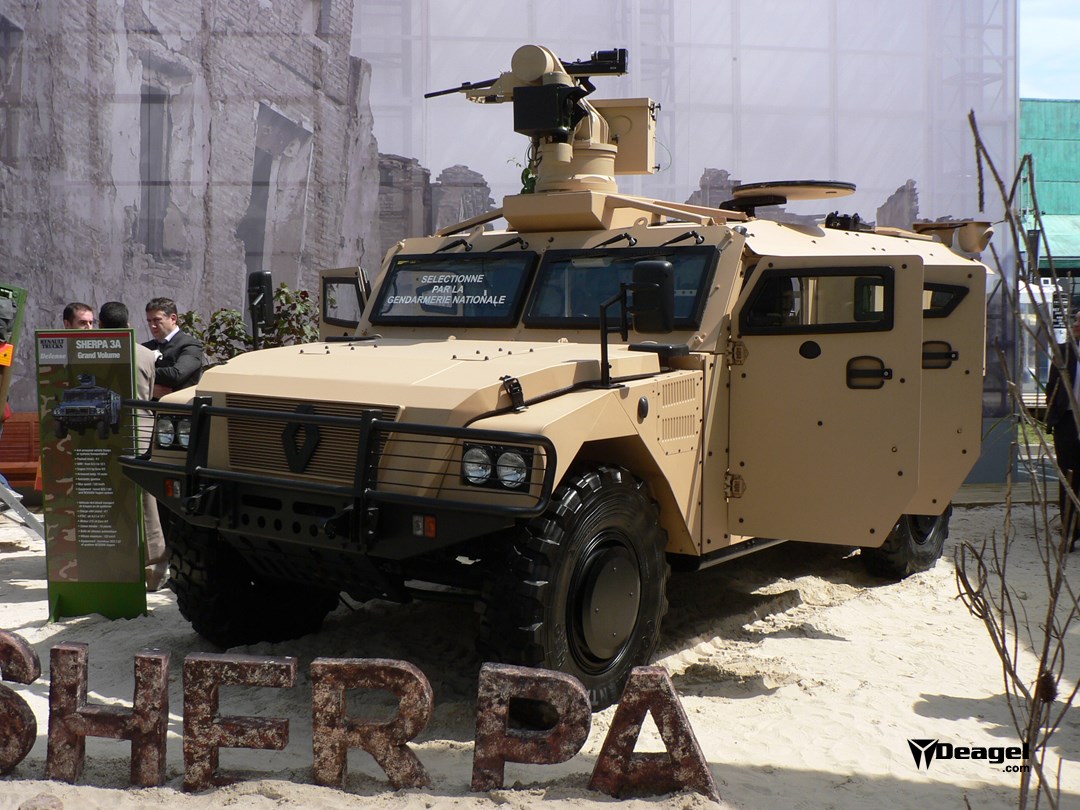

Variant 2 Sherpa 3A
Variant 3 Sherpa 2
Variant 4 Sherpa A2M
Details
Country of Origin France
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.3 m
Width
2.3 m
Height
2.1 m
Weight
13000 kg
