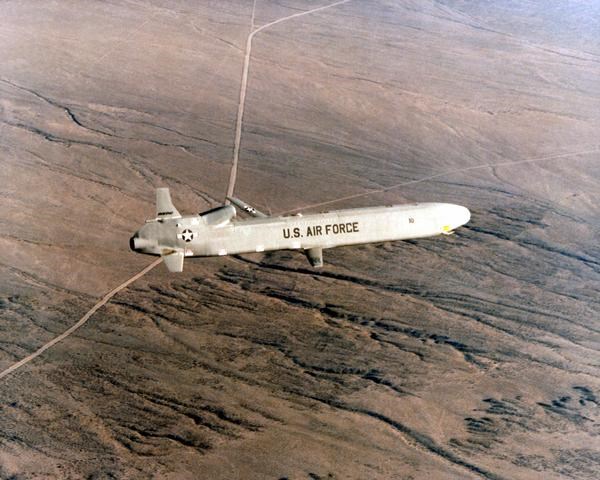

AGM-86C CALCM
AGM-86C CALCM
Cruise Missiles
Basic Information
Name
AGM-86C CALCM
Designation
AGM-86C CALCM
Alternate Designation
Conventional Air Launched Cruise Missile
Equipment Type
Cruise Missiles
Manufacturer
Boeing
Date of Introduction
1988
Description
The AGM-86C CALCM (Conventional Air Launched Cruise Missile) employs a GPS coupled with an Inertial Navigation System (INS) to achieve its mission. This navigation system allows the missile to guide itself with pinpoint accuracy. A single B-52H is able to carry and deliver up to 20 CALCMs. CALCMs are a modification of existing ALCMs instead of new production missiles. They have been procured under 3 batches known as Block 0, Block 1, and Block 1A and featuring different improvements, specially accuracy and warhead. The AGM-86C is provided with a conventional blast/fragmentation warhead. The US Air Force plans to convert further ALCMs to CALCM configuration.
Air & Air Defense Specifications
Max Speed
802.8 km/h
Range
1100.0 km
Wingspan
3.70 m
Overview (Deagel)
Group
Cruise Missiles
Status
Retired - No Longer Operational
Also Known As
Conventional Air Launched Cruise Missile
Origin
United States of America
Contractor
Boeing
Initial Operational Capability (IOC)
1988
Total Production
?
Unitary Cost
USD $1.2 million
Specifications (Deagel)
Dimensions — Diameter
620 millimeter
Dimensions — Length
6.3 meter
Dimensions — Wingspan
3.7 meter
Mass — Thrust
600 pound
Mass — Warhead
907 kilogram
Mass — Weight
1,475 kilogram
Performance — Max Range
1,100 kilometer
Speed — Top Speed
223 mps
Variants
Variant 1
AGM-86B ALCM
Variant 2
AGM-86C CALCM
Variant 3
AGM-86D CALCM
Details
Country of Origin
United States
Sources
deagel.com: https://www.deagel.com/x/x/a001068
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
6.3 m
Width
3.7 m
Height
—
Weight
—
Operators (1)
United States
