DJI FlyCart 30 Chinese Unmanned Aerial Vehicle (UAV)
DJI FlyCart 30
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
DJI FlyCart 30 Chinese Unmanned Aerial Vehicle (UAV)
Designation
DJI FlyCart 30
Alternate Designation
DJI FlyCart 30
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
SZ DJI Technology Co., Ltd
Date of Introduction
2023
Description

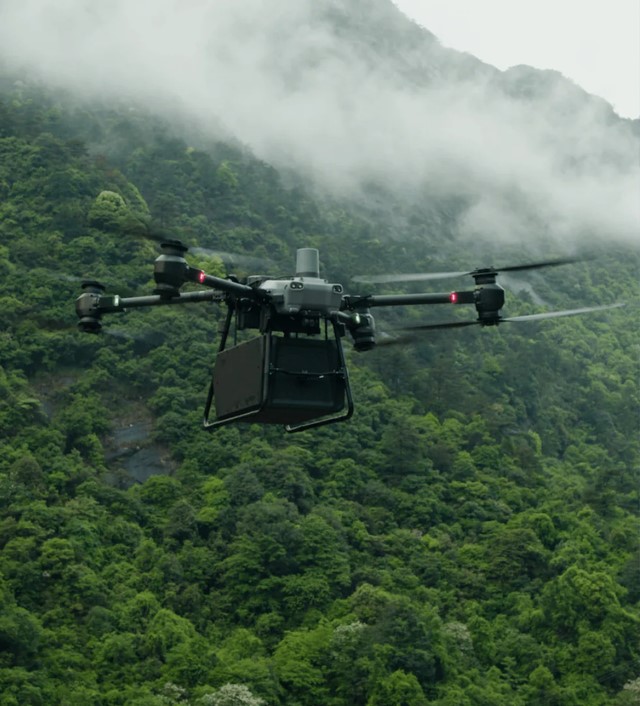

The DJI FlyCart 30 Chinese Unmanned Aerial Vehicle (UAV) is is the tech giant’s first-ever carrier drone and it comes with two modes of delivery: a cargo box and a winch crane system.
Air & Air Defense Specifications
Payload Capacity
30 kg
System
Alternate Designation
DJI FlyCart 30
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
SZ DJI Technology Co., Ltd.
Design
The DJI FlyCart 30 adopts a 4-axis, 8-propeller multi-rotor configuration.
Video Transmission
The drone is equipped with DJI’s O3 video transmission system, which provides a strong signal up to 20 km away and facilitates operations beyond the visual line of sight (BVLOS) of the operator.
Payload

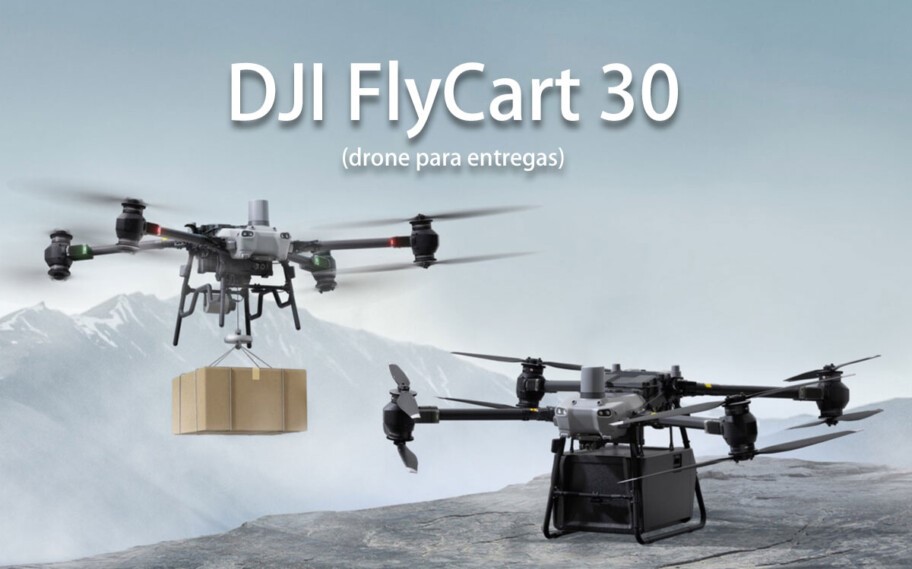

It supports two kinds of payload mode, Cargo and Winch. The cargo box supports quick release and automatic weighing, while the winch system is used for scenarios where the drone cannot be landed or the goods cannot be put in the cargo.
Payload Capacity
30 kg in Dual Electric Mode.

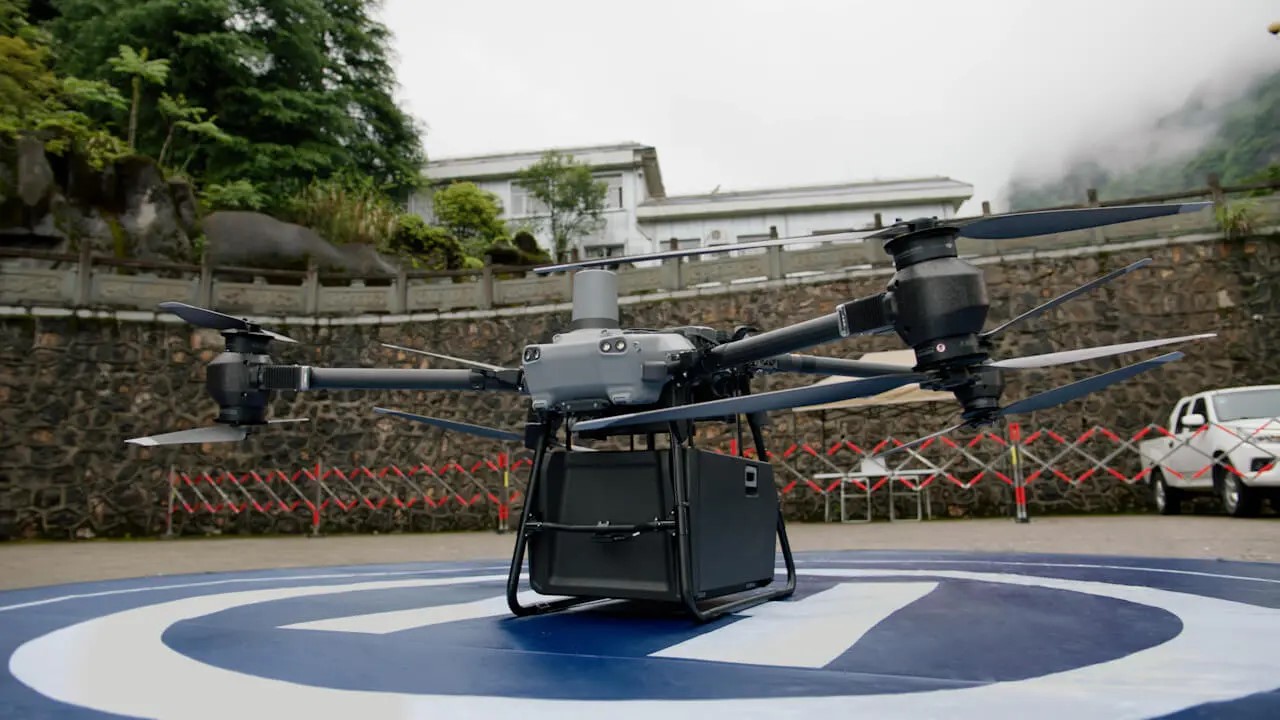

Container/Cargo Mode
In container/cargo mode, the standard configuration is a general-sized EPP container with a maximum volume of 70 liters (internal dimensions are approximately: length 573mm, width 412mm, height 306mm). The cargo box supports weight and center of gravity detection to ensure the cargo is loaded correctly and make the flight safer and more stable.

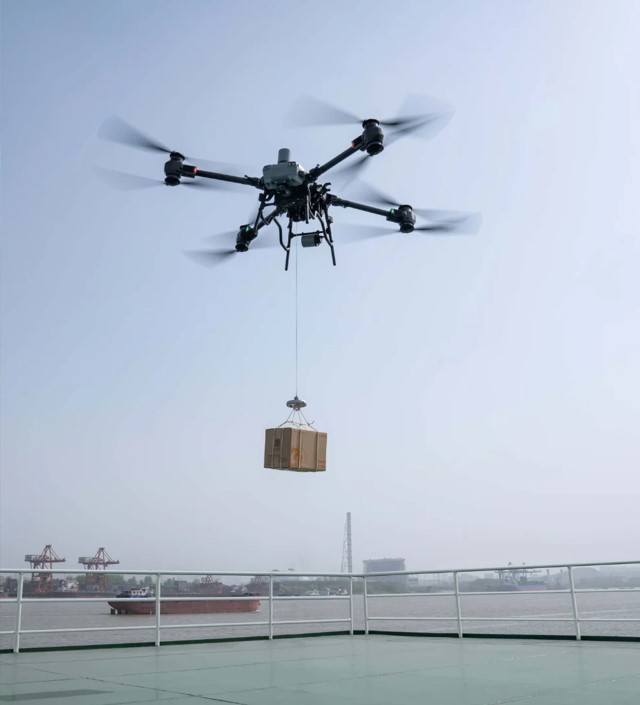

Crane Mode
The crane system has a cable drop mode and supports automatic and manual control methods.
The maximum retractable weight is 40kg, the maximum release length is 20 meters, and the fastest retractable speed can reach 0.8 m/s.
It has an anti-sway function to eliminate the swing of the cargo.
The AR projection function helps users quickly select the delivery location of the goods, while goods can be automatically released when they touch the ground for precise delivery.
Assemble Time
3 minutes
Disassemble Time
3 minutes
Safety Features
Multi-directional, all-weather, all-time intelligent obstacle avoidance during flight; dual radar; built-in ADS-B signal receiver; built-in parachute; flight redundancy.
Dimensions
Length
2,800 mm
Width
3,085 mm
Height
947 mm
Weight, Empty
42.5kg (without batteries)
65kg (with dual batteries)
Maximum Take-Off Weight
95 kg (standard cargo box, near sea level)
Automotive
Engine Name
INA
Engine Type
.
Engine Power
INA
Maximum Distance (No Load)
Dual battery: 28km
Single battery: 12km
Maximum Flight Distance (Full Load)
Double battery (30kg load): 16km
Single battery (40kg load): 8km
Maximum Flight Time (Full Load)
Double battery (load 30kg): 18 minutes
Single battery (load 40kg): 9 minutes
Operating Temperature
-20°C to 45°C
IP Rating
IP55
Maximum Horizontal Flight Speed
20 m/s (with a load of 30kg)
Maximum Flight Altitude
6,000 meters (without load)
Maximum Wind Speed
12 m/s (with a load of 30kg)
Image Transmission
20 km (FCC)
8 km (CE/SRRC/MIC)
4G
4G Convergence Function: Yes, DJI enhanced image transmission module.
4G Dongle Models: DJI Enhanced Video Transmission Module
Image Sources
Notes
https://www.facebook.com/UAVsolutionsupplier/; https://www.tracerdrone.com/products/dji-flycart-30-delivery-drone; https://www.linkedin.com/posts/zhanglan-liu-tethered-drone-system-at-rosefinch-2264792a0_uav-tethered-tethered-activity-7158650225924943872-mOyK; https://4imag.com/tag/dji-flycart-30/;
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
D
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
2.8 m
Width
3.09 m
Height
0.95 m
Weight
95 kg
Operators (1)
China
