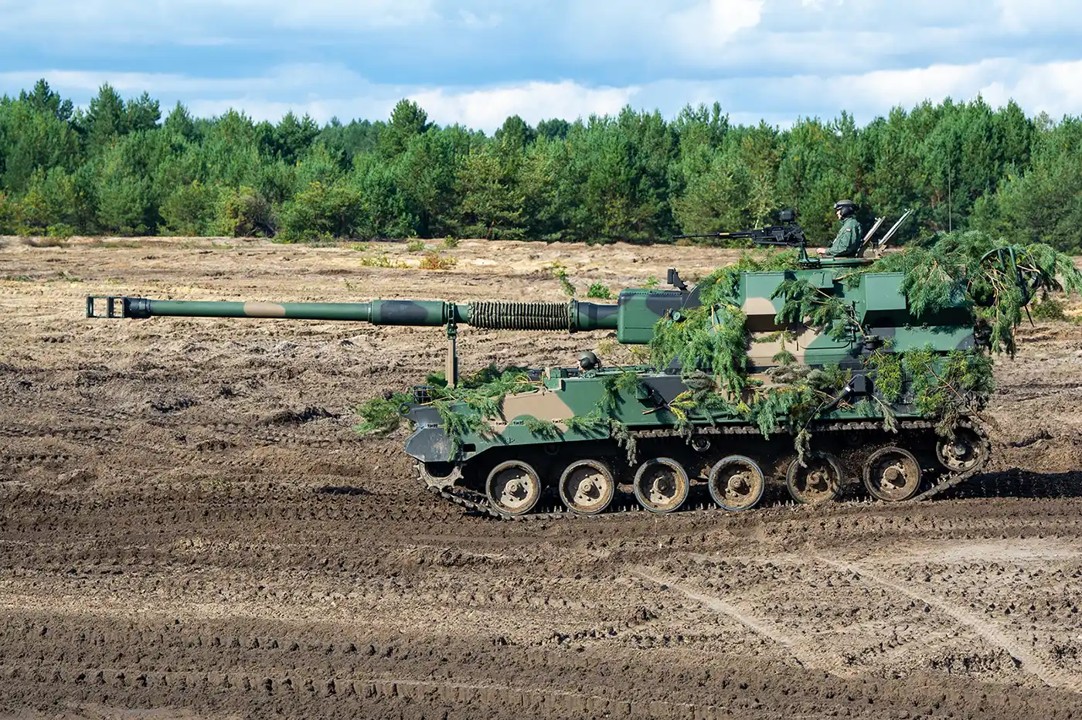

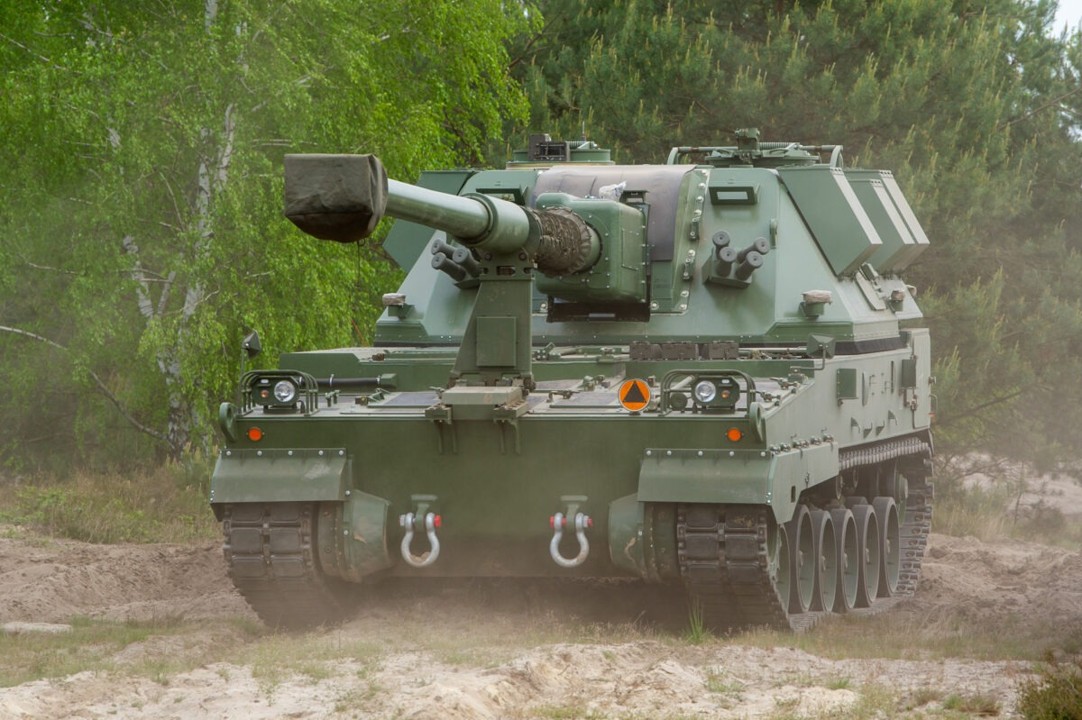

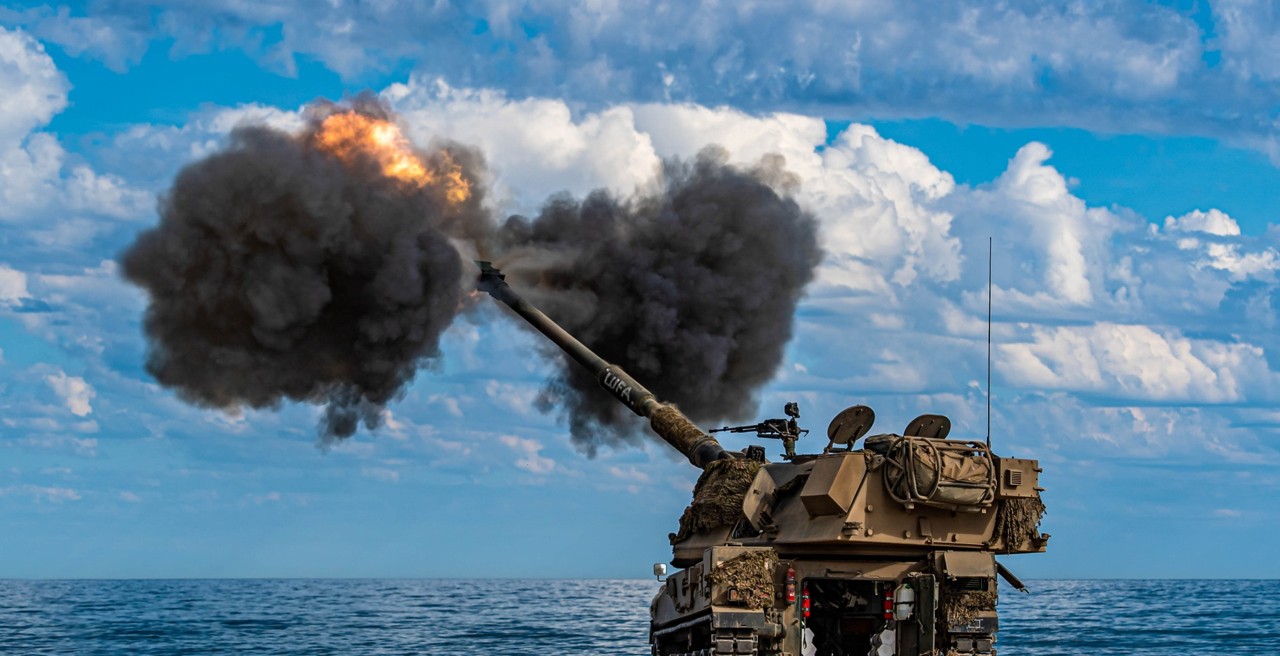

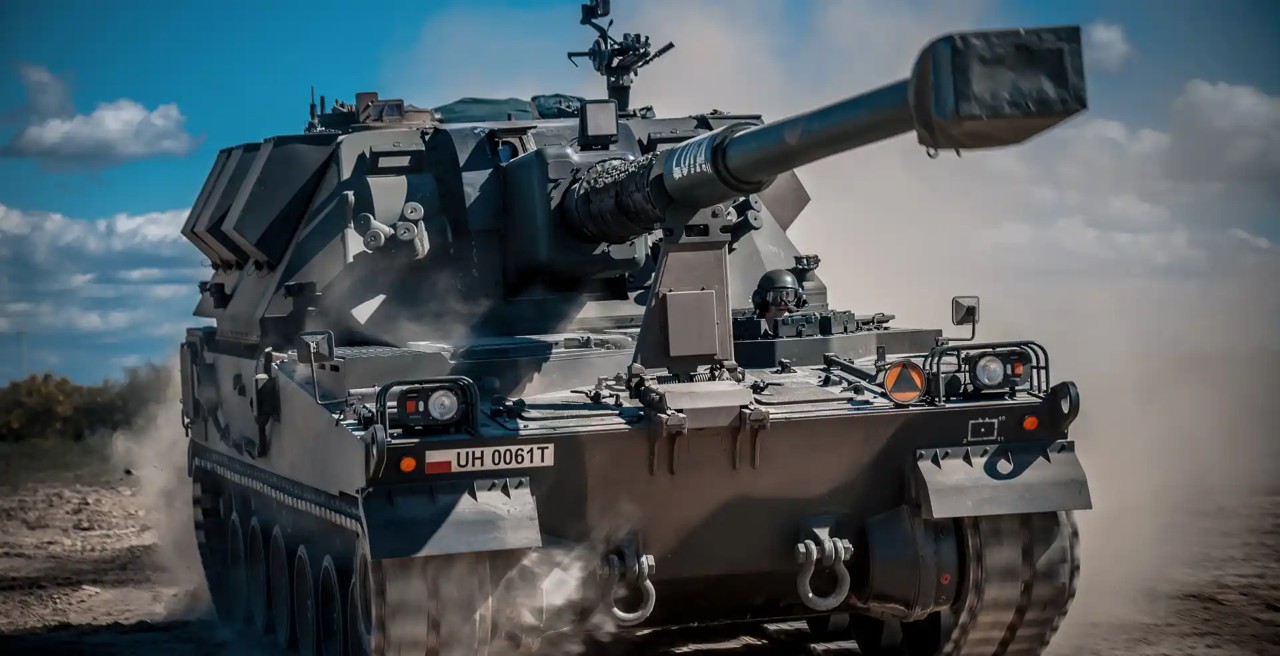

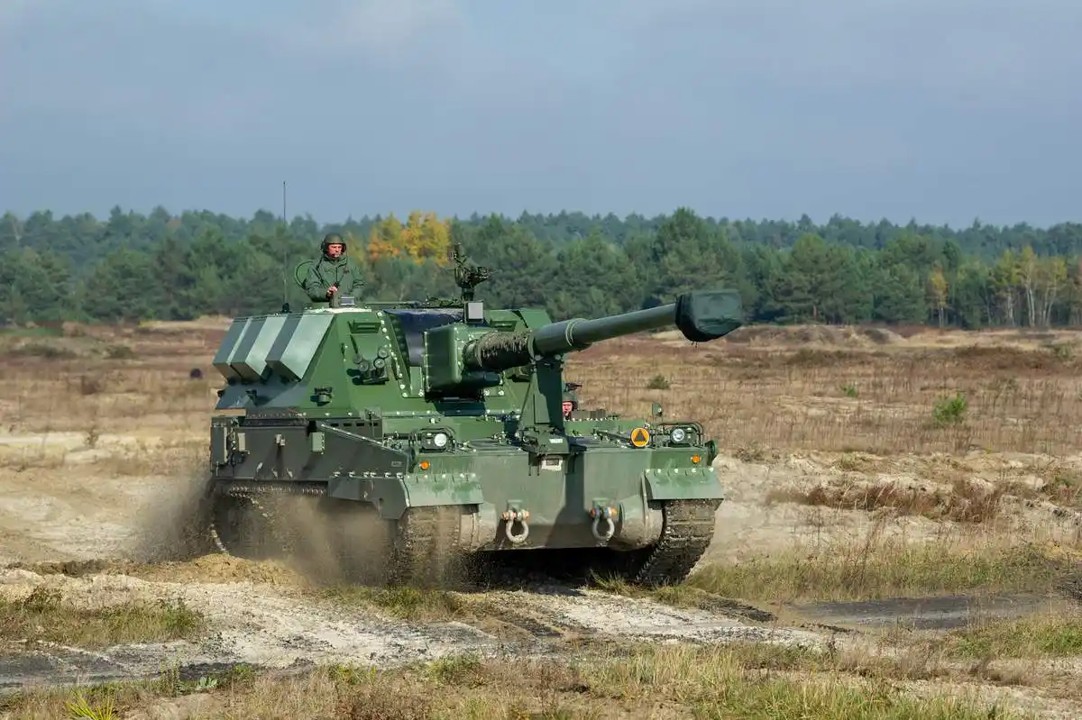

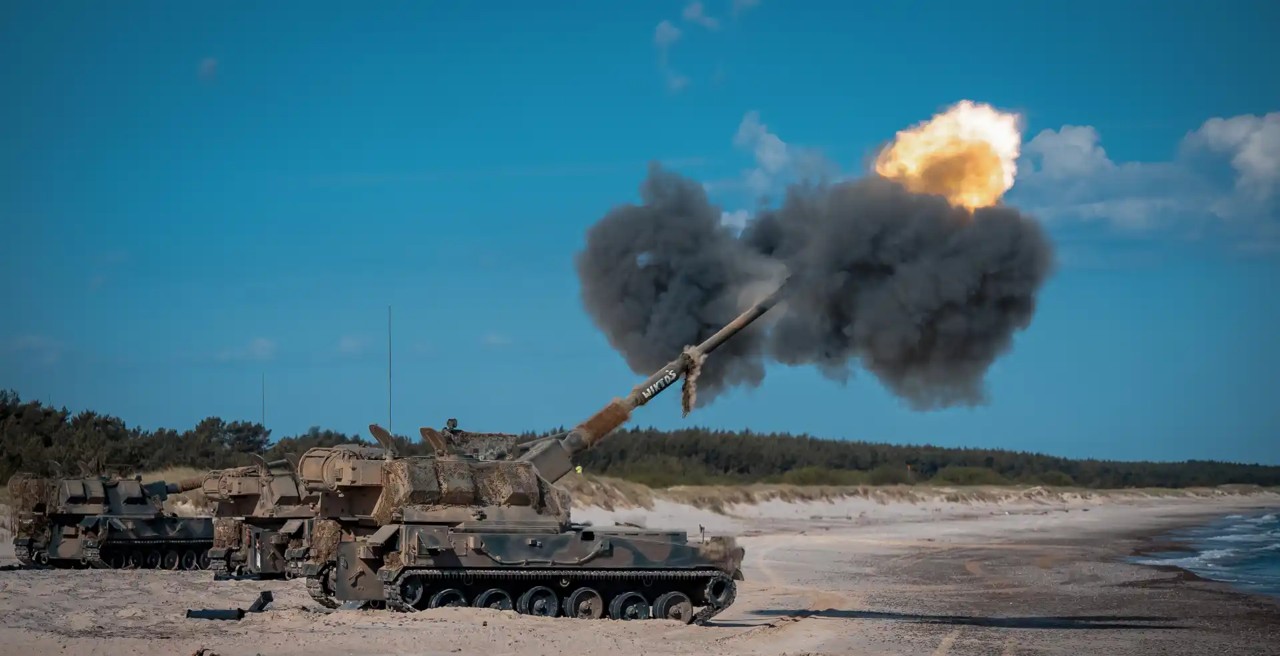

AHS Krab Polish 155mm Self-Propelled Howitzer (SPH)

AHS Krab

Self-Propelled Howitzer (SPH)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
AHS Krab Polish 155mm Self-Propelled Howitzer (SPH)
Designation
AHS Krab
Alternate Designation
AHS Krab
Equipment Type
Self-Propelled Howitzer (SPH)
Manufacturer
Huta Stalowa Wola (HSW)
Date of Introduction
2016
Description

The AHS Krab Polish 155mm Self-Propelled Howitzer (SPH) features a turret and gun derived from British designs, mounted on a South Korean K9 Thunder chassis, complemented by Polish electronics. It adheres to NATO standards and has been exported to Ukraine, where it has experienced significant combat against Russian forces. Its primary tactical role is to provide deep fire support targeting artillery batteries, command and control (C2) nodes, logistics, mechanized formations, and air assets on Forward Arming and Refueling Points (FARP) or landing grounds. The system's survivability in current combat situations, particularly in Ukraine, heavily relies on the principles of shoot-and-scoot tactics and counter-Unmanned Aerial System (UAS) protection. However, it has been reported to be vulnerable to loitering munitions and first-person view (FPV) drones, similar to other Western self-propelled howitzers. In Ukraine, the Krab has been widely employed in the Donbas region and during operations such as the Kharkiv counteroffensive, where it has demonstrated both notable effectiveness and some documented losses—at least nine by late 2022, according to open sources. Crews have praised the system for its fire control and responsiveness but have also highlighted challenges akin to those faced by other Western self-propelled howitzers: a significant maintenance burden under high operational tempo and vulnerability to UAS-enabled counter-battery fire.

Ground Specifications
Crew 5
Mobility Type Tracked
Main Weapon 155mm
Engine V-8 Turbocharged Diesel (1000 hp)
NBC Protection Yes
Max Speed 67.0 km/h
Range 650.0 km
System
Alternative Designation AHS Krab
Type Self-Propelled Howitzer (SPH)
Caliber 155 mm
Manufacturer Huta Stalowa Wola (HSW)
Configuration track
Crew 5 ea
Deployment Time can come into action in 30–60 s from movement and leave position in 30 s, supporting shoot‑and‑scoot TTPs.
Dimensions
Length, with Gun Forward 12.0 m
Width 3.6 m
Height 3.4 m to turret roof; 3.8 m with HMG mounted
Weight, Combat 52,140 kg
Automotive
Engine Name MTU MT881 Ka‑500
Engine Type 8‑cyl water‑cooled turbo‑diesel
Engine Power 1,000 hp
Maximum Range 650 km
Maximum Speed 67 km/h
Amphibious No
Gradient 25 deg
Side Slope 20 deg
Vertical Step 0.8 m
Trench 2.5 m
Fording 1.0 m
Main Weapon System
Name L/52 Howitzer
Type Howitzer
Caliber 155 mm
Turret AS90M “Braveheart”‑derived 155 mm turret built under license in Poland
Elevation −3.5° to +70°
Traverse: 360° turret rotation
Maximum Range 30–32 km (conventional HE); With extended‑range / BB / assisted: up to ~40 km
Minimum Range 4.5 - 4.7 km
Rate of Fire Burst: 3 rounds in 10 seconds; Intense: up to 6 rounds/min for 3 minutes; Sustained/practical: 2 rounds/min
Ammunition Compatibility all standard NATO 155 mm projectiles; HE, ERFB, base‑bleed/rocket‑assisted, and precision‑guided rounds
Basic Load 40 rounds (Polish Army / many public specs: 40 projectiles, 48 charges)
Auxiliary Weapon System
Note 1 × 12.7 mm WKM‑B heavy machine gun on turret roof for AA/close defense
Fire Control and Electronics
FCS WB Electronics “Topaz” digital artillery fire‑control system
Ballistic Computer Ballistic computer and automated laying with electric drives (10°/s in elevation and traverse)
Navigation and Positioning: integrated INS/GPS and digital battlefield positioning
Protection
Armor Welded steel hull and turret made from POSCO MIL‑12560H armor plate; protection vs. small‑arms fire and artillery splinters, typical for NATO SPH
Applique Armor INA
NBC Protection Yes
Smoke Equipment 2 × banks of 4 × 81 mm smoke grenade launchers (8 total)
Details
Country of Origin Poland
Category Self-Propelled Gun/Howitzer Artillery Systems
Land > Artillery > Self-Propelled Gun/Howitzer Artillery Systems
Filter Label
A
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
12 m
Width
3.6 m
Height
3.4 m
Weight
52140 kg
Operators (2)
Ukraine
Poland
