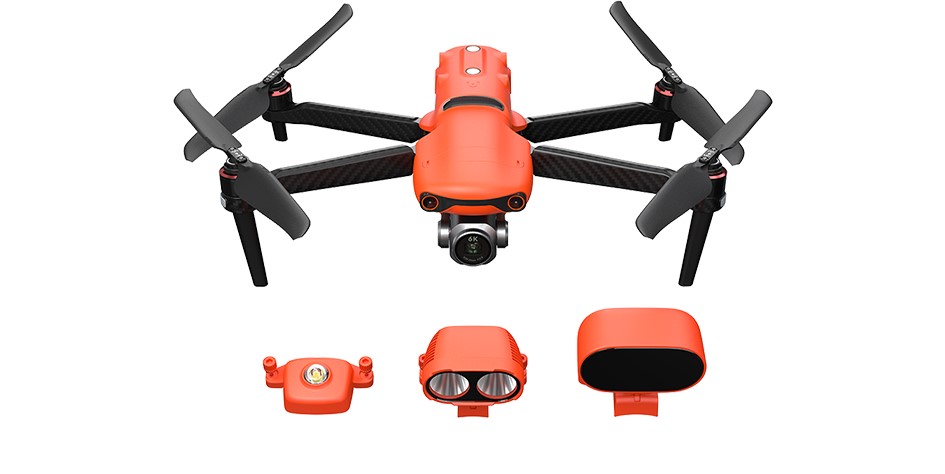

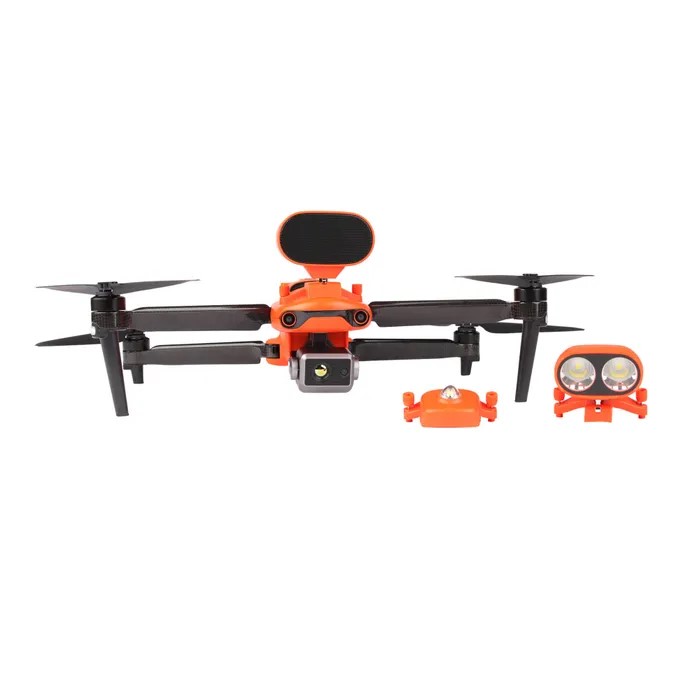

Evo II Enterprise Chinese Unmanned Aerial Vehicle (UAV)
Evo II Enterprise
VTOL Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Evo II Enterprise Chinese Unmanned Aerial Vehicle (UAV)
Designation
Evo II Enterprise
Alternate Designation
Evo II Enterprise
Equipment Type
VTOL Unmanned Aerial Vehicle (UAV)
Manufacturer
Autel Robotics
Date of Introduction
2021
Description
The Evo II Enterprise Chinese Unmanned Aerial Vehicle (UAV) is built on the back of our popular EVO II, the Enterprise series introduces some exciting new features to the airframe to improve mission performance and versatility.
Air & Air Defense Specifications
Engine
Electric
Endurance
42.00 hrs
System
Alternate Designation
Evo II Enterprise
Type
Vertical Take-Off and Landing (VTOL) Unmanned Aerial Vehicle (UAV)
Manufacturer
Autel Robotics
Crew
Unmanned
Operating Frequency
2.400GHz - 2.4835GHz；5.725GHz - 5.850GHz
Payload Capacity
INA
Operating Temperature
14℉ to 104℉ (-10℃ to 40℃)
Launching System
Vertical Take-Off and Landing (VTOL)
Recovery System
Vertical Take-Off and Landing (VTOL)
Accessories
Loudspeaker
Power：Max 18W；Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m；
Max Bitrate：36kbps；Adjustable Angle Range：0°~45°
Strobe
Power：Avg. 1.6W；Controllable Range：5000m；
Light intensity：Min 50cd；Max 486cd；Avg. 290cd
Spotlight
Power：Max 35W；Controllable Range：30m
Adjustable Angle Range：0°~90°；Illuminance：FOV17°, Max：11lux @ 30m Straight
RTK Module
Power：~ 3W; RTK Positioning Precision：
1.5 cm + 1 ppm（(Vertical; 1 cm + 1 ppm（Horizontal）
Dimensions
Diagonal Length
327 mm
Height
INA
Maximum Takeoff Weight
110 kg
Automotive
Engine Name
INA
Engine Type
Electric
Engine Power
INA
Hovering Accuracy Range
Vertical:± 0.3ft (0.1m) (with RTK)；± 0.3ft (0.1m) (with Vision Positioning)；
± 1.6ft (0.5m) (with GPS Positioning)
Horizontal：
± 0.3ft (0.1m) (with RTK)；± 0.9ft (0.3m) (with Vision Positioning)；± 4.9ft (1.5m) (with GPS Positioning)
Operation Range
Pitch: -135° to +45°; Yaw: -100° to +100
Stability
More Stable with 3 Axies
Max Control Speed (Tilt)
300°/s
Angular Vibration Range
±0.005°
Max Wind Speed Resistance
17m/s
Endurance
42 min (without accessories；38 min (with strobe) 29 min (with spotlight；
34min（with loudspeaker; 36min（with RTK module）
Details
Country of Origin
China
Category
Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Air > Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Filter Label
E
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
110 kg
Operators (1)
China
