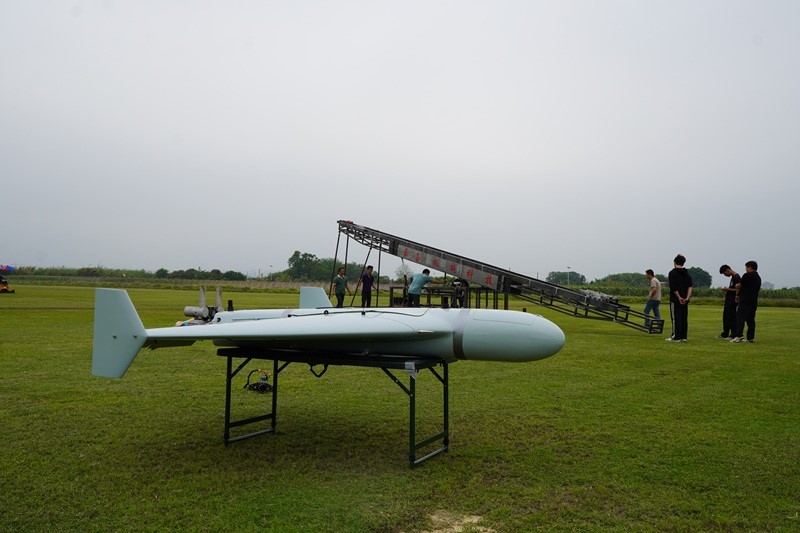

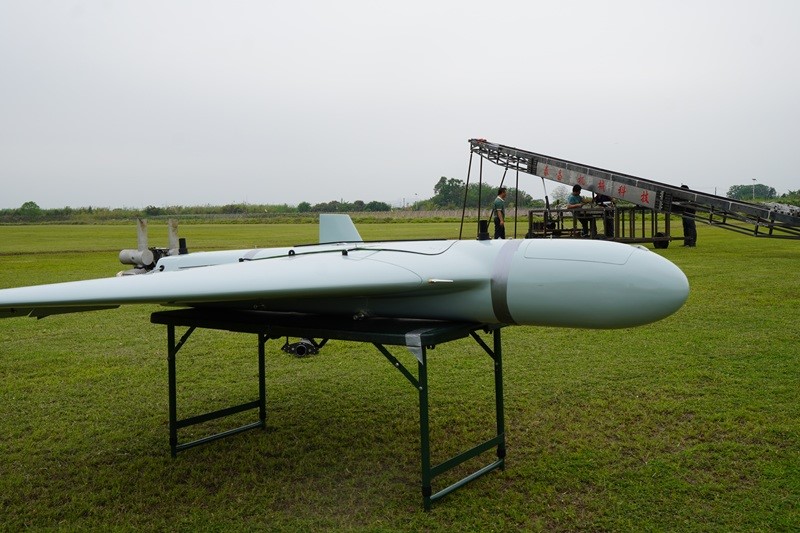

H70P Chinese Unmanned Aerial Vehicle (UAV)

H70P

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
H70P Chinese Unmanned Aerial Vehicle (UAV)
Designation
H70P
Alternate Designation
H70P
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Hinaray (a brand of Huizhou Zhonghe Aviation Technology Co
Date of Introduction
2025
Description

The H70P Chinese Unmanned Aerial Vehicle (UAV) is a domestically produced hybrid Vertical Takeoff and Landing (VTOL) fixed-wing UAV developed for tactical military applications, such as precision strike, intelligence, surveillance, reconnaissance (ISR), and border patrol. The system is marketed as a "Military Attack Drone" and is capable of runway-independent operations due to its hybrid propulsion system, which integrates electric VTOL motors for vertical lift with a fuel engine for extended fixed-wing endurance. The H70P addresses the increasing demand for runway-independent tactical drones by bridging the operational gap between small quadcopters, which have limited range and endurance, and larger fixed-wing systems that require runways or catapults. This platform provides battalion-level units with a persistent, organic strike and ISR capability.

Air & Air Defense Specifications
Engine Hybrid (Battery for VTOL + Gasoline/Heavy Fuel Engine for Cruise)
Max Speed 80.0 km/h
Cruise Speed 130.0 km/h
Range 30.0 km
Endurance 10.00 hrs
Service Ceiling 6000 m
Wingspan 2.04 m
Payload Capacity 15 kg
System
Alternate Designation H70P
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Hinaray (a brand of Huizhou Zhonghe Aviation Technology Co.
Material Composition Carbon fiber composite + Kevlar wing + PVC foam sandwich
Payload Capacity 15 kg
Operating Temperature -10℃ to 45℃
Dimensions
Length 2.26 m
Height INA
Wingspan 2.04 m
Maximum Takeoff Weight 70 kg
Automotive
Engine Name INA
Engine Type Hybrid (Battery for VTOL + Gasoline/Heavy Fuel Engine for Cruise)
Engine Power INA
Fuel Tank Capacity 19 Liters
Maximum Speed 80 km/h
Cruise Speed 130–150 km/h
Climb Speed 3.5 m/s
Descent Speed 1.5 m/s
Maximum Range Control Link Radius is limited to 30 km via Ground Control Station (GCS).
Service Ceiling 6,000 m
Endurance 10 hours with a 15 kg payload
Wind Resistance Level 5 (takeoff/landing), Level 6 (cruise)
Details
Country of Origin China
Category UAVs
Air > UAVs
Filter Label
H
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
2.26 m
Width
2.04 m
Height
Weight
70 kg
Operators (1)
China
